Sida 1/150

VPC-CG10EX
VPC-CG10
VPC-CG10GX
INSTRUCTION MANUAL
Dual Camera
Please read these instructions carefully before using the camera.
Make sure to read and understand the separate booklet “SAFETY MANUAL”.
Keep this manual in a safe place for later reference.
Important note
This manual explains how to safely operate the VPC-CG10EX, VPC-CG10
and VPC-CG10GX.
Any information regarding only one of these products will be labeled as such.

i English
HOW TO READ THIS MANUAL
For first-time users
Please read the sections on “SETUP” and “SIMPLE” in this manual,
as well as the included “QUICK GUIDE” to familiarize yourself with
your camera’s operation.
↓
To use the various camera features
Please read the sections on “NORMAL” and “OPTION SETTINGS” in
this manual. To connect the camera to a computer or view images on
a TV, please read the section on “OTHER DEVICES AND
CONNECTIONS” in this manual.
↓
To use additional features
Visit the Sanyo website to learn how to adjust the camera settings for
various shooting scenes. There you’ll also find information about the
software for playing back data recorded with your camera and for
burning (recording) DVDs (page 151).
You may find the answers to questions or problems concerning camera
operation in the sections “COMMONLY ASKED QUESTIONS” (page 164)
and “TROUBLESHOOTING” (page 172).
Symbols used in this manual
HINT Points giving some extended instructions or special points to pay
attention to.
CAUTION Points that require special attention.
(page xx) Refer to the page indicated for detailed information.

English ii
SHOOT, PLAY BACK AND SAVE
Preparing the camera
1 Insert the battery pack.
2 Insert the SD Memory Card.
h An SD Memory Card is not included with your camera. Please
purchase a commercially sold card.
h In this manual, the SD Memory Card is referred to as the “card”.
1 While pressing, push
towards the bottom.
2 Open
3 Insert by matching the
connector markings
4 Close
Battery cover
Connector
markings
Monitor unit
1 Open
Card slot cover
2 Open
Card
3 Insert
4 Close

iii English
SHOOT, PLAY BACK AND SAVE
Shooting
1 Press the ON/OFF button
for at least 1 second to turn
the camera on.
h If the screen to set the
date and time appears,
press the MENU button 2
times to cancel it.
For how to set the date
and time, see page 33.
2 Record.
To record a video clip:
hPress the [ ] button to
begin recording a video
clip.
hPress the [ ] button
again to end the
recording.
To take a photo:
hPress the [ ] button.
h A still image is captured.
10
M
-
S
357 00:13:51
357 00:13:51
357 00:13:51
357 00:13:51
357 00:13:51357 00:13:51
357 00:13:51
ON/OFF button
[ ] button
[ ] button
MENU button

English iv
Before capturing those important shots, be sure to first take a
test shot to confirm that your camera is set up and ready to go
i
Sanyo declines any claim for compensation for recorded contents etc. in case
of photographing or recording failure due to a chance camera or card flaw.
Playback
1
Press the REC/PLAY
button.
h
The display changes to
the Playback Screen.
2
Select the image to play
back.
h Toggle the SET button
left, right, up or down to
move the orange frame
to the image you wish to
play back.
h The image information
for the framed image is
shown at the bottom of
the screen.
HD-SHQ
100-0006
00:00:05
6.5MB
OK
2009.12.24 18:41
SET button
REC/PLAY button
Remaining battery power idication
Orange frame

v English
SHOOT, PLAY BACK AND SAVE
3 Press the SET button.
h Playback begins.
<To return to the recording mode>
h Press the REC/PLAY button.
When you are finished using the camera...
Press the ON/OFF button for at least 1 second to turn the camera off.

English vi
Copy files to the computer (Windows XP)
Connect your camera to a computer, and copy files to the computer.
1 Turn on the computer, and use the supplied dedicated USB interface
cable to connect your camera to the computer.
h Connect the cable between the camera’s USB/AV terminal and the
computer’s USB connector.
2 Turn on the camera (page 30).
h The USB Connection Screen appears on the camera’s monitor.
3 Select “COMPUTER”, and press the SET button.
h The screen to select the computer connection mode appears.
COMPUTER
PRINTER
CANCEL
OKCANCEL
USB CONNECTION
To USB/AV terminalTo USB connector on
the computer
Supplied
dedicated USB
interface cable
SET button

vii English
SHOOT, PLAY BACK AND SAVE
4 Select “CARD READER”, and press the SET button.
h The message [Found New Hardware] appears in the task tray,
showing that the camera is recognized as a drive.
h The card is recognized (mounted) as a disk, and the [XACTI (E:)] icon
appears in the [My Computer] window.
h The drive name (E:) may be different on your computer.
<If the access menu (page 153) appears>
h Click on [Exit] to cancel the access menu.
5 Select an action.
h If the [XACTI (E:)] window appears automatically, select the desired
procedure from the window.
6 Copy files from the camera to a computer.

English viii
Dismounting the camera
CAUTION
i To disconnect your camera, be sure to follow the procedure below. Failure
to follow this procedure may cause faulty operation of your computer or
corrupt the files in your camera.
1 Left-click on the icon for safely removing hardware in the task tray.
h A list appears showing the devices connected to the computer’s USB
connector.
2 Left-click on the camera drive (E:).
h The camera can now be disconnected.
h The drive name (E:) may be different on your computer.
No software is included with this camera. Instructions for obtaining
the software can be found on page 152.

1 English
CONTENTS
HOW TO READ THIS MANUAL ............................................................. i
QUICK SEARCH BY OPERATION ............ ..................... ....................... 6
CHECKING THE INCLUDED ACCESSORIES .................................... 11
How to use the accessories .......................................................... 13
ABOUT THE CARD ............................................................................. 14
Media cards that can be used with this camera ............................ 14
What “card” means in this manual ................................................ 14
GETTING THE MOST OUT OF YOUR CAMERA ............................... 15
High-quality images with “High Definition” .................................... 15
Includes SIMPLE mode for quick-and-easy operation .................. 16
Image stabilizer for sharp pictures ................................................ 16
Sharp face shots ........................................................................... 17
SYSTEM MAP ..................................................................................... 18
SETUP
PARTS NAMES ................................................................................... 19
CHARGING THE BATTERY PACK ..................................................... 21
Charging the battery pack ............................................................. 22
INSTALLING THE CARD ..................................................................... 24
INSTALLING THE BATTERY PACK .................................................... 26
Installing the DC adaptor (sold separately: VAR-A3U/A3EX) ....... 27
About the temperature alert icon \ .......................................... 29
TURNING THE CAMERA ON AND OFF ............................................. 30
Turning on the camera .................................................................. 30
Turning on the camera when the power save (sleep) mode is
active ........................................................................................ 31
Turning off the camera .................................................................. 32
DATE AND TIME SETTING ................................................................. 33
SWITCHING BETWEEN THE RECORDING MODE AND
PLAYBACK MODE .......................................................................... 36
SWITCHING THE OPERATING MODE .............................................. 37
Switching between the SIMPLE and NORMAL modes ................ 37
Accessing/exiting the SIMPLE/NORMAL Mode Menu Screen ..... 38
Overview of the SIMPLE Mode Setting Screen ............................ 43
Overview of the NORMAL Mode Setting Screen .......................... 47

English 2
SIMPLE
SHOOTING
BEFORE TAKING PICTURES .............................................................55
For best results ..............................................................................55
Using the autofocus .......................................................................56
Select the recording size ...............................................................59
Select the focus setting .................................................................60
Hints for taking pictures .................................................................61
VIDEO CLIP RECORDING ...................................................................62
SHOOTING SINGLE SHOTS ...............................................................63
Using the flash ...............................................................................65
SHOOT A STILL IMAGE WHILE RECORDING A VIDEO CLIP ..........67
MACRO-PHOTOGRAPHY (ZOOM) .....................................................69
PLAYBACK
PLAYING BACK VIDEO CLIPS AND STILL IMAGES ..........................70
How to save one frame from a video clip as a still image .............73
SLIDESHOW PLAYBACK ....................................................................74
PLAYBACK VOLUME ...........................................................................75
DELETING FILES .................................................................................76
Delete single/delete all ..................................................................76
Delete selected ..............................................................................77
PLAYBACK MODES .............................................................................79
21-image display playback ............................................................79
Selecting the playback folder ........................................................80
Magnifying (zooming in) the image ...............................................81

3 English
CONTENTS
NORMAL
SHOOTING
RECORDING MENU 1 ......................................................................... 82
Video setting ................................................................................. 82
Still image setting .......................................................................... 85
Scene select setting ...................................................................... 86
Filter setting .................................................................................. 86
Self-timer setting ........................................................................... 87
RECORDING MENU 2 ......................................................................... 88
Video stabilizer setting .................................................................. 88
Focus range setting ...................................................................... 89
Focus mode setting ...................................................................... 90
Light-measuring mode setting ...................................................... 90
ISO sensitivity setting ................................................................... 91
RECORDING MENU 3 ......................................................................... 92
White balance setting ................................................................... 92
Exposure setting ........................................................................... 93
Face chaser setting ...................................................................... 94
High sensitivity mode setting ........................................................ 95
Exposure compensation ............................................................... 96
PLAYBACK
PLAYBACK MENU 1 ........................................................................... 98
Slideshow settings ........................................................................ 98
File protect setting ........................................................................ 99
Resize ......................................................................................... 102
Rotate ......................................................................................... 102
PLAYBACK MENU 2 ......................................................................... 103
Correcting the image .................................................................. 103
Editing video clips ....................................................................... 104
Printing instructions .................................................................... 115
FILE INFO DISPLAY .......................................................................... 119

English 4
OPTION SETTINGS
DISPLAY THE OPTION SETTING MENU .........................................120
INTRODUCTION TO THE OPTION SETTING MENU .......................121
Storage folder setting ..................................................................127
Shortcut setting ...........................................................................128
Screen language .........................................................................130
TV output setting .........................................................................131
File No. continued setting ............................................................135
Formatting (initializing) ................................................................137
CHECKING THE REMAINING CARD MEMORY ...............................138
Checking the remaining number of images and
video recording time ................................................................138
For audio recordings ...................................................................139
CHECKING THE REMAINING BATTERY PACK CHARGE ..............140
OTHER DEVICES AND CONNECTIONS
CONNECTING TO A COMPUTER
OPERATING ENVIRONMENT ...........................................................142
When using as a card reader ......................................................142
To access the files in the internal memory ..................................142
SETTING THE CONNECTION MODE ...............................................143
USING AS A CARD READER ............................................................145
For Windows Vista/XP users .......................................................145
For Windows 2000 users .............................................................146
For Mac OS X users ....................................................................147
ABOUT THE CONTENTS OF THE CARD .........................................148
Configuration of directories in the card ........................................148
File formats ..................................................................................148
Cautions when using as a card reader ........................................149
USING AS A PC CAMERA .................................................................150
For Windows XP ..........................................................................150
Using as a PC camera ................................................................150
USING THE SOFTWARE ...................................................................151
Operating environment ................................................................151
Obtaining the software ................................................................152
SAVE AN IMAGE OF YOUR COMPUTER SCREEN .........................155
Install Screen Capture .................................................................155
How to use Screen Capture ........................................................156

5 English
CONTENTS
CONNECTING TO A TV
CONNECTING TO A TV .................................................................... 157
Connecting to a standard video input terminal ........................... 158
Connect to the 480p/720p terminal ............................................. 159
PLAYING BACK ON A TV ................................................................. 160
CONNECTING TO A PRINTER
PRINTING .......................................................................................... 161
APPENDICES
COMMONLY ASKED QUESTIONS ................................................... 164
TROUBLESHOOTING ....................................................................... 172
Camera ....................................................................................... 172
Notes regarding the Scene Select feature and filters ................. 180
SPECIFICATIONS ............................................................................. 182
Camera ....................................................................................... 182
Camera connectors .................................................................... 186
Battery life ................................................................................... 186
Possible No. of Images/Possible Shooting Time/
Possible Recording Time ....................................................... 187
Concerning the multi-indicator .................................................... 188
Supplied battery pack charger .................................................... 189
Supplied Li-ion battery pack ....................................................... 189
Others ......................................................................................... 190
Before capturing those important shots, be sure to first
take a test shot to comfirm that your camera is set up and
ready to go ............................................................................. 191
HINTS FOR TAKING PICTURES ...................................................... 192

English 6
QUICK SEARCH BY OPERATION
Your camera has an abundance of convenient features and functions. From
creating precisely the photo you want, to viewing images using various
techniques, you can locate the exact operation for your purposes in the
following table.
Shooting/recording
Basic operation Convenient functions Additional functions
Getting started
shooting/recording
• “VIDEO CLIP
RECORDING” on
page 62
• “SHOOTING SINGLE
SHOTS” on page 63
• “Sequential shots” on
page 85
• “Audio recording” on
page 82
Log the date and time
of your photos
• “DATE AND TIME
SETTING” on page 33
Zoom in on the
subject
• “MACRO-
PHOTOGRAPHY
(ZOOM)” on page 69
Close-up
photography
• “Focus range” (super
macro mode) on
pages 44 and 50
• “Select the focus setting”
(super macro mode) on
page 60
For more accurate
focus
• “How to use the manual
focus” (manual focus) on
page 89
Set the focus to a
narrow range
• “Focus mode setting” on
page 90
Reduce noise when
recording
• “NOISE REDUCTION
setting” on page 124
Optimize the photo
quality
• “Select the recording
size” on pages 44 and
59.
• “Video setting” on
pages 48 and 82
• “Still image setting” on
pages 48 and 85
Set the camera’s color/contrast
characteristics
• “Image quality setting” on page 124
Capture fast-moving subjects
• “Scene select” (sports mode) on page 48
Suppress camera shake effect
• “Video stabilizer setting” on pages 50 and 88

7 English
QUICK SEARCH BY OPERATION
Shoot in dark conditions
• “Exposure compensation” on page 96
• “Using the flash” on pages 44, 48 and 65
• “Scene select setting” (night view portrait mode/fireworks mode/lamp mode) on pages 48
and 86
Increase the camera’s sensitivity
• “ISO sensitivity setting” on pages 50 and 91
• “High sensitivity mode setting” on pages 52 and 95
Photographing people
• “Scene select setting” (portrait mode/night view portrait mode) on pages 48 and 86
• “Filter setting” (cosmetic filter) on pages 48 and 86
Sharp face shots
• “Face chaser setting” on pages 52 and 94
Simplified operation for shooting/playback
• “SWITCHING BETWEEN THE RECORDING MODE AND PLAYBACK MODE” on page 36
Photographing landscapes
• “Scene select” (landscape mode) on page 48
Take a self-photo
• “Self-timer setting” on pages 48 and 87
Make images lighter
or darker
• “Exposure compensation”
on page 96
• “High sensitivity mode
setting” pages 52 and 95
Measure the
brightness of a
specific area
• “Light-measuring mode
setting” on pages 50 and
90
Adjust the camera’s
sensitivity
• “ISO sensitivity setting”
pages 50 and 91
For a more precise
exposure setting
• “Exposure setting”
(manual exposure control)
on pages 52 and 93
Change the color of
the images
• “Filter setting”
(monochrome filter/sepia
filter) on pages 48 and 86
Make white appear
natural
• “White balance setting” on
pages 52 and 92
Shooting/recording
Basic operation Convenient functions Additional functions

English 8
Playback
Basic operation Convenient functions Additional functions
Getting started
viewing images
• “PLAYING BACK VIDEO
CLIPS AND STILL
IMAGES” on page 70
Adjust the speaker
volume
• “PLAYBACK VOLUME”
pages 53 and 75
Search for image/
audio files
• “21-image display
playback” on page 79
• “Selecting the playback
folder” on pages 54 and
80
Magnify an image
• “Magnifying (zooming in)
the image” on page 81
Change the angle of
view
• “Rotate” on pages 53 and
102
Reduce the photo
size
• “Resize” on pages 53
and 102
• “Audio playback” on
page 84
Adjust the speaker volume
• “PLAYBACK VOLUME” on pages 53 and 75
Continuous playback
• “SLIDESHOW PLAYBACK” on pages 46, 74 and 98
Adjust the monitor brightness
• “Adjusting the monitor brightness” on page 64
• “BRIGHTNESS setting” on page 124
Playback on a TV
• “PLAYING BACK ON A TV” on page 160
Set the TV system
• “TV output setting” on pages 124 and 131

9 English
QUICK SEARCH BY OPERATION
File managing/processing
Basic operation Convenient functions Additional functions
Search for image/audio files
• “21-image display playback” on page 79
• “Selecting the playback folder” on pages 54 and 80
Delete files
• “DELETING FILES” on
pages 46, 53 and 76
Protect files from accidental erasure
• “File protect setting” on pages 53 and 99
Format a card
• “Formatting (initializing)” on pages 126 and 137
Delete a part of a video clip and join video clips
• “Editing video clips” on pages 54 and 104
Specify the number of prints, index print, and date imprint
• “Printing instructions” on pages 54 and 115
View the settings that were in effect when the image/audio files were
recorded
• “FILE INFO DISPLAY” on page 119

English 10
Using with a computer
Basic operation Convenient functions Additional functions
Use the camera as a card reader
• “SETTING THE CONNECTION MODE” on page 143
• “USING AS A CARD READER” on page 145
Use your computer to organize/edit files that were recorded with your
camera
• “USING THE SOFTWARE” on page 151
Copy data from your
camera to a computer
• “Copy files to the
computer (Windows XP)”
on page vi
• “OPERATING
ENVIRONMENT” on
page 142
• “SETTING THE
CONNECTION MODE”
on page 143
Using with Windows Vista
• “SETTING THE CONNECTION MODE” on page 143
Playback
• “About video clip files recorded with this camera” on page 149
Using as a webcam
• “USING AS A PC CAMERA” on page 150
Record an image of the computer screen
• “Install Screen Capture” on page 155

11 English
CHECKING THE INCLUDED ACCESSORIES
i
i
i
ii i
i
i
iiLi-ion battery pack: 1 Lithum-ion battery pack
charger and power card: 1
i
i
i
ii Dedicated USB interface
cable (page 143): 1
i
i
i
ii Dedicated AV interface cable
(page 158): 1
i
i
i
ii Lens cap (page 13): 1

English 12
i
i
i
ii “SAFETY MANUAL”
(safety precautions booklet)
Please read this booklet
carefully before using the
camera.
i
i
i
ii Quick Guide
Included with model
VPC-CG10GX. Not included
with other models.
i
i
i
ii Obtaining the PDF instruction
manual and cautions

13 English
CHECKING THE INCLUDED ACCESSORIES
How to use the accessories
k
k
k

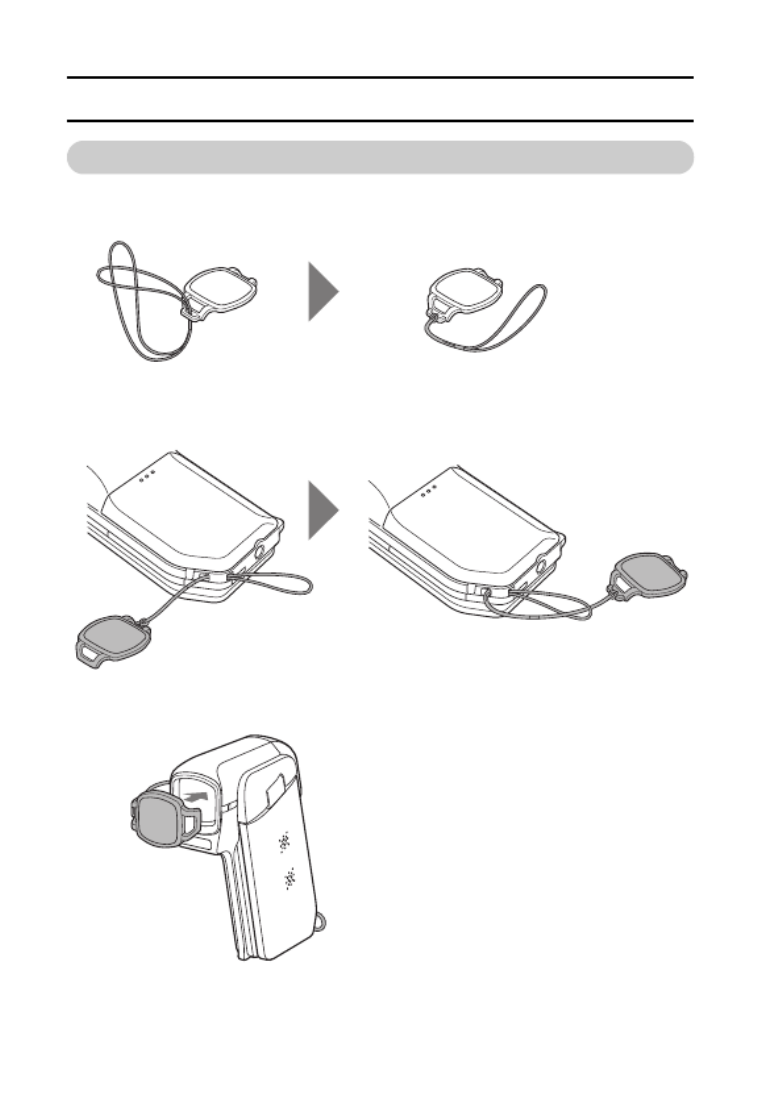

kk How to attach the lens cap
1 2
3
5
4

English 14
ABOUT THE CARD
Media cards that can be used with this camera
The type of card that can be inserted into and used with this camera is:
i SD Memory Card
i SDHC Memory Card
What “card” means in this manual
i In this manual, SD Memory Cards and SDHC Memory Cards that can be
used in this digital camera are referred to as “card”.

15 English
GETTING THE MOST OUT OF YOUR
CAMERA
Your dual camera can record video clips in High Definition.
High-quality images with “High Definition”
(pages 48, 59 and 82)
Your camera can capture high definition (HD) 1280 ×720-pixel video clips.
Also, the H.264/MPEG-4 AVC standard is used for formatting video files. You
get both compact file size and high picture quality in one high-performance
camera.

English 16
Includes SIMPLE mode for quick-and-easy
operation (page 37)
Select from two recording/playback modes: the “SIMPLE mode” for users new
to the camera, and the “NORMAL mode” for full use of all the camera’s many
features and functions.
Example:
Image stabilizer for sharp pictures (pages 50
and 88)
Your camera can compensate for the camera shake that results in blurry
images when you try to capture a fast-moving subject, or when you zoom in
while recording a video clip.
3
2
1
2
3
1
S
N
HD-SHQ
Select video
and photo size
OKEXIT
RECORDING MENU
VIDEO
SCENE SELECT
FILTER
FLASH
SELF-TIMER
OKEXIT
1
<SIMPLE Mode Recording
Menu>
<NORMAL Mode Recording
Menu>

17 English
GETTING THE MOST OUT OF YOUR CAMERA
Sharp face shots (pages 52 and 94)
Your camera is equipped with a face recognition feature which detects the
subject’s face even when slightly lit from behind or in dim surroundings and
automatically adjusts the focus and brightness to compensate. Now those
otherwise perfect photos that are marred by shadowed faces can be
minimized.

English 18
SYSTEM MAP
You can connect the camera to various devices to expand its capabilities.
Dedicated USB
interface cable
Dedicated AV
interface cable
Computer
Printer
TV
DC adaptor
(Optional)
Commercially available
SD Memory Card
Internet
i Card reader
i DPOF-compatible
printer
i Photo shop
AC adaptor
(Optional)

19 English
SETUP
SETUP
PARTS NAMES
Front
Bottom
Flash
Lens Stereo microphone
Monitor unit
ON/OFF button
Tripod stand hole
Battery cover
USB/AV terminal

English 20
SETUP
Rear
Multi-indicator
[ ] button
[ ] button
Speaker
MENU button
Monitor
SET button
ON/OFF button
REC/PLAY button
Card slot cover
Strap holder
Zoom switch [T/]]/[W/P]

21 English
CHARGING THE BATTERY PACK
Please charge the supplied battery pack before using it.
1 Connect the supplied power
cord to the socket on the
battery pack charger.
h Insert the connector straight
and securely.
2 Insert the battery pack in the
battery charger.
h Insert it in the direction
indicated by the [o] mark
on the battery pack.
3 Plug the power plug into a
power outlet (AC 100 V to
240 V).
h Charging begins.
h The CHARGE indicator is lit
during charging.
4 When the CHARGE indicator
turns off, unplug the power
cord from the power outlet,
and remove the battery pack
from the charger.
HINT
iCharging takes approximately 120 min.
Battery pack
[o] mark
To power outlet
Battery pack charger
Power cord
CHARGE
indicator
Battery pack charger

English 22
SETUP
Charging the battery pack
Be sure to fully charge the supplied or separately sold battery pack before
using it in your camera. For charging the battery pack, use the supplied
charger.
Charge the battery pack if it is being used for the first time, and recharge it
whenever the remaining charge is low.
Does the battery pack feel hot?
i During charging, the charger and battery pack will be warm. This is normal
and does not indicate a malfunction.
If there is interference to your TV or radio during charging...
i Move the battery pack and charger further away from the TV or radio.
Ambient temperature during charging
i It is recommended that the ambient temperature during charging be
between about 10°C and 35°C (50°F and 95°F). Due to the characteristics
of the battery pack, at temperatures below 0°C (32°F), it may not be
possible to sufficiently charge it.
i When the battery pack temperature is high, the safety function may be
activated and halt charging.
Charge a battery pack in the following cases
i A battery pack which has not been used for a long time
i Newly purchased battery pack
FOR AMERICAN USERS:
i Use a UL Listed, 1.8-3m (6-10ft), Type SPT-2 or NiSPT-2, AWG No.18
power supply cord, rated for 125V 7A, with a non-polarized NEMA 1-15P
plug rated for 125V 15A.

23 English
CHARGING THE BATTERY PACK
About the CHARGE indicator
The CHARGE indicator shows the status of the battery pack and the charger.
Please refer to the following table if the indicator flashes abnormally.
CAUTION
Do not charge the battery pack immediately after the camera has been
in continuous use for a long time
i The battery pack becomes hot when the camera is used continuously for a
long time. If you attempt to charge the battery pack in this state, the safety
function may be activated and it may not be possible to charge the battery
pack. Wait until the battery pack has cooled down before attempting to
charge it.
CHARGE indicator
Not lit Not connected properly
i To recharge the battery pack, the power cord of the
charger must be connected to a power outlet, and the
plug at the other end inserted in the charger’s power
socket (page 21).
i The battery pack is not installed, or it is not installed
correctly (page 21).
Charging finished
Lit Charging
Flashing Problem with the battery pack or battery pack charger
i Immediately remove the battery pack from the charger.
i Do not use an abnormal battery pack. (The usable life of
the battery pack has probably expired.)

English 24
SETUP
INSTALLING THE CARD
Be sure to format a newly purchased card or one that was used in another
device before using it in your camera (pages 126 and 137). If an unformatted
card is used, the card itself may become unusable.
1 Insert the card.
Card slot cover
2 Open
Card
3 Insert
4 Insert the card until it
clicks into place
Monitor unit
1 Open

25 English
INSTALLING THE CARD
2 Close the card slot cover.
<When removing the card...>
h To remove the card, press it in,
and then release. The card will
protrude slightly, and you can then
pull it out.
CAUTION
Do not attempt to forcibly remove the card
i Doing so may damage the card or the stored files.
If the multi-indicator is flashing red...
i Never remove the card when the multi-indicator is flashing red, as doing so
may result in loss of files stored in the card.
HINT
Shooting without a card installed
i When a card is installed, images are recorded to and played back from the
card. When no card is installed, images are recorded to and played back
from the camera’s internal memory. When the camera is turned on with no
card installed, the internal memory icon is shown on the monitor to let
you know that the images you capture will be saved to the camera’s
internal memory.
Close
2 Push in, then
pull out
1 Open

English 26
SETUP
INSTALLING THE BATTERY PACK
Please charge the supplied battery pack before using it.
1 Open the battery cover.
2 Insert the battery pack.
h Take care that it is
positioned correctly.
2 Open
1 While pressing, push
towards the bottom.
Battery cover
3 Insert by matching the
connector markings
4 Close
Connector
markings

27 English
INSTALLING THE BATTERY PACK
Installing the DC adaptor (sold separately:
VAR-A3U/A3EX)
3 Close
1 Insert
2 Set the cord in
the groove

English 28
SETUP
CAUTION
Does the battery pack appear swollen?
i The lithium-ion battery used in this camera may expand slightly when
stored in a hot environment or repeatedly used, but this is not a safety
hazard.
HINT
About the internal backup battery
i This camera’s internal battery serves to maintain the date and time
settings, as well as the shooting settings. The backup battery will be fully
charged when the battery pack is kept in the camera continuously for about
2 days. In the fully charged state, the backup battery will maintain the
camera settings for about 7 days.
When not using the camera for a long time, remove the battery pack
i A small amount of power is still used even if the camera is turned off, and it
is therefore recommended that the battery pack be removed from the
camera if it is not going to be used for a long time. Note that when the
battery pack is removed for a long period, the time and date settings may
be cleared. Before using your camera again, be sure to confirm that the
camera settings are correct.
To prolong the life of the battery pack
i Although the battery pack is an expendable item, you can maximize the life
of the battery by heeding the following suggestions.
h Do not leave the battery under the hot summer sun or exposed to other
high-temperature environments.
h Do not continually recharge the battery when it is already fully charged.
After fully charging it once, for example, use it for a while to partially
discharge it before recharging it again.
h When the battery is not to be used for a long time, if possible store the
partially charged (not fully charged) battery in a cool environment.

29 English
INSTALLING THE BATTERY PACK
About the temperature alert icon
\
During camera use, if the temperature of the battery or inside the camera
(excluding the battery) rises, a temperature alert icon \ will appear as
described below.
k
k
k
kk When the battery or internal camera (excluding battery) temperature
rises during use
hDuring camera use, if the temperature of the battery or inside the
camera (excluding the battery) rises, a \ icon lights on the monitor. It
is still possible to record and play back even when the \ icon is lit;
however it is advised that you discontinue use as soon as possible and
turn the camera off.
hIf the temperature rises further, the \ icon will start to flash, and the
camera will turn off automatically.
The camera cannot be turned on until the temperature has dropped (or
as long as the \ icon remains flashing). Please wait until the
temperature has dropped before resuming use.
hDuring video recording, a countdown indicator will show the time
starting about 15 seconds before shutdown. When the indicator shows
0 seconds, recording stops.
hIf the camera is turned off while the temperature is high (that is, while
the \ icon is flashing), it cannot be turned on again until the
temperature has dropped (or as long as the \ icon remains flashing).

English 30
SETUP
TURNING THE CAMERA ON AND
OFF
Turning on the camera
1 Open the monitor unit, and press
the ON/OFF button for at least
1 second.
h If you press the REC/PLAY button
for at least 1 second, the camera
turns on in the playback mode.
h If you briefly press the ON/OFF
button, once, the camera will switch
to the power save mode.
Monitor unit
REC/PLAY button
ON/OFF button

31 English
TURNING THE CAMERA ON AND OFF
Turning on the camera when the power save
(sleep) mode is active
In order to preserve battery pack power, the power save (sleep) function will
automatically turn off the camera after about 1 minute of no use during
shooting, or about 5 minutes of no use during playback (factory-preset
setting).
i When the power save mode is active, you can restore the power by any of
the following methods:
h
h
h
hh Press the ON/OFF button.
h
h
h
hh Press the [ ] or [ ] button.
h
h
h
hh Open the monitor unit.
h
h
h
hh Press the SET button.
h When the MENU button is used to turn on the camera, the screen to
set the operation sounds appears.
iAfter the power save mode has been active for about 1 hour, the camera
will switch to the standby mode. In this case, you can restore the power by
pressing the ON/OFF button, or by closing and then opening the monitor
unit.
i When the AC adaptor is connected, the power save mode will become
active about 5 minutes after the camera is turned on (factory-preset
setting).
i The user can specify the time elapsed before the power save mode is
activated (page 126).
i When the camera is connected to a computer or printer, the power save
mode becomes active after about 12 hours.

English 32
SETUP
Turning off the camera
1 Press the ON/OFF button for at least
1 second.
h The camera turns off.
HINT
To immediately activate the power save mode
i Press the ON/OFF button briefly to activate the power save function.
About the standby mode
i To turn off the camera only briefly, you can close the monitor unit to put the
camera in the standby mode. The standby mode uses almost no power.
When the monitor unit is opened again, the camera turns on immediately
and you are ready to shoot or view images without any delay.
CAUTION
If the K icon appears...
i When a picture is taken, the date and time it was captured are recorded
with it. If the date and time settings have not been completed (page 33),
the date and time cannot be recorded with the captured images. For this
reason, immediately after the camera is turned on, the “Set date and time”
reminder briefly appears, after which the K icon is shown on the
Recording Screen. To have the date and time recorded with the images,
please complete this setting before capturing images.
ON/OFF
button

33 English
DATE AND TIME SETTING
The camera will record the date and time an image or audio recording is
taken so that you can display them during playback. Therefore, before
capturing images, make sure the correct date and time are set.
hTo correct the date and time setting, please see under HINT on page 35.
Example: To set the clock to 7:30 p.m. on December 24, 2009
1 Turn on the camera (page 30),
and press the SET button.
h The Clock Set Screen appears.
h Follow the procedures below to
enable or disable the date
display during playback, to set
the display format for the date,
and to set the date and time.
h To display the Recording or
Playback Screen, press the
MENU button 2 times.
2 Set the date.
1 Select “DATE”.
2 Press the SET button.
h The Set Date Screen
appears.
3 Set the date to “2009/12/24”.
h The date is set in the
following order: Set the year
→ → Set the month Set the
day.
h Toggle the SET button left or
right to select year, month or
day. Toggle the SET button up
or down to increase or
decrease the number.
4 Press the SET button.
CLOCK SET
DATE
TIME
DISP
OK
2009/02/01
00:00
Y / M / D
CLOCK SET
DATE
2009/12/24
OK

English 34
SETUP
3 Set the clock.
1 Select “TIME”.
2 Press the SET button.
h The Set Time Screen
appears.
3 Set the time to “19:30”.
h The time is set in the
following order: Set the hour
→ Set the minute.
h A 24-hour clock is used for
the time display.
4 Press the SET button.
4 Set the order in which the date is
displayed during playback.
1 Select “DISP”.
2 Press the SET button.
h The Set Date Format Screen
appears.
3 Toggle the SET button up or
down.
h Toggle the SET button up to
change the displayed date
order as follows:
Toggle the SET button down to change it in the reverse order.
4 Press the SET button.
19:30
TIME
CLOCK SET
OK
CLOCK SET
OK
DISP Y / M / D
Y / M / D
→
M / D / Y →
D / M / Y

English 36
SETUP
SWITCHING BETWEEN THE RECORDING
MODE AND PLAYBACK MODE
Switch between the recording mode (for recording) and the playback mode
(for viewing your recorded images).
1 Turn on the camera (page 30).
10
M
-
S
357 00:13:51
357 00:13:51
357 00:13:51
357 00:13:51
357 00:13:51357 00:13:51
357 00:13:51
HD-SHQ
100-0006
00:00:056.5MB
OK
2009.12.24 18:41
2 Press the REC/PLAY
button.
h The mode changes.
h The mode changes each
time the REC/PLAY button
is pressed.
REC/PLAY button
<Example of the recording
mode>
<Example of the playback
mode>

37 English
SWITCHING THE OPERATING MODE
The “SIMPLE mode” comprises only those functions that are most often used
and necessary to operate the camera, while the “NORMAL mode” enables
full use of all the camera’s many functions. Select the mode that is suitable for
your purposes.
Switching between the SIMPLE and NORMAL
modes
1 Turn on the camera (page 30).
h The previous mode is active.
2 Press the MENU button.
h The Menu Screen for the active mode appears.
3 Select the operating mode icon,
and press the SET button.
h Switch from the SIMPLE mode
to the NORMAL mode, or from
the NORMAL mode to the
SIMPLE mode.
h Press the MENU button to
cancel the Menu Screen.
S
N
3
2
1
2
3
1
S
S
S
SSS N
N
N
NNN
Switch to detailed
normal menu
Press SET button
to switch to
simple Menu
OK
OKEXIT
EXIT
<SIMPLE Mode Menu Screen>
<NORMAL Mode Menu Screen>
Operating mode icon
Operating mode icon

English 38
SETUP
Accessing/exiting the SIMPLE/NORMAL Mode
Menu Screen
1 Set the camera to the recording or playback mode (page 36).
2 Select the desired operating mode (page 37).
3 If the Menu Screen is not displayed, press the MENU button.
h The Menu Screen appears.
h To cancel the Menu Screen, press the MENU button.
3
2
1
2
3
1
S
S
S
SSS N
N
N
NNN
S
N
OK
Switch to detailed
normal menu
OKEXIT
EXIT
Press SET button
to switch to
simple Menu
MENU button
<Example: SIMPLE Mode
Recording Menu>
<Example: NORMAL Mode
Recording Menu>

39 English
SWITCHING THE OPERATING MODE
Using the SIMPLE Mode Menu
4 Toggle the SET button up or down to select the item you wish to
change, and press the SET button.
h The Setting Screen for the selected item appears.
S
N
10M
2
M
Select video
and photo size
To keep in HDTV size
OKEXIT
OKEXIT
HDTV size
10M [4:3]
Select an item to change
Description of selected
item
<Setting Screen>
Press
Push down
Push up

English 40
SETUP
Using the NORMAL Mode Menu
4 Toggle the SET button up or down to select a tab.
h The Menu Screen for the selected tab appears.
5 Toggle the SET button to the right.
3
2
1
2
3
1
HD-SHQ
S
S
S
SSS N
N
N
NNN
OKEXIT
RECORDING MENU
VIDEO
SCENE SELECT
FILTER
FLASH
SELF-TIMER
1
Tab
Push up
Push down
3
2
1
2
3
1
HD-SHQ
RECORDING MENU
VIDEO
SCENE SELECT
FILTER
FLASH
SELF-TIMER
OKEXIT
1
Push to
the right

41 English
SWITCHING THE OPERATING MODE
6 Toggle the SET button up or down to select the item you wish to
change, and press the SET button.
h The Setting Screen for the selected item appears.
h To return to the Menu Screen, press the MENU button.
3
2
1
2
3
1
HD-SHQ
RECORDING MENU
VIDEO
SCENE SELECT
FILTER
FLASH
SELF-TIMER
1
OKEXIT
OK
4000×3000
3648×2736
3648×2736
3648×2056 [16:9
]
1600×1200
1280×720 [16:9
]
2
M
0.9
M
12
M
10
M
-H
10
M
-
S
7.5
M
Select an item to change
Applicable mode
<Setting Screen>
Press
Push up
Push down

English 42
SETUP
HINT
About the applicable mode indicator
i This indicator shows the shooting mode(s) for which the selected setting is
effective.
: This setting is effective during still image shooting.
: This setting is effective during video clip recording.
: This setting is effective during still image shooting and video clip
recording.

43 English
SWITCHING THE OPERATING MODE
Overview of the SIMPLE Mode Setting Screen
SIMPLE Mode Recording Menu
S
N
Select video
and photo size
OKEXIT
1
2
3
4
5

English 44
SETUP
1Recording size (page 59)
h Select the video clip size to
record.
2Focus range (page 60)
h Select the focus range that
corresponds to the distance to
the subject.
3Flash (page 65)
h Specify how the flash will
operate.
4 (page 37)
h Set to the NORMAL mode.
5 Remaining battery power
indication (page 140)
q:
The video clip size is
1280 ×720 pixels,
recorded at 30 frames/sec.
The captured still image
size is 3648 ×2736 pixels
(4:3 aspect ratio).
i:
The video clip size is
640 ×480 pixels, recorded
at 30 frames/sec.
The captured still image
size is 1600 ×1200 pixels
(4:3 aspect ratio).
7: The camera automatically
focuses on the subject
within a range of 50 cm
(19.69 in.) to infinity
(normal).
8: The camera focuses on a
subject within a range of
1 cm (0.39 in.) to 1 m
(3.28 ft.) (super macro).
9: The camera detects the
subject brightness and
uses the flash only when
necessary.
:: The flash operates with
every image captured
regardless of the
conditions.
;: The flash does not operate
even in dark situations.
S
N

45 English
SWITCHING THE OPERATING MODE
SIMPLE Mode Playback Menu
3
5
2
14
OK
Start slideshow
S
N

English 46
SETUP
1Slideshow (page 74)
h Specify the slideshow settings
and play the slideshow.
2Playback volume (page 75)
h Adjust the volume for video
clip and audio file playback.
3Delete (page 76)
h Delete files.
4 (page 37)
h Set to the NORMAL mode.
5 Remaining battery power
indication (page 140)
S
N

47 English
SWITCHING THE OPERATING MODE
Overview of the NORMAL Mode Setting Screen
NORMAL Mode Recording Menu
<Tab 1>
3
2
1
2
3
1
HD-SHQ
RECORDING MENU
VIDEO
SCENE SELECT
FILTER
FLASH
SELF-TIMER
OKEXIT
1
7
6
5
4
3
2
1

English 48
SETUP
1Video clip settings (page 82)
<HD mode>
<SD mode>
2Still image settings (page 85)
3Scene select (page 86)
4Filter (page 86)
5 Flash
6Self-timer (page 87)
7 Remaining battery power
indication (page 140)
&: Record at 1280 ×720
pixels, 30 fps (30p).
(: Record at 640 ×480 pixels,
60 fps (60p).
): Record at 640 ×480 pixels,
30 fps (30p).
<: Make an audio recording.
I: Image size is 4000 ×3000
pixels.
o: Image size is 3648 ×2736
pixels (low compression).
p: Image size is 3648 ×2736
pixels (normal
compression)
N: Image size is 3648 ×2056
pixels (16:9 aspect ratio).
G: Image size is 1600 ×1200
pixels.
,: Image size is 1280 ×720
pixels (16:9 aspect ratio).
[: Image size is 640 ×480
pixels.
m: 3648 ×2736-pixel
sequential shots (normal
compression).
t: 1600 ×1200-pixel
sequential shots.
=: Full auto setting
a: Sports mode
>: Portrait mode
+: Landscape mode
/: Night view portrait mode
k: Snow & beach mode
+: Fireworks mode
Q: Lamp mode
&: No filter
%: Cosmetic filter
W: Monochrome filter
,: Sepia filter
k: The camera will detect the
subject brightness and use
the flash only when
necessary.
m: The flash will operate with
every image captured
regardless of the
conditions.
l: The flash will not operate
even in dark situations.
N: Self-timer is off.
y: Shooting begins 2 seconds
after the [ ] or [ ]
button is pressed.
x: Shooting begins
10 seconds after the [ ]
or [ ] button is pressed.

49 English
SWITCHING THE OPERATING MODE
<Tab 2>
6
5
4
3
2
1
3
2
1
2
3
1
RECORDING MENU
VIDEO STABILIZER
FOCUS
FOCUS MODE
EXP MEASURE
ISO
OKEXIT
2

English 50
SETUP
1Video stabilizer (page 88)
h Compensate for camera shake
during video clip recording.
2Focus range (page 89)
h Select the focus range that
corresponds to the distance to
the subject.
3Focus area (page 90)
4 Light-measuring mode
(page 90)
5ISO sensitivity (page 91)
h The indicated ISO value is the
standard output sensitivity.
6 Remaining battery power
indication (page 140)
\: Record with image
stabilizer on.
]: Record without image
stabilizer.
*: The camera automatically
focuses on the subject with
a range of 50 cm (19.69 in.)
to infinity (normal).
-: The focus can be set
manually.
+: The camera focuses on the
subject within a range of
1 cm (0.39 in.) to 1 m
(3.28 ft.) (super macro).
B: 9-point range finder focus
C: Spot focus
X: Multi-section light
measuring
W: Center-weighted light
measuring
Y: Spot light-measuring
=: Sensitivity is set
automatically (video clip
recording: ISO 200 to
1600; still image shooting:
ISO 50 to 400)
*: Sets sensitivity to ISO 50
u: Sets sensitivity to ISO 100
v: Sets sensitivity to ISO 200
w: Sets sensitivity to ISO 400
6: Sets sensitivity to ISO 800
-: Sets sensitivity to ISO 1600

51 English
SWITCHING THE OPERATING MODE
<Tab 3>
6
5
4
3
2
1
3
2
1
2
3
1
RECORDING MENU
WHITE BALANCE
EXPOSURE
FACE CHASER
HIGH SENSITIVITY
DIGITAL ZOOM
3
OKEXIT

English 52
SETUP
1White balance (page 92)
2Exposure (page 93)
3Face chaser (page 94)
4 High sensitivity mode
(page 95)
5Digital zoom (page 69)
6 Remaining battery power
indication (page 140)
>: White balance is
automatically adjusted
depending on the ambient
lighting (auto).
r: For shooting in sunny
conditions (fair).
o: For shooting in overcast
conditions (cloudy).
p: For shooting under
fluorescent lighting
(fluorescent).
q: For shooting under
incandescent lighting
(incandescent).
^: For setting the most
accurate white balance
(one push).
@: The exposure is set
automatically.
T: Set the shutter speed
manually.
g: Set the aperture manually.
H: Set the aperture and
shutter speed manually.
-: Enable face chaser.
.: Disable face chaser.
1: Increased sensitivity.
2: Normal sensitivity.
Q: Enable the digital
zoom.
R: Disable the digital
zoom.

53 English
SWITCHING THE OPERATING MODE
NORMAL Mode Playback Menu
<Tab 1>
1Slideshow (page 98)
h Specify the slideshow settings
and play the slideshow.
2Playback volume (page 75)
h Adjust the volume for video
clip and audio file playback.
3Protect (page 99)
h File protect setting (delete
prohibited)
4Delete (page 76)
h Delete files.
5Rotate (page 102)
h Rotate a still image.
6Resize (page 102)
h Reduce the resolution of a still
image.
7 Remaining battery power
indication (page 140)
4
3
7
5
6
2
1
2
1
2
3
1
PLAYBACK MENU
SLIDESHOW
PLAY VOLUME
PROTECT
DELETE
ROTATE
1
OKEXIT
RESIZE

English 54
SETUP
<Tab 2>
1Edit photo (page 103)
h Repair the “red-eye” caused
by the flash, reduce the blur
from camera shake, or
enhance the contrast (still
images only).
2Video clip edit (page 104)
h Edit video clips.
3 Printing instructions
(page 115)
h Specify the printing
instructions (DPOF settings).
4Select folder (page 80)
h Select a folder to play back.
5 Copy
h Copy files from the card to the
internal memory, or vice versa.
6 Remaining battery power
indication (page 140)
4
3
6
5
2
1
2
2
1
3
1
PLAYBACK MENU
EDIT PHOTO
PRINT INSTRUCTIONS
EDIT VIDEO
SELECT FOLDER
COPY
2
OKEXIT

55 English
SIMPLE
SHOOTING
SIMPLE/SHOOTING
BEFORE TAKING PICTURES
For best results
Hold the camera securely, keeping your elbows close to your body and
making sure the camera is stable.
Make sure that the lens and flash are not blocked by your fingers or the
handstrap.
Correct hold Incorrect hold
A finger is blocking the
lens or flash.
<Holding the camera>
Example 1:
Grip the camera by
wrapping the fingers of the
right hand, from the little
finger to the middle finger,
around the camera, and
hook the index finger above
the lens.
Example 2:
Grip the camera by
wrapping the fingers
of the right hand,
from the little finger to
the index finger,
around the camera.
i Due to the characteristics of the camera, the outer
surface may become warm during use, but this does
not indicate a malfunction. (In particular, the area
indicated by gray in the figure may become hot.)
i If the camera starts to feel uncomfortably hot during
use, you might temporarily discontinue use until it
cools down, or try holding it in your other hand for a
while.
Please use a tripod or other support when using the
camera for a long time.
<Caution>

English 56
SIMPLE/SHOOTING
Using the autofocus
The autofocus will work in almost all situations; however, there are certain
conditions that may cause the autofocus function to not work properly. If the
autofocus function is not working properly, set the focus range to capture
images (page 60).
k
k
k
kk Conditions that may cause incorrect focus
The following examples are some of the situations where the autofocus
function may not work.
i
i
i

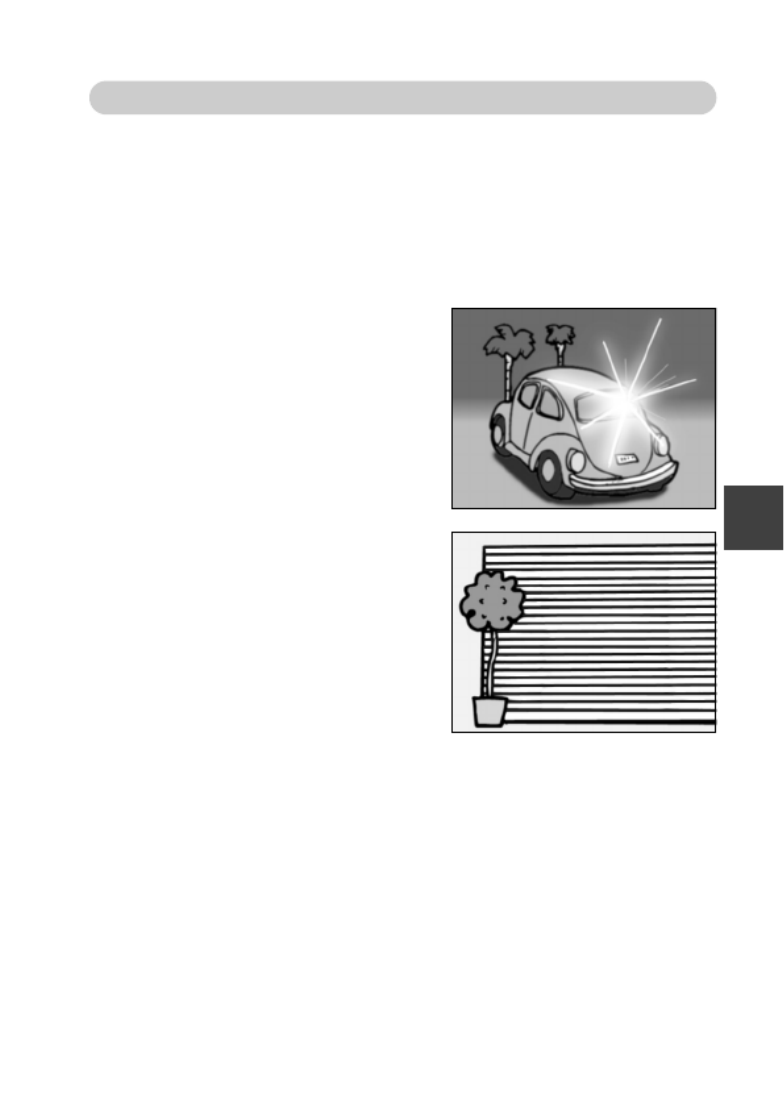

ii Subjects with low contrast, very
bright subjects at the center of the
image or dark subjects or locations
Use the focus-lock function to lock the
focus on an object with contrast at the
same distance as the desired subject.
i
i
i
ii Subjects without vertical lines
Use the focus-lock function to lock the
focus while framing the subject
vertically, then re-orient the camera to
compose a horizontally framed image.

57 English
BEFORE TAKING PICTURES
The following examples are some of the situations where the autofocus
function may work, but not as desired.
i
i
i

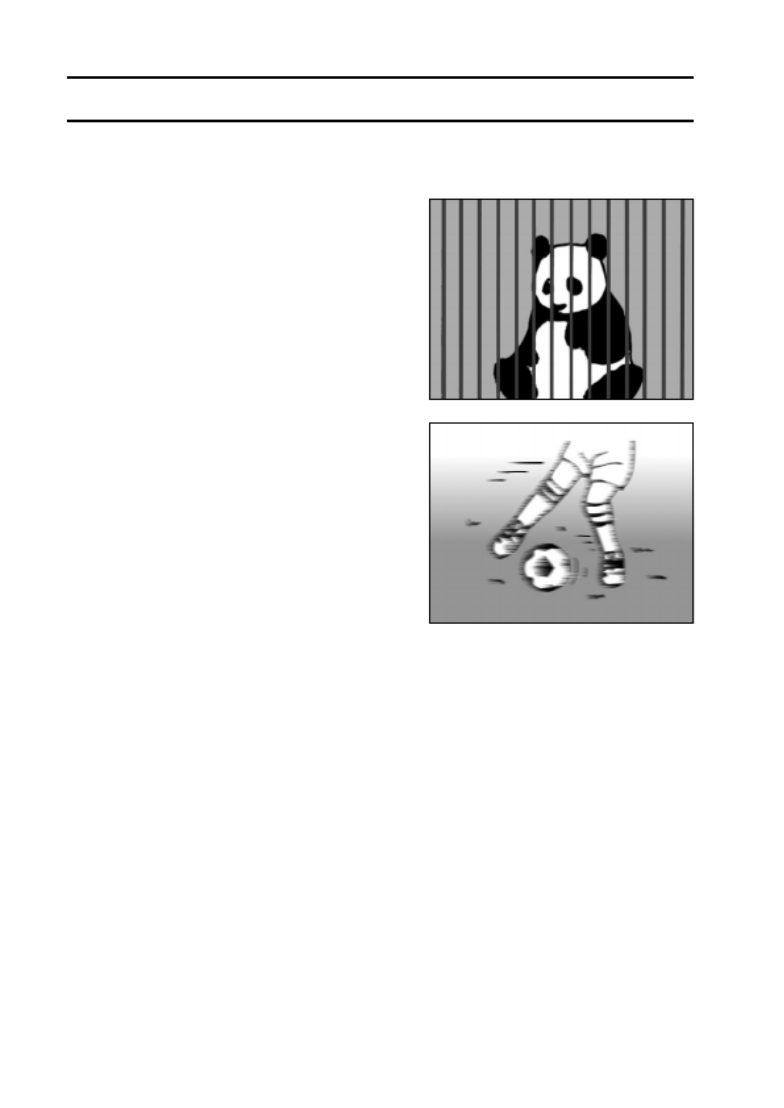

ii When both near and far objects are
present
Use the focus-lock function to lock the
focus on an object at the same distance
as the desired subject, then reposition
the camera to compose the picture.
i
i
i
ii Fast-moving subjects
Use the focus-lock function to lock the
focus on an object at the same distance
as the desired subject, then reposition
the camera to compose the picture.

English 58
SIMPLE/SHOOTING
HINT
iStill images can be rotated when they are played back (pages 53 and 102).
iWhen the [ ] button is pressed halfway, the image in the monitor may
waver vertically. This is the result of internal image processing and is not a
malfunction. This wavering is not recorded and will not affect your images
in any way.
i When the optical zoom is used or when the autofocus is operating, the
image may appear to waver, but this is not a malfunction.

59 English
BEFORE TAKING PICTURES
Select the recording size
The larger the image size (number of pixels), the better the image quality will
be, but the file size will also be larger. Select the image quality that is correct
for the intended purpose.
1 Display the SIMPLE Mode Recording Menu (page 38), select the
recording size setting, and press the SET button.
2 Select the desired video clip recording size, and press the SET
button.
h This completes the recording size setting.
q : The video clip size is 1280 ×720 pixels, recorded at 30
frames/sec.
The captured still image size is 3648 ×2736 pixels (4:3
aspect ratio).
i : The video clip size is 640 ×480 pixels, recorded at 30
frames/sec.
The captured still image size is 1600 ×1200 pixels (4:3
aspect ratio).
OKEXIT
HDTV size
10M [4:3]
To keep in HDTV size
2
M
10
M

English 60
SIMPLE/SHOOTING
Select the focus setting
Select the focus range corresponding to the distance between the camera
and the subject.
1 Display the SIMPLE Mode Recording Menu (page 38), select the
focus setting, and press the SET button.
2 Select the desired focus range, and press the SET button.
h This completes the focus range setting.
7: The camera automatically focuses on the subject within a range of
50 cm (19.69 in.) to infinity (normal).
8: The camera focuses on a subject within a range of 1 cm (0.39 in.) to
1 m (3.28 ft.) (super macro).
OKEXIT
All ranges
Automatic focus
(people, landscape, etc.)

61 English
BEFORE TAKING PICTURES
Hints for taking pictures
Muting the operation sounds
i The audio guidance that sounds when you operate the camera can be
muted (page 122).
Where are the image and audio files saved?
i All the image and sound files are recorded on the card installed in the
camera, or in the camera’s internal memory.
Taking pictures in backlight conditions...
i When taking pictures with the light coming from behind the subject, due to
the characteristics of the lens, ghost patterns (flare phenomenon) may
appear in the captured image. In this situation, it is recommended that you
avoid taking pictures with the subject lit from behind.
While the image files are being recorded...
i While the multi-indicator is flashing red, the image files are being written to
the memory, during which time it is not possible to capture another image.
Another image can be captured after the flashing red indicator turns off.
However, even when the multi-indicator is flashing red, depending on the
camera’s internal memory remaining capacity, in some cases the next
image can be captured about 2 seconds after shooting.

English 62
SIMPLE/SHOOTING
VIDEO CLIP RECORDING
1 Turn on the camera (page 30),
and set it to the recording
mode (page 36).
2 Press the [ ] button.
h Recording begins.
h It is not necessary to keep the
[ ] button pressed while
recording.
h When the remaining recording
time available for the currently
recording clip becomes little, a
countdown of the remaining
recording time appears on the
display.
3 End the recording.
hPress the [ ] button again
to stop recording.
REC00:00:09
REC00:00:09
REC00:00:09
REC00:00:09
REC00:00:09REC00:00:09
5
5
5
55
REC00:00:09
5
Available recording time
remaining
[ ] button
Recording time

63 English
SHOOTING SINGLE SHOTS
Capture a still image (single-shot).
1 Turn on the camera (page 30),
and set it to the recording
mode (page 36).
2 Press the [ ] button.
1Press the [ ] button
halfway.
h The autofocus operates,
and the image is focused
(focus lock).
2 Continue to gently press
the [ ] button all the
way.
h The shutter releases and
the image is captured.
h You can view the captured
image on the monitor by
keeping the [ ] button
depressed when you
capture the image.
Target mark
[ ] button
1 2

65 English
SHOOTING SINGLE SHOTS
Using the flash
The flash is not only used for photographing under dark conditions, but is also
convenient for example when the subject is in shadow or lit from behind. The
flash is available only when shooting single-shot still images.
1 Display the SIMPLE Mode Recording Menu (page 38), select the
flash setting, and press the SET button.
h The screen to select the flash operation appears.
2 Select the desired flash operation, and press the SET button.
h This completes the flash operation setting.
3 Press the [ ] button to take the picture.
9: The camera detects the subject brightness and uses the flash only
when necessary.
:: The flash operates with every image captured regardless of the
conditions.
;: The flash does not operate even in dark situations.
Auto
Flash automatically
OKEXIT

English 66
SIMPLE/SHOOTING
CAUTION
Do not touch the flash unit when shooting
i The flash unit becomes very hot and may cause a burn. Avoid touching the
flash unit when shooting.
HINT
i The flash cannot be used during video clip recording.
iBy assigning an operation shortcut to the SET button (pages 124 and
128), you can change the flash mode from the Recording Screen (in the
NORMAL mode).

67 English
SHOOT A STILL IMAGE WHILE
RECORDING A VIDEO CLIP
You can capture a still image (a single-shot) while recording a video clip.
1 Turn on the camera
(page 30), and set it to the
recording mode (page 36).
2 Press the [ ] button.
3 When you see a scene
you’d like to capture as a
still image, press the
[ ] button.
4 Press the [ ] button to
end the video clip
recording.
REC 00:00:09
REC 00:00:09
REC 00:00:09
REC 00:00:09
REC 00:00:09REC 00:00:09
REC 00:00:09
0.9
M
[ ] button
[ ] button

English 68
SIMPLE/SHOOTING
HINT
i When shooting a still image while recording a video clip, the flash does not
operate.
i When the remaining video recording time becomes approximately
50 seconds, it will no longer be possible to capture a still image while
recording a video clip. The exact remaining recording time at which this
occurs will differ depending on the subject and on the recording size
(page 59), as well as on the video clip recording mode (page 82). If you
intend to capture a still image while recording a video clip, it is suggested
that you take note of the remaining video recording time.
About the recording size of still images
i The size of a still image captured during video clip recording depends on
the video clip recording size.
h It is not possible to capture sequential shots.
Video clip recording size setting Still image recording size
& , (16:9)
( [ (4:3)
)t (4:3)
[ (4:3)

69 English
MACRO-PHOTOGRAPHY (ZOOM)
Your camera has two zoom functions: optical zoom and digital zoom.
1 Point the camera lens at the
subject.
2 Push the zoom switch toward
[T/]] or [W/P] to compose
the desired image.
[T/]]: Zoom in on the subject.
[W/P]: Zoom out.
h When the zoom switch is
pushed, the zoom bar appears
on the monitor.
h When moving the optical
zoom, push the zoom switch
lightly to zoom slowly, and
press more strongly to zoom
quickly.
h When the optical zoom factor
is at maximum, zooming stops
temporarily. When the zoom
switch is pushed toward the
[T/]] side again, the mode
changes to the digital zoom
mode and zooming continues.
3 Take the picture.
For video clip recording, see
page 62.
For shooting single shots, see
page 63.
For shooting sequential shots,
see page 85.
Zoom switch
[T/]]/[W/P]
Zoom bar
Monitor
When both
optical and digital
zoom are enabled
Digital zoom (yellow)
Optical zoom
When optical
zoom only is
enabled
Pointer

English 70
SIMPLE/PLAYBACK
PLAYBACK
SIMPLE/PLAYBACK
PLAYING BACK VIDEO CLIPS AND
STILL IMAGES
1 Set the camera to the playback mode (page 36).
2 Select the image to play back.
h Toggle the SET button left,
right, up or down to move the
orange frame to the file you
wish to play back.
h The image information for the
framed image is shown at the
bottom of the screen.
3 Press the SET button.
h The image you selected in
step 2 is displayed fullscreen.
h If a video clip was selected,
playback begins.
<To return to the screen to
select playback files>
During still image playback:
Toggle the SET button down.
During video clip playback:
Toggle the SET button down
once to stop video clip playback,
and toggle the SET button down
again.
100-0006
00:00:2537.6MB
2009. 12.25 14:25
OK
HD-SHQ
Orange frame
SET button

71 English
PLAYING BACK VIDEO CLIPS AND STILL IMAGES
Video clip playback operation
To do this... Do this
Normal forward playback Press the SET button.
Stop playback During playback, toggle the SET button down.
Pause
During playback, press the SET button or
toggle the SET button up.
During accelerated playback, toggle the SET
button up.
To play back
one image
at a time
(single-
frame step)
During forward
playback
After pausing playback, toggle the SET button
to the right.
During reverse
playback
After pausing playback, toggle the SET button
to the left.
Slow
playback
During forward
playback
After pausing playback, press and hold the
SET button to the right.
During reverse
playback
After pausing playback, press and hold the
SET button to the left.
To
accelerate
playback
Forward
playback
During forward playback, toggle the SET
button to the right.
h The playback speed changes each time the
SET button is toggled to the right, as
follows:
Normal playback → → → → 2× 5× 10× 15×
Toggle the SET button to the left to resume
normal playback speed.
Reverse
playback
During forward playback, toggle the SET
button to the left.
h The playback speed changes each time the
SET button is toggled to the left, as follows:
15× ← 10× ← 5×
Toggle the SET button to the right to resume
normal playback speed.
Return to normal playback
speed Press the SET button.
Adjusting the volume
Louder: During playback, push the zoom
switch toward the [T] side.
Softer: During playback, push the zoom
switch toward the [W] side.

English 72
SIMPLE/PLAYBACK
HINT
If the a appears on the playback Screen...
i The a icon appears when playing back a file that was saved in segments
(page 83). Although playback of these multiple files is continuous, there is
a slight pause at the point where the files are joined.

English 74
SIMPLE/PLAYBACK
SLIDESHOW PLAYBACK
You can play back files in succession with the “slideshow playback” feature.
1 Display the SIMPLE Mode
Playback Menu (page 38), select
the slideshow setting, and press
the SET button.
2 Select the type of file to play back,
and press the SET button.
h Slideshow playback begins.
h To stop slideshow playback, press
the SET button or MENU button.
HINT
About the slideshow settings
i The slideshow settings can be changed from the NORMAL Mode Playback
Menu (page 98).
=: Play back all files.
3: Play back video clips and audio
files.
c: Play back still image files.
SLIDESHOW
VIDEO
ALL
START

75 English
PLAYBACK VOLUME
Adjust the playback volume for video clips and audio files.
1 Display the SIMPLE Mode
Playback Menu (page 38), select
the playback volume setting, and
press the SET button.
h The volume control bar appears.
2 Toggle the SET button to the left
or right to set the volume, and
press the SET button.
h The playback volume is set, and
the display returns to the SIMPLE
Mode Playback Menu.
HINT
The volume can be adjusted during playback
i During video clip or audio file playback, if you push the zoom switch toward
[T/]] or [W/P], the volume control bar will appear, allowing you to
adjust the volume.
In the NORMAL mode
i When you select “PLAY VOLUME” from the NORMAL Mode Playback
Menu and press the SET button, the volume control bar appears.
PLAY VOLUME
VOLUME SETTING
4

English 76
SIMPLE/PLAYBACK
DELETING FILES
You can delete files if you no longer need them. You can delete single files,
selected files or all the files at one time.
Delete single/delete all
1 Display the SIMPLE Mode
Playback Menu (page 38), select
the delete setting, and press the
SET button.
DELETE SINGLE:
Deletes one file at a time.
DELETE SELECTED:
Deletes the selected files
(page 77).
DELETE ALL:
Deletes all files.
2 Select the desired delete mode, and press the SET button.
h The Delete Confirmation Screen appears.
<DELETE SINGLE>
h Toggle the SET button to the left or right to select the file you wish to
delete.
h There is no confirmation screen when deleting single files. Please
make sure that the displayed image is one you wish to delete.
<DELETE ALL>
h Toggle the SET button to the left or right to confirm the files to delete.
DELETE
DELETE ALL
DELETE SINGLE
DELETE SELECTED
OK

77 English
DELETING FILES
3 Select “DELETE”, and press the SET button.
<DELETE SINGLE>
h The currently displayed file is deleted.
h To delete other files, select the files, select “DELETE” and press the
SET button.
<DELETE ALL>
h The Delete Confirmation Screen again appears. To delete the files,
select “YES”, and press the SET button. When file delete is
completed, “No image” is shown.
Delete selected
Delete selected files.
1 Display the SIMPLE Mode Playback Menu (page 38), select the
delete setting, and press the SET button.
2 Select “DELETE SELECTED”,
and press the SET button.
h The screen to select files to
delete appears.
3 Select an image you wish to delete.
h Toggle the SET button left, right, up or down to move the orange frame
to the file you wish to delete.
100-0006
00:00:2537.6MB
DELETE SET OK
2009. 12.25 14:25
HD-SHQ

English 78
SIMPLE/PLAYBACK
4 Press the SET button.
hThe selected file is marked with the delete icon [ ].
h Up to 100 files can be selected.
h To cancel a delete selection and remove the delete icon from a file,
move the orange frame to the marked file and press the SET button.
5 Press the [ / ] button.
h The Confirm Delete Screen appears.
6 Select “YES”, and press the SET button.
h The selected files are deleted.
HINT
In the NORMAL mode
i When you select “DELETE” from the NORMAL Mode Playback Menu and
press the SET button, the Delete Screen appears.
CAUTION
i Files that are protected from accidental delete cannot be deleted. To delete
protected files, set the protect setting for the files to off (pages 53 and 99),
and then follow the file delete procedure.

79 English
PLAYBACK MODES
21-image display playback
1 Display the image you wish to
play back.
2 Push the zoom switch toward
the [W/P] side.
h The 21-image display appears.
3 Select the image to play back.
h Toggle the SET button up,
down, left or right to move
the orange frame to the
desired image, and press
the SET button.
h Instead of pressing the
SET button, you can push
the zoom switch toward the
[T/]] side to show the
8-image display.
h If the zoom switch is pushed
toward the [W/P] side while
the 21-image display is shown,
the display changes to the
screen to select the playback
folder (page 80).
h It is not possible to perform the
file delete or file protect
settings on the 21-image
display.
2009.12.26 14:25 100-0021
SET button
Zoom switch [W/P]

English 80
SIMPLE/PLAYBACK
Selecting the playback folder
If the card contains multiple folders, you can select from which folder you
would like to play back.
1 Display the Playback Screen.
2 Push the zoom switch toward the
[W/P] side twice.
h The screen to select the
playback folder appears.
h If the zoom switch is pushed
toward the [T/]] side, the
camera changes to the 21-image
display (page 79).
3 Toggle the SET button up or down to
move the orange frame to the desired
folder, and press the SET button.
h The files in the selected folder are
displayed in the Playback Screen.
HINT
In the NORMAL mode
i When you select “SELECT FOLDER” from the NORMAL Mode Playback
Menu and press the SET button, the screen to select the playback folder
appears.
100SANYO
101SANYO
102SANYO
OK
SELECT FOLDER

81 English
PLAYBACK MODES
Magnifying (zooming in) the image
1 Display the image that you want to magnify.
h For a video clip, pause playback at the place you want to magnify.
2 Push the zoom switch toward the
[T/]] side.
h Magnification is enabled.
h The image is magnified, and the
central portion of image is
displayed.
h Toggle the SET button to view
different parts of the magnified
image.
To magnify:
Magnification increases each time
the zoom switch is pushed toward
the [T/]] side.
To return to normal size:
Magnification decreases each time
the zoom switch is pushed toward the
[W/P] side.
h Press the SET button to return to the
normal (100%) view.
HINT
The magnified portion of the image can be saved as a separate image
iPress the [ ] button. The magnified portion is saved as a new still
image.
100%
MOVE
SAVE
105%
105%
105%
105%
105%105%
105%

English 82
NORMAL/SHOOTING
NORMAL
SHOOTING
NORMAL/SHOOTING
RECORDING MENU 1
Video setting
You can record video clips in either the HD mode (16:9 horizontal to vertical
aspect ratio) or the SD mode (4:3 aspect ratio). In addition, the higher the
frame rate number, the smoother playback will be. However, as with the
recording size, the file size is also proportionately larger, using up more
memory. This menu is also used when making audio recordings.
CAUTION
When editing video clips...
i In order for video clips to be joined, they must have been photographed in
the same mode.
i Video clips that were photographed in different modes cannot be joined.
Audio recording
k
k
k
kk Audio recording
1 Select <, and press the SET
button.
h The audio recording mode is
enabled.
h The menu display is canceled if
the MENU button is pressed.
368 07:47:54
Remaining time

83 English
RECORDING MENU 1
2 Press the [ ] button.
h Audio recording begins. During
recording, < appears in the
monitor. It is not necessary to
continue pressing the [ ]
button while recording.
3 End the recording.
hPress the [ ] button again to stop recording.
HINT
You can capture a still image during an audio recording
iPress the [ ] button during audio recording to capture a [ still image.
About files saved in segments
i When the video setting is set to a voice memo < that exceeds about
13 hours, the recorded file is saved once, and the recording continues in a
new file. For other video settings, when the file size exceeds 4 GB, the
recorded file is saved once, and the recording continues in a new file.
(These 4 GB segments are automatically created. The recording session
continues until you stop recording, but video clip or voice memo recording
is temporarily interrupted while the file is being saved.)
REC00:00:06
Length of recording

English 84
NORMAL/SHOOTING
k
k
k
kk Audio playback
1 Select an audio file, and press the SET button.
h Playback begins.
CAUTION
If no audio is heard...
i The audio is not played back when the audio recording is played back in
the fast playback or fast reverse mode.
To do this... Do this
Normal
playback
Start
playback Press the SET button.
Pause Press the SET button.
Toggle the SET button up.
Stop
playback Toggle the SET button down.
Fast
forward/
fast reverse
Fast
forward
During playback, toggle the SET button to
the right.
Each time the SET button is toggled to the
right, the speed increases. If the SET
button is toggled to the left during fast
forward, the speed decreases.
Fast
reverse
During playback, toggle the SET button to
the left.
Each time the SET button is toggled to the
left, the speed increases. If the SET button
is toggled to the right during fast reverse,
the speed decreases.
Pause Toggle the SET button up.
Return to
normal
playback
Press the SET button.
Volume
adjustment
Louder During playback, push the zoom switch
toward the [T/]] side.
Softer During playback, push the zoom switch
toward the [W/P] side.

85 English
RECORDING MENU 1
Still image setting
For still images, you can select either the 4:3 or 16:9 horizontal to vertical
aspect ratio. This menu is also used for shooting sequential shots.
Sequential shots
1 Select m or t, and press the SET button.
h The camera changes to the sequential shots mode.
2 Press the
[ ] button.
hShooting begins. Shooting continues as long as the [ ] button is
kept pressed.
HINT
What is the maximum number of images in a sequential shots
sequence?
t: 14 images
m: 11 images
<At the t setting>
i If you continue shooting even after the maximum number of images has
been captured, recording does not stop.
i If you continue shooting after the maximum number of images has been
captured, subsequent captured images will overwrite the sequence
already captured, beginning from the first image in the sequence.
<At the m setting>
i After 11 images have been captured, the images are saved and recording
stops.
About the focus when shooting sequential shots
i When sequential shots are captured, the autofocus operates when the
[ ] button is pressed halfway, fixing the focus.
Can the flash be used?
i The flash does not operate when shooting sequential shots.

English 86
NORMAL/SHOOTING
Scene select setting
You can select from various preset settings (aperture, shutter speed, etc.) for
specific shooting conditions.
HINT
i To return to normal photography, select = from the scene select menu,
and press the SET button.
i When capturing images using the lamp Q, fireworks + or night view
portrait / setting, use a tripod or other method to stabilize the camera.
i In the sequential shots mode, it is not possible to select night view portrait
/, fireworks +, or lamp Q.
i A table showing the limitations for settings corresponding to scene select
icons other than = is on page 180.
Filter setting
The filter feature changes image characteristics such as color tones, to apply
unique effects to the photographed image.
HINT
i To return to normal photography, select & from the filter menu, and
press the SET button.
i A table showing the limitations for settings corresponding to filter icons
other than & is on page 181.

English 88
NORMAL/SHOOTING
RECORDING MENU 2
Video stabilizer setting
Your camera can minimize a jittery picture by compensating for unintentional
hand motion during video clip recording.
HINT
If the motion compensation does not seem to be working...
i Due to the mechanical characteristics of this function, it may not be
possible for the camera to compensate for violent motion.
iIf the digital zoom (page 69) is being used, the large magnification factor
may make it difficult for the motion compensation function to work correctly.
i When the scene select function is set to night view portrait / or lamp
Q, the motion compensation effect may be insignificant.
When motion compensation is enabled,
i The following icons are shown on the monitor:
HD-SHQ
00:04:30
Image stabilizer icon

89 English
RECORDING MENU 2
Focus range setting
How to use the manual focus
1 Select -, and press the SET
button.
h The focus distance adjustment
bar appears.
2 Toggle the SET button to the left
or right to adjust the focus
distance, and press the SET
button.
h The focus distance is set, and
you are returned to the
Recording Screen.
HINT
About the focus range
i The focus distance indication shows the distance between the center of
the lens and the subject.
i In some cases there may be a slight variance between the distance
(numerical figure) you set in the manual focus mode and the actual
distance.
About zoom movement when using the manual focus
iIf the focus distance is set to 70 cm (27.56 in.) or less, the zoom changes
to the largest setting that is suitable for that focus distance.
iWhen the focus distance is set to 70 cm (27.56 in.) or less, the zoom will
function only within the range at which the image is focused.
About the super macro mode
i When the focus range is set to super macro +, the zoom is temporarily
set to the wide end.
i By assigning an operation shortcut to the SET button (pages 124 and
128), you can change the focus range setting from the Recording Screen.
2.0
m
HD-SHQ
664 00:09:24
664 00:09:24
664 00:09:24
664 00:09:24
664 00:09:24664 00:09:24
664 00:09:24
Produktspecifikationer
Varumärke: | Sanyo |
Kategori: | Videokamera |
Modell: | Xacti VPC-CG10GX |
Behöver du hjälp?
Om du behöver hjälp med Sanyo Xacti VPC-CG10GX ställ en fråga nedan och andra användare kommer att svara dig
Videokamera Sanyo Manualer
7 Oktober 2024
10 September 2024
3 September 2024
30 Augusti 2024
30 Augusti 2024
28 Augusti 2024
27 Augusti 2024
23 Augusti 2024
23 Augusti 2024
22 Augusti 2024
Videokamera Manualer
- PCE Instruments
- Spypoint
- Mediacom
- Maginon
- MMTC
- Hamilton Buhl
- Agfaphoto
- Prixton
- Laserliner
- Liquid Image
- Aida
- Jobo
- Uniden
- Activeon
- Kyocera
Nyaste Videokamera Manualer
21 Augusti 2025
21 Augusti 2025
20 Augusti 2025
20 Augusti 2025
17 Augusti 2025
17 Augusti 2025
17 Augusti 2025
16 Augusti 2025
16 Augusti 2025
16 Augusti 2025
