Satco Products, Inc.
Brentwood, NY 11717© Copyright 2022 Satco Products, Inc. 3/221 v4.0
FEATURES
• c-UL-us list and recognized
• Plug-n-Play replacement
• Full glass housing: No aging, yellowing, bending
CCT SELECTABLE LED
LINEAR T8 TYPE A LAMPS
Models: S11918, S11928, S11968
INSTALLATION AND SAFETY INSTRUCTIONS
IMPORTANT: Read before installing xture. Retain for future reference.
WARNING:Risk of re or electric shock.
Disconnect power before installation.
• Product must be installed in accordance with the national
electrical code or your local electrical code. If you are not
familiar with these codes and requirements, contact a
qualied electrician.
• Check the lamp before installation. If there is any damage
DO NOT INSTALL.
• LED T8 lamp to be operated with qualied electronic ballast,
emergency ballast and dimming ballast. Dimmable only with
compatible dimmable ballasts Check the compatibility list
before installation. Visit www.Satco.com for compatibility list.
• Use only in place of uorescent lamps specied on label.
• Suitable for damp locations.
• DO NOT INSTALL this lamp in a pre-heat luminaire.
• This lamp only operates on electronic ballasts. If lamp does
not light when the luminaire is energized, remove lamp
from luminaire and contract lamp manufacturer or qualied
electrician.
• If the lamp or luminaire exhibits undesirable operation
(buzzing, ickering etc.), immediately turn off power, remove
lamp from luminaire and contact manufacturer.
• To prevent wiring damage or abrasion, do not expose wiring
to edges of sheet metal or other sharp objects.
• Do not make or alter any open holes in an enclosure
of wiring or electrical components during installation.
• Installers should not disconnect the existing wire from lamp
holder terminals to make new connections at lamp holder
terminals. Instead installers should cut existing lamp holder
leads away from the lamp holder and make new electrical
connections to lamp holder lead wires by employing
applicable connectors.
• Check the existing wiring for damage before installing.
DO NOT INSTALL if existing wires are damaged.
• Suitable for use in enclosed luminaries, not vapor tight.
• Disconnect lamp from power supply before any maintenance.
• Clean luminaire with dry cloth.
• Do not clean the lamp with corrosive chemicals.
• To ensure proper lamp performance, temperature of the
Tc point should not exceed ensure 131ºF after a min. of
2 hours of use.
• This product may cause interference to radio equipment and
should not be installed near maritime safety communications
equipment or other critical navigation or communication
equipment operating between 0.45-30 MHz.
Item
Number
DescriptionCCTWattsHoursLumens
Minimum Lamp
Compartment Dimensions
(Length x Width x Height)
Lamp-to-Lamp
Spacing
S1191810T8/LED/48/840-850-865/DR/2PK
40-50-65K
10W50,0001800
47 7/8 x 23 7/8 x 4 inches
(121.5 x 60.5 x 10 cm)
4 3/8 inches
(11cm)
S1192810T8/LED/48/840-850-865/DR
S1196810T8/LED/48/830-835-840/DR30-35-40K
The units covered by this report were intended to retrot surface mount, Type IC or non-IC recessed mount Listed uorescent
luminaires that use maximum 4 tubular lamps, the minimum lamp compartment dimensions are tabulated below.

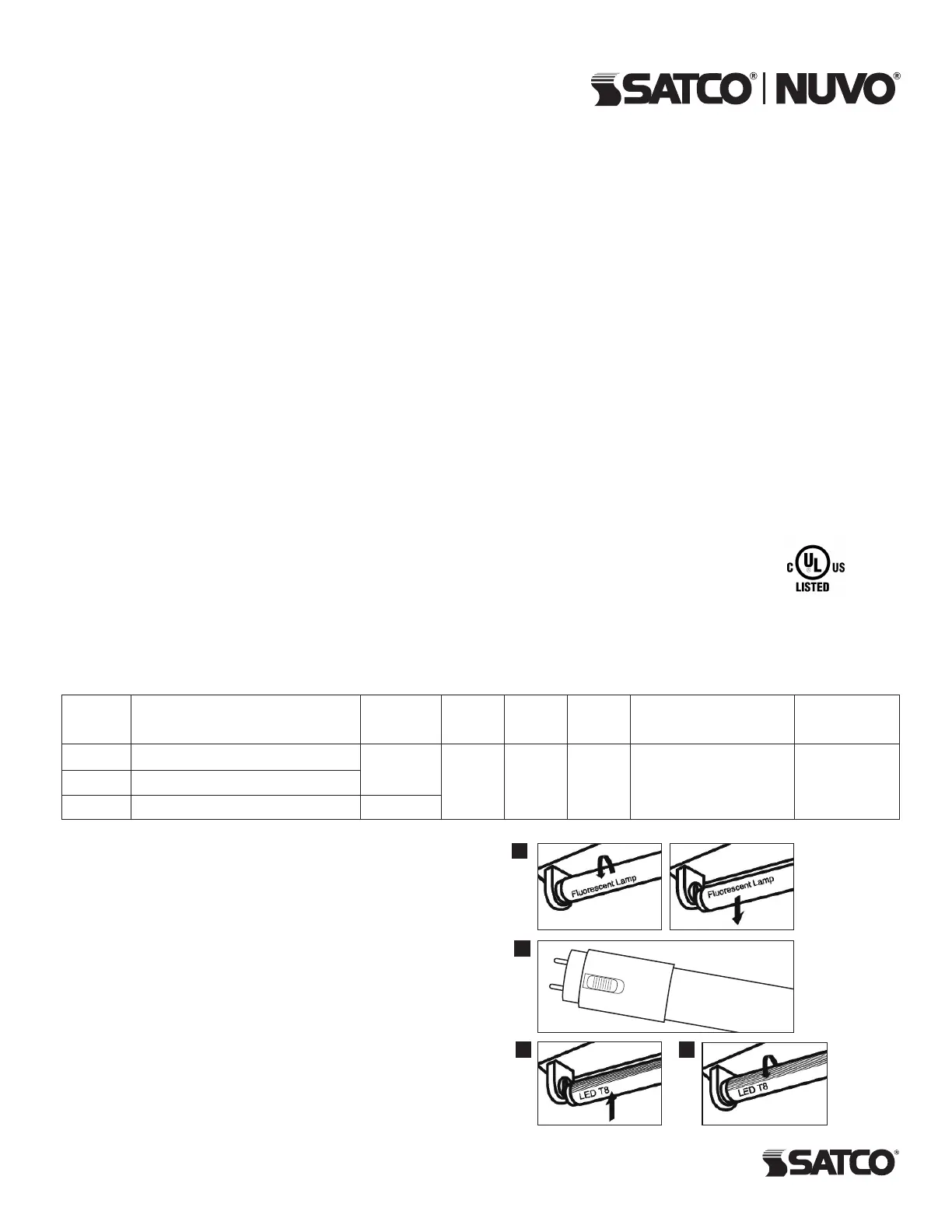

INSTALLATION INSTRUCTIONS
STEP 1:Turn power OFF.
STEP 2:Remove lens or diffuser (if applicable).
STEP 3:Remove existing uorescent lamps from the luminaire.
See Figure A.
STEP 4:Select the color temperature you want using the switch
on the end cap of the lamp. See Figure B.
STEP 5:Bring LED lamp to luminaire and insert lamp pins into
luminaire lamp holders. See Figure C.
STEP 6:Rotate LED lamp until lamp locks in place. Ensure that
the LED lamp front points away from the back of the luminaire.
See Figure D.
NOTE: Install LED T8 replacement lamp one for each uorescent
lamp removed.
STEP 7:Place lens or diffuser back in place (if applicable).
STEP 8:Turn power ON.
Daylight
Natural light
Cool white
6500K
5000K
4000K
A
D
B
C
