HI-PRO LED A-PLUS LAMPS
Satco Products, Inc.
Brentwood, NY 11717
INSTALLATION AND SAFETY INSTRUCTIONS
IMPORTANT: Read before installing xture. Retain for future reference.
© Copyright 2022 Satco Products, Inc. 01/22 v1.1
WARNING: Risk of Fire or Electric Shock
• Luminaire wiring and electrical parts may be damaged when drilling for
installation of LED retrot. Check for enclosed wiring and components.
• LED Retrot installation requires knowledge of luminaires electrical systems.
If not qualied, do not attempt installation. Contact a qualied electrician.
• Install this lamp only in luminaires that have the construction features and
dimensions shown in the photographs and/or drawings and where the input
rating of the retrot does not exceed the input rating of the luminaire.
• Do not make or alter any open holes in an enclosure of wiring or electrical
components during kit installation.
• To prevent wiring damage or abrasion, do not expose wiring to edges of
sheet metal or other sharp objects.
• Disable all power to the Luminaire. The lamp holder must be disconnected
from the wiring to the ballast, capacitor, or ignitor. Verify that voltage does
not exceed 277V AC. Please see “Wiring Diagram”.
• Failure to follow instructions can result in a damaged product
and will void warranty. It could also result in an electric shock or re.
IMPORTANT:
• Added weight of the device may cause instability of a free-standing portable
luminaire.
• Installers should not disconnect existing wires from lampholder terminals to
make new connections at lampholder terminals. Instead installers should cut
existing lampholder leads away from the lampholder and make new electrical
connections to lampholder lead wires by employing applicable connectors.
INSTALLATION
STEP 1: Turn off the power before
installation.
STEP 2: Remove the old Ballast,
Capacitor and Ignitor (if existing).
STEP 3: Make sure Alternating
Current Wires connect to the socket
directly. Reattach or replace ground
lead (if necessary).
STEP 4: Select color temperature
and wattage on lamp (Figure A).
NOTE: The lamp is preset to
the highest wattage and color
temperature.
STEP 5: Screw the LED lamp into the
corresponding socket. Attach retrot
label to luminaire.
NOTE: For 220-277 Volts
applications with two hot leads,
connect the second hot lead to
terminal N (L1).
Models: S13160, S13161, S13162, S13163, S13164,
S13165, S13166, S13167

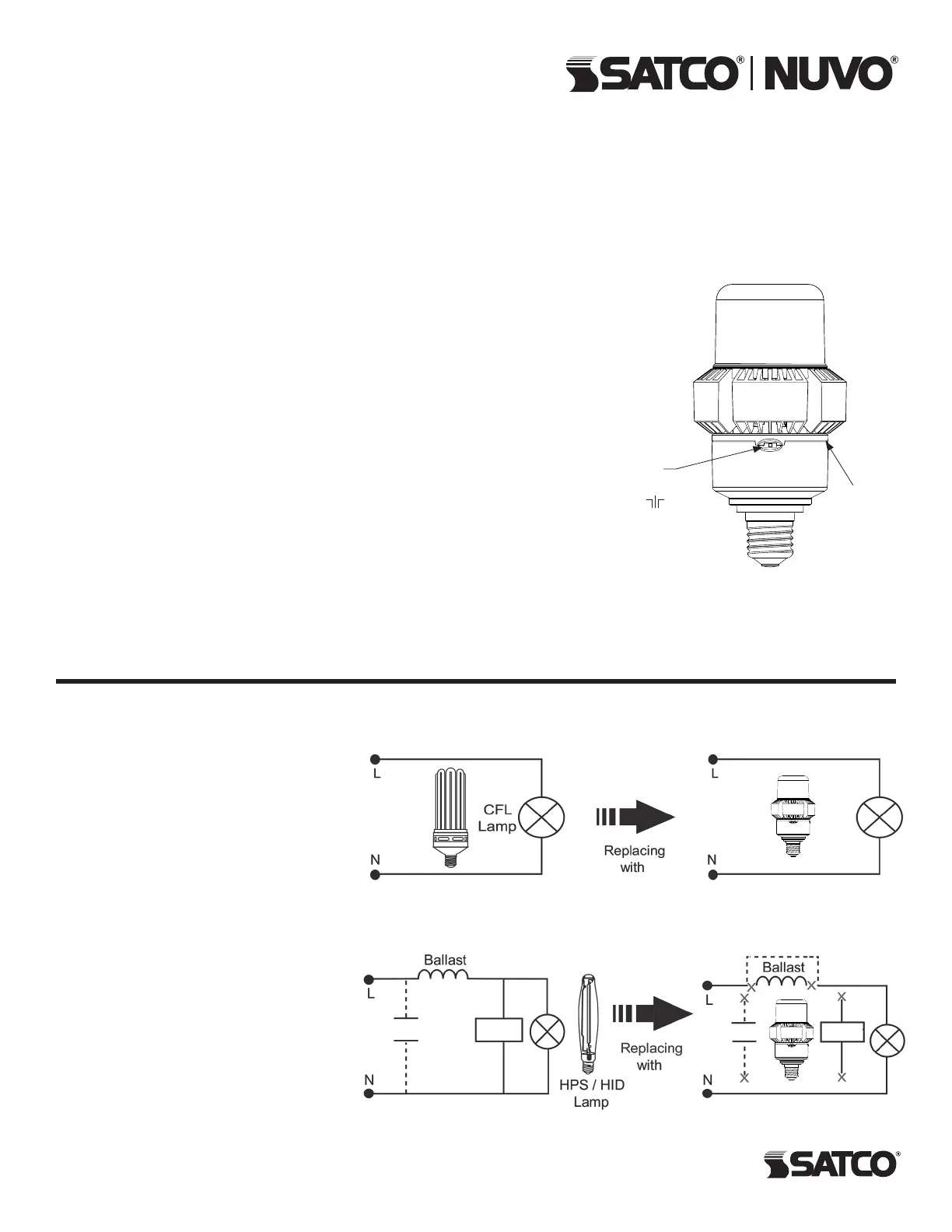

HPS/HID Wiring DiagramHi–Pro Wiring Diagram
Replacing HPS/HID Lamp
(L1)(L1)
100-277V
CFL Wiring DiagramHi–Pro Wiring Diagram
100-277V
(L1)(L1)
100-277V
Capacitor
CapacitorIgnitor
Ignitor
100-277V
Replacing CFL Lamp
WIRING DIAGRAM
Wattage
selection
switch
Fig. A
Color
temperature
selection
switch
4000K
3000K 5000K
Color Temperature
