5"/6" LED DOWNLIGHT

RETROFIT

Model: S18803

Satco Products, Inc.

Brentwood, NY 11717

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

Before installation, select your preferred

CCT and Wattage settings by adjusting

the sliding switches.

Gently push up the LED downlight until

trim is ush with the ceiling. Ensure no

wires are exposed.

After ceiling installation with torsion

springs, the square trims can be rotated

up to 90º to align with the wall. Turn

on power.

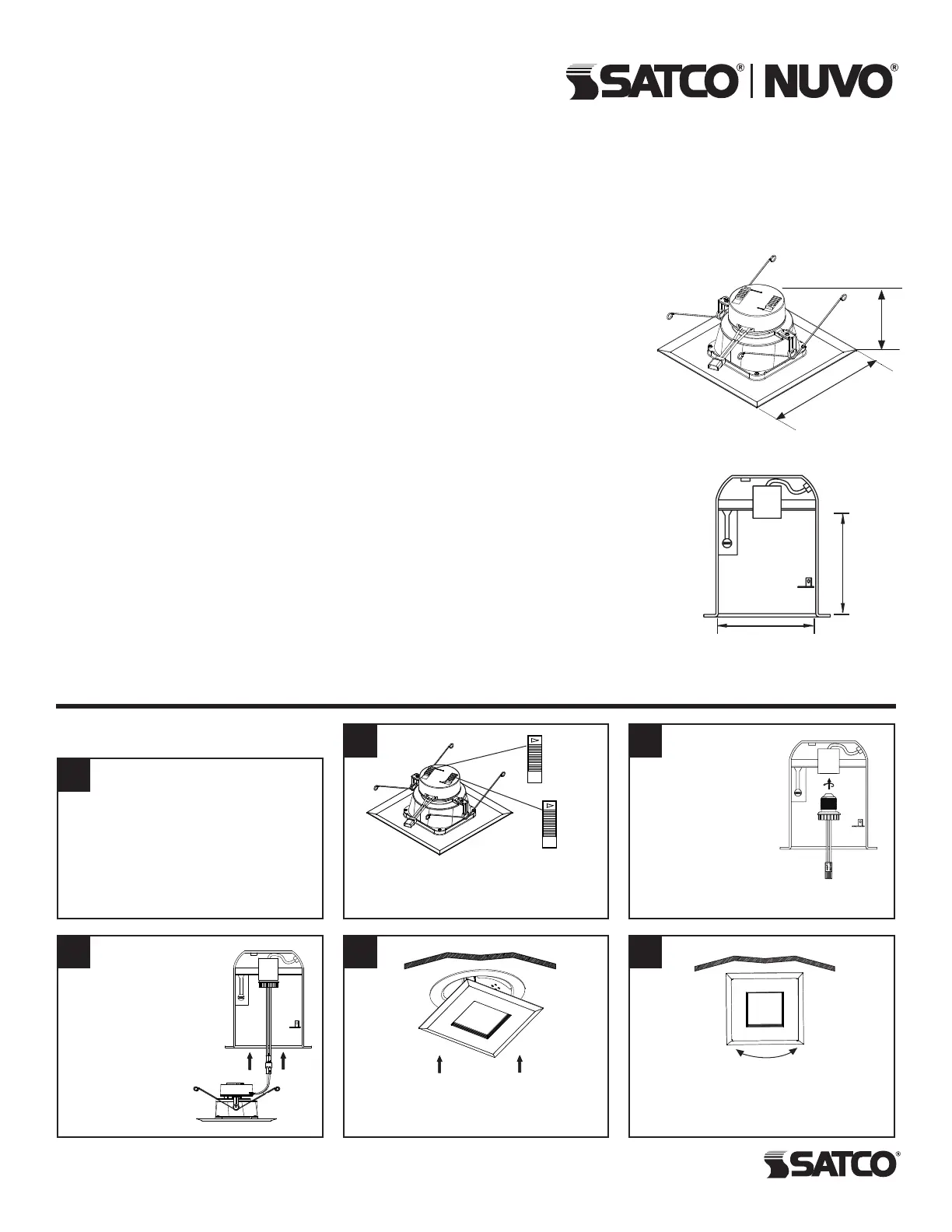

INSTALLATION:

1

Turn off power prior to installation.

Remove the diffuser and existing bulb

if necessary. Remove the existing trim.

4

5

6

2

3

Dimensions:

NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

NOTE 2: Any changes or modications to this unit not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

WARRANTY: This product is guaranteed for a 5 year warranty. Any quality issue in normal

use within the warranty period, will be repaired or replaced according to the situation and under

the condition specications can be provided. Visit www.Satco.com for full warranty details and

dimmer compatibility information.

WARNING: Risk of Fire or Electric Shock

• TURN OFF the electrical power before proceeding.

• Please examine all parts that are not intended to be replaced by the retrot kit for damage

and replace any damaged parts prior to installation of the retrot kit.

• The retrot kit is accepted as a component of a luminaire where the suitability of the

combination shall be determined by authorities having jurisdiction. Product must be installed

by a qualied electrician in accordance with the applicable and appropriate electrical codes. The

installation guide does not supersede local or national regulations for electrical installations.

• To reduce risk of re and over-heating, secure all connections are tight.

• Install this kit only in luminaires that have the construction features and dimensions shown in

the photographs and/or drawings and where the input rating of the retrot kit does not

exceed the input rating of the luminaire.

• To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other

sharp objects.

• Do not make or alter any open holes in an enclosure of wiring or electrical components during

kit installation.

• This device is not intended for use with emergency exits.

© Copyright 2023 Satco Products, Inc. 8/23 v1.1
