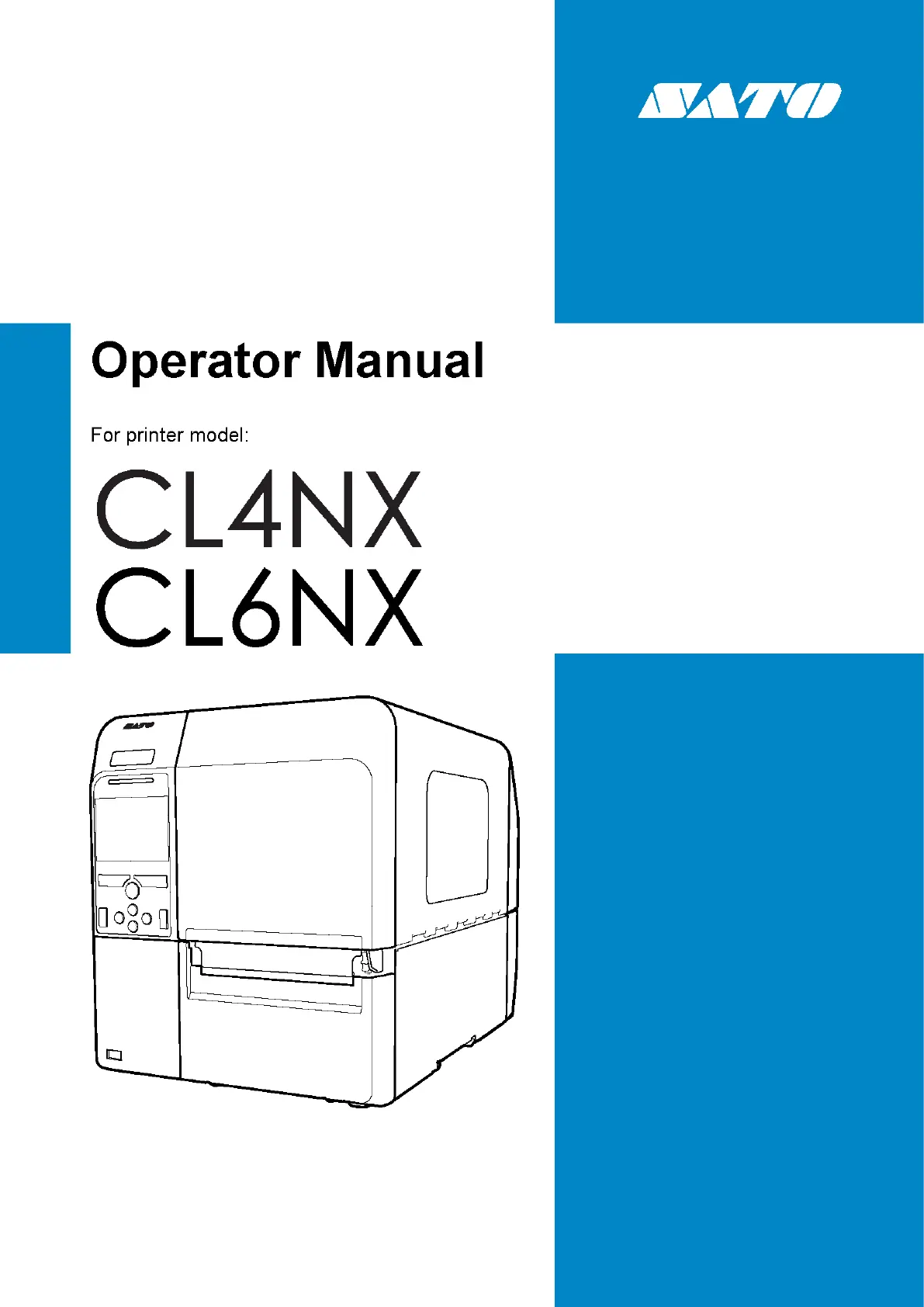

CL4NX-J/CL6NX-J

Table of Contents

Before You Start......................................................................................................... 8

About This Manual............................................................................................................................. 8

Features of the Product..................................................................................................................... 9

Safety Precautions........................................................................................................................... 10

Precautions for Installation and Handling........................................................................................ 16

Select a Safe Location................................................................................................................16

Power Supply.............................................................................................................................. 17

Printing.........................................................................................................................................18

Regulatory Approval......................................................................................................................... 19

Environmentally Hazardous Materials..............................................................................................22

Copyrights/Limitation of Liability/Trademarks...................................................................................23

Copyrights....................................................................................................................................23

Limitation of Liability....................................................................................................................24

Trademarks..................................................................................................................................25

Basic Information..................................................................................................... 26

Bundled Accessories........................................................................................................................ 26

Optional Devices.............................................................................................................................. 27

Parts Identification............................................................................................................................ 29

Parts Identification for the Product............................................................................................. 29

Front View.............................................................................................................................. 29

Rear View...............................................................................................................................30

Internal View...........................................................................................................................31

Parts Identification for the Operator Panel................................................................................. 32

Using the Operator Panel................................................................................................................ 34

Display and Operation of the Operator Panel............................................................................ 34

LED Indicator..........................................................................................................................34

Operations in Online/Offline Mode.........................................................................................34

Status Icon............................................................................................................................. 36

Operations When Errors Occur............................................................................................. 41

Guidance Videos.................................................................................................................... 45

Adjusting the Print Settings During Printing.......................................................................... 50

Canceling the Print Job..........................................................................................................51

Settings Mode..............................................................................................................................53

Settings Mode Menus............................................................................................................ 53

Changing to the Settings Mode............................................................................................. 53

Logging In to/Logging Out of the Settings Mode...................................................................55

Item Selection.........................................................................................................................55

Setting Value Input or Selection............................................................................................ 57

Product Memory and USB Memory................................................................................................. 62

Getting Started......................................................................................................... 63

Installation.........................................................................................................................................63

Installation Precautions............................................................................................................... 63

Installation Space........................................................................................................................ 65

Front View.............................................................................................................................. 65

Side View............................................................................................................................... 66

Bottom View........................................................................................................................... 67

Powering On/Off the Product........................................................................................................... 69

Produktspecifikationer

Varumärke:	SATO
Kategori:	Etikettskrivare
Modell:	CL4NX
Inbyggd display:	Ja
Vikt:	15000 g
Bredd:	271 mm
Djup:	457 mm
Höjd:	321 mm
Skärm diagonal:	3.5 "
Upplösning:	320 x 240 pixlar
Intern lagringskapacitet:	2 GB
Wi-Fi:	Nej
Bluetooth-version:	3.0
Närfältskommunikation (NFC):	Ja
Maximal upplösning:	203 x 203 DPI
Internminne:	256 MB
Modell:	POS-skrivare
Utskriftshastighet:	10 ips
Flashminne:	2000 MB
Maximal rulldiameter:	220 mm
USB-kontakt:	USB Type-A / USB Type-B
Skrivhastighet:	254 mm/sek
Inbyggda streckkoder:	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Seriellt gränssnitt:	Ja
Produktens färg:	Svart
Temperatur vid drift:	0 - 40 ° C
Temperaturintervall (förvaring):	-20 - 60 ° C
Intervall för relativ operativ luftfuktighet:	30 - 80 %
Fuktighet (förvaring):	30 - 90 %
AC-inspänning:	100 - 240 V
Kabel inkluderad:	AC
Anslutningsteknologi:	Kabel & Trådlös
Nätverksansluten (Ethernet):	Ja
Strömkälla av typen:	AC
Växelström Frekvens:	50 - 60 hz
Färgdisplay:	Ja
Antal USB 2.0 anslutningar:	2
USB-port:	Ja
Bluetooth:	Ja
Lagringsmedia:	Flash
Utskriftsteknologi:	Direkt termisk/termisk överföring
Max utskriftsupplösning, bredd:	104 mm
Mediats tjocklek:	0.06 - 0.26 um
