Sida 1/12

schwankgroup.com/monsterfans

MonsterFans Style Series

Installation Manual

2schwankgroup.com/monsterfans

Table Of Contents

Overview ..............................................................................................................................................3

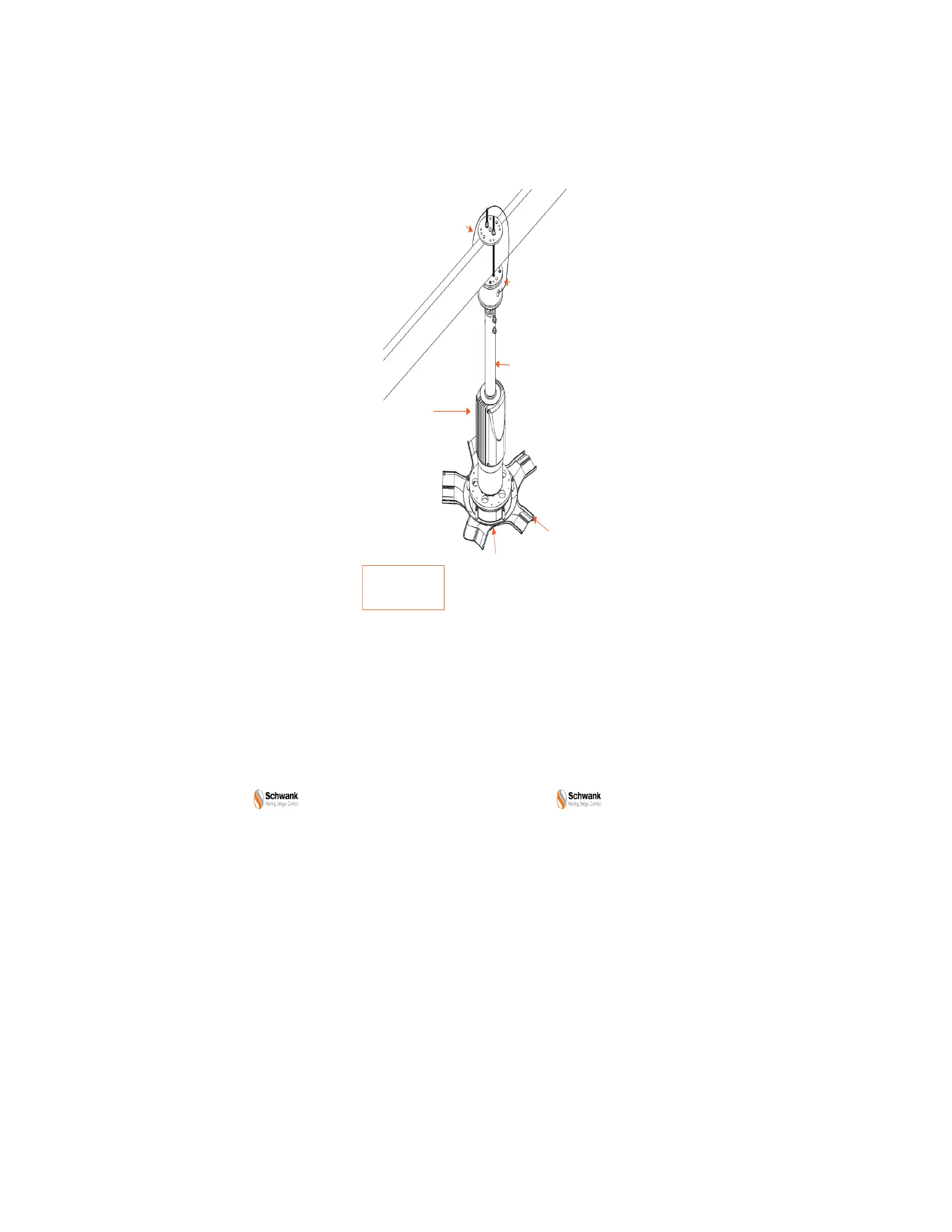

Components .................................................................................................................................3

Technical Data ....................................................................................................................................4

Fusing and Thermal Limiting ...............................................................................................................5

Fuses...............................................................................................................................................5

Thermal Limiting ............................................................................................................................5

Safety ....................................................................................................................................................6

Clearances ...................................................................................................................................

Installation Preparation.......................................................................................................................7

Preparation ...................................................................................................................................7

Tools Required ..............................................................................................................................7

Items Included ..............................................................................................................................7

Hardware Included ......................................................................................................................7

Installation Procedure .........................................................................................................................9

Installation of the Mounting Hardware .....................................................................................12

Installing the Blades ....................................................................................................................14

Installing the LED Light Kit................. ...........................................................................................15

Installing the Hub Cover [with Lens] ..........................................................................................16

Electrical Installation ..........................................................................................................................18

HMI Control .........................................................................................................................................19

HMI/CAT 5 Cable Connection ..................................................................................................19

Maintenance ......................................................................................................................................20

Recommended Maintenance Schedule ................................................................................21

4schwankgroup.com/monsterfans

Technical Data

Conformity CE Low Voltage [2006/95/EC] & EMC [2004/108/EC]

Directives

EN61000-6-2:2005, EN61000-6-4:2007

IEC 60335-2-80:2015 IEC 60335-1:2015

Approvals UL61800-5-1

CSA C22.2 No113

Input Voltage Phase

Imbalance

≤2%

Input Voltage 110-240 VAC

Input Current 4.6 @ 120VAC, 2.5A @ 240VAC

Input Frequency 50-60Hz

Supported Power Systems TT TN For central ground systems, operation is permitted

without restrictions.

Humidity ≤ 95% Non-condensing

Temperature Range Transport -40°F…+160°F [40°C...+70°C]

Storage -40°F…+160°F [40°C...+70°C]

Operation -40°F…+120°F [40°C...+50°C] [with speed derating

above +104°F]

Installation Altitude 0-13,000 ft [0-4000 m]

above sea level

[with 5%/3000ft current derating above 3000ft]

Earth Leakage Current <=9 mA to PE

Power Conductor Size [Cord] Minimum 16AWG 3 Conductors rated 300VAC, use Copper Conductors

only.

For permanent connection only.

Max. Permissible Control Ca-

ble Length

100 ft un-shielded

Enclosure IP54/ NEMA 3

Protection Measures Against Short circuit, earth fault, phase loss, over voltage, under voltage, motor

stalling, over temperature, motor overload, communication loss

Environment For indoor use/outdoor

Thermal Overload Protection Drive provides internal overload protection for the motor

Pollution Degree 2

Overvoltage Category Category lll

Supply Earthing System TN-S

Impulse Voltage 2500V

Working System Voltage 150V

Packaged Fan Weight 98 lbs [44.5 kgs]

Overall Fan Weight

[no mount]

85 lbs [38.5 kgs]

LED Light Kit Weight 1.542 lbs [0.669 kgs]
