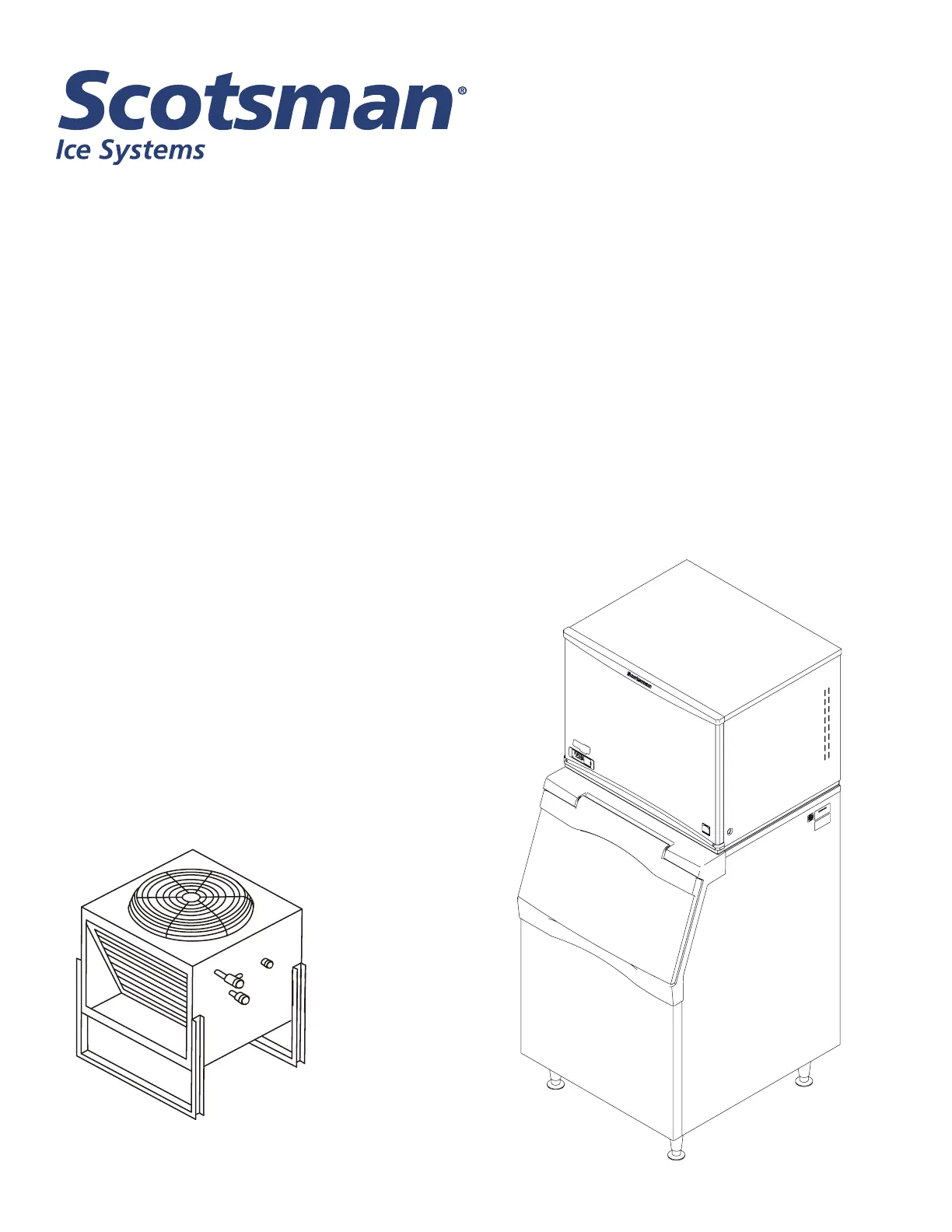

Installation and User’s Manual for

Remote Condenser Modular Cuber

Prodigy Plus D Series Models C0530, C0630,

C0830 and C1030

December 2014

Page 1

C0530D through C1030D

Remote Condenser Models - User Manual

Introduction

The design of this modular remote cuber is the result

of years of experience with remote ice machine

refrigeration systems. Standard features of this

product include front accessible on-off switches,

always-visible indicator lights, mechanical assist ice

harvest for extra efciency, automatically adjusting

water purge and a control system that optimizes

system operation.

This installation and user manual is divided into

three sections: Installation, Use and Operation and

Maintenance.

The Installation section provides the trade person with

the information needed to properly install and start

up this ice system. The Use and Operation section

provides the user with the information needed to use

the machine. The Maintenance section contains the

instructions and schedules for the sanitation and

cleaning of the machine.

Contents

Installation: Product Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Model Number Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

C0530, C0630, C0830 and C1030 Cabinet Dimensions . . . . . . . . . . . . . . . . . . . . . . . 4

Product Description and Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Panel Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Remote Condenser Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

For The Installer: Remote Condenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Precharged Line Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Coupling Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Plumbing Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Final Check List: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Initial Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Use and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Control Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Cleaning, Sanitation and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Remote condenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

What to do before calling for service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
