Sida 1/16
Installation and
User's Manual for

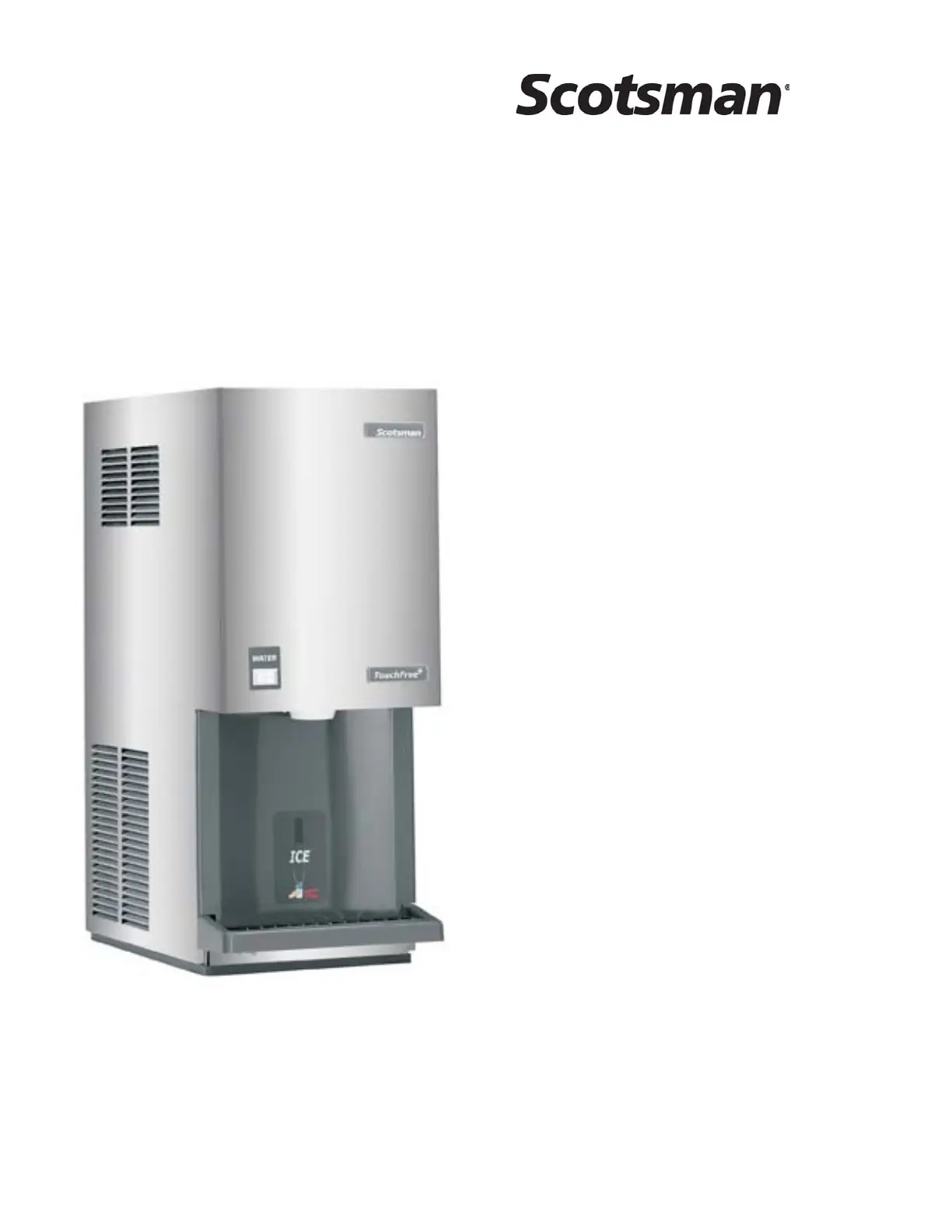

Ice Maker-Dispenser
Models MDT3F12 and MDT4F12
Introduction
Purpose of this manual: To provide detailed
installation and operation instructions; to give
insights into how the machine works; and to list
possible causes for basic problems.
The MDT3F and MDT4F are combination ice
makers and dispensers. The refrigeration system
is air cooled, using R-134a as a refrigerant. The
control system uses electric eyes as a bin control
and a water level sensor as the water safety
control. As ice is made, it fills a plastic storage bin.
When ice is needed, a motor rotates a stainless
steel vane inside the storage bin and sweeps the
ice into the spout.
MDT3F & MDT4F User Manual
November 2008
Page 1
New Table of Contents
Specifications: ··········································· Page 2
To The Installer: ·········································· Page 3
For The Electrician ········································ Page 4
For The Plumber ········································· Page 5
Wall Mount Kit (KWB4): ······································ Page 6
Final Check List & Initial Start Up ································· Page 7
User Operation ·········································· Page 8
Mechanical Operation ······································· Page 9
Maintenance: ··········································· Page 10
Inspection: ············································ Page 11
Dispense Area Sanitation ····································· Page 12
Service Diagnosis ········································· Page 13
Service Diagnosis: Circuit Board ································· Page 14
Note this symbol when it appears.
It marks a possible hazard.
