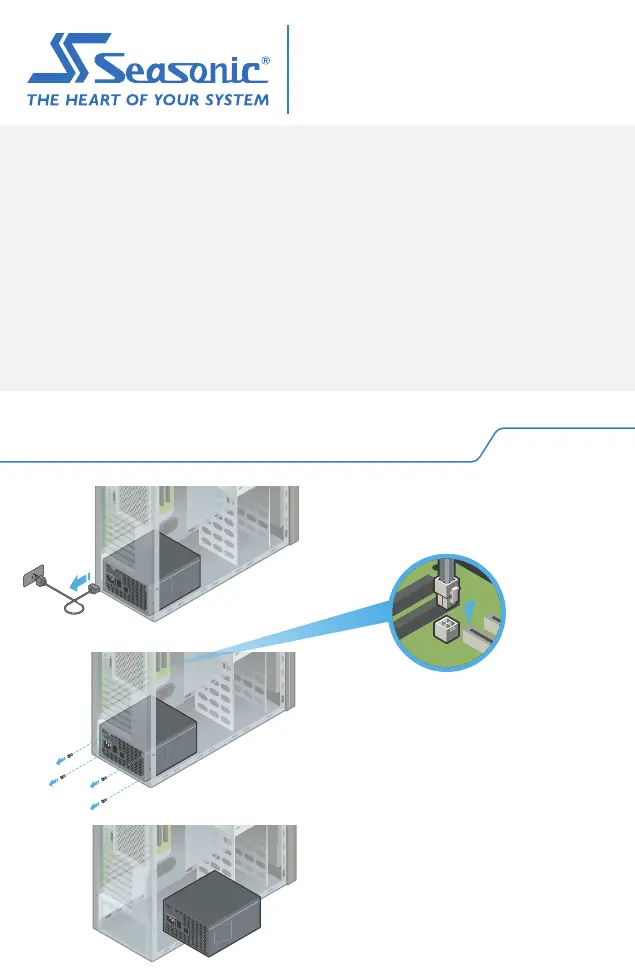

1. Remove your old PSU (power supply unit)

1.1. Disconnect your AC power cord from

the wall socket and the back of the

power supply.

1.2. Disconnect all DC cable connectors.

1.3. Remove all 4 mounting screws.

1.4. Remove your old PSU.

POWER SUPPLY

INSTALLATION GUIDE

WARNING! IMPORTANT SAFETY INFORMATION

• NEVER, under any circumstances, open the power

supply unit. High voltage inside. WARRANTY IS VOID

once the cover is removed.

• DO NOT insert any object into the fan grill or the

ventilation area of the power supply unit.

• DO NOT place any object in front of the fan or the

ventilation area of the power supply unit that may

obstruct or restrict airﬂow.

• USE ONLY the Seasonic modular cables provided with

the power supply unit.

• Keep the power supply unit in a dry environment, away

from humidity.

• The power supply unit is for integration into a

computer system and not intended for external or

outdoor usage.

Warning!

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two

conditions:

(1) this device may not cause harmful interference,

and (2) this device must accept any interfer ence

received, including interference that may cause

undesired operation.

• Product: Switching Power Supply

• Model name: Please refer to the rating label on the

product.

• Contact: www.seasonic.com/contact-us

BUMWHGUD3BW

The drawings illustrate a fully modular PSU with a fan control switch and a Power Supply Tester; the features and

accessories of your PSU might be dierent.

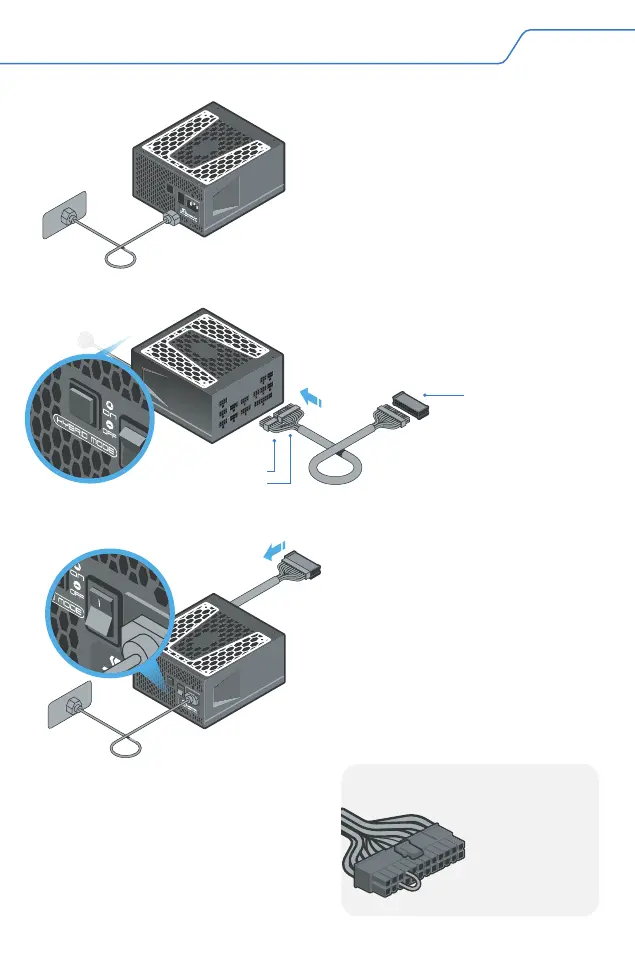

2.1. Plug the AC power cord into the PSU.

Make sure that the AC power is coming

directly from the wall outlet.

2.3. If your power supply features a fan

control switch, set it to “Normal” Mode*.

* In Hybrid or Fanless Mode (S³FC) the fan will not turn.

It is recommended to use a high quality surge

protector to protect the PSU and the system.

** If you do not have a power supply

tester, refer to the paper clip method

described below.

2.2. Connect both the 18-pin and 10-pin

connectors of the motherboard cable to

the PSU.

2.4. If you have a Power Supply

Tester**, attach it to the 24-pin

motherboard connector. There

is a notch on the Tester that

helps to make a perfect ﬁt with

the 24-pin connector.

2.5. (Optional) For testing a Fanless PSU

or a PSU without the fan control switch,

attach an external fan or LED light using

a Molex cable to the PSU.

2.6. Turn on the power supply by setting

the I/O switch to the “I” (ON) position.

If the power supply fan starts spinning

(or the externally attached LED light

turns on), then your PSU is working.

2. Test your Seasonic PSU before installation

Power Supply Tester

10-pin Connector

18-pin Connector

Use a paper clip or a

piece of wire to create

a short circuit on the

24-pin motherboard

connector by

connecting the pins

shown on the

illustration.

Paper clip method

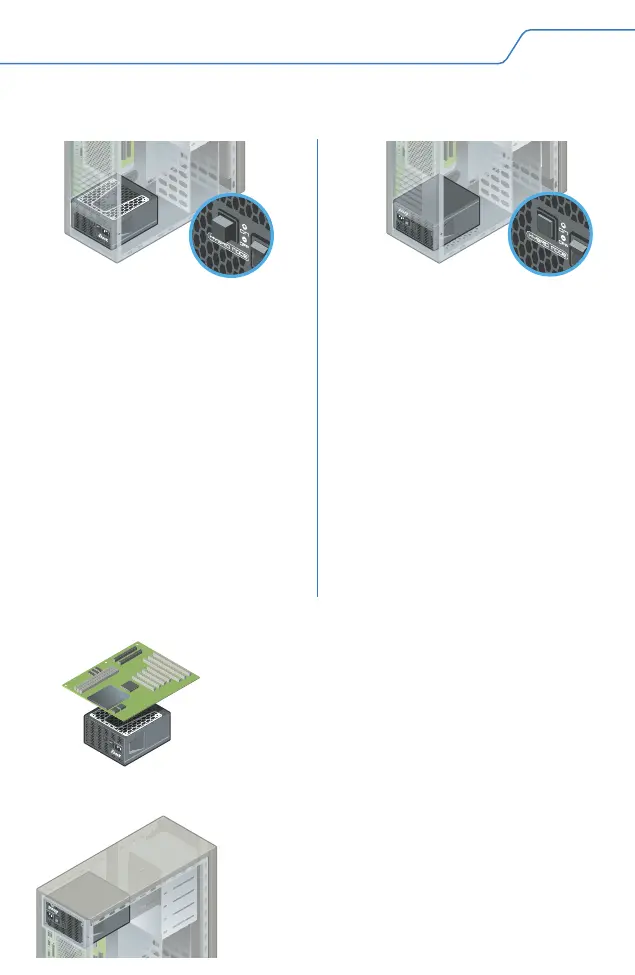

3.3. Top of the case

3.2. Flat Desktop-, SFX- or ITX systems

Seasonic recommends the PSU to be

mounted with its ventilation top cover facing

DOWNWARD.

In general, it is recommended to mount the

PSU with the ventilation top cover facing the

motherboard. Due to the dierent varieties of

case layouts, however, please also consult the

case manufacturer's instruction manual for

more information.

3.1. Bottom of the case

The fan control setting determines the optimal PSU placement.

Fanless PSU

The PSU must be mounted into the

computer case with the ventilation

top cover facing UPWARD.

3. Position your PSU

In “Normal” mode

Although the direction of mounting

is optional, it is not recommended

to install the PSU with the

ventilation top cover facing

downward if there are no

ventilation holes on the bottom of

the case. There should always be

enough clearance left between the

PSU and the bottom case panel.

In “Hybrid” mode

Seasonic recommends to install your

PSU with ventilation top cover facing

UPWARD, towards the direction of

the motherboard. This will ensure

natural heat dissipation.

To learn about the ventilation of your computer

case, please refer to the case manufacturer’s

instruction manual.

Produktspecifikationer

Varumärke:	Seasonic
Kategori:	Dator strömförsörjning
Modell:	S12III-500
Bredd:	150 mm
Djup:	140 mm
Höjd:	86 mm
Certifiering:	WEEE, REACH
Säkerhet:	cTUVus, TUV, Gost-R, CB , BSMI, CCC, CE, FCC, C-tick
Medeltid mellan fel (MTBF):	100000 h
Kombinerad effekt (-12V):	3.6 W
CPU-strömkabelns längd:	600 mm
Produktens färg:	Svart
bruksanvisning:	Ja
Effekt skyddsfunktioner:	Over power, Over voltage, Short circuit, Under voltage
Hållbarhetscertifiering:	RoHS, ENERGY STAR
AC-inspänning:	110 - 240 V
Fläktdiameter:	120 mm
Kabel inkluderad:	AC
Växelström Frekvens:	50 - 60 hz
Ljudnivå Lc IEC:	- dB
Ingående ström:	8 - 4 A
Antal fläktar:	1 fläkt/-ar
Ändamål:	PC
Total effekt:	500 W
Kylning typ:	Aktiv
Periferiska (Molex) strömkontakter (4-pin):	3
Antalet SATA strömkontakter:	4
Kombinerad effekt (+3,3 V):	100 W
Kombinerad effekt (+12 V):	480 W
Kombinerad effekt (+5 V):	100 W
Max utström (+3,3 V):	20 A
Max utström (+12 V):	40 A
Max utström (+5 V):	20 A
Max utström (-12V):	0.3 A
Max utström (+5 VSB):	2.5 A
Strömförsörjningsenhet formfaktor:	ATX
Moderkort strömkontakt:	20+4 pin ATX
Längd, moderkortets strömförsörjningskabel:	550 mm
SATA-nätkabelns längd:	400 mm
PCI Express strömkontakter (6 +2 pin):	2
CPU strömkontakt (4 +4 pin):	Ja
Typ av kablage:	Icke-Modulär
80 plus-certifiering:	80 PLUS Bronze
Kullagertyp:	Fodral
Anslutning för diskettenhet:	Ja
PCI expressanslutning:	Ja
Fan plats:	Övre
Kombinerad effekt (+5 VSB):	12.5 W
Tillbehörsnätkabelns (Molex) längd:	450 mm
PCI Express-nätkabelns längd:	550 mm
Diskettenhet strömkontakt:	1
ATX strömkontakt (20 4 stift):	Ja
Diskettenhetens kabellängd:	120 mm
