Sida 1/8
Table of Contents:
Introduction. ............................................. 1
Overview ...................................................2
Precautions ...............................................2
Setting Up ................................................ 3
Preparing the ceiling ............................ 3
Drop Ceilings .................................... 3
Fixed Ceilings ................................... 3
Connecting the wiring to the
removable locking connector............3
Wiring Schemes ..................................... 4
Attaching and securing the
wiring to the speaker............................4
Installing the speaker into
the ceiling..................................................5
Adjust the Multi-Tap Selector.............5
Attaching the Grille .............................. 5
Painting ..................................................... 5
Preparing.............................................5
Painting the rim................................5
Painting the grille.............................5
Specifications ......................................... 6
Frequency Response ........................... 6
Troubleshooting ......................................7
Three-Year Limited Warranty.............7

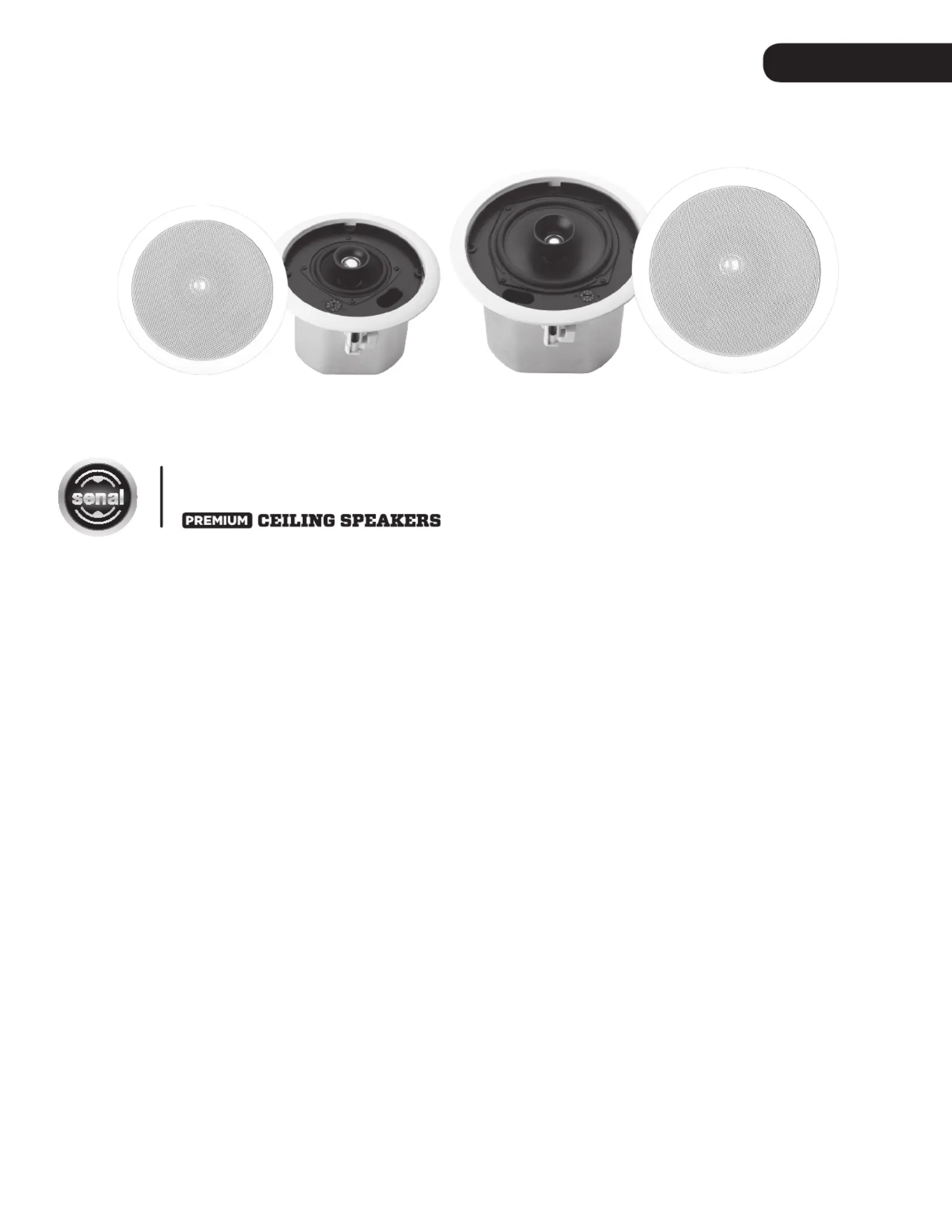

CSP-SERIES
Thank you for choosing Senal.
The CSP-series speakers are passive coaxial two-way speakers that provide premium sound
quality for use with 70V or 100V systems and for low-ohm systems.
These high power - low distortion speakers feature wide coverage that evenly distributes high
fidelity audio to fill large and small spaces. All models are ideal for broadcasting announcements
and music reproduction in commercial and residential applications.
The CSP-series ceiling speakers have a multi-tap transformer, which allows flexibility in
configuring multiple speakers of a high-impedance system. It is easily accessed with the multi-
tap selector on the front baffle of the speaker. Low frequencies are enhanced with a vented
port, and precise and smooth high frequencies are delivered by the coaxially mounted 3/4 "
titanium-coated tweeter. The sealed backcan enhances overall fidelity by focusing the sound
and preventing the distribution of sound into the surrounding ceiling structure.
Removable locking connectors simplify the process of wiring the speakers. Each speaker comes
with the mounting brackets and hardware necessary for installation. The attachment screw
system makes installation simple while providing a secure mounting connection to most ceiling
types. Secondary support tabs ensure extra security for compliance with building codes. The
speakers can be painted to match ceiling décor.
CSP-162
The CSP-162 is a powerful 150-watt, low-distortion ceiling speaker with a built-in multi-tap
transformer with maximum power of 60W. It features a 6.5-inch woofer and 3/4 titanium-"
coated tweeter.
CSP-142
The CSP 142 is a compact 80-watt ceiling speaker with a built-in multi-tap transformer with
a maximum power of 30W. It features a 4-inch woofer and 3/4 titanium-coated tweeter. "
Low clearance of 6.25 (15.9 cm) makes it possible to install this speaker into smaller ceiling "
spaces.
USER’S GUIDE
