PRODUCT SPECIFICATION

evolution wireless G4

ew 100 G4-835-S | ew 100 G4-845-S |

ew 100 G4-865-S | Vocal Set

1/7

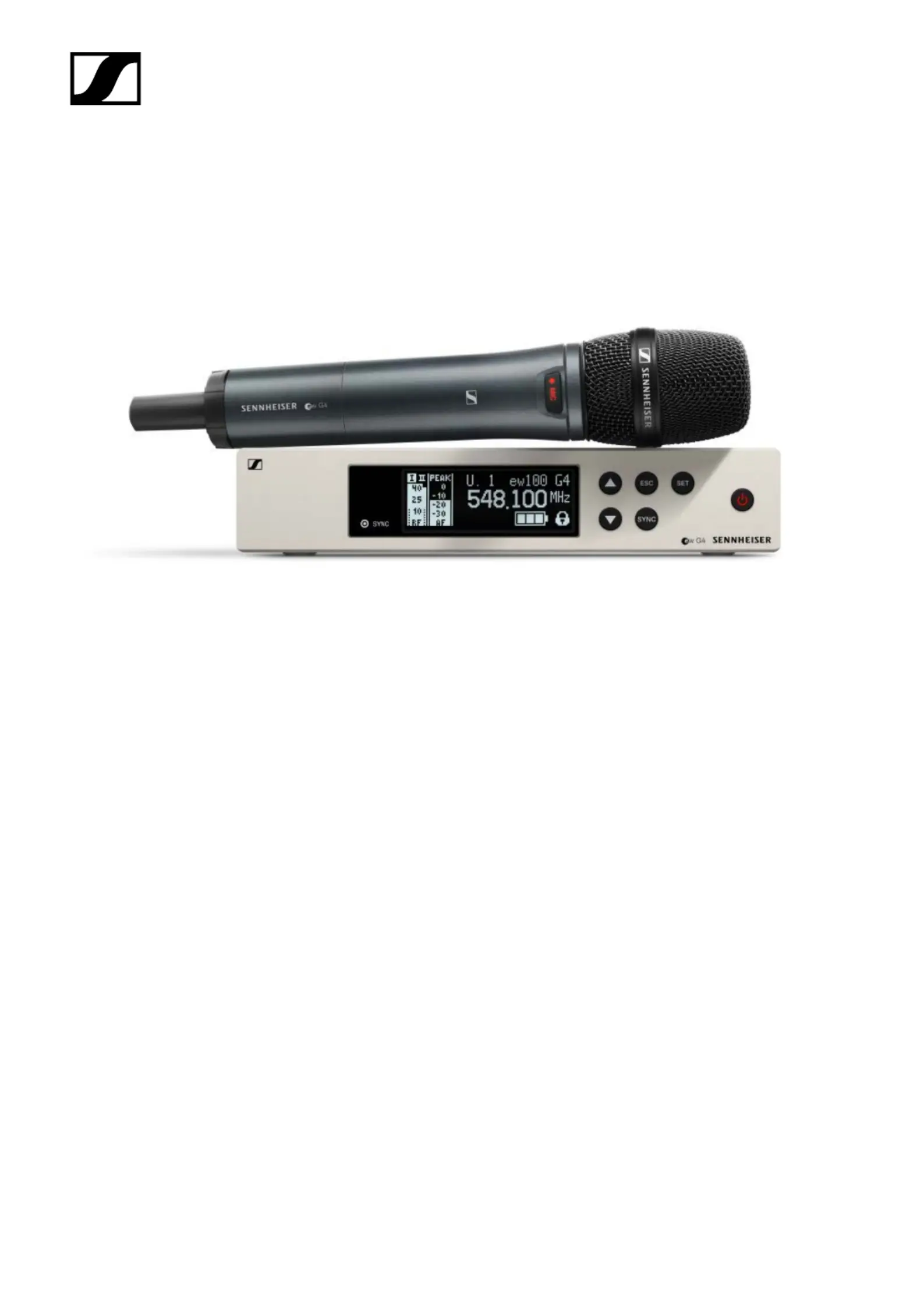

FEATURES

• Engineered for professional live sound:

Rugged all-in-one wireless system for singers and

presenters.

• State-of-the-art live sound featuring Sennheiser‘s

renowned e 835, e 845, e 865, e 935, e 945 capsules

on a lightweight aluminium transmitter with integrated

mute switch

• True diversity half-rack receiver in a full-metal housing

with intuitive LCD display for full control

• Easy and ﬂexible wireless synchronization between

transmitter and receiver via infrared

• Fast frequency allocation for up to 12 receivers via new

linking functionality

• Up to 20 compatible channels

• Up to 42 MHz bandwidth with 1680 selectable frequen-

cies, fully tunable in a stable UHF range

• Transmission Range: up to 100 meters / 300 feet

• High RF output power (up to 30 mW) depending on

country regulations

DELIVERY INCLUDES

• EM 100 G4 true diversity receiver

• SKM 100 G4-S handheld transmitter

• MMD 835-1 microphone head (835-S variants only)

• MMD 845-1 microphone head (845-S variants only)

• MME 865-1 microphone head (865-S variants only)

• GA 3 rackmount set

• MZQ 1 microphone clamp

• power supply

• 2 AA batteries

• 2 rod antennas

• RJ 10 cable

• quick guide

• safety guide

• manufacturer declaration sheet

• frequency supplement sheet

Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable

UHF range and fast, simultaneous setup of up to 12 linked systems.

State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845 and e 865 capsules on a lightweight aluminum

transmitter with integrated mute switch.

PRODUCT SPECIFICATION

evolution wireless G4

ew 100 G4-835-S | ew 100 G4-845-S |

ew 100 G4-865-S | Vocal Set

2/7

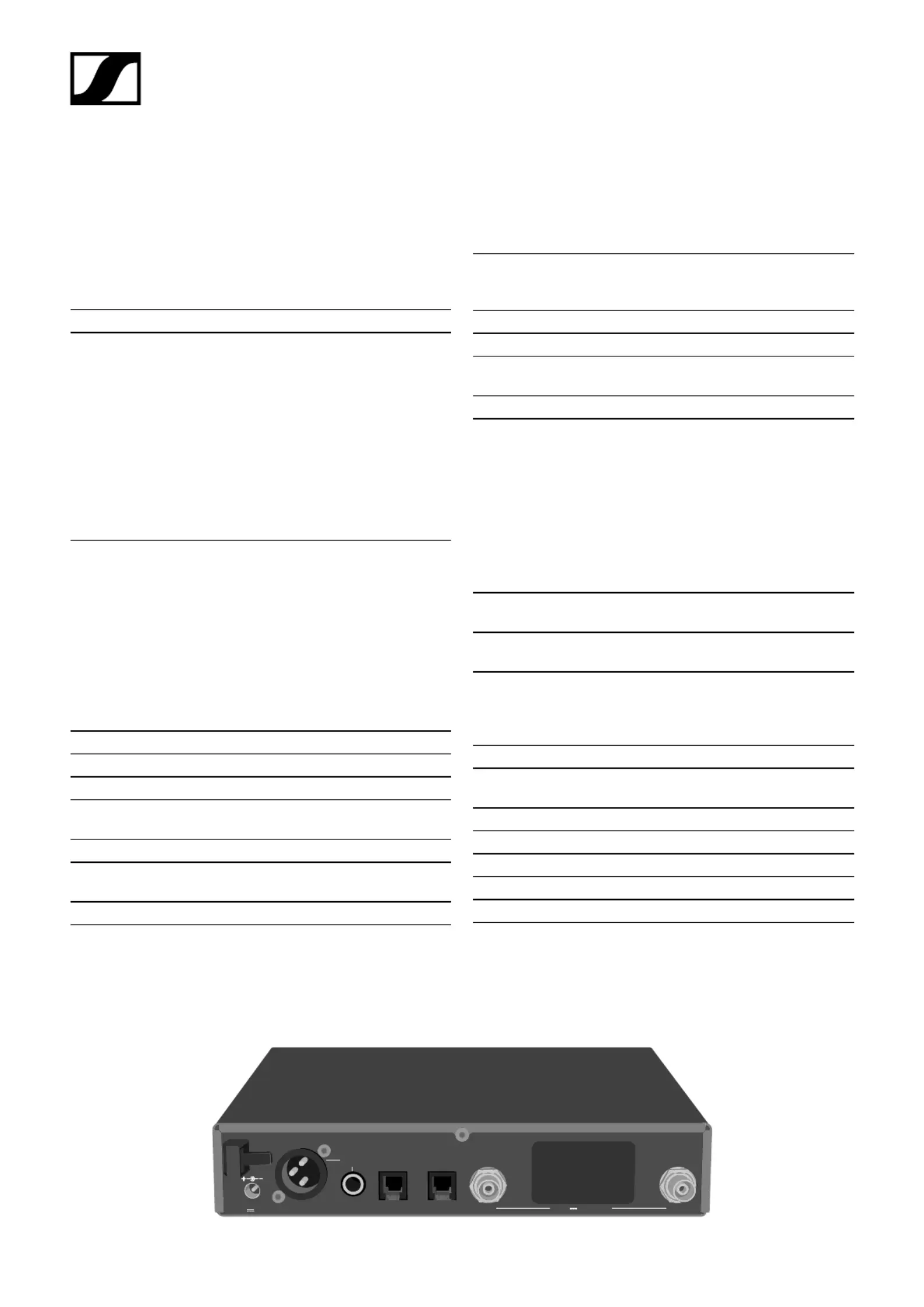

SPECIFICATIONS

EM 100 G4

RF characteristics

Modulation Wideband FM

Frequency ranges A1: 470 - 516 MHz

A: 516 - 558 MHz

AS: 520 - 558 MHz

G: 566 - 608 MHz

GB: 606 - 648 MHz

B: 626 - 668 MHz

C: 734 - 776 MHz

D: 780 - 822 MHz

E: 823 - 865 MHz

JB: 806 - 810 MHz

K+: 925 - 937.5 MHz

1G8: 1785 - 1800 MHz

Receiving frequencies Max. 1680 receiving

frequencies, adjustable in

25 kHz steps

20 frequency banks, each

with up to 12 factory-preset

channels, no intermodula-

tion

1 frequency bank with up to

12 programmable channels

Switching bandwidth up to 42 MHz

Nominal/peak deviation ±24 kHz / ±48 kHz

Receiver principle True diversity

Sensitivity (with HDX, peak

deviation)

< 2.5 μV for 52 dBA

eff S/N

Adjacent channel selection Typically ≥ 65 dB

Intermodulation attenua-

tion

Typically ≥ 65 dB

Blocking ≥ 70 dB

Squelch low: 5 dBμV

middle: 15 dBμV

high: 25 dBμV

Pilot tone squelch Can be switched off

Antenna inputs 2 BNC sockets

AF characteristics

Compander system Sennheiser HDX

EQ presets (switchable,

act on line and monitor

outputs)

Preset 1: Flat

Preset 2:

Low Cut (-3 dB at 180 Hz)

Preset 3:

Low Cut/High Boost

(-3 dB at 180 Hz,

+6 dB at 10 kHz)

Preset 4:

High Boost

(+6 dB at 10 kHz)

Signal-to-noise ratio (1 mV,

peak deviation)

≥ 110 dBA

Total harmonic distortion

(THD)

≤ 0.9 %

AF output voltage (at peak

deviation, 1 kHz AF)

6.3 mm jack socket

(unbalanced): +12 dBu

XLR socket

(balanced): +18 dBu

Setting range “AF Out”48 dB (3 dB steps)

Overall device

Temperature range -10 °C to +55 °C

Power supply 12 V DC

Current consumption 300 mA

Dimensions Approx. 190 x 212 x 43 mm

Weight Approx. 980 g

DC IN 12V/300mA

AF OUT

BAL/UNBAL

DATA

ANT II

ANT I

RF IN

CONNECTIONS

PRODUCT SPECIFICATION

evolution wireless G4

ew 100 G4-835-S | ew 100 G4-845-S |

ew 100 G4-865-S | Vocal Set

3/7

SPECIFICATIONS

SKM 100 G4-S

RF characteristics

Modulation Wideband FM

Frequency ranges A1: 470 - 516 MHz

A: 516 - 558 MHz

A10: 516 - 558 MHz

AS: 520 - 558 MHz

G: 566 - 608 MHz

GB: 606 - 648 MHz

B: 626 - 668 MHz

B10: 626 - 668 MHz

C: 734 - 776 MHz

D: 780 - 822 MHz

JB: 806 - 810 MHz

E: 823 - 865 MHz

K+: 925 - 937,5 MHz

1G8: 1785 - 1800 MHz

Transmission frequencies Max. 1680 receiving

frequencies, adjustable in

25 kHz steps

20 frequency banks, each

with up to 12 factory-preset

channels, no intermodula-

tion

1 frequency bank with up to

12 programmable channels

Switching bandwidth up to 42 MHz

Nominal/peak deviation ±24 kHz / ±48 kHz

Frequency stability ≤ ±15 ppm

RF output power at 50 ΩMax. 30 mW

Pilot tone squelch Can be switched off

AF characteristics

Compander system Sennheiser HDX

AF frequency response 80 – 18,000 Hz

Signal-to-noise ratio (1 mV,

peak deviation)

≥ 110 dBA

Total harmonic distortion

(THD)

≤ 0.9 %

Max. input voltage 3 V

eff

Input impedance 40 kΩ

Input capacitance Switchable

Setting range for input

sensitivity

48 dB,

adjustable in 6 dB steps

Overall device

Temperature range -10 °C to +55 °C

Power supply 2 AA batteries, 1.5 V or

BA 2015 accupack

Nominal voltage 3 V battery /

2.4 V rechargeable battery

Current consumption at nominal voltage:

typ. 180 mA

with transmitter switched

off: ≤ 25 μA

Operating time Typically 8 h

Dimensions Approx. Ø 50 x 265 mm

Weight (incl. batteries) approx. 450 g

SPECIFICATIONS

MMD 835-1

Transducer principle dynamic

Sensitivity 2.1 mV/Pa

Sound pressure level 154 dB SPL

Pick-up pattern cardioid

MMD 845-1

Transducer principle dynamic

Sensitivity 1.6 mV/Pa

Sound pressure level 154 dB SPL

Pick-up pattern supercardioid

MME 865-1

Transducer principle pre-polarized condensor

microphone

Sensitivity 1.6 mV/Pa

Sound pressure level 152 dB SPL

Pick-up pattern supercardioid
