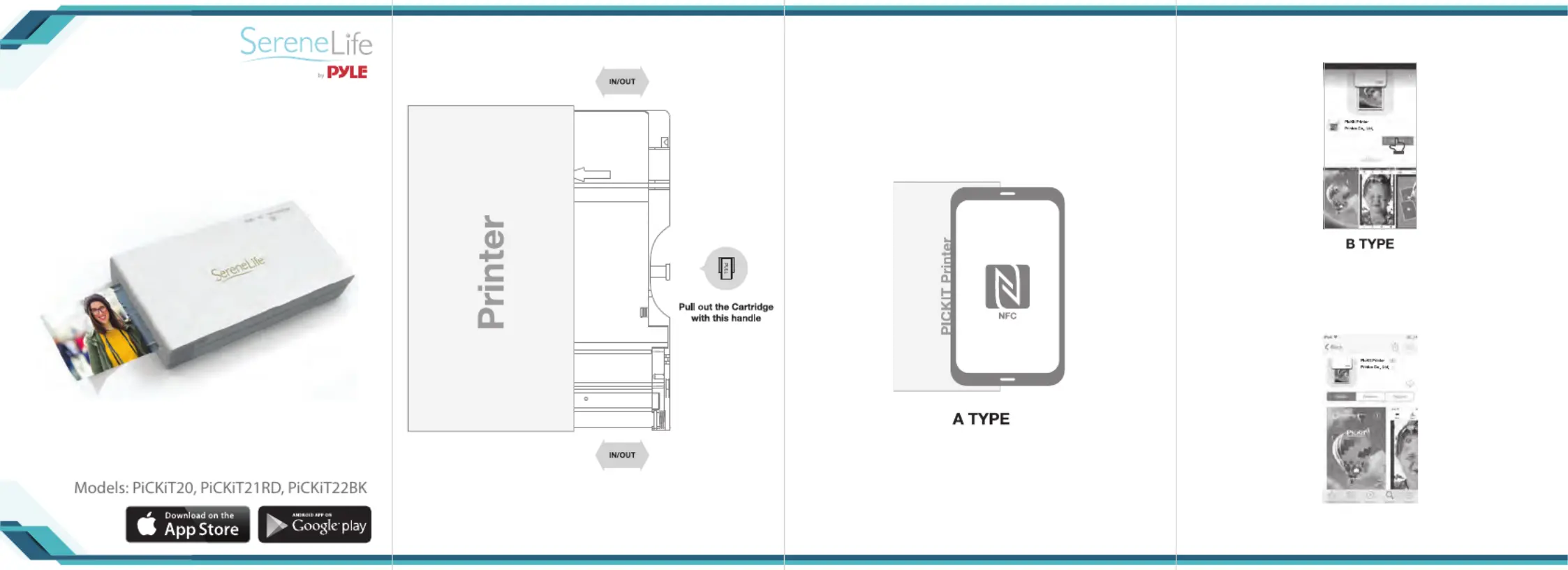

The Smart PrinterPiCKiT

User Manual

Step 1 Before Start

www.PyleUSA.com

IN/OUT

Follow the arrow to insert the cartridge

www.PyleUSA.com

Step 2 App Installation

1. Android Device

A TYPE *NFC Support Android Device ONLY

1. Turn NFC on in your smart phone.

2. Tap the phone on the top of Pickit printer.

Google Play Store app installation page will show up.

3. Install the app into your smartphone from the store.

B TYPE

1. Go to Google Play Store in your smartphone.

2. Search "Pickit Printer’

3. Install "Pickit Printer" into your smartphone.

www.PyleUSA.com

Step 2 App Installation

2. Apple Device

1. Go to Appstore in your iPhone, iPod touch or iPad.

2. Search “Pickit Printer”

3. Install “Pickit Printer“ Application into your device.

www.PyleUSA.com www.PyleUSA.com www.PyleUSA.com

Step 3 Connecting

1. WiFi Access Point (AP) *Apple and Android Devices.

1. Turn WiFi on in your smartphone.

2. Go to WiFi setting and ﬁnd "Direct-Cube-XXXX”.

* Printer names are vary and 4 digits. The 4 digits are combination of

number and alphabet.

3. Password is “12345678".

4. Select the WiFi network to connect the printer.

2. NFC and WiFi Direct *NFC. WiFi Direct support devices ONLY

1. Turn NFC and WiFi on in your smartphone.

*Set the NFC setting as P2P mode.

2. Tap your device on the center of the printer where

the NFC mark is.

3. Within 20 seconds, the app will automatically

connect to WiFi Direct

4. When the printer is connected to WiFi Direct, green

mark will be shown in the app.

Step 4 Printing in the App

* In case of multiple printers are available

Power and active status

Battery Status

Troubleshooting

Status

Power ON

Power OFF (2sec)

Printing

F/W Upgrade

No Cartridge

Error (Paper Jam, etc.)

Waiting/Cooling

White

O

White Flickering

Pink Flickering

Red Flickering

White

Status

Charging

Charging Complete

Red

Green

Symptom

Paper Jam

Image quality

is not good

Printer is not

responding

CAUSE / SOLUTION

Power OFF and Power ON again. Paper will be automatically

ejected. If not, please contact customer service.

Print quality could be less if your photo source has low resolution.

Press Reset button with sharp tool like pin.

Over 1280 x 2448 pixel is recommendedfor best image quality

Step 6 Note and FCC

Note

• Photo Paper will go in and out 4 times (YMCO, Yellow. Magenta.

Cyan, Overcoating). Do NOT touch the paper during printing

process for best image quality.

• Do not pull paper out by force during printing.

• Do not place an object in front of the paper exit slot.

• Use the latest Pickit application for law print quality. Check the latest app

version from Google Play Store and Apple Appstore.

• Printer has Built-In Battery. Charge the printer before using.

• Handle with care during charging to prevent electric shock.

• Do not disassemble or deform.

• Avoid too high or low temperature or humidity.

• If NFC tag is not read, check its position on the printer and smartphone.

Then try again.

• The higher resolution the image has, the higher quality the printed

photo has. Recommended image size is 1280 * 2448 pixel.

• Operating Temperature: 32~104°F

FCC (Federal Communications Commission)

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1. This device may not cause harmful interference. and

2. This device must accept any Interierence received. including Interierence that

may cause undesired operation.

CAUTION: Any changes or modications to the equipment not expressly approved by the

party responsible responsible for compliance could void user’s authority to operate the

equipment.

This device (FCCID: PO5M1) complies with FCC SAR requirement.
