A95U -- Line Matching Transformer
General Description
This reversible transformer matches low- or high-impedance microphones
to high- or low-impedance inputs. The transformer permits use of very long
microphone cables with either low- or high-impedance microphones. How-
ever, when connecting a high-impedance microphone, limit the cable
length between the microphone and the transformer to 4.6 m (15 ft). The
cable from the transformer to the low-impedance input can be any desired
length.
The transformer prevents high-frequency loss, level loss, and pickup of
noise and hum. The A95U comes furnished with a three-pin XLR connector
on the low-impedance end, with a 1/4 in. phone plug and phone jack
adapter on the high-impedance end.
Case: Full magnetic shield, steel with gray enamel finish
Dimensions: 19 mm (3/4 in.) diameter; 89 mm (31/2 in.) long without
adapters
Low-Impedance Selection
The A95U comes factory preset with the low-impedance end intended for use with microphones or inputs rated 75
to 300 ohms. For microphones or input rated at 19 to 75 ohms, make the following changes.
1. Remove the low-impedance XLR plug by turning the lock screw counter-clockwise and withdrawing the XLR
plug from the case.
2. Unsolder the YELLOW lead from pin 3 and insulate the bare wire at the end of the lead with the insulator from
the ORANGE lead.
3. Solder the ORANGE lead to pin 3.
4. Rotate the XLR plug three turns to twist the leads, then replace the XLR plug in the case. Tighten the lock
screw to secure the XLR plug in place (turning clockwise).
Shure Incorporated
2/4

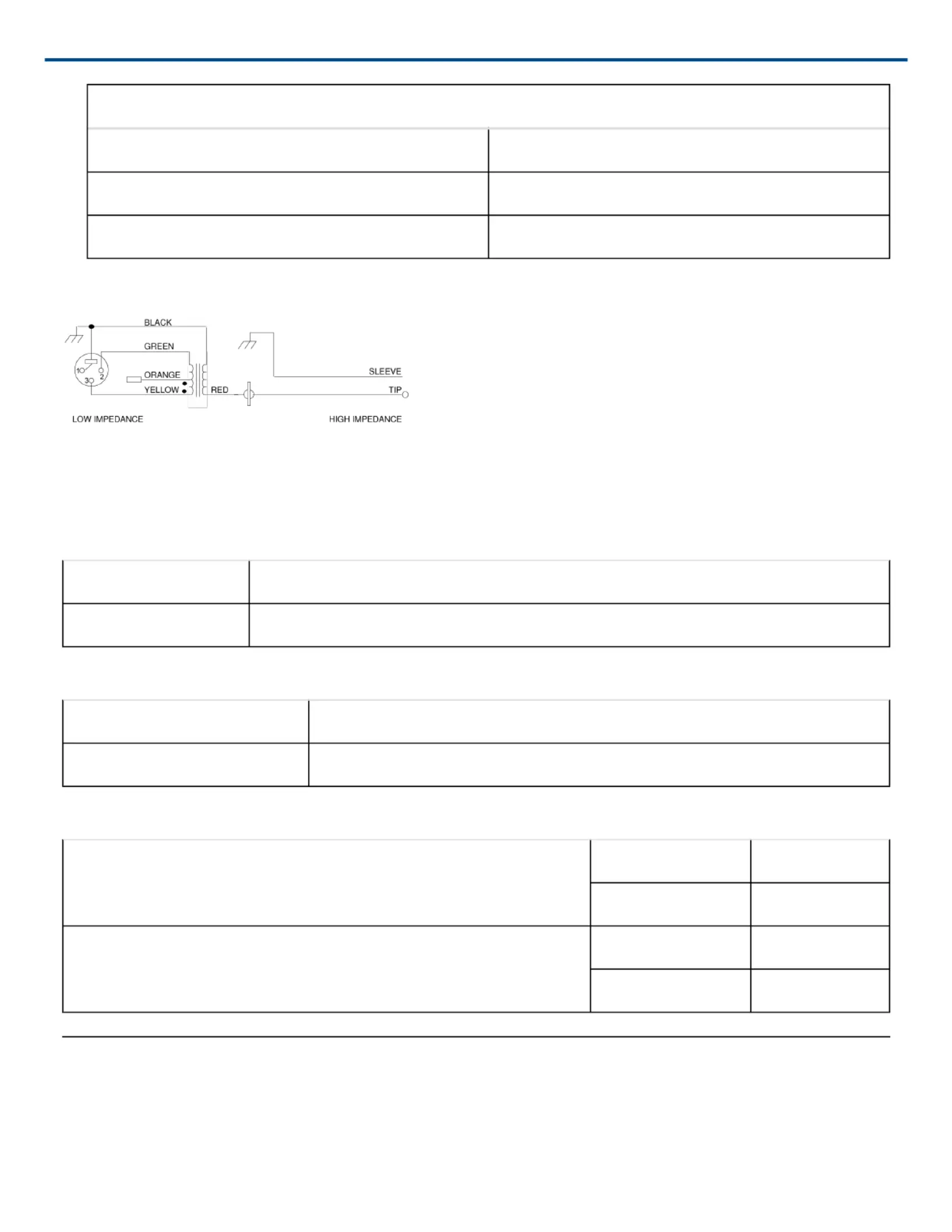

IMPEDANCES
GREN/YLW 75-300 Ω
GREN/ORN 19 - 75 Ω
BLK/RED HIGH
Frequency Response
20 to 20 kHz
Impedance
Low Impedance 75 to 300 Ω
Medium impedance High( )41 kΩ with 150-Ω source on 75-to-300 Ω winding
DC Resistance
Low Impedance 75 to 300 -75 , 19 to 75 -37.5 Ω Ω Ω Ω
High Impedance 4300 Ω
Voltage Ratio
Low-impedance to high-impedance +2819-75Ω dB
75-300Ω dB+22
High-impedance to low-impedance -2819-75Ω dB
75-300Ω dB-22
Maximum Recommended Input Levels
Shure Incorporated
3/4
Source Impedance Winding Being Driven Maximum Level
33 Ω 19 to 75 Ω 0.5 V
200 Ω 75 to 300 Ω 1.0 V
600 Ω High impedance 10 V
5,000 Ω High impedance 10 V
33,000 Ω High impedance 10 V
LIMITED WARRANTY
Shure Incorporated (“Shure”) hereby warrants to the original consumer purchaser only that, except as otherwise
specified below, this product will be free in normal use of any defects in materials and workmanship for a period of
two (2) years from the consumer’s original date of purchase directly from Shure or from a Shure-authorized re-
seller.
Any rechargeable batteries contained in or packaged with this product are so warranted for a period of one (1)
year from the consumer’s original date of purchase. However, rechargeable batteries are consumable and their
capacity will be reduced over time based on temperature, amount of time in storage, charging cycles, and other
factors; hence reduction in battery capacity does not constitute a defect in material or workmanship.
At its sole option, Shure will repair or replace the defective product and promptly return it to you. In order for this
warranty to be valid, the consumer must, at the time the product is returned, provide proof of purchase in the form
of the original purchase receipt directly from Shure or from a Shure-authorized reseller. If Shure elects to replace
the defective product, then Shure reserves the right to replace the defective product with another product of the
same model or a model of at least comparable quality and features in Shure’s sole determination.
If you believe this product is defective within the warranty period, carefully repack the unit, insure it and return it
with proof of purchase, postage prepaid, to Shure Incorporated, Attention: Service Department, at the address be-
low.
Outside of the United States, return the product to your dealer or Authorized Service Center. Addresses are listed
on www.Shure.com or can be obtained by contacting Shure at the address listed below.
This warranty is not transferable. This warranty does not apply in cases of abuse or misuse of the product, use
contrary to Shure’s instruction, ordinary wear and tear, an act of God, negligent use, purchase from a party other
than Shure or a Shure-authorized reseller, unauthorized repair, or modification of the product.
ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE
HEREBY DISCLAIMED TO THE EXTENT PERMITTED UNDER APPLICABLE LAWS AND, TO THE EXTENT
NOT PERMITTED, ARE HEREBY LIMITED TO THE DURATION AND TERMS OF THIS WARRANTY. SHURE
ALSO HEREBY DISCLAIMS ALL LIABILITY FOR INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of inciden-
tal or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal
rights, and you may have other rights which vary from state to state.
