Model UA860SWB UHF Passive

Omnidirectional Antenna User Guide

27D3186 (Rev. 1)

Printed in U.S.A.

MODEL UA860SWB UHF PASSIVE

OMNIDIRECTIONAL ANTENNA

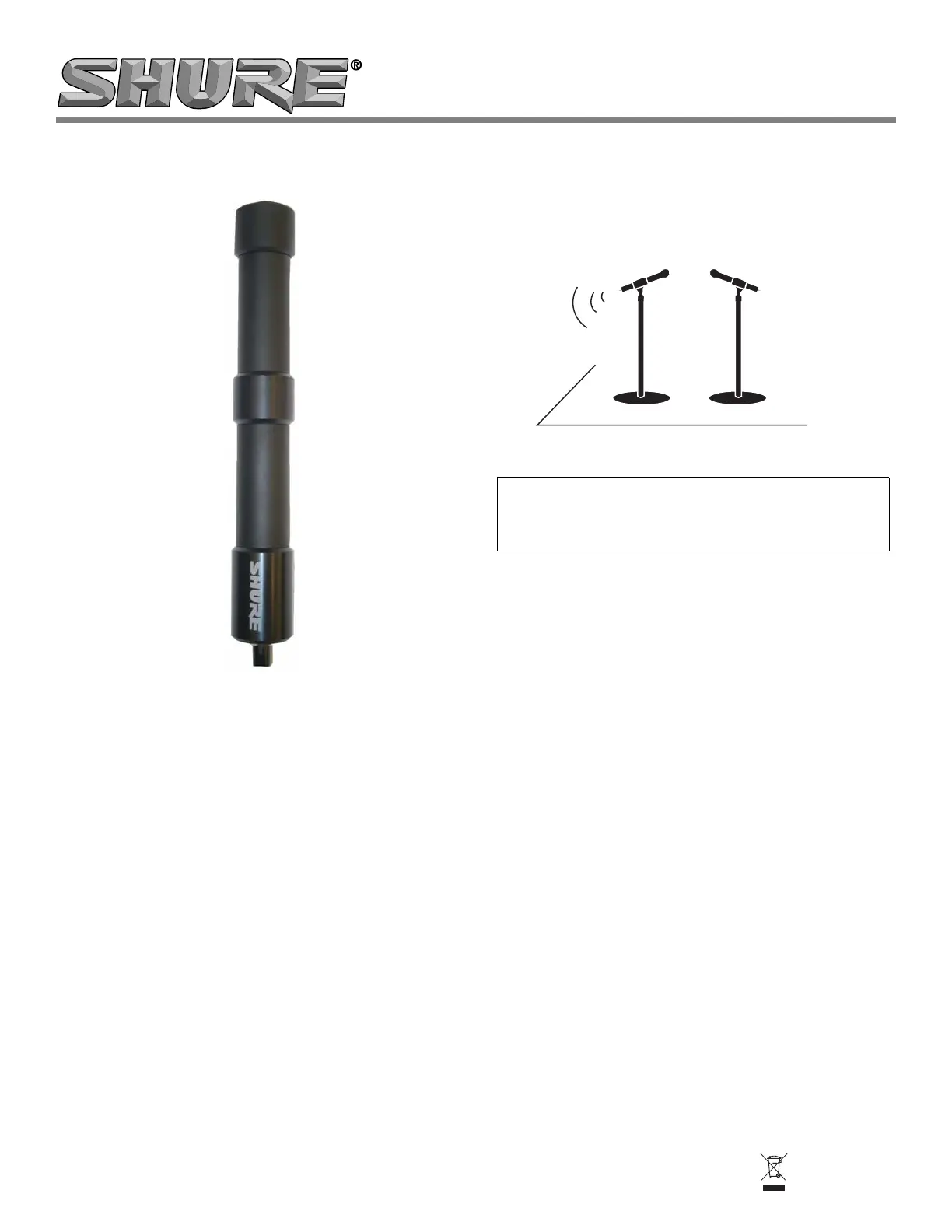

The Shure UA860SWB is a passive wide band UHF omnidirectional

antenna. The UA860SWB is weather resistant and suitable for use

outdoors.

INSTALLATION INSTRUCTIONS

Selecting Cable

Determine the length of cable required to connect the

UA860SWB antenna to a receiver or transmitter. Use only 50 Ω

low-loss cables (RG-8X or equivalent).

Shure recommends the following coaxial cables for mounting

remote antennas:

•

UA825

Extension Cable (7.6 m [25 ft])

•

UA850

Extension Cable (15.2 m [50 ft])

•

UA8100

Extension Cable (30.4 m [100 ft])

NOTE

: Shure recommends using the UA830SWB In-Line Amplifier

with gain selector switch, for cable lengths longer than

7.6 m ([25 ft]).

NOTE: For additional technical assistance, call the Shure

Customer Service Department at 1-800-516-2525. In Europe,

phone 49-7131-72140.

SPECIFICATIONS

RF Frequency Range

470–1100 MHz

Voltage Standing Wave Ratio (VSWR)

<2:1 referenced to 50Ω

Reception Pattern

Omnidirectional dipole

Connector

Female, BNC-type

Dimensions

284 mm H X 39 mm Dia. (11-3/16 X 1-9/16 in.)

Stand Adapter

Break resistant, with standard (UNS) 5/8 in.–27 thread

Net Weight (without cable)

275 g (9.72 oz.)

FURNISHED ACCESSORIES

UHF Coaxial Antenna Cable, 61 cm (2 ft.) . . . . . . . . . . . UA802

UHF Coaxial Antenna Cable, 7.6 m (25 ft.). . . . . . . . . . . UA825

Stand Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .WA371

Thread Adapter (Euro) 5/8” to 3/8” . . . . . . . . . . . . . . . 31A1856

IMPORTANT:

Always perform a “walk around” test to verify coverage prior to

actual use. Experiment with antenna placement to find the

optimum location for the UA860SWB.

Produktspecifikationer

Varumärke:	Shure
Kategori:	TV-antenn
Modell:	UA860SWB
Produkttyp:	Antenn
Strömförsörjning ingår:	Nej
Kompatibilitet:	BLX4R, SLX, QLX-D, ULX-D, UHF-R
Produktens färg:	Svart
Frekvensområde:	470 - 1100 MHz
Brand kompatibilitet:	Shure
Antal:	1
Monteringsfäste ingår:	Nej
Flexibel svanhalshållare:	Nej
