Instructions
April,2001
Supersedes Issue of
July,2000
Siemens Energy & Automation,Inc.1000 McKee Street Batavia,Illinois 60510
52-HPA8
Push Button & Accessories
Class 52
Cat No 52PA8,52 PB9,52ABT,
52AABA,52ABW,52PX
When installed as indicated,these
operators are suitable foruse in Type
1,3,3R,4,12,or13 enclosures.
Black Max (52PX) suitable forType
4X enclosures.
ForEngineering Reference Only - Rev.K

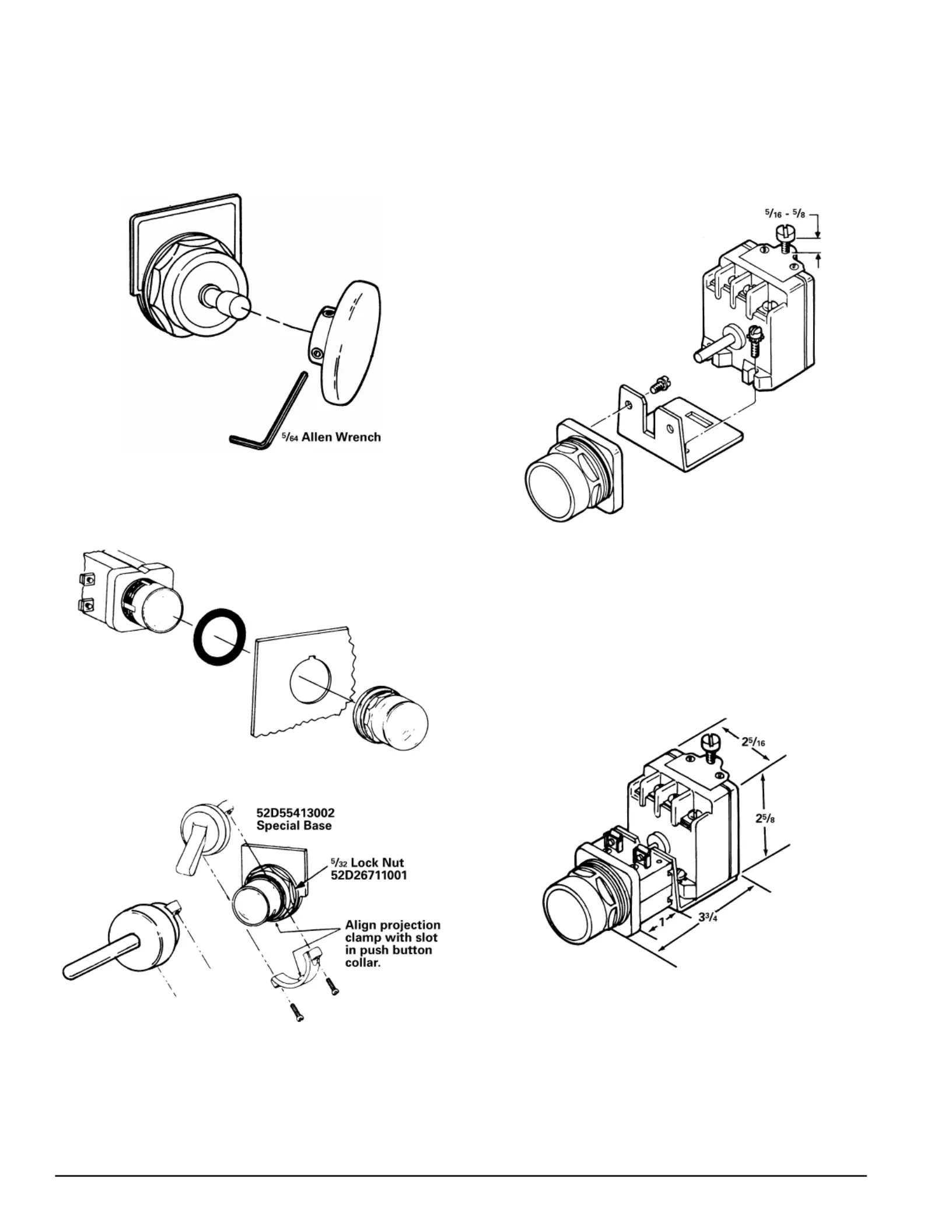

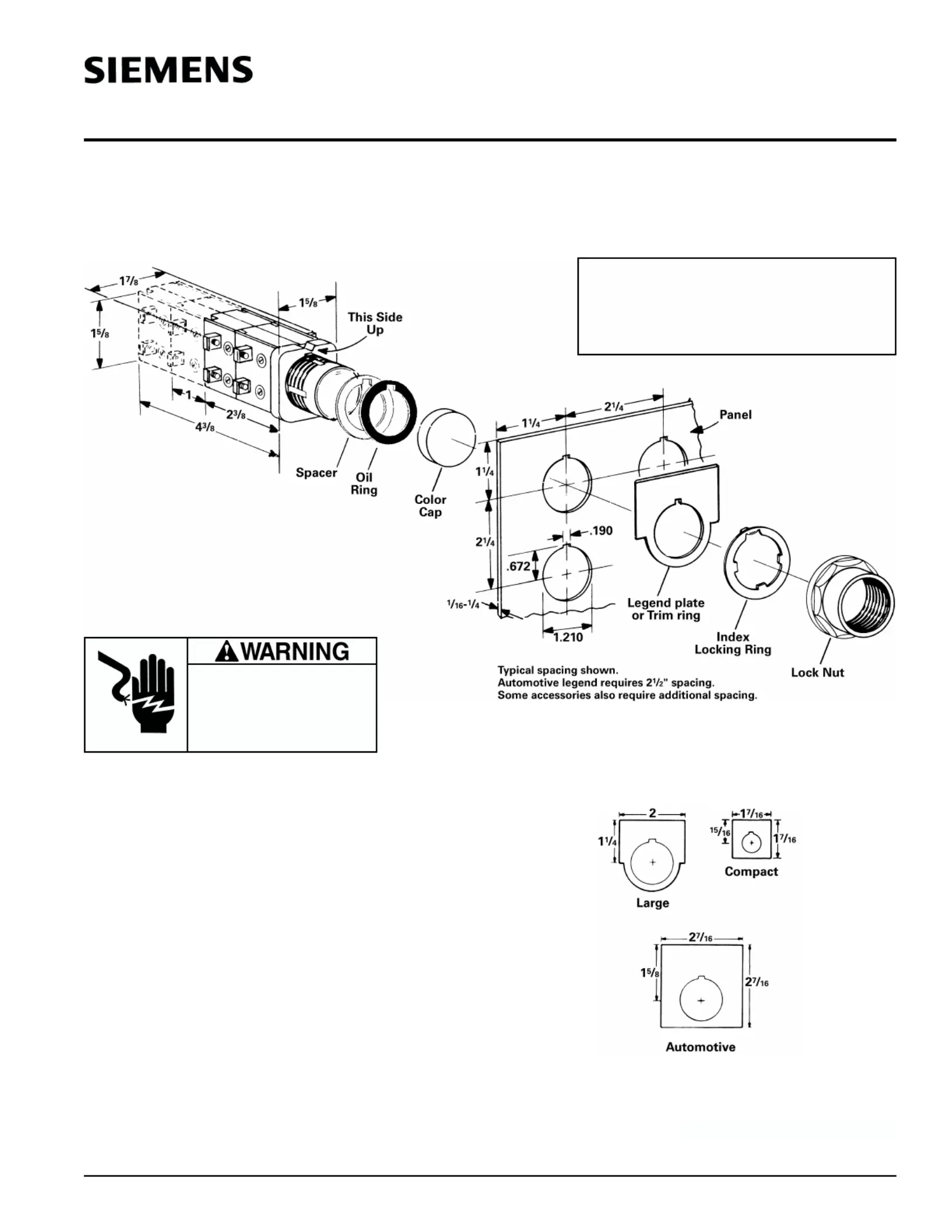

INSTALLATION
Units are assembled as shown.
1.*Assemble spacer.
2.Assemble oil ring.
3.Mount unit on panel as shown in illustration.
4.*Position trim ring orlegend plate (trim ring is discarded
when legend plate is used).
5.Position index lockingring on unit as shown in illustration.
6.Assemble and tighten lock nut.
7.Position and press on colorcap.
*Spacerand trim ring not used on BlackMax 4X devices.
Notes forBlackMax 4X devices:
*The trim ring is not needed orsupplied.
*Only use the index locking ring when using a metal name
plate.Discard when not using a nameplate orwhen using a
plastic name plate.
*Use the locknut wrench,52MAWB.
LEGENDPLATES
Hazardous voltage.
Can cause death,serious personal
injury,orproperty damage.
To avoid electrical shock,turn off
electrical powerto controls before
performing installation maintenance.
