HDMI to DVI + Audio
Converter
Quick Installation Guide
Introduction
The HDMI to DVI + Audio Converter provides an easy
solution for converting digital HDMI to digital video
(DVI-D) and both digital audio (S/PDIF) and analog
stereo audio. This device enables you to connect full
digital video and audio to DVI enabled monitors and
coaxial S/PDIF equipped audio receivers and amplifiers
for highest compatibility to your home theater system.
Features and Benefits
• Converts an HDMI source to DVI video & digital/
analog audio
• Supports PC graphics resolution up to WUXGA
(1920x1200@60)
• Supports digital (S/PDIF) & analog audio
• Supports HDMI source format up to 1080p
• Metal housing for better RF shielding
Note: This product does NOT strip HDCP from the
source device/content. If the source device/content
is HDCP enabled/protected, the display has to be
HDCP compliant to work.
Package Contents
• HDMI to DVI + Audio Converter
• Power adapter (5V, 2A)
• Quick installation guide
04-0845A
2
Technical Specifications
• Bandwidth: Single-link 165 MHz (4.95Gb/s)
• Input Video Signal: 1.2 Volts p-p
• Input DDC Signal: 5 Volts p-p (TTL)
• Supports resolutions up to 1080p@60Hz and UXGA
(1600x1200@60Hz) and W UXGA (1920x1200@60Hz)
• HDMI connector: 19 pin type female connector
• DVI connector: DVI-I 29 pin female (digital only)
• RCA connector: Coaxial S/PDIF
• Audio out: Analog stereo jack
• Power supply: Output - 5VDC, 2A
• Power consumption: 10 watts (max)
Layout
Front Panel
Figure 1: Front Panel
• HDMI In: connects to an HDMI source device
• Status LED & Power LED: indicates the activity and
power status
• Rotary Switch: audio output and EDID settings. See
Rotary Switch section on page 3.
• Power Jack: connects the power adapter here
HDMI
In
Status
LED
Rotary
Switch
Power
Jack
Power
LED
3
S/PDIF
Audio Out
DVI Out

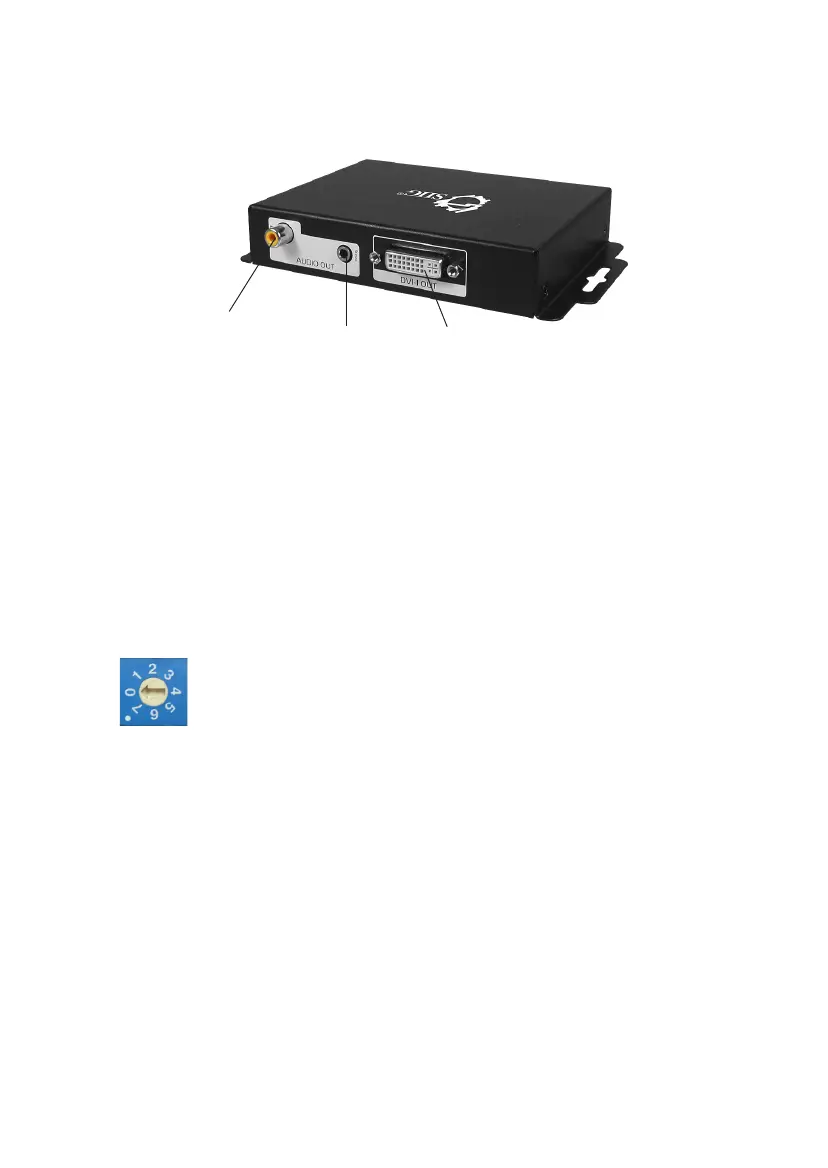

Rear Panel
Figure 2: Rear Panel
• S/PDIF Audio Out: connects to S/PDIF (RCA)
enabled PC or speakers
• Stereo Audio Out: connects to PC audio in,
headphones or stereo analog speakers
• DVI Out: connects to your DVI display
Rotary Switch
• Position 0: Analog audio output
• Position 1: Analog audio output
• Position 2: Analog audio output
• Position 3: Analog audio output
• Position 4 & 5 : Reserved
• Position 6: Restore default EDID
• Position 7: Learn EDID of HDMI equipped device
The function of the rotary switch is reserved,
please keep the rotary switch at 0.
Stereo
Audio Out
