Low Profile Universal TV Mount
23" to 42"
Installation Instructions
04-0660B
Important: If you have difficulty following or understanding these installation instructions,
please consult a qualified installation specialist.
Fixed Flat-Panel TV Wall Mount
Material: 2.0mm Cold Rolled Steel Plate
TV size: 23" - 42"
Max load capacity: 132lbs / 60kgs
Wall distance: 1.38" / 35mm
Bubble level included
Universal Mounting Pattern
2
Caution
• Prior to installation of this product, the installation instructions should be read and
completely understood. The installation instructions must be read to prevent personal
injury and property damage. Keep these installation instructions in an easily accessible
location for future reference.
• This mount contains small parts which can act as a choking hazard if swallowed.
• CAUTION: The maximum load capacity is 132lbs. Use with products exceeding the
maximum load capacity may cause serious injury. See apparatus instructions.
• The wall structure must be capable of supporting at least five (5) times the maximum
load capacity as indicated. If not, the wall must be reinforced.
• Recommended mounting surfaces: wood stud and solid-flat concrete/brick. If the
mount is to be installed on any surface other than wood studs, solid concrete or brick,
use suitable hardware (not included but commercially available).
• Do not install on a structure that is prone to vibration, movement or chance of impact.
Failure to do so could result in damage to the display and/or damage to the mounting
surface.
• Do not install near heater, fireplace, air conditioning, in direct sunlight or any other heat
producing source. Failure to do so may result in damage to the display and could
increase the risk of fire.
• Make sure no water or natural gas lines are present where the mount is to be installed.
Cutting or drilling into water or natural gas lines could cause personal injury or property
damage.
• When mounting to wood studs, it is recommended that a maximum 5/8" particle board
be used.
• Proper installation procedure by yourself or a qualified service technician, as outlined
in the installation instructions, must be adhered to. Failure to do so could result in
serious personal injury.
• When mounting to a wall that contains wood studs, confirm the dead center of the wood
stud prior to installation, it is recommended that the wood studs be a minimum of 16"
apart (if applicable).
• This product is intended for indoor installation/use only. Premature product failure or
serious personal injury could occur if this product is used outdoors.
• It is recommended that two people perform the installation. Injury and/or damage can
result from dropping or mishandling the display.
• If you don't understand these installation instructions, please consult an installation
specialist.
Tools Required
• Electronic stud finder for drywall installation
• Phillips head screw driver
• 7/16" socket and wrench
• Electric drill, 1/8" (3mm) drill bit for wood stud installation, 5/16" (8mm) masonry drill
bit for concrete/brick wall installation
3
Important: The Low Profile Universal TV Mount - 23" to 42" is shipped with the proper
installation hardware and parts. Make sure that none of the items are missing or
damaged before starting the installation. If there are any missing and/or damaged parts,
please stop the installation and contact your place of purchase.

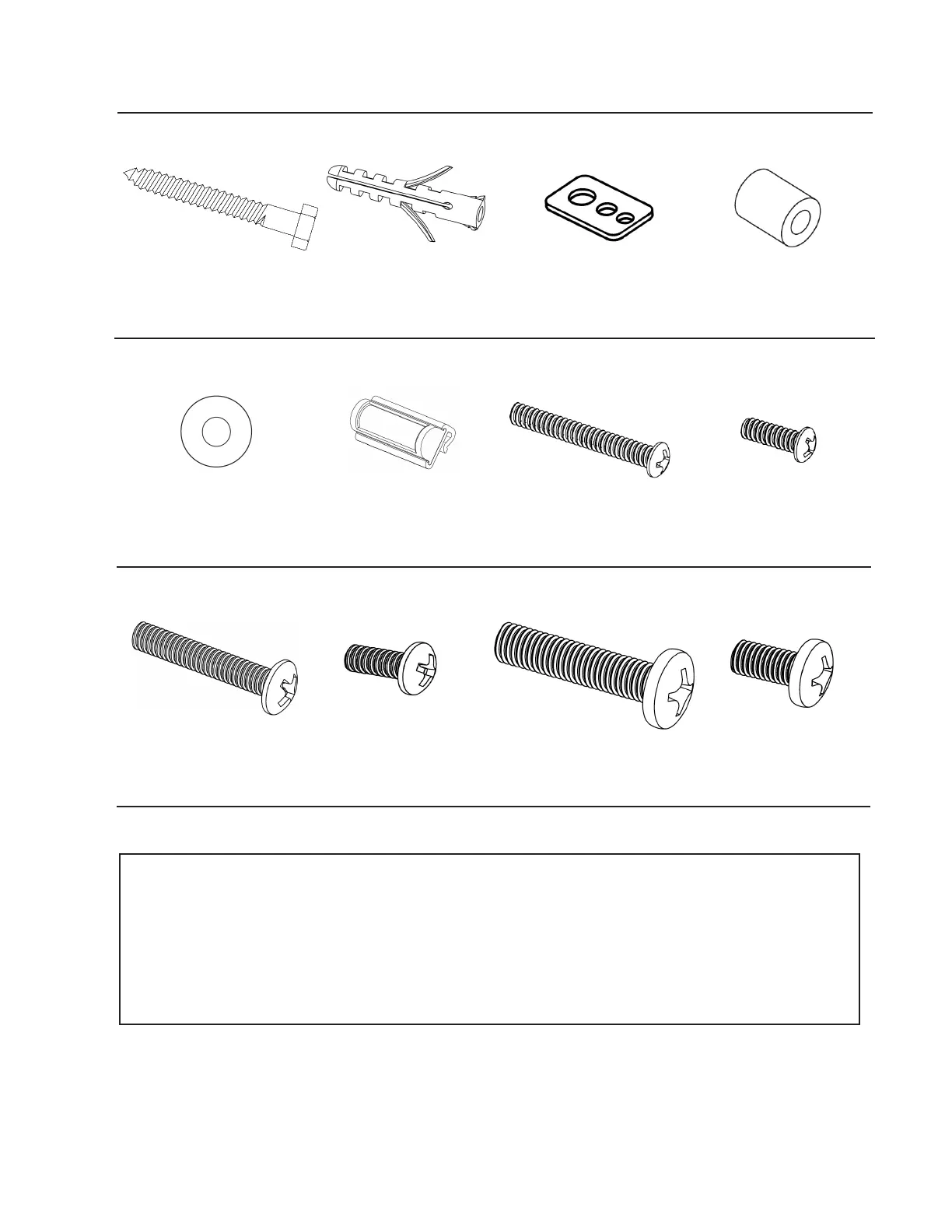

Hardware Kit
A
BCD
GE-1 F
(x4) M6x12
screw
(x4) M5x30
screw
(x4) M5x12
screw
(x4) M6x30
screw
(x6) M6
concrete anchor
J
HI
(x6) M6 washer
(x6) M6x50
bolt
(x4) M8/M6/M5
rectangular washer
(x1) Bubble level
K
(x4) Spacer
E-2
(x4) M8x30
screw
(x4) M8x15
screw
Note: Please ensure that the Bubble level (E-2) is properly mounted to the wall plate
prior to mounting the wall plate.
