Introduction
SIIG's VGA & Audio Long Range CAT5 Extender with
Auto-Tuned & Auto-Deskew is designed to extend your
VGA and stereo audio signals over one economical CAT5/
5e/6/7 cable.
Features and Benefits
• Extends VGA and Audio signals over a Cat5e/6
cable
• Maintains signal integrity up to 300m (984ft)
• Supports PC resolution up to 1920x1200@60Hz
• Supports local VGA monitor and stereo audio on
the Transmitter
• Video RGB auto-tuned and auto de-skew support
• Metal housing for excellent RF shielding
Package Contents
• VGA & Audio Long Range CAT5 Extender with Auto-
Tuned & Auto-Deskew
• 5V/2A Power adapter (2)
• VGA Cable
• 3.5mm Stereo Audio Cable
• Installation guide
04-0926A
VGA & Audio Long Range
CAT5 Extender with
AutoTuned & Auto-Deskew
Installation Guide
2
Layout
Transmitter
• LOCAL VGA OUT: Connects to a VGA display
• Audio OUT: Connects to 3.5mm stereo audio speakers
• Audio IN: Connects to the 3.5mm stereo audio output
of your computer's soundcard
• VGA IN: Connects to a computer's VGA output
• DC 5V power jack: Plug the included power adapter
here
• LINE OUT: Connects to the Receiver's LINE IN using
an RJ-45 CAT5/6/7 cable
• Auto-Tuned & Auto-Deskew button: Press the
button for Auto-Tuned & Auto-Deskew function

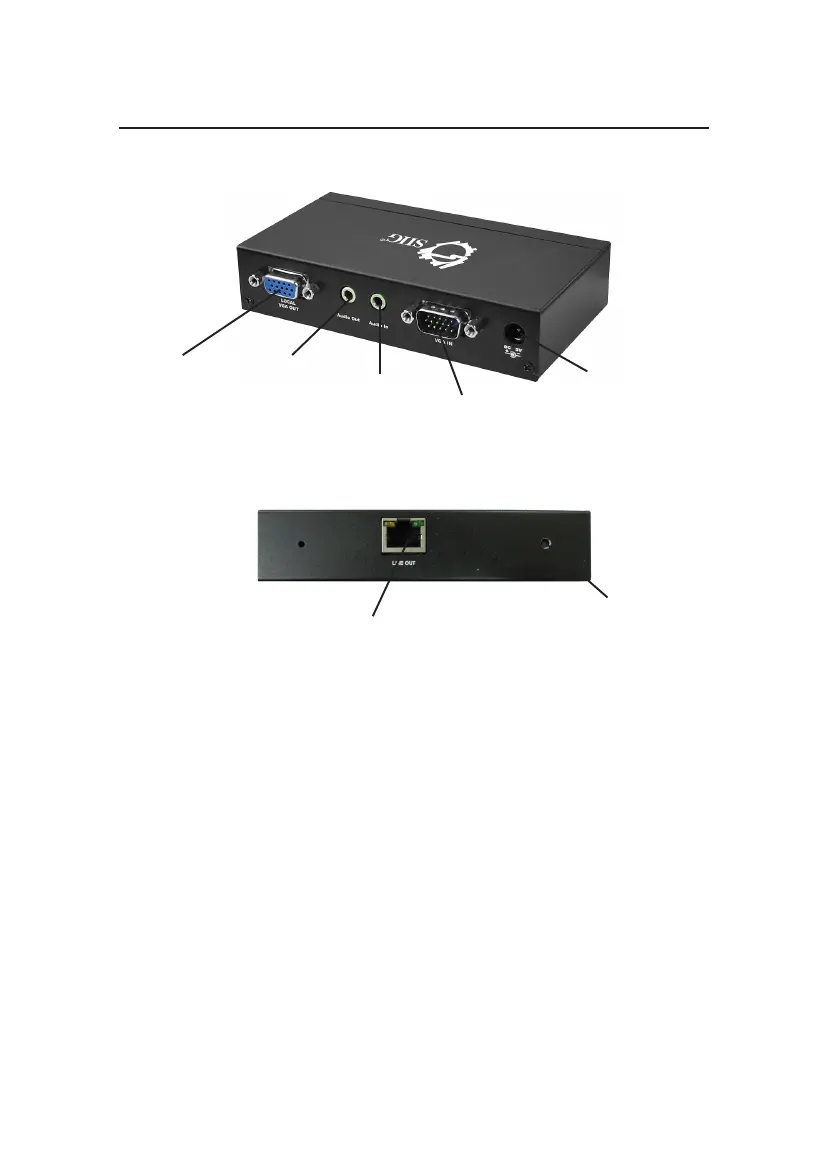

Figure 1: Front view
Figure 2: Rear view
LOCAL
VGA OUT
DC 5V
power jack
Audio
OUT
Audio IN
VGA IN
LINE OUT
Auto-Tuned &
Auto-Deskew button
3

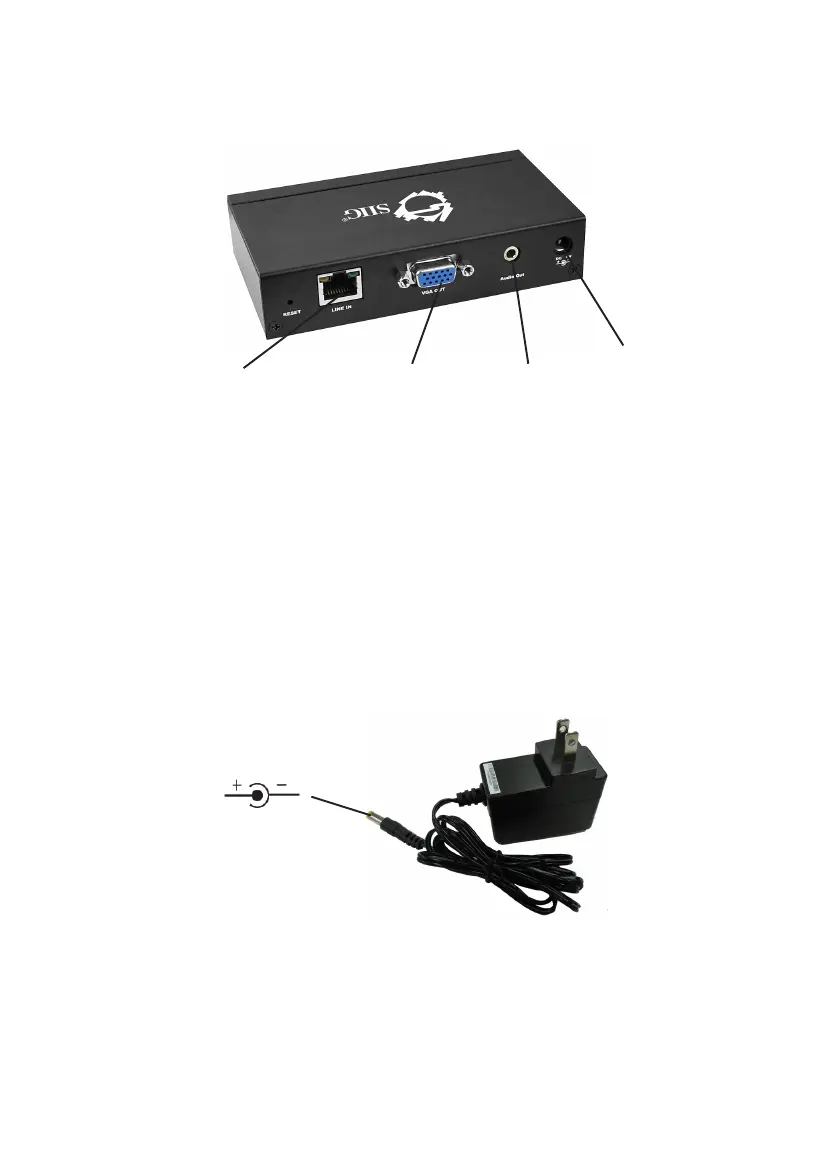

Figure 3: Front view
Receiver
DC 5V
Power jack
Audio OUT
VGA OUT
LINE IN
• LINE IN: Connects to the Transmitter's LINE OUT
using an RJ-45 CAT5/6/7 cable
• VGA OUT: Connects to a VGA display
• Audio Out: Connects to 3.5mm stereo audio speakers
• DC 5V power jack: Plug the included power adapter
here
Power Adapter
• Input: 100-240VAC, 50/60Hz, 0.5A
• Output: DC 5V, 2A
Figure 4: Power Adapter
