AP70/AP80

QuickStart Guide

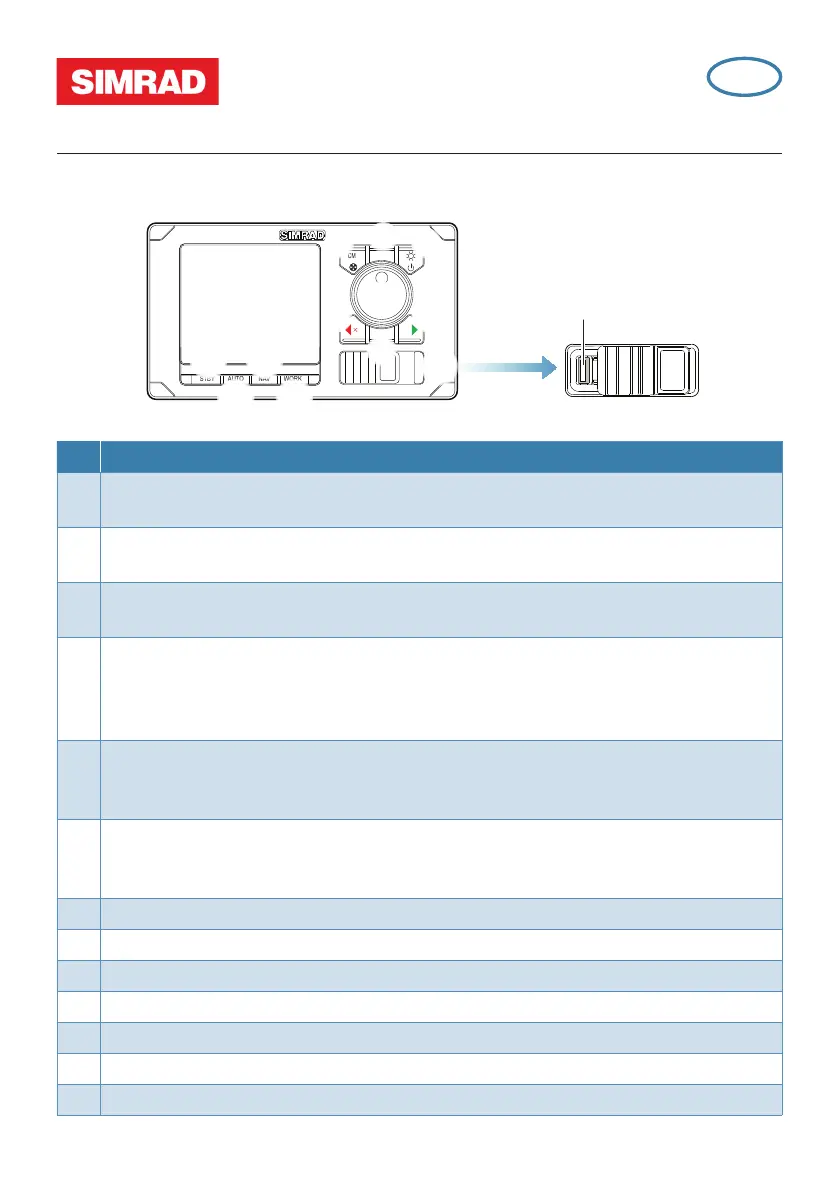

The front panel



TURN

MENUCMD

STBYAUTONAVWORK

ALARM

ALARM

13

13

2

4

56

7

12

108

119

No.Description

1CMD/Thruster. Press once to take/request command. Press and hold to activate/

deactivate available thrusters

2MENU. Press once to display the active steering mode’s quick menu. Press twice to

display the Settings menu

3PWR/Light. Press to display the Light dialog. Press and hold to turn the unit ON/

OFF

4Course knob. In menus; turn to select menu item and adjust value, press to

confirm. In FU mode; turn to set rudder angle. In STBY and NFU mode; press to go

to FU mode. In AUTO and NoDrift mode; turn to change set heading/set course,

press to capture present heading. In NAV/TRACK mode, turn to set track offset

5PORT. In menus; press to return to previous menu level. In STBY and FU modes;

press to go to NFU mode. In AUTO and NoDrift modes; press to change set

heading/set course to port

6STBD. In menus; press to confirm menu selection/enter next menu level. In STBY

and FU modes; press to go to NFU steering. In AUTO and NoDrift modes; press to

change set heading/set course to starboard

7TURN. Press to display the Turn dialog

8STBY. Press to switch the autopilot to Standby mode

9AUTO. Press to activate Auto or NoDrift mode

10NAV/TRACK. Press to activate NAV/TRACK (AP80) steering modes

11WORK. Press to display the Work profile dialog

12ALARM. Press to display the Alarm dialog (AP80 only)

13USB connector (AP80 only)
