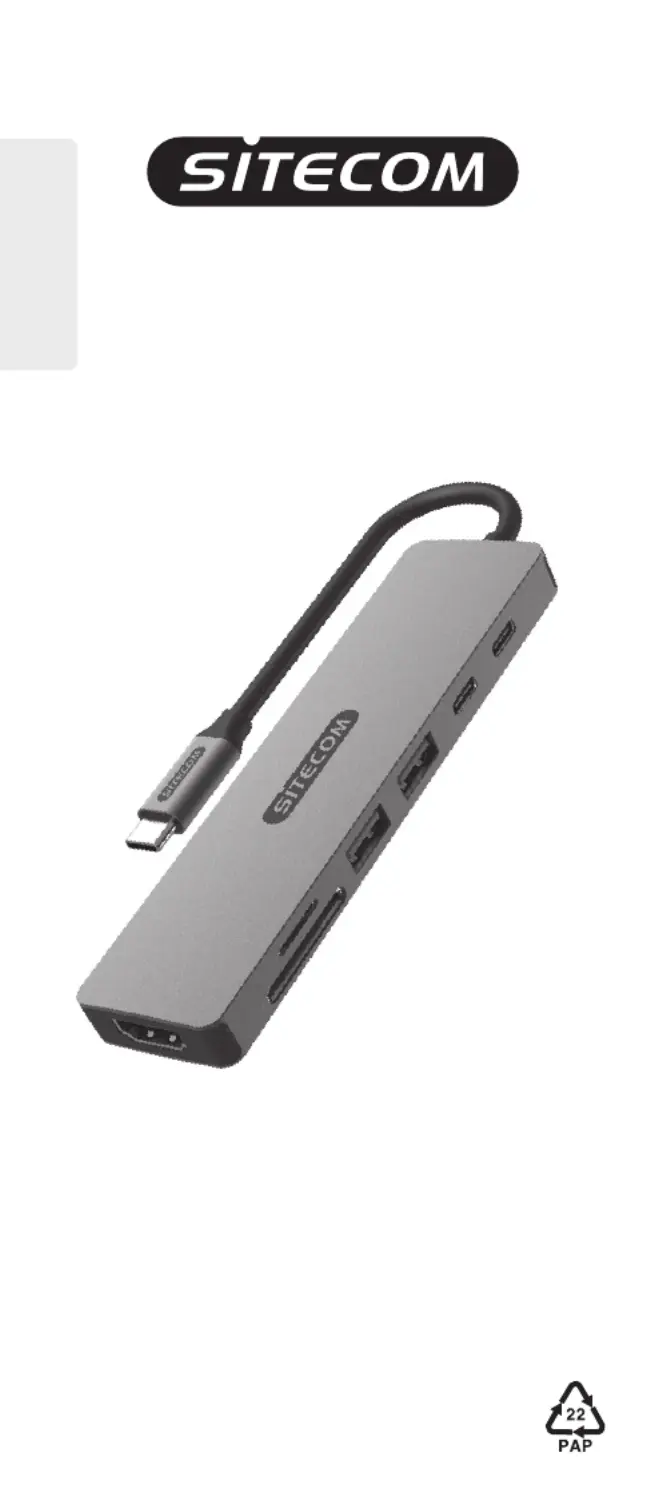

Sida 1/16

HOME / OFFICE

7 in 1

USB-C Power Delivery

Multiport Adapter

Type: CN-5504

User manual

EN: User manual CN-5504 7 in 1 USB-C Power Delivery

Multiport Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

NL: Handleiding CN-5504 7 in 1 USB-C Power Delivery

Multiport Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

DE: Benutzerhandbuch CN-5504 7-in-1-USB-C-Power-

Delivery-Multiport-Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

FR: Guide de l’utilisateur CN-5504 Adaptateur multiports

Power Delivery USB-C 7 en 1 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

IT: Manuale dell’utente CN-5504 Adattatore multiporta

USB-C Power Delivery 7 in 1 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ES: Manual de usuario CN-5504 Adaptador multipuerto de

suministro de energía USB-C 7 en 1 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PT: Manual do utilizador CN-5504 Adaptador multiporta

Power-Delivery USB-C 7 em 1 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PL: Instrukcja obsługi CN-5504 Wieloportowa przejściówka

USB-C Power Delivery 7 w 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

ΕΛ: Εγχειρίδιο χρήστη CN-5504 Προσαρμογέας πολλαπλών

θυρών 7 σε 1 USB-C Power Delivery . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Legal & Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

At a glance

Item Specications Description

1 USB-C

connector

Male USB-C connector Connects to USB-C port of computer.

Compatible with USB-C and

Thunderbolt 3 / 4. Plug and play.

2 HDMI port HDMI 1.4 – max. resolution

4K at 30Hz. Backwards

compatible.

Connect to any device with an

HDMI port

3 Micro SD card

slot

SD 3.0 – max. speed

104MB/s. Supports cards

up to 2TB

Insert a MicroSD card to copy les to

and from the computer

4 SD card slot SD 3.0 – max. speed

104MB/s. Supports cards

up to 2TB

Insert a SD card to copy les to and

from the computer

5 USB-A ports USB 3.0 – max. speed 5Gbps.

Supports charging up to

7.5W (5V/1.5A)

Connect a USB device to transfer data,

power a device or charge a device.

6 USB-C port USB 3.0 – max. speed 5Gbps.

Supports charging up to

7.5W (5V/1.5A)

Connect a USB device to transfer data,

power a device or charge a device.

7 USB-C PD port Power Delivery up to 100W Use a USB-C wall charger up to 100W

to charge your notebook via the

multiport adapter. This means you

can use the power adapter while

using the multiport adapter on

the USB-C port of your notebook.

Connecting devices to the multiport

hub will mean your notebook will

receive less power to charge. Always

use a power adapter with enough

capacity to charge both the notebook

and power the connected devices.

Other specications

Supported OS Windows 7/8/10/11, Mac

OS X 10.2 and above,

Chrome OS

A free USB-C port is required to

use this device. Not all USB-C ports

support all features, consult computer

manual for USB-C port compatibility

Dimensions 275 x 32 x 11 mm The dimensions are including cable

Weight 58 grams This product is lightweight for ease

of carrying

Package contents 1x CN-5504 & 1x User manual Keep this manual for future reference

Important safety instructions

• Do not drop. Frequent dropping may lead to malfunctioning.

• Do not disassemble. Repairs should only be done by qualied service centers.

• Do not expose to liquids or re.

• Do not extend cable. Extending cable may lead to poor performance.

• Do not exceed 40° Celsius ambient temperature. Product may not function properly

above 40° Celsius

Support

Warranty 24 months warranty. Please note that your rights under national law remain

unaected by this warranty.

Support Lifetime technical support

Website www.sitecom.com

Contact support@sitecom.com
