Sida 1/68

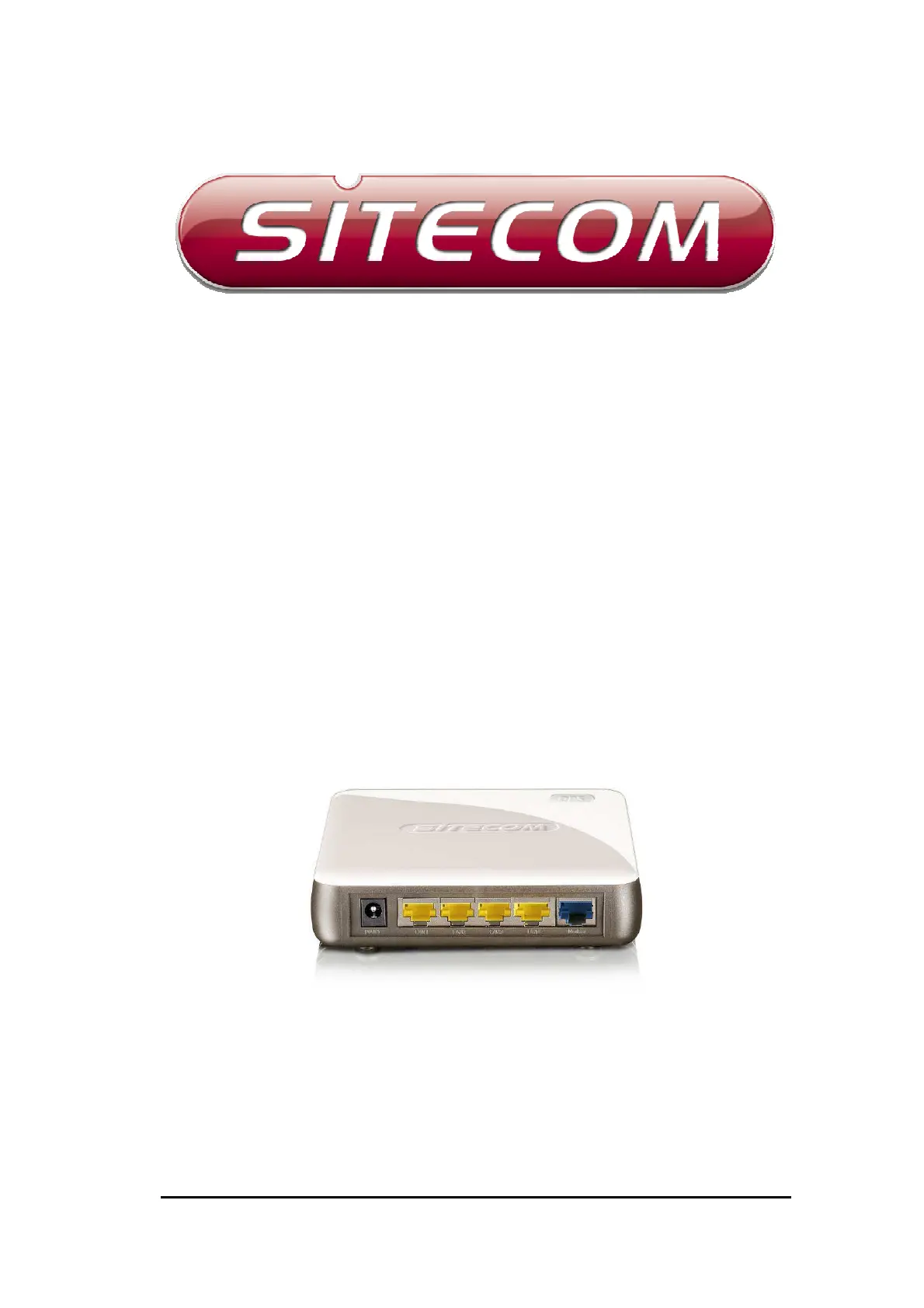

WLR-2100/3100

Wireless Router N300

(802.11b/g/n)

User Manual

ABLE OF

ONTENTS

KEY FEATURES .................................................................................. 4

PACKAGE CONTENTS ......................................................................... 5

CAUTIONS ......................................................................................... 6

PRODUCT LAYOUT ............................................................................. 7

NETWORK + SYSTEM REQUIREMENTS ............................................. 10

WLR-2100/3100 PLACEMENT .......................................................... 10

SETUP LAN, WAN ............................................................................. 11

PC NETWORK ADAPTER SETUP ........................................................ 12

BRING UP THE WLR-2100/3100 ...................................................... 16

INITIAL SETUP WLR-2100/3100 ..................................................... 16

CONFIGURATION WIZARD .............................................................. 25

WIRELESS SETTINGS ...................................................................... 27

FIREWALL SETTINGS ...................................................................... 37

ADVANCED SETTINGS ..................................................................... 43

TOOLBOX SETTINGS ........................................................................ 50

Revision 1.0

Note: All the information contained in this manual was correct at the time of

publication.

However, as our engineers are always updating and improving the product, your

device’s software may have a slightly different appearance or modified

functionality than presented in this manual.

Introduction

Congratulations on your purchase of the WLR-2100/3100 Wireless Network

Broadband Router. The WLR-2100/3100 is compliant with 802.11n and up to

6 times faster than standard 802.11g based routers while still being

compatible with 802.11g & 802.11b. The WLR-2100/3100 is not only a

Wireless Access Point, but also doubles as a 4-port full-duplex Switch that

connects your wired-Ethernet devices together.

At 300 Mbps wireless transmission rate, the Access Point built into the Router

uses advanced MIMO (Multi-Input, Multi-Output) technology to transmit

multiple steams of data in a single wireless channel, giving you seamless

access to multimedia content. Robust RF signal travels farther, eliminates

dead spots and extends network range. For data protection and privacy, the

WLR-2100/3100 encodes all wireless transmissions with WEP, WPA, and

WPA2 encryption.

With the inbuilt DHCP Server & powerful SPI firewall, the WLR-2100/3100

protects your computers against intruders and most known Internet attacks

but provides safe VPN pass-through. With incredible speed and QoS function

of 802.11n(draft2.0), the WLR-2100/3100 is ideal for media-centric

applications like streaming video, gaming, and VoIP telephony to run multiple

media-intense data streams through the network at the same time, with no

degradation in performance.

The router includes Sitecom Cloud Security to protect your home network

against cybercrime.

Produktspecifikationer

Varumärke:	Sitecom
Kategori:	Routrar
Modell:	WLR-2002
Vikt:	- g
LED-indikatorer:	LAN, Power, WLAN
Wi-Fi-standarder:	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Kabelteknik:	10/100Base-T(X)
Kompatibla operativsystem:	Windows 7\nWindows Vista\nWindows XP\nWindows 2000\nMac OS X
Frekvensomfång:	2.4GHz
xDSL-anslutning:	Nej
MAC-adressfiltrering:	Ja
Filtrering:	Ja
Ethernet WAN:	Ja
DHCP-server:	Ja
Universal Plug and Play (UPnP):	Ja
Bandbredd:	2.4 GHz
Minsta systemkrav:	CD-ROM
Nätverksadressöversättning (NAT):	Ja
DMZ-stöd:	Ja
Spänning:	100 - 240 V
Systemhändelselogg:	Ja
Produktens färg:	Svart, silver
bruksanvisning:	Ja
Nätverksegenskaper:	Snabb Ethernet
Datahastighet för Ethernet-LAN:	10, 100 Mbit/s
Antal LAN (RJ-45) anslutningar:	1
Produktstorlek (BxDxH):	- mm
Kryptering/säkerhet:	64-bit WEP, 802.1x RADIUS, WPA, WPA-AES, WPA-TKIP, WPA2
Kabel inkluderad:	UTP
Nätverksansluten (Ethernet):	Ja
Stöd för nätverksprotokoll:	IP, PPPoE, PPTP
Likströmsingång:	Ja
Webbaserad adminstraion:	Ja
Antenner mängd:	2
Kommunikationsstandarder:	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3i, IEEE 802.3u
Stöd för garanterad tjänstekvalitet (QoS):	Ja
Typ av Ethernet LAN-gränssnitt:	Snabb Ethernet
Tillgängliga dataöverföringshastigheter, WLAN:	11,54,150,300 Mbit/s
Wi-Fi-standard:	Wi-Fi 4 (802.11n)
Dataöverföringshastighet via WLAN (max):	300 Mbit/s
