Sida 1/4

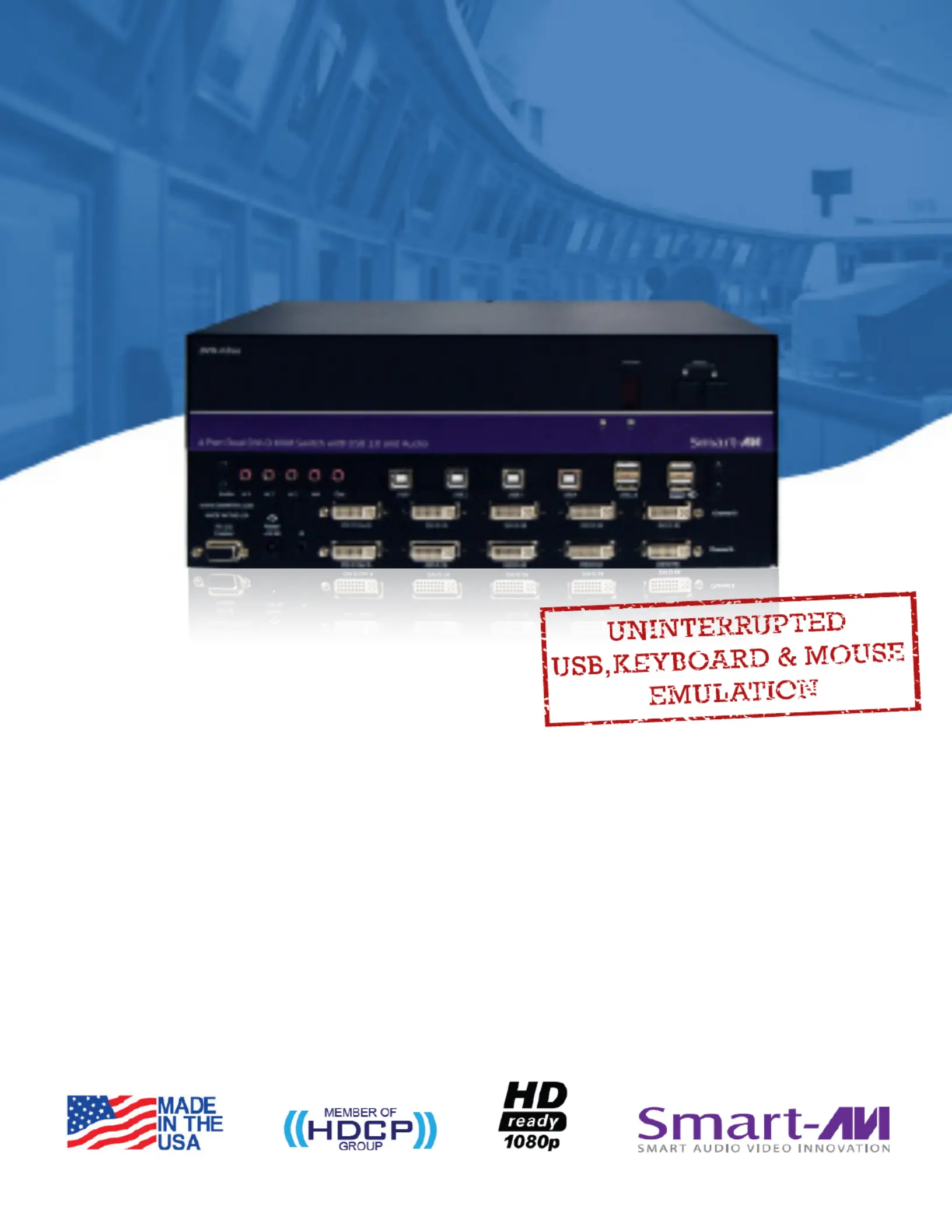

4-Port Dual Display DVI-D KVM Switch with

USB 2.0 Sharing

Access and Control 4 Dual Display Computers Using Only One USB

Keyboard and One USB Mouse

DVN-4Duo

REAL-WORLD APPLICATIONS

FEATURES

• SupportsMac,PC,LinuxandSunMacOS,SunOS,Unix

• SupportsHighResolution1920x120060HzWUXGA

• UsesuniversalDVISingleLinkconnectors

• ZeropixellosswithTMDSsignalcorrection

• SupportsallUSB2.0Devices

• ControlSun,MacorPCcomputersfromacommonKVMconsole

• CompatiblewithallmajorsoftwareincludingWindows,Linux,

MacOS,SunOS,Unix

• Rackmountableinastandard19inchrack

• Flashupgradeablermware

• Frontpanelkeysforselectingusersandchannelsmanually

• SupportsUSBkeyboardandmouse

• Balancedstereoaudiooutput

• RS-232controlforremotecontrol

• OptionalTCP/IPcontrol

• Hot-keycommandsforquickchannelselection.

• Independent(asynchronous)switchingofKVMand

peripheralUSB/audioports.Userscanlistentoaudio

fromonecomputerwhileworkingontheotheror

scanadocumentandsaveinanothercomputer.

• Completekeyboardemulationforerrorfreebooting

• Superiorvideoquality-1920x1200@60Hz

SOURCESWITCHINGMADEEASY

TheDVN-4Duoprovidesasimpliedmanagementapproachtoup4computerswithDVI-D,audio,andUSB2.0outputs.This

dynamicKVMconsolecanbecontrolledremotelyfromeasilyaccessiblekeyboardhotkeysorRS-232commands,aswellas

directlythroughtheconsole’seasytoreadfrontpanel.

EDIDLEARNING&PROGR AMMING

DetectionofDDCsignalsforallattacheddevicesiseffortlesswithDVN-4DuoduetoitsrealEDIDlearningandprogramming.

Thisisvitalinoptimizingtheresolutionoftheselectedgraphicscardtoproperlydisplayontheremotemonitor.Furthermore,the

EDIDlearningfeaturecontinuestoreplicatetherightDDCforthecomputertoenablethedisplaycardtoeffectivelyworkwhen

unusedportsarenotselected.

FULLUSBKEYBOARDANDMOUSEEMULATION

TheUSBkeyboardandmouseemulationutilizedbyDVN-4Duoprovidesaccurateandquicksourceswitchingbymeansof

keyboardhotkeysandmouseactions.DVN-4Duoimitatesthepresenceofakeyboardandmouseforeveryattachedcomputer

throughaUSBcable.Thisisessentialasitsimulatestheexistenceofthekeyboardandmousetoallthecomputerswhileswitching

withoutinterruptions.

DVN-4Duoisadedicatedmulti-platformKVMswitchcapableofmanagingupto4differentcomputersthroughtwoDVI-D

monitors,oneUSBkeyboard&mouse,asinglesetofspeakersandaUSB2.0Device.

TheUSBemulationtechnologyutilizedbyDVN-4DuoenablesimmediatehotkeysourceswitchingthrougharemoteUSB

keyboardandmouse.DVN-4Duousessinglelinkconnectorsprovidinghighresolutionsofupto1920x1200withzeropixelloss

fromTMDSsignalcorrection.

• ControlRooms

• Audio/VisualPresentations

• ShoppingCenters

• Hotels/Resorts

• KVMSwitches

TheDVN-4Duohasabroadrangeofapplications,butthemainfunctionofthisKVMswitchistocentralizetheaccessofseveral

computersintoonecomprehensivePC.NotonlydoesitfunctionasaKVMconsole,italsosupportsUSB2.0functionality.This

allowsauserattheconsoletouseUSBdevicesthatwouldotherwisebeunavailablewithconventionalKVMdevices.Forexample,

itallowsausertouseaashmemorydriveorcamerawithouthavingtoplugitdirectlyintotheremotecomputer.DVN-4Duois

aperfectsolutionforthemedicalorindustrialeld,whereitmaynotbepracticalorsafetohaveoneormoreCPUsin

thegeneralvicinity.

• ServerCollocation

• DigitalSignage

• Education

• Airports

• DealerRooms

OVERVIEW

INDEPENDENTSIMULTANEOUSDEVICESELECTION:FlexibilityiskeywiththeDVN-4Duo.ItenablestheuseofaUSB

keyboardandmouseofonecomputerwhileotherUSBperipheralssuchasspeakers,scannersandprintersareconnectedto

othercomputersources.DVN-4Duomaintainstheabilitytoswitchallconnecteddevicestoanyoneofthecomputersourcesas

withanyotherKVMswitches.

FLEXIBLE CONTROL

FLEXIBLE SHARING

RS-232:AnyexternaldeviceorprogramsupportingRS-232cancontroltheDVN-4Duo.TheDVN-4Duousesverysimple

protocol,thatenableseasyintegrationwithotherdevices.

USB/KEYBOARD:HotkeysenabletheusertoswitchandcontrolallthedifferentfunctionsoftheKVMsystem.

TCP/IP:SMTCP-2isaSmartAVIoptionalTCP/IPconverterthatenablesuserstoswitchandcontroltheDVN-4Duocontrolfrom

anywhereintheworldusingaLANorWANconnection.

DVI 2

DVI 1

4 Computers

DVN-4 Duo

4 Port Dual DVI-D KVM Switch with USB 2.0 and Audio

Produktspecifikationer

Varumärke:	Smart-AVI
Kategori:	Växla
Modell:	DVN-4Duo
Inbyggd display:	Nej
Vikt:	4535.93 g
Bredd:	431 mm
Djup:	88.9 mm
Höjd:	171.45 mm
LED-indikatorer:	Ja
Maximal upplösning:	1600 x 1200 pixlar
Rackmontering:	Nej
Antal datorer:	4
Ljudanslutningar:	Ja
Produktens färg:	Svart
Strömförbrukning (vanlig):	20 W
Temperatur vid drift:	0 - 55 ° C
Temperaturintervall (förvaring):	-20 - 85 ° C
Intervall för relativ operativ luftfuktighet:	0 - 95 %
Video porttyp:	DVI-D
Antal USB 2.0 anslutningar:	8
Antal DVI-D anslutningar:	5
Tangentbord anslutningstyp:	USB
Mus porttyp:	USB
