2-Port DVI-D & USB 2.0

Fiber Extender

DUAL DVI-D, STEREO AUDIO,

USB 2.0/1.1 AND RS-232

MULTIMODE FIBER EXTENDER

UP TO 1,500 FT

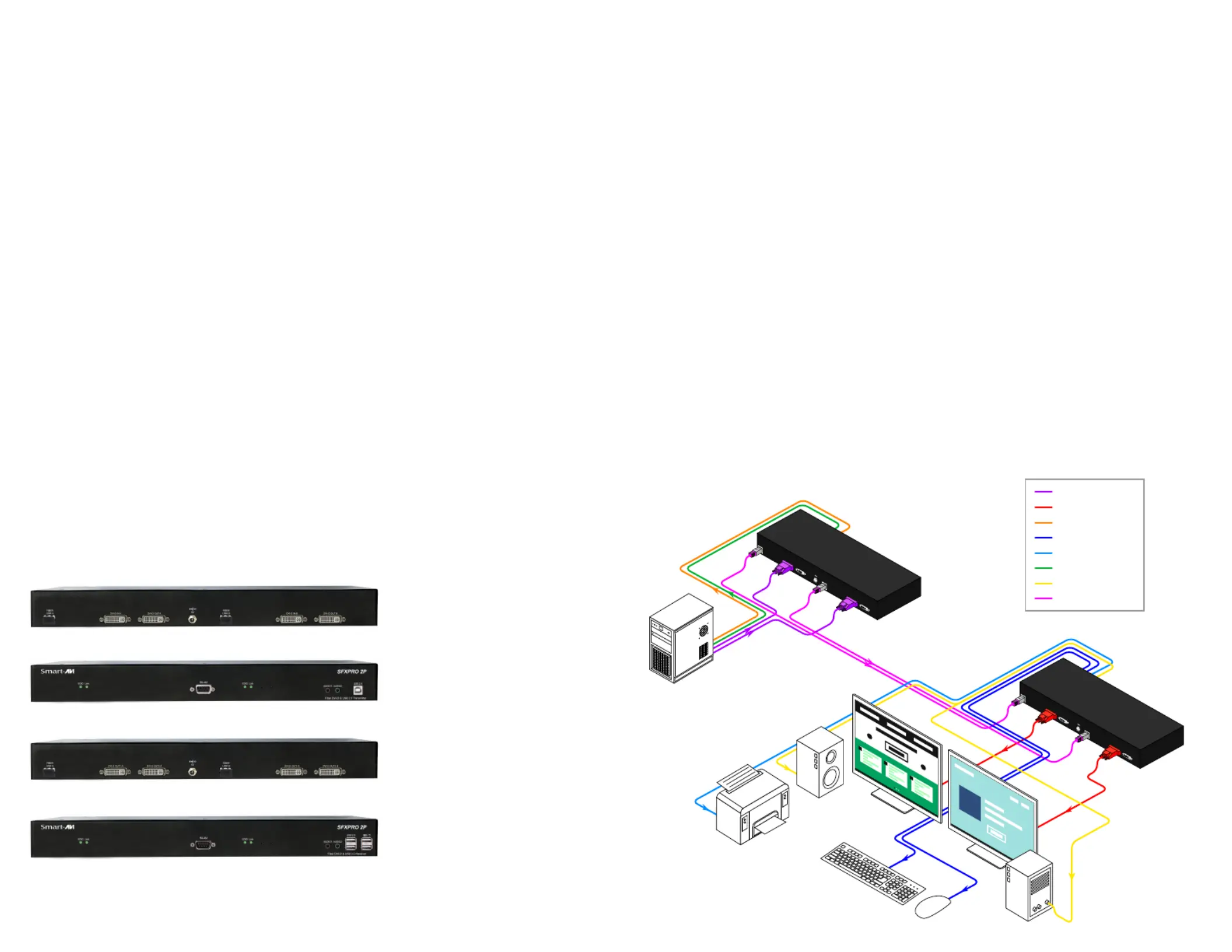

Quick Start Guide

VIDEO

FormatDVI-D Single Line

Maximum pixel clock165 MHz

Input interface (TX)(2) DVI-D 29-pin female

Output interface (RX)(2) DVI-D 29-pin female

ResolutionUp to 1920 x 1200 @ 60 Hz

DDC5 volts p-p (TTL)

Input equalizationAutomatic

Input cable lengthUp to 20 ft

Output cable lengthUp to 20 ft

RS-232

Input interface (TX)(1) DB9 (Female)

Output interface (RX)(1) DB9 (Female)

SpeedUp to 115 Kbps

USB

Signal type

EHCI (USB 2.0)

and OHCI/UHCI (USB 1.1)

Input interface (TX)(1) USB type B (female)

Output interface (RX)(4) USB type A (female)

AUDIO

Signal typeStereo audio

Bandwidth15 MHz, 0 dB

Impedance10 kOhm

Connector3.5 mm stereo mini female

OPTICAL

Fiber typeDuplex, multi mode

Connector typeDuplex LC

Wavelength

1310 nm/1550 nm

(dual wavelength)

Data rate

2x2.5 Gbps

(2.5 Gbps per single wavelength)

Transmission power-5 dB min

Receiver sensitivity-21 dB max

Distance500 m max

OTHER

Power SupplyInternal 100-240 VAC

Dimensions17” W x 1.7” H x 7” D

Weight8 lbs

Operating temp.32-131 °F (0-55 °C)

Storage temp.-4-185 °F (-20-85 °C)

HumidityUp to 95% (non-condensing)

NOTICE

The information contained in this document is

subject to change without notice. SmartAVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and tness for particular purpose.

SmartAVI will not be liable for errors contained

herein or for incidental or consequential damages in

connection with the furnishing, performance or use of

this material.

No part of this document may be photocopied,

reproduced, or translated into another language

without prior written consent from SmartAVI

Technologies, Inc.

800.AVI.2131, 702.800.0005

2455 W Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

SmartAVI.com

TECHNICAL SPECIFICATION

SFXPRO-2P

WHAT’S IN THE BOX

PART NO.DESCRIPTIONQ-TY

SFXPRO-2P-M-S1

Dual DVI-D, Audio, USB

and RS-232 Multimode

Fiber Extender.

CCPWR0626’ Power Plug Cable

Quick Start Guide1
