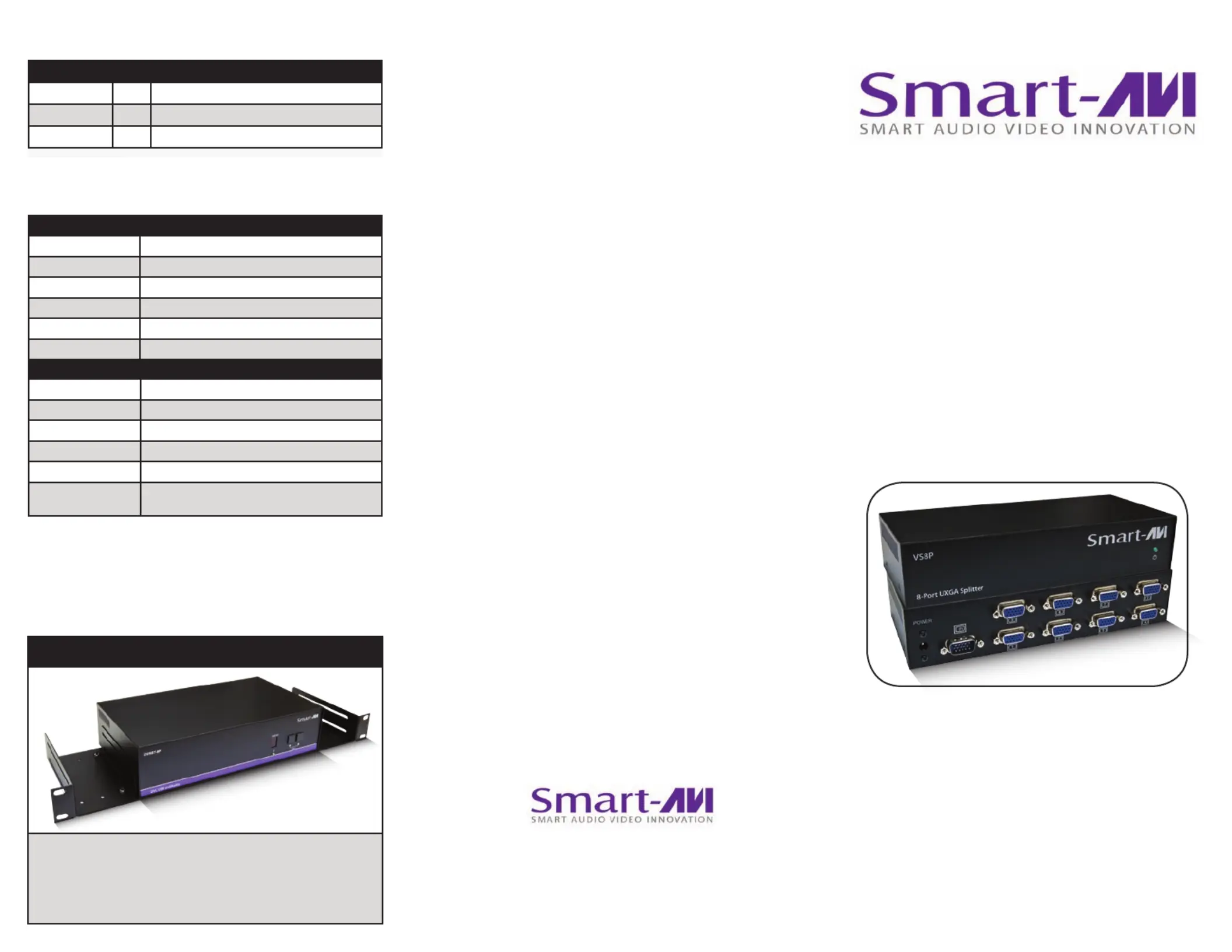

Connect One VGA Output Signal
to Eight Displays
VS8P
8-Port Video WUXGA Splitter
www.smartavi.com
Installation
Manual
Technical Specications
What’s in the Box?
PART NO. QTY DESCRIPTION
VS8P 1 WUXGA 8-Port Splitter
Power Supply 1 PS5VDC2A
User Manual 1
OTHER
DDC Signal 5 Volts [peak-to-peak], TTL
TDMS Signal 1.2 Volts[peak-to-peak], TTL
Power External 5VDC2A
Dimensions 7.75”W x 1.625”H x 3.375”D
Weight 0.75 lbs.
Approvals Device: CE, ROHS
Power Supply: C-UL US, CE
VIDEO
Format VGA RGB Analog (75Ω, 0.7Vp-p)
Resolution Up to 1600x1200 @ 85Hz2048x1536 @ 60Hz
Input Interface (1) HD-15 Male
Output Interface (8) HD-15 Female
H Frequency Range 30-95KHz
V Frequency Range 50-180Hz
© Copyright 2011 Smart-AVI, All Rights Reserved
NOTICE
T h e i n f o r m at i o n c o nt a i n e d i n t h i s d o c u m e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
Rack Mountable Option
Our SmartRack is the perfect solution to allow
virtually all SmartAVI devices to be custom mounted
in a standard 19” server rack. The SmartRack is fully
adjustable and can secure/organize several devices.
Introduction
The VS8P is a 8-port WUXGA splitter that
allows a computer to display one VGA video
signal on eight monitors simultaneously.
Features
• Split WUXGA signal into eight ouputs
• Resolutions up to 1600x1200 @ 85Hz
and up to 2048x1536 @ 60Hz
• Easy installation
• 300 MHz Bandwidth
• Compact metal enclosure
Applications
• Home Theater Integration
• Restaurants and Bars
• Digital Signage Deployment
• Information Kiosks/Displays
• Film/Recording Studios

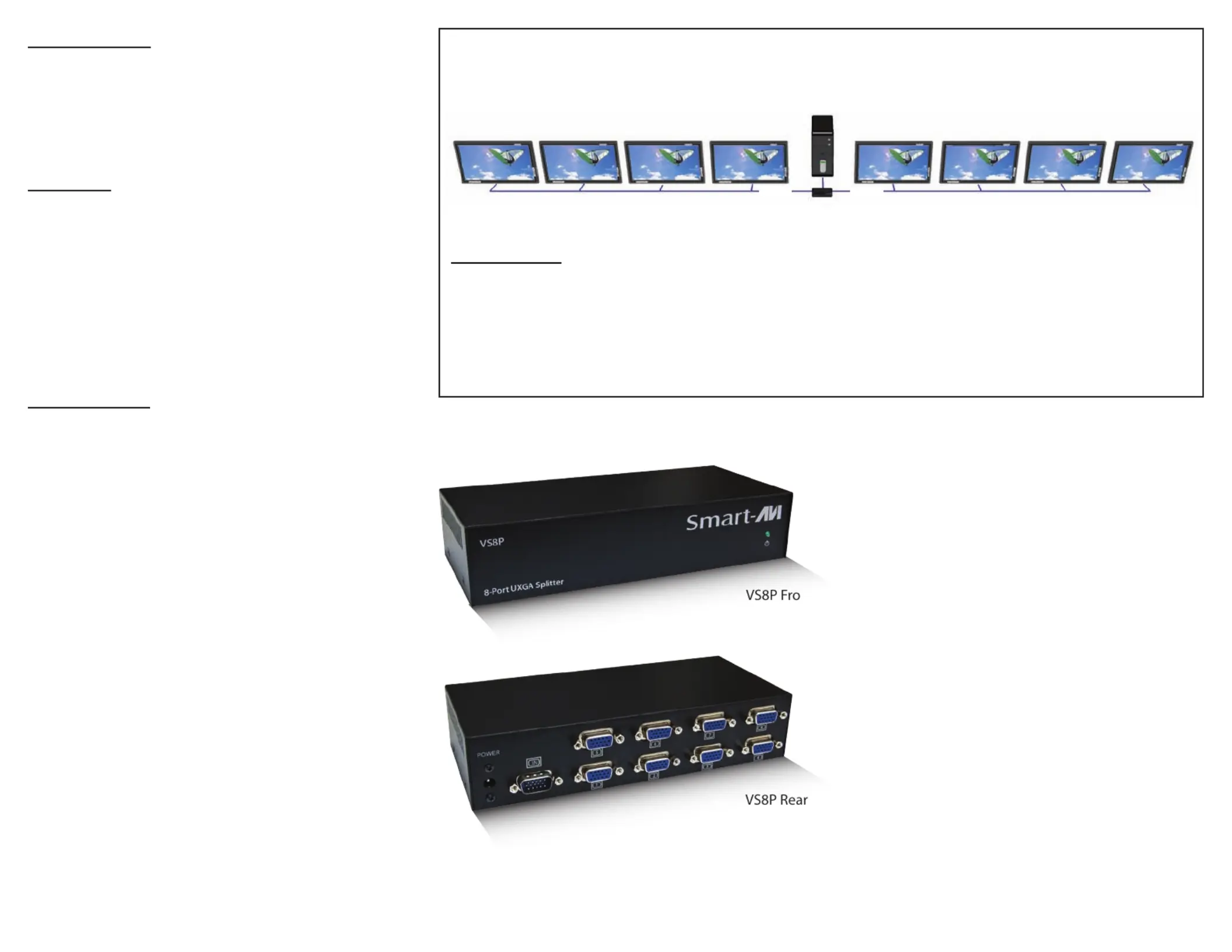

Product - Installation Diagram
Installation
1. Turn o the computer and the displays.
2. Connect an VGA cable from the computer to the input port on the VS8P.
3. Connect the displays to the VGA outputs on the VS8P.
4. Connect the power cord to the VS8P.
5. Power on the computer and the displays.
VS8P
VGA VGA
nt
