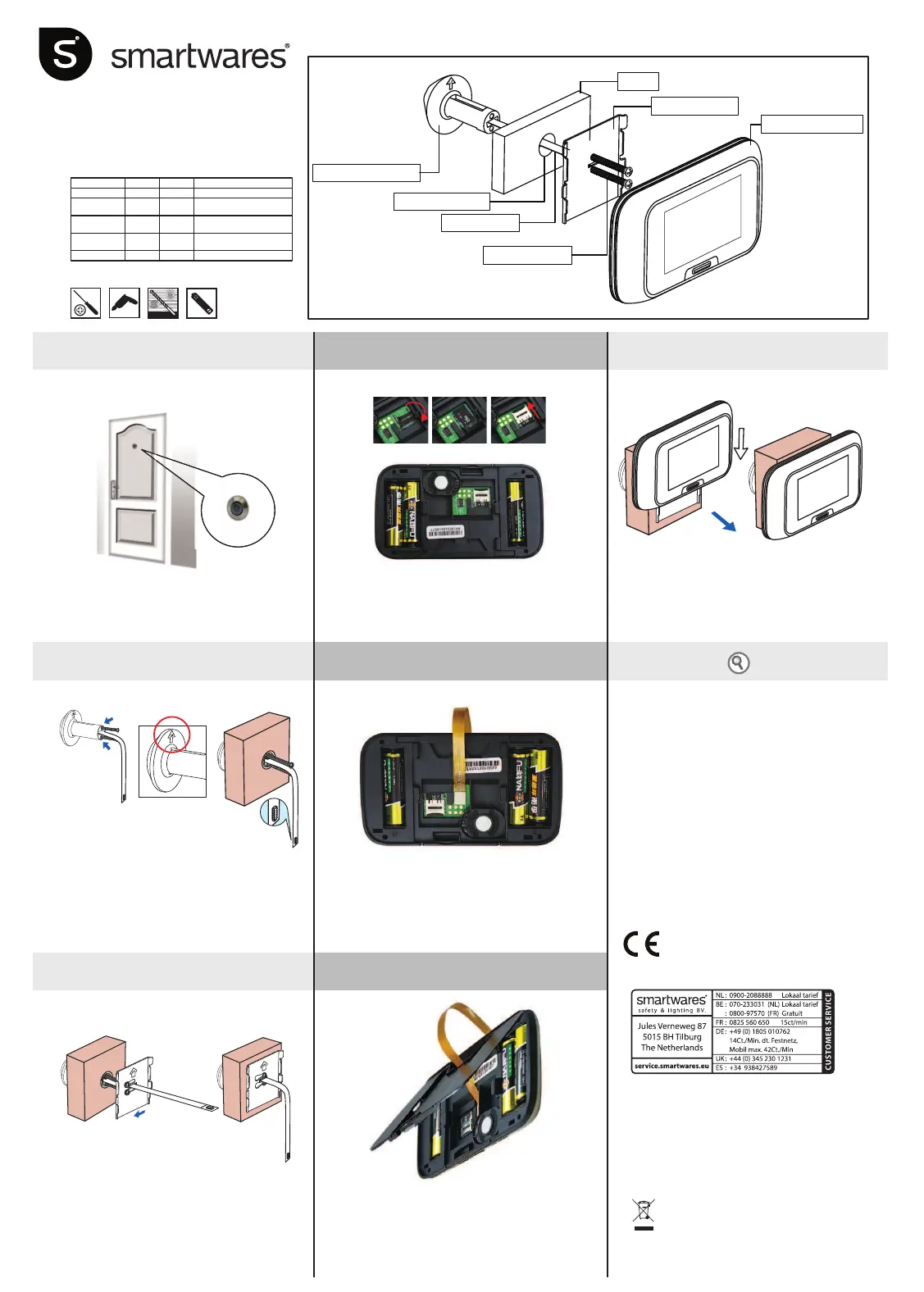

Sida 1/2

Package & Accessories

Included Quantity Mark Remark

Indoor Monitor 1 A Indoor monitor with LCD screen

Screw 4 B Two pairs depending on thickness

of the door

Outdoor Camera 1 C The ribbon cable will go through

Peephole to connect Indoor Part

Steel Bracket 1 D Use screZWR¿[WKHVWHHOEracket

with Outdoor part

User Manual 1

Door

D. Steel Bracket

A. Indoor monitor

B. Fixing screws

Ribbon cable

Drill Hole in door

C. Outdoor camera

12-28mm

Smart Peephole Viewer/

Visual Doorbell User Manual

You will need

Either remove your current door viewer or drill a new hole at least

12mm diameter up to 28mm diameter Into your door in a suitable position

to view the visitor.

N.B. Always test the product before installation.

Open the battery cover of the indoor monitor (A) and insert the Micro SD card.

7KHQLQVHUW[$$EDWWHULHVPDNLQJVXUHWKH\DUHLQVHUWHGFRUUHFWO\

N.B. Please install the Micro-SD card before inserting the batteries.

7DNLQJH[WUDFDUHZLWKWKHULEERQFDEOHJHQWO\SXVKWKHLQGRRUPRQLWRU

(A) back onto the steel bracket (D) and slide down to lock into position.

Insert your selected screws (B) according to your door thickness into

the Outdoor camera (C) but do not fully tighten.

Push the door viewer (C) into position making sure the ribbon cable

is pushed through first and the up arrow on the back of the camera

is facing up.

Connect the ribbon cable by pushing it onto the connection, you will feel

a “Click” as it locks onto the circuit board. Make sure the cable is fitted

the correct way around as shown in the image.

Using the steel bracket (D), make sure the up arrow is facing up and

push the ribbon Cable through the slot. Then allow the screws to push

through the holes so the steel bracket becomes flush with the door.

7LJKWHQWKHVFUHZVWRIL[WKHVWHHOEUDFNHWDQG2XWGRRUFDPHUD

into position.

Clip the battery cover back on, the ribbon cable will fit in a small opening

allowing it to come through the cover.

01 04

1 2 3

02 05

03 06

Technical Specifications

Conforms to all relevant European Directives.

Recycling

This symbol is known as the ‘Crossed-out Wheelie Bin Symbol’.

When this symbol is marked on a product or battery, it means that

it should not be disposed of with your general household waste.

Some chemicals contained within electrical/electronic products or

batteries can be harmful to health and the environment. Only dispose

of electrical/electronic/battery items in separate collection schemes,

which cater for the recovery and recycling of materials contained within.

Your co-operation is vital to ensure the success of these schemes and

for the protection of the environment

Indoor-part Dimension: 136×75×18mm

Outdoor-part Dimension: 30×30×7mm

Door hole range: 12mm~28mm

Door thickness range: 35mm~90mm

%DWWHU\[Y$$/51RWLQFOXGHG

Battery life: 3 months (based on 10 operations per day)

Notes

We recommend that good quality, branded, alkaline batteries

are used.

Do not leave the product on uneven or unstable surfaces to prevent

damage caused by falling.

Try to avoid placing the product on high-temperature surfaces,

high humidity or a lot of dust, salt spray and other harsh environments

as this may reduce the lifespan of the product.

Take care with the ribbon cable on the door viewer to avoid damage.

In more detail...

Installation

Produktspecifikationer

Varumärke:	Smartwares
Kategori:	Intercomsystem
Modell:	10.018.27
Vikt:	380 g
Höjd:	139 mm
Förpackningens bredd:	222 mm
Färg:	Ja
Skärm diagonal:	2.8 "
Pekskärm:	Nej
Videolägen som stöds:	720p
Typ av minneskort:	SD
Produktens färg:	Black, Grey
Låddjup:	67 mm
Vikt inkl. förpackning:	325 g
Material, hölje:	Plast
Anslutningsteknologi:	Kabel
Batterier medföljer:	Ja
Högsta minneskortskapacitet:	32 GB
Utomhusenhet ingår:	Ja
Fack för minneskort:	Ja
Inomhusenhet ingår:	Ja
Volymkontroll för ringsignal:	Ja
