Sida 1/55

Bluetooth

wireless technology

Barcode Scanner

www.socketmobile.com

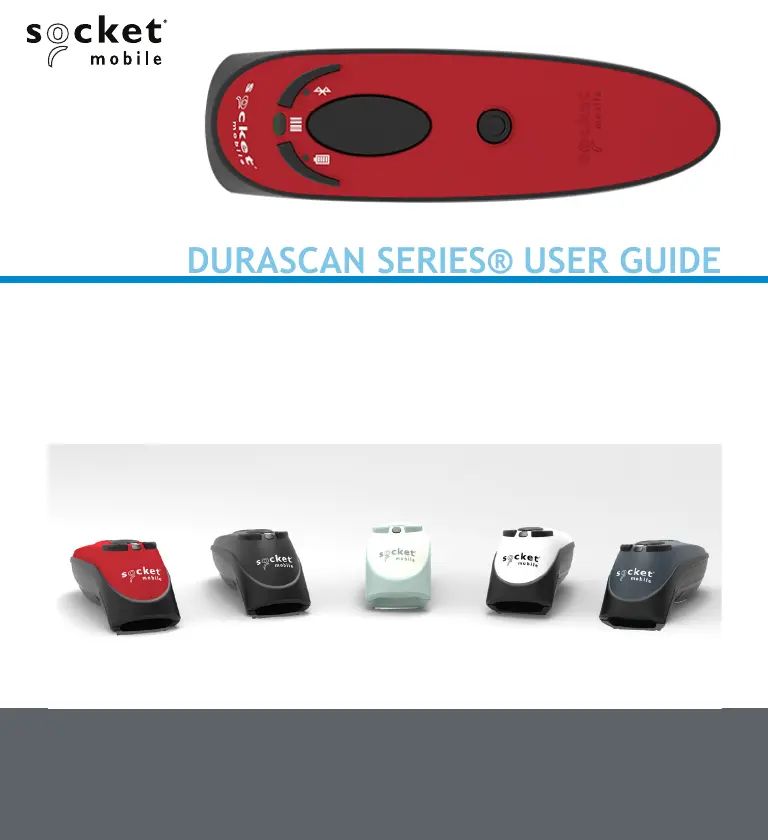

DURASCAN SERIES® USER GUIDE

socketmobile.com

DURASCAN

D700, D730, D740, D750, D755 & D760

Package Contents 4

Optional Charging Accessories 5

Product Information 6

Attach Wrist Strap 7

Charge the Battery 8

Powering On/Off 9

Scanning Barcodes 10

Bluetooth Connection Modes 11-12

Bluetooth Connection Roles/Reconnection 13-15

Setup using Application Mode

• Apple

16-17

• Android 18-19

• Windows PC 20

Setup without software application (Basic Mode):

• Apple

• Android 22

• Windows PC 23

TABLE OF CONTENTS

Pairing Reset (Bluetooth connection) 24

Factory Reset 25

Restore Method 26

Battery Replacement 27

Quick Programming 28-33

Status Indicators 34-37

Product Specifications 38-39

Supported Symbologies 40-42

Safety, Bluetooth, Compliance & Warranty 43-49, 52-55

Battery Warning Statements 50-51

TABLE OF CONTENTS

DuraScan®, Battery Friendly® are registered trademarks or trademarks of Socket Mobile, Inc. Micro-

soft® is a registered trademark of Microsoft Corporation in the United States and other countries.

Apple®, iPad®, iPad Mini®, iPhone®, iPod Touch®, and Mac iOS® are registered trademarks of Apple,

Inc., registered in the U.S. and other countries. The Bluetooth® Technology word mark and logos are

registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket Mobile,

Inc. is under license. Other trademarks and trade names are those of their respective owners.

Charging CableWrist Strap

DuraScan

D700 Series

Thank you for choosing Socket Mobile!

Let’s get started!

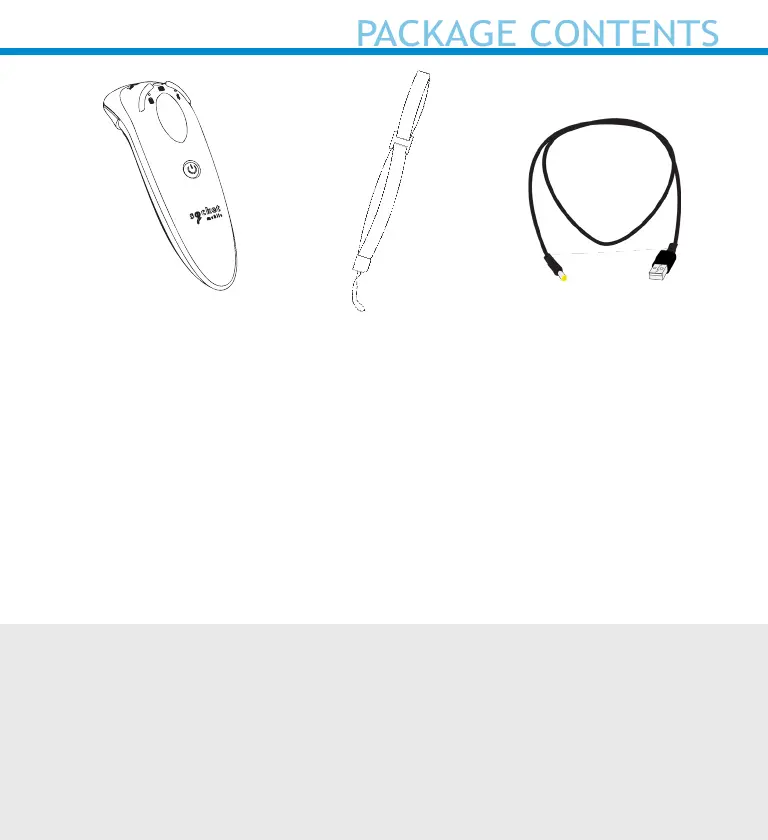

PACKAGE CONTENTS

Available separately

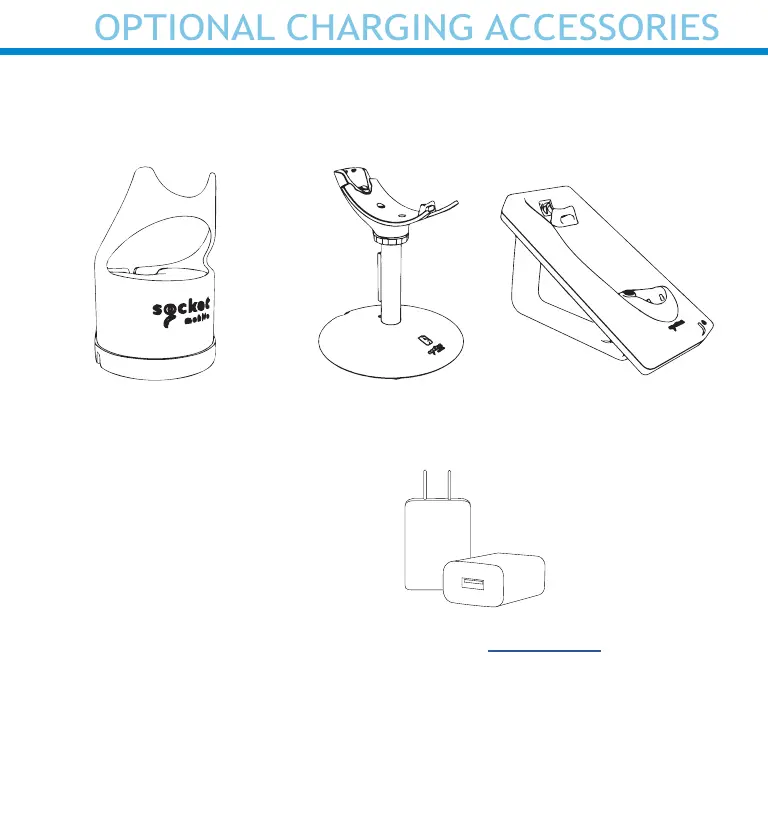

OPTIONAL CHARGING ACCESSORIES

Charging Stand

AC Power Supply

International Adapters

available

For all optional accessories visit our Socket Store.

Charging CradleCharging Dock

PRODUCT INFORMATION

The DuraScan 700 Series has a protection rating of IP54 for dust and water protection.

Socket Mobile’s barcodes scanners can be wiped clean with a cloth dampened with isopropyl

alcohol or water. Or, the barcode scanners can be wiped clean with a Sani-Cloth.

Warning: DO NOT IMMERSE IN WATER (scanner’s mechanics could be damaged)

*Also used to display the on-screen keyboard in Basic Mode (iOS only).

Scanner head

Product label

Lanyard Eyelet

Scan Indicator Light

Scan button

Power button*

Battery Light

(Green/Yellow/Red)

Bluetooth Light (Blue)

Charging pins

Power Connector

Stand Attachment

Battery Door

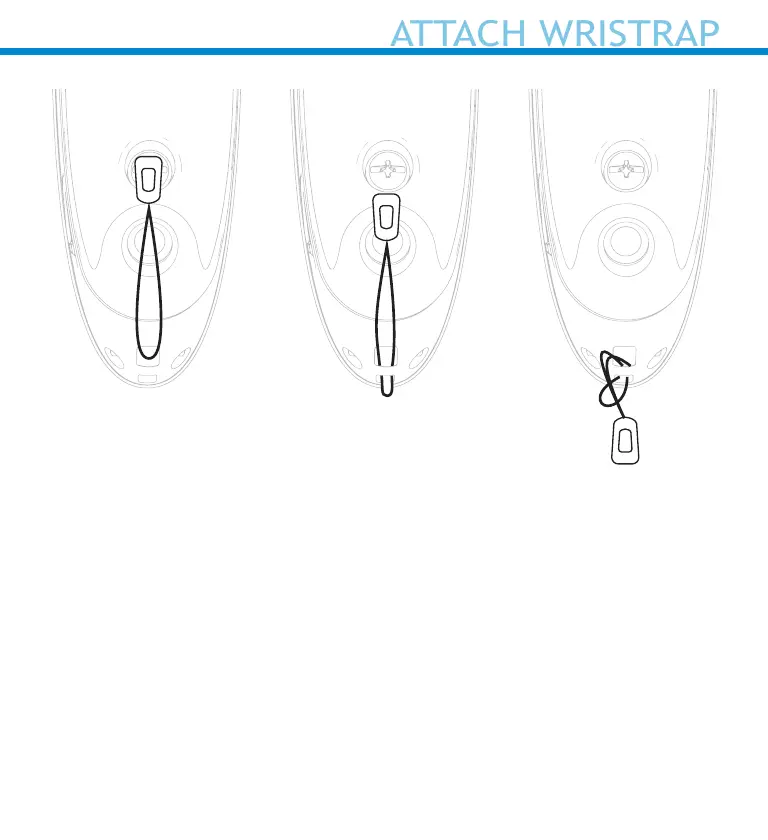

Attach the Wrist Strap (optional)

1. Detach the string loop of the tether from the wrist strap.

2. Feed the string loop through the eyelet.

3. Pull the tether through the string loop.

4. Pull tight so the string loop is secure.

5. Reattach the string loop’s tether to the wrist strap.

ATTACH WRISTRAP

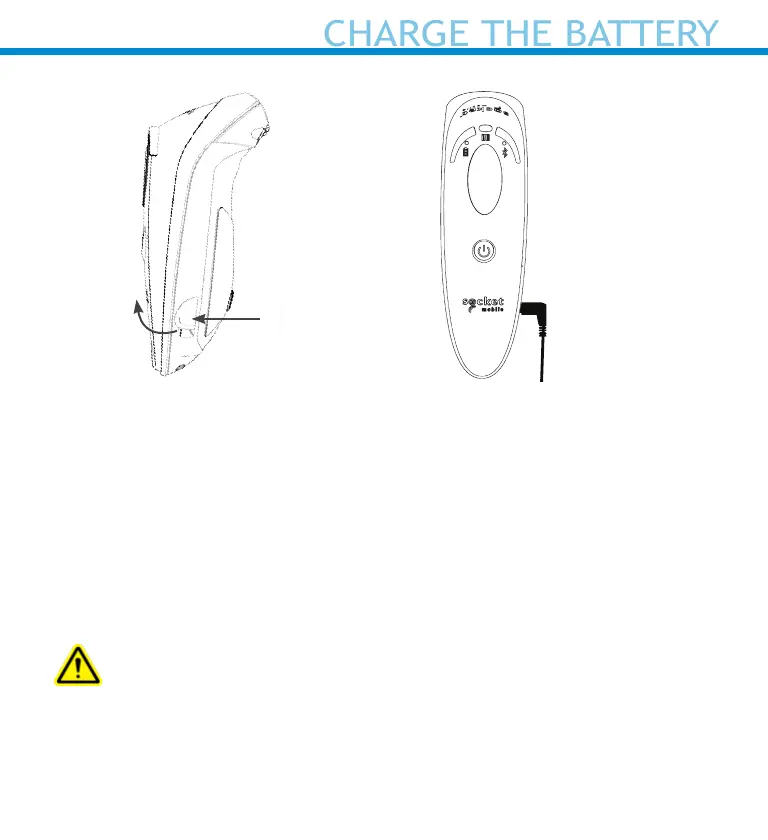

The scanner must be fully charged before rst use. Please allow 8 hours

uninterrupted charging for the initial battery charge.

Lift the rubber ap to access the power connector.

• Yellow Light = Charging

• Green Light = Fully charged

Important: Charging from a computer USB port is not reliable and

not recommended.

CHARGE THE BATTERY

Rubber Flap

To open

Power Adapter

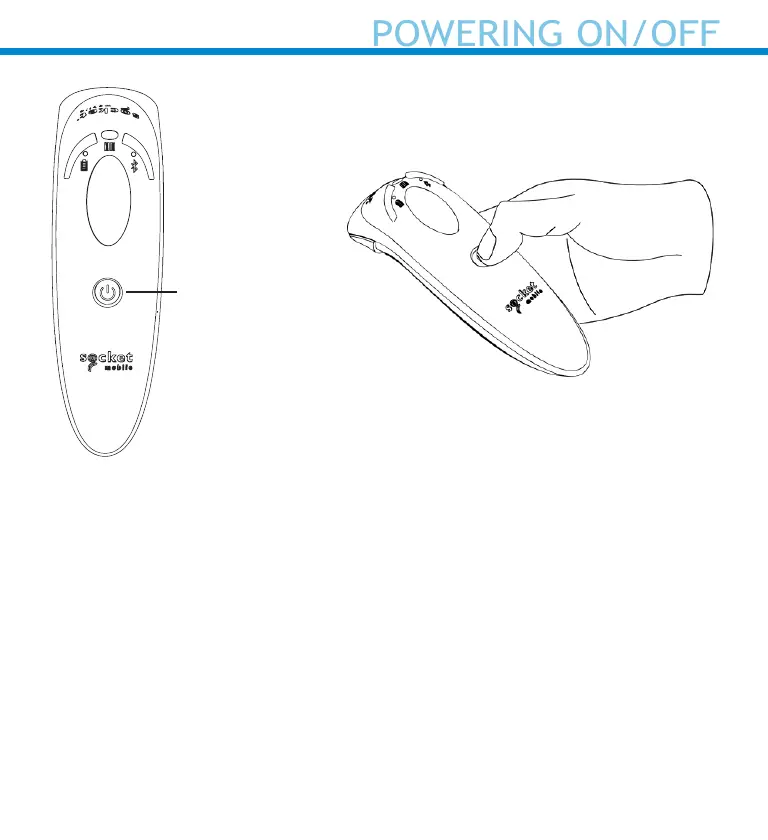

Powering On:

Press and hold down the small

power button until the Battery

light turns on and the scanner

beeps twice (low-high).

Powering O/ Disconnecting:

Press and hold down the small

power button until the scanner

beeps twice (high-low) and all

lights turn o.

The scanner will power o

automatically if device is not con-

nected within 5 minutes. Scanner

connected to a device will power

o within 2 hours if idle/inactive.

POWERING ON/OFF

Power button

1D/2D Barcode and OCR

Aim the scan beam straight

across the entire barcode

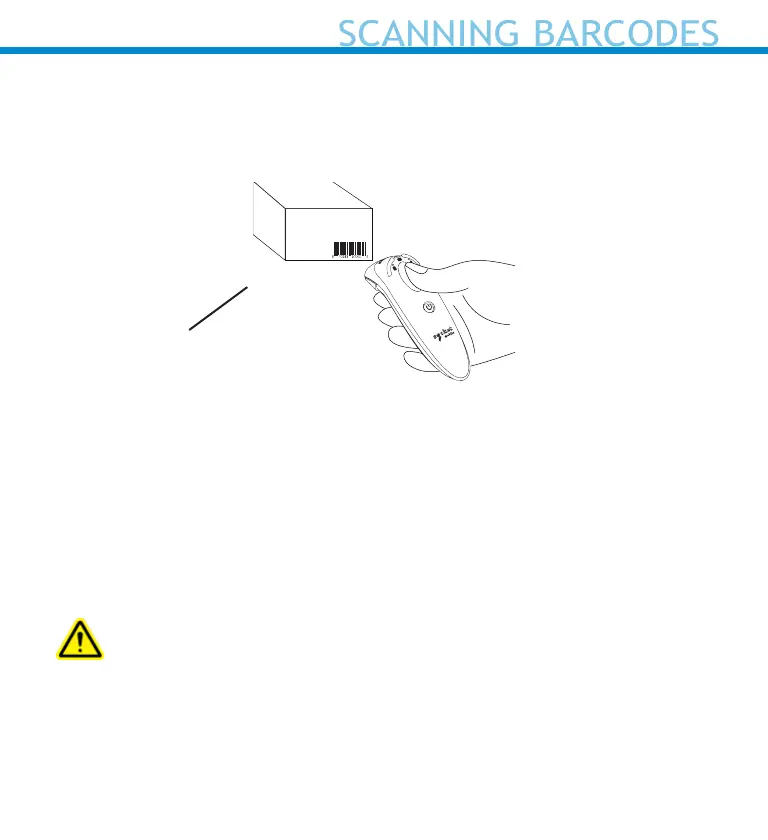

Scanning Barcodes

1. Hold the scanner a few inches from the barcode.

2. Aim, press and hold the trigger button.

By default, the scanner will beep, vibrate, and the scan indicator will

ash green to conrm a successful scan.

Caution: Do not stare directly into the scanner’s light beam.

SCANNING BARCODES

Trigger button

Operating System Connection Options

Operating

Systems

(OS)

Devices

Bluetooth

HID

Support

Bluetooth

SPP

Support

Bluetooth

Apple

Serial

Specic

(MFi Mode)

Android

Android 4.0.3 &

later

Yes Yes N/A

Apple iOS

iPod, iPhone, &

iPad

Yes N/A Yes

Windows PC Windows 7, 8, 10 Yes Yes N/A

Mac OS

Mac OS X 10.4 to

10.X

Mac Books, Mac

Mini, & iMac

Yes No N/A

Note: To switch from one mode to the other you must remove the

pairing information from both devices - host device and the scanner. (see

pairing reset procedure on page 24)

BLUETOOTH CONNECTION MODES

Connect your scanner using one of the following Bluetooth connection

modes:

Bluetooth Connection Proles

Bluetooth Mode Description

Basic Mode

(HID) *Default

Human Interface

Device Prole

• NO software installation needed

• Connects to most devices

• Good for barcodes containing small amounts of

data

• Scanner interacts with host device like a keyboard

App Mode

(SPP)

Serial Port Prole

For Android or Windows

1. Software installation is required

2. More ecient and reliable data communications

for barcodes containing lots of data

3. If you have an application that supports Socket

Mobile Scanners this is the mode recommended

App Mode

(MFi-SPP)

Apple Specic

Serial Prole

For iOS Devices

1. Must use with an App developed to work with

iOS devices

2. Software installation is required

3. If you have an iOS application that supports

Socket Mobile Scanners this is the mode to use

*By default, the scanner is set to Basic Mode (HID).

BLUETOOTH CONNECTION MODES

Advanced users only.

Basic Mode (HID) Keyboard

Changes a scanner in HID-Peripheral mode to HID-Keyboard mode.

For Mac OS, Apple iOS, and other smart devices.

Basic Mode (HID) Peripheral

Changes a scanner in HID-Keyboard mode to HID-Peripheral mode.

For some MS Windows or Android mobile devices.

Scan only with scanner in Application Mode (SPP)

*For Windows PC only.

Acceptor (default)

Congures the scanner to accept a Bluetooth connection puts the scanner

in discoverable mode.

Initiator

Congures the scanner to initiate a connection to a computer/device with

the Bluetooth Device Address specied in the barcode.

The barcode must be formatted in Code 128 and contain the data

#FNIaabbccddee# such that aabbccddee is the Bluetooth device

address of the computer/device you want to connect to the scanner.

You must create a custom barcode for each computer/device that you

want to connect to the scanner.

You can use barcode generating software or website (e.g., http://bar-

code.tec-it.com)

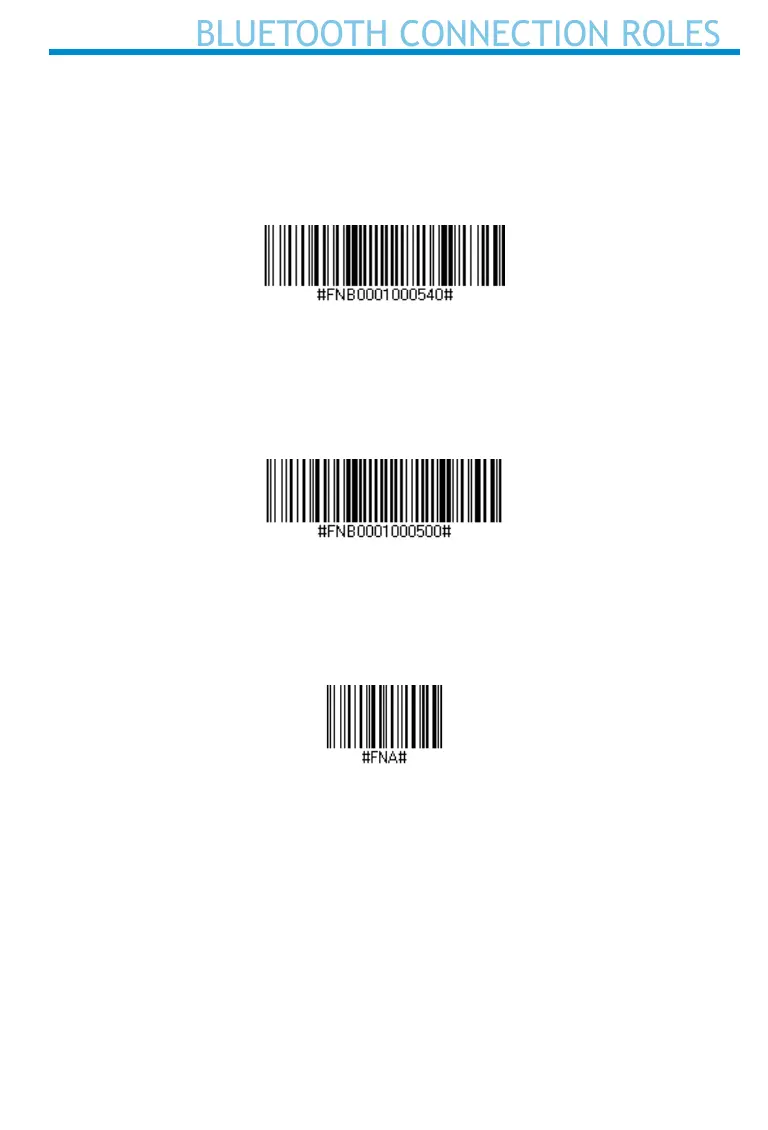

BLUETOOTH CONNECTION ROLES

DATA MODE-FOR SPP MODE ONLY

Advanced users only.

Packet Mode (default)

Congures the scanner to transmit decoded data in packet format.

Raw Mode - Android and Windows only

Congures the scanner to transmit decoded data in raw (unpacketed)

format.

BLUETOOTH RECONNECTION

All Bluetooth Connection Modes are OK.

Important! After scanning this command barcode, power o and power on

the scanner to make sure it is congured properly.

Enable Automatic Reconnection from scanner (default)

Congure the scanner to automatically initiate a connection to the last

paired computer/device after the scanner is powered on.

Disable Automatic Reconnection from scanner

Congure the scanner to wait for a computer/device to initiate a Blue-

tooth connection after the scanner is powered on.

SET UP-APPLE IOS APP MODE

Scan QR Code using your host device to download Socket Mobile

Companion app to pair your scanner.

To set up using the Socket Mobile Companion app, watch Youtube video

for demonstration.

For quick set up:

1. Power on the scanner. Make sure the scanner is discoverable

(unpaired). The Blue light should be blinking fast.

2. Scan barcode. The scanner will beep 3 times.

App Mode (MFi-SPP)

3. Turn on Bluetooth on the Apple device. Go to Settings > Bluetooth.

A Bluetooth devices search will begin.

SET UP-APPLE IOS APP MODE

4. Tap Socket D700[xxxxxx] in the list of other devices found. After a

few seconds the status will change to “Connected” and the scanner blue

LED will stop blinking and turn solid blue.

Note: The characters in brackets are the last 6 characters of the

Bluetooth Address.

5. Launch your scanner-enabled Application. The scanner will beep once

indicating that it is connected to the appropriate application.

Now you are ready to scan barcodes!

Please check with your scanner application vendor or visit

www.socketmobile.com/appstore to conrm your scanner-enabled

application supports the scanner.

SET UP-ANDROID APP MODE

Scan QR Code using your host device to download Socket Mobile

Companion app to pair your scanner.

For quick set up:

1. Power on the scanner. Make sure the scanner is discoverable

(unpaired). The Blue light should be blinking fast.

2. Scan barcode

App Mode (SPP)

3. Turn on Bluetooth on the Android device. Go to Settings > Bluetooth.

A Bluetooth Devices search will begin.

SET UP-ANDROID APP MODE

4. Tap Socket D700[xxxxxx] in the list of other devices found. After a

few seconds the status will change to “Connected” and the LED will

stop blinking and turn solid blue.

Note: The characters in brackets are the last 6 characters of the

Bluetooth Address.

5. Launch your scanner-enabled Application. The scanner will beep once

indicating that it is connected to the appropriate application.

Now you are ready to scan barcodes!

SET UP-WINDOWS APP MODE

Note: Make sure you have administrative privileges.

1. Download the latest SocketScan 10 software from Socket Mobile’s

support web page.

https://www.socketmobile.com/support/downloads

2. Follow the on-screen instructions to install the software.

3. In SocketScan 10 Settings, select an incoming Bluetooth serial COM

port.

Note: If there is none please click Ports to create at least one new

incoming COM port in Bluetooth settings.

4. Click Finish.

5. Scan barcode.

App Mode (SPP)

6. The PC will automatically try to pair with the scanner. If prompted to

allow the pairing, click “Yes”. If prompted for a passkey, enter 0000.

Now you are ready to scan barcodes!

iMAC

In this mode the scanner functions and communicates similar to a

keyboard. Therefore, scanner will work with Safari, Notes, and any other

application that support an active cursor.

1. Power on the scanner. Make sure the scanner is

discoverable (unpaired). The Blue light blinks fast.

2. Start a Bluetooth device search.

• Settings | Bluetooth: Turn on Bluetooth and search for device.

• Mac OS: Click System Preferences | Bluetooth. A Bluetooth device

search will begin.

3. In the device list, tap on D700 [xxxxxx]. Tap Pair.

4. The scanner will connect to the Apple device.

5. The scanner will beep once after it has connected.

Now you are ready to scan barcodes!

To use the virtual keyboard while the scanner is connected double tap on

the power button. Watch Youtube video for demonstration.

SET UP-BASIC MODE

Android

In this mode the scanner functions and communicates similar to a

keyboard. Therefore, scanner will work with Notes, and any other

application that supports an active cursor.

1. Power on the scanner. Make sure the scanner is

discoverable (unpaired) and the blue light blinks fast.

2. Settings | Bluetooth.

3. Make sure the device has Bluetooth “On” to scan for devices.

4. In the list of found devices, select D700 [xxxxxx]. Tap Pair.

5. The scanner will connect to the Android device.

6. The scanner will beep once after it has connected.

*If you have trouble connecting or pairing with host device, turn host

device’s Bluetooh o/on, and/or perform factory reset to the scanner

(see page 25).

Now you are ready to scan barcodes!

SET UP-BASIC MODE

Windows

In this mode the scanner functions and communicates similar to a

keyboard. Therefore, scanner will work with Notes, and any other

application that support an active cursor.

Highly recommended, allows two-way communications with Android, or

Windows Devices. Scanner-enabled app software installation

required.

1. Turn Bluetooth on for your device. Go to Settings > Bluetooth. A

Bluetooth Devices search will begin.

2. Tap Socket D700[xxxxxx] in the list of Devices found. After a few

seconds the status will change to “Connected” or “Paired” and the

scanner blue light will stop blinking and turn solid blue.

Now you are ready to scan barcodes!

This procedure will put the scanner in discoverable mode.

If the scanner is paired with a device, unpair it before trying to

connect to a dierent device.

Step 1: Remove or forget the scanner from the Bluetooth list on the

host device.

Step 2: Scan Pairing Reset barcode.

Or, follow the Pairing Reset button sequence:

1. Power on the scanner.

2. Press the trigger button then power button and hold both until you hear

3 beeps.

The scanner will unpair and automatically power o. The next time you

power on the scanner, it will be discoverable.

Important: Both steps above must be done to complete

the unpairing.

Watch Youtube video for demonstration.

PAIRING RESET

FACTORY RESET

Congures the scanner to factory defaults. The scanner powers o after

scanning this barcode.

Or, follow the Factory Reset button sequence:

1. Power ON the scanner.

2. Press and hold the scan button.

3. Tap the power button once while continuing to press the scan button.

4. Keep holding the trigger button until you hear a beep

(about15 seconds).

When you release the scan button you will hear 5 conrmation beeps then

the scanner will power o.

Note: If you follow this sequence but release the trigger button too early

(before 15 seconds and the beep) the Factory Reset will fail.

Watch Youtube video for demonstration.

Quickly press and release

the power button

RESTORE METHOD

NOTE: If your scanner remains in an unresponsive state after following

the Factory Reset, use the Restore Method.

The Restore Method should be the last attempt used to revive an

unresponsive scanner. It will reinitialize the core hardware.

1. Make sure your scanner is OFF.

2. Press and hold the power button until the LED light goes on and o

(about 15 seconds)

Watch Youtube video for demonstration.

BATTERY REPLACEMENT

Step 1: Remove Battery Door

Use screw driver to loosen screw and remove battery door.

Step 2: Remove Battery

Use a at head screw driver and place in the top right corner to gently

push the battery out. Then, pull the connector to remove.

Step 3: Insert New Battery

Plug the connector on the new battery.

Step 4: Secure Battery Door

Ensure the battery door is properly placed, then screw the battery door

back on.

QUICK PROGRAMMING

Scan command barcode(s) to quickly congure the Scanner.

Important! Make sure the Scanner is not connected to a host

computer or device before scanning a command barcode!

Congure the scanner to automatically add a prex and/or sux to each

scan of data. All models are allowed 1 prex and 2 suxes except model

D750.

For custom prex and sux, contact support@socketmobile.com

Prex/Sux

Sux- Carriage Return

(default) in Basic Mode

Congures the scanner

to add a carriage return

after decoded data.

Sux- Tab

Congures the scanner to

add a tab after decoded

data.

Sux- Carriage Return

& Line Feed

Congures the scanner to

add a carriage return and

line feed after decoded

data.

Data As Is

Congures the scanner to

return only the decoded

data. (i.e., no prex or

sux).

Scan one of the barcodes to enable/disable vibrate and beep settings.

Vibrate/Beep Modes

Vibrate ON (default)

Enables scanner to

vibrate to indicate

successful scans.

Vibrate OFF

Disables scanner from

vibrating to indicate

successful scans.

Beep ON (default)

Enables scanner to

beep to indicate

successful scans.

Beep OFF

Disables scanner from

beeping to indicate

successful scans.

QUICK PROGRAMMING

Scan one of the barcodes to recongure the scanner to remain powered

on for a longer time.

Active Modes

2 Hours (default)

Scanner powers o in 2

hours whwen idle/inac-

tive while connected

and 5 minutes when

disconnected

Continuous Power for

4 Hours

Congures the scan-

ner to remain on for 4

hours.

Continuous Power for

8 Hours

Congures the scan-

ner to remain on for 8

hours.

Scanner Always On

Congures the scanner

to never power o.

These settings drain the battery faster. Please ensure the scanner is

charged daily.

QUICK PROGRAMMING

Scan one of the barcodes to congure the scanner to automatically scan

barcodes.

Command barcode is for model D740, D750, D755 and D760 only.

Presentation modes

Mobile Mode (default)

Reverts back to manual

scan mode.

#FNB 41FBA50000#

Auto Mode

(recommended)

Congures the sccanner

to switch to presen-

tation mode when

power is detected on

the charging pins. The

scanner will remain

on presentation mode

until the scan button

is pressed to exit the

mode.

#FNB 41FBA50003#

Detect Mode

Congures the scanner

to switch to presen-

tation mode when

power is detected on

the charging pins. The

automatic scan will

continue until power is

removed.

#FNB 41FBA50002#

Stand Mode

Scanner is permanently

in presentation mode.

#FNB 41FBA50001#

QUICK PROGRAMMING

These barcodes are to congure the scanner for dierent languages using

Microsoft Windows keyboard layout.

Scan only when the scanner is in Basic Mode (HID prole).

HID Keyboard Language Settings

English (default)

English UK

French

German

Italian

HID Keyboard Language Settings

Japanese

Polish

Spanish

Swedish

ANSI Emulation

*Can be slower on

Windows System

QUICK PROGRAMMING

STATUS INDICATORS

Battery Charging

when plugged

into Power

Supply

LED Activity Meaning

Blinking Yellow Charging the battery

Solid Green Battery is 100% full

Battery Status

When not

connected to

power supply

LED Activity Meaning

Solid Green

Battery capacity from 100%

to 25%

Solid Yellow

Battery capacity from 25%

to 10%

Solid Red

Warning - Battery capacity

below 10%

Blinking Red

Charge immediately!

The battery level is

critically low. Alternatively,

if battery capacity is

unknown battery status will

blink red until the power is

applied & scanner is fully

charged.

STATUS INDICATORS (CONTINUED)

Bluetooth LED Activity Meaning

Bluetooth

Quick Blinking Blue

(2 blinks every

second)

Discoverable - waiting for a

host Bluetooth connection.

Slow Blinking Blue

(1 blink every second)

Scanner is attempting to

connect to the last known

host device.

After 1 minute of blinking,

scanner will stop searching.

No Light - No Activity

Scanner has attempted to

connect and failed. Press

trigger button to try again.

Solid Blue Scanner is connected

Scan/Read LED Activity Meaning

Scan/Read

Blink Green Once Good Scan/Read

Blink Red Once Bad Scan/Read

Solid Red - for as long

as power button is

pressed

Power Button Pressed

Quick Blinking Green

(2 blinks every

second)

Scanner is in bootloader

mode during rmware

upgrade.

STATUS INDICATORS (CONTINUED)

Beep Pattern Sound Meaning

Low-High Tone Power On

High-Low Tone Power O

High-High Tone Power Supply detected and scanner started

charging

1 Low Beep Scanner has toggled on-screen keyboard or

keyboard toggle feature is enabled (iOS devices

only)

1 Beep Scanner connected to device and is ready to scan

barcodes

1 Beep Data successfully scanned

2 Beeps (same

tone)

Scanner disconnected

1 Long Beep Scanner gave up searching for a host

3 Beeps

(escalating tone)

Scanner has been recongured (the command

scanned successfully)

3 Beeps (escalat-

ing tone followed

by long tone)

The command barcode did NOT work! (Verify if the

command barcode used is valid for your scanner

and try again)

STATUS INDICATORS (CONTINUED)

Vibrate Meaning

Vibrate Data successfully scanned.

Command Barcodes are available on page 28 to modify beep and

vibrate settings.

If you are using a scanner-enabled application, typically the

application provides settings for beep, and vibrate settings.

Conguration Settings

Time after powering on Scanner Bluetooth mode

0-5 minutes Discoverable and connectable

5 minutes If connection is not made, scanner

powers o

2 hours If your scanner is connected but

not used it will power o in 2

hours. When trigger button is

pressed the timer is reset.

PRODUCT SPECIFICATIONS

Specications D700

Dimensions (L x W x H) 5.2” x 1.5” x 1.6” (132.2 x 37.1 x 40.1 mm)

Total Mass 3.8 oz (108 g)

Battery 1400 mAh Lithium - Ion Battery

Charge Time 8 Hours

Battery Life -

Per Full Charge

Standby time: over 30 hours

Active Scan Time: 70,000 scans within 9 hours

(based on 2 scans every 1 second) or 14,000

scans within 16 hours (calculation based on 1

scan every 4 seconds)

Note: Battery life varies depending on

operating conditions.

Bluetooth Version

Class 2 Bluetooth v2.1 + EDR with 56 bit data

encryption

Wireless Range 10 meters (33 ft.)eters (98 feet) line of sight

Scanner Type

1D Barcode Omni-directional Imager with

highly visible light

PRODUCT SPECIFICATIONS

Specications DuraScan 700 Series

Symbologies See next page

Supported

Language Settings

[in Basic Mode (HID)]

ANSI, English, English UK, French, German,

Italian, Japanese, Polish, Spanish, & Swedish

Systems/Battery

Charging Requirement

USB Type 5V 1A

Ambient Light From 0 to 100 000 lux

From pitch black to direct sun light

Operating

Temperature

-4° to 122° F (-20° to 50° C)

Storage Temperature -40° to 158° F (-40° to 70° C)

Relative Humidity 95% at 140° F (60° C) (non-condensing), 4 days

Sealing IP54 (Ingress Protection rating for dust and

water) EN60529

Drop Specications 6 drops to concrete - 1 on each side at 6.6 ft.

(2 m)

Tumble Specication 2,500 cycles at 3.3 ft. (1 m) to metal plate,

IEC6008-2-31, IEC60068-2-32

SUPPORTED SYMBOLOGIES

Supported

Symbologies

D700 D730 D740 D750 D755 D760

1D Barcodes Enabled Enabled Enabled Enabled Enabled Enabled

Bookland EAN

P P P P P P

Chinese 2 of 5 x x x x x x

Codabar

P P

x x

Code 11 x x x x x x

Code 39

P P P P P P

Code 39 Full ASCII x x x x x x

Code 93 x

P P P P

Code 128

P P P P P P

Discrete 2 of 5 x x x x x x

EAN-8/JAN

P P P P P P

EAN-13/JAN

P P P P P P

GS1-128

P P P P P P

GS1 DataBar

P P P P P P

GS1 DataBar Expanded

P P P

P P

GS1 DataBar Limited

P P P

Interleaved 2 of 5

P P P P P P

Inverse 1D x x x x x

ISBT 128

P P P P P P

Matrix 2 of 5 x x x x x x

MSI x x x x x x

UPC-A

P P P P P P

UPC-E

P P P P P P

*Korean 3 of 5

D730/D760 only

x x x x x x

*Plessey

D750 only

x x x x x x

*Telepen

D750 only

x x x x x x

Supported

Symbologies

D740 D750 D755 D760

2D Barcodes Enabled Enabled Enabled Enabled

Aztec

P P

Codablock-F

P P P P

Data Matrix

P P P P

Han Xin

x x x

Maxicode

P P P P

Micro PDF 417

P P

PDF417

P P

QR Code

P P P P

*DotCode

D760 only

x x x x

*Grid Matrix

D760 only

x x x x

*GS1 QR

D760 only

x x x x

*Micro QR

D760 only

x x x

*Linked QR

D760 only

x x x x

Supported Symbologies D760

OCR Enabled

OCR A x

OCR B

MICR E 13B x

US Currency x

Supported

Symbologies

D740 D750 D755 D760

Postal Codes Enabled Enabled Enabled Enabled

Australia Post x x x x

Japan Postal x x x x

USPS 4CB/

One Code/

Intelligent Mail

x x x x

*Netherlands

KIX Code

D740/D760 only

x x x x

*UK Postal

D740/D760 only

x x x x

*US Planet

D740/D760 only

x x x x

*US Postnet

D740/D760 only

x x

*BPO

D750 only

x x x x

*Canada Post

D750 only

x x x x

*Dutch Post

D750 only

x x x x

HELPFUL RESOURCES

Technical Support & Product Registration:

https://support.socketmobile.com

Phone: 800-279-1390 +1-510-933-3020 (worldwide)

Warranty Checker:

https://www.socketmobile.com/support/warranty-checker

Socket Mobile Developer Program:

Learn more at: http://www.socketmobile.com/developers

The User’s Guide (full installation and usage instructions) and Program-

ming Guide (Advanced Scanner Congurations) can be download at:

https://www.socketmobile.com/support/downloads

FCCID: T9J-RN42

FCC ID: LUBD700

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference

will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment o and on,

the user is encouraged to try to correct the interference by one of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that

to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, any changes or

modications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this equipment.

(Example - use only shielded interface cables when connecting to

computer or peripheral devices).

BLUETOOTH DEVICE UNITED STATES

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth

for an uncontrolled environment. This equipment should be installed and

operated with a minimum distance of 20 centimeters between the radia-

tor and your body. This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including

interference that may cause undesired operation

BLUETOOTH DEVICE UNITED STATES

IC ID: 2925A-D700

IC ID: 6514A-RN-42

This device complies with Industry Canada license exempt RSS

standard(s). Operation is subject to the following two conditions: (1) this

device may not cause interference, and (2) this device must accept any

interference, including interference that may cause undesired operation

of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables

aux appareils radio exempts de licence. L’exploitation est autorisée aux

deux conditions suivantes: (1) l’appareil ne doit pas produire de

brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d’en

compromettre le fonctionnement.

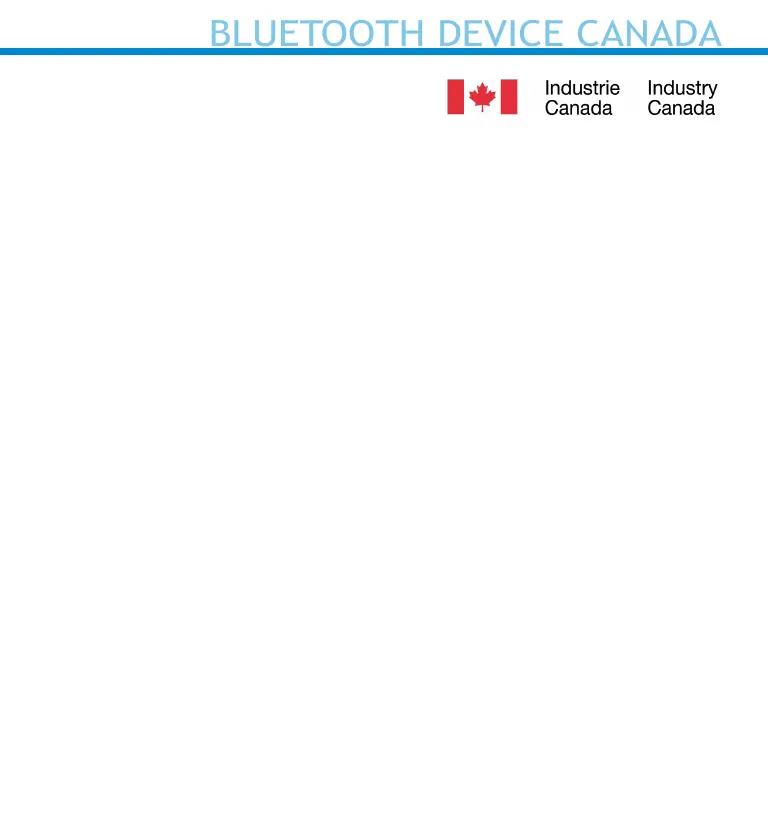

BLUETOOTH DEVICE CANADA

Telec Marking Compliance

Products intended for sale within the country of Japan

are marked with a Telec mark, which indicates compliance to applicable

Radio Laws, Articles and Amendments.

BLUETOOTH DEVICE JAPAN

R 211-161214

R 201-125709

BATTERY WARNING STATEMENTS

This device contains a rechargeable Lithium-Ion battery.

Stop charging DuraScan barcode scanners if charging is not

completed within 24 hours. Discontinue use immediately and contact

support@socketmobile.com

Stop charging the battery if the DuraScan barcode scanner case becomes

abnormally hot, or shows signs of odor, discoloration, deformation, or

abnormal conditions is detected during use, charge, or storage.

Discontinue use immediately and contact support@socketmobile.com

Stop using the DuraScan barcode scanner if the enclosure is cracked,

swollen or shows any other signs of mis-use. Discontinue use immediately

and contact support@socketmobile.com

Your device contains a rechargeable Lithium-Ion battery which may

present a risk of re or chemical burn if mistreated. Do not charge or use

the unit in a car or similar place where the inside temperature may be

over 60 degrees C or 140 degrees F.

• Never throw the battery into a re, as that could cause the battery to

explode.

• Never short circuit the battery by bringing the terminals in contact

with another metal object. This could cause personal injury, or re,

and could also damage the battery.

• Never dispose of used batteries with other ordinary solid wastes.

Batteries contain toxic substances.

BATTERY WARNING STATEMENTS

• Dispose of used batteries in accordance with the prevailing

community regulations that apply to the disposal of batteries.

• Never expose this product or the battery to any liquids.

• Do not shock the battery by dropping it or throwing it.

If this unit shows any type of damage, such as bulging, swelling or

disgurement, discontinue use and promptly dispose.

Product Disposal

Your device should not be placed in municipal waste. Please check local

regulations for disposal of electronic products.

LASER AND LED DEVICES

Caution: DO NOT STARE DIRECTLY INTO THE LED BEAM.

LED DEVICE:

The DuraScan D700, D740, D750, D755 and D760 contain a LED-type scan

engine.

For the Class 1 LED version of this engine, the following

applies:

• Complies with IEC 60825-1:2001-08, and EN 60825-1:1994 + A1 + A2

• LED output is in the 630-670nm range (visible red).

• Class 1 LED devices are not considered to be hazardous when used for

their intended purpose.

The following statement is required to comply with US and international

regulations:

Caution: Use of controls, adjustments or performance of procedures

other than those specied herein may result in hazardous LED light

exposure.

Produktspecifikationer

Varumärke:	Socket Mobile
Kategori:	Streckkodsläsare
Modell:	DuraScan D755
Vikt:	109 g
Bredd:	37.1 mm
Djup:	40.1 mm
Höjd:	132.2 mm
Laddningstid:	6 h
Batterikapacitet:	1400 mAh
Bluetooth-version:	2.1+EDR
Bildsensortyp:	LED
Modell:	Handhållen steckkodsläsare
Våglängd:	525 nm
Standardgränssnitt:	Bluetooth
Batteriteknik:	Litium-Ion (Li-Ion)
Ljusnivåer (direkt solljus):	0 - 100000 lx
Batteriets livslängd:	20 h
Laddningsenhet:	Nej
Produktens färg:	Green, White
Temperatur vid drift:	0 - 45 ° C
Temperaturintervall (förvaring):	-5 - 70 ° C
Intervall för relativ operativ luftfuktighet:	0 - 95 %
Internationellt skydd (IP) kod:	IP54
Anslutningsteknologi:	Trådlös
Strömkälla av typen:	Batteri
Skanningstyp:	1D/2D
Batterispänning:	3.7 V
Harmonized System (HS)-kod:	84716070
Täckning, trådlös router:	10 m
1D -streckkoder (linjära) som stöds:	Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 Databar Limited, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, UPC-A
2D-streckkoder (matriser och staplade) som stöds:	Aztec Code, Data Matrix, MaxiCode, MicroPDF417, PDF417
Optisk sensor, upplösning (B x H):	1280 x 800 pixlar
