User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 1 LT _0
ASW - -Pro series inverter Table of Contents LT G2
1 Notes on this Manual ...................................................................... 4
1.1 General Notes ........................................................................................ 4
1.2 Area of Validity 4 ......................................................................................
1.3 Target group 5 ..........................................................................................
1.4 Symbols used in this manual ............................................................... 5
2 Safety .............................................................................................. 7
2.1 Intended use 7 ..........................................................................................
2.2 Important safety information ................................................................ 8
2.3 Symbols on the label ............................................................................. 9
3 Unpacking ..................................................................................... 11
3.1 Scope of delivery ................................................................................. 11
3.2 Check for transport damage ............................................................... 12
4 Mounting ....................................................................................... 13
4.1 Requirements for mounting ............................................................... 13

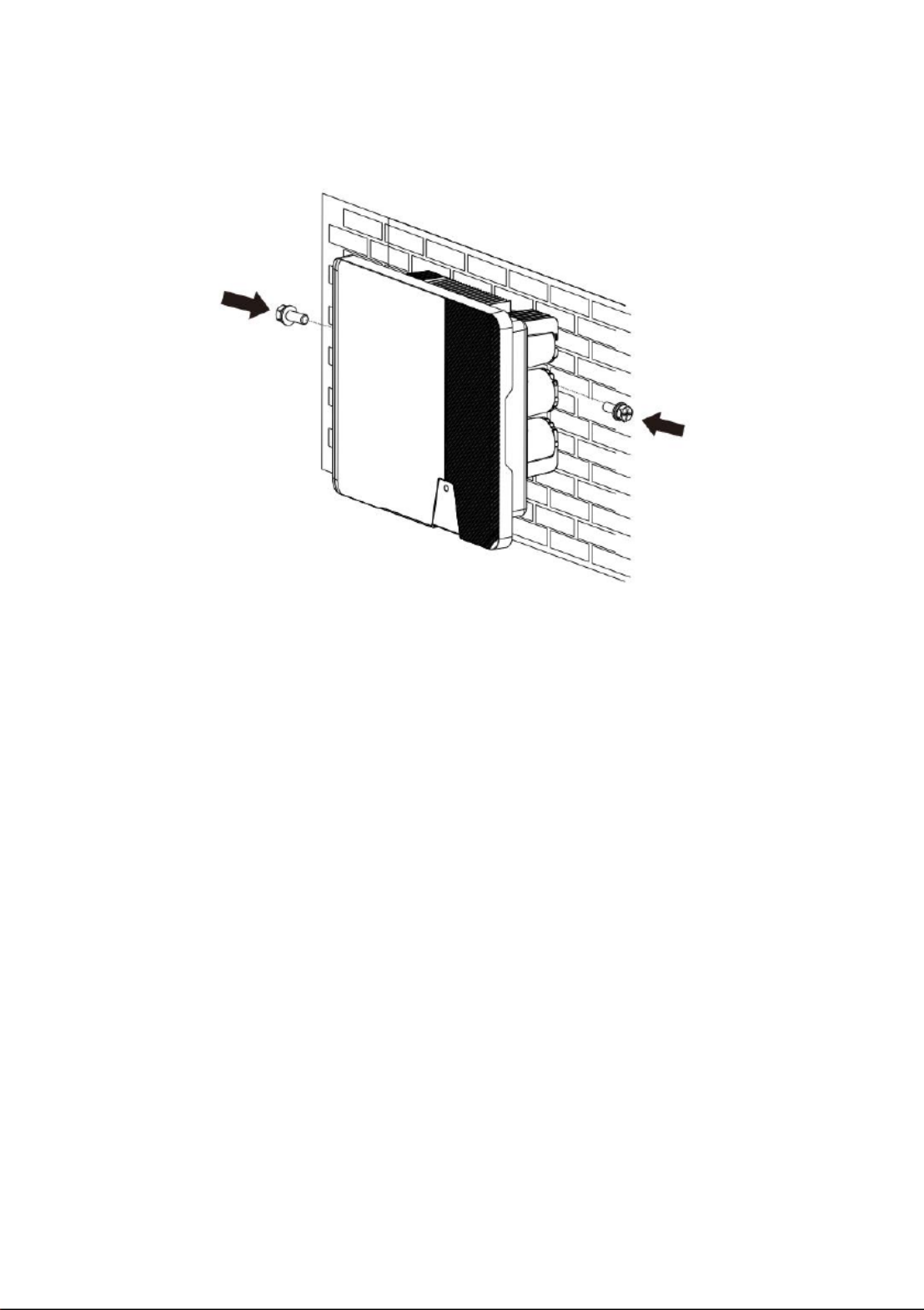

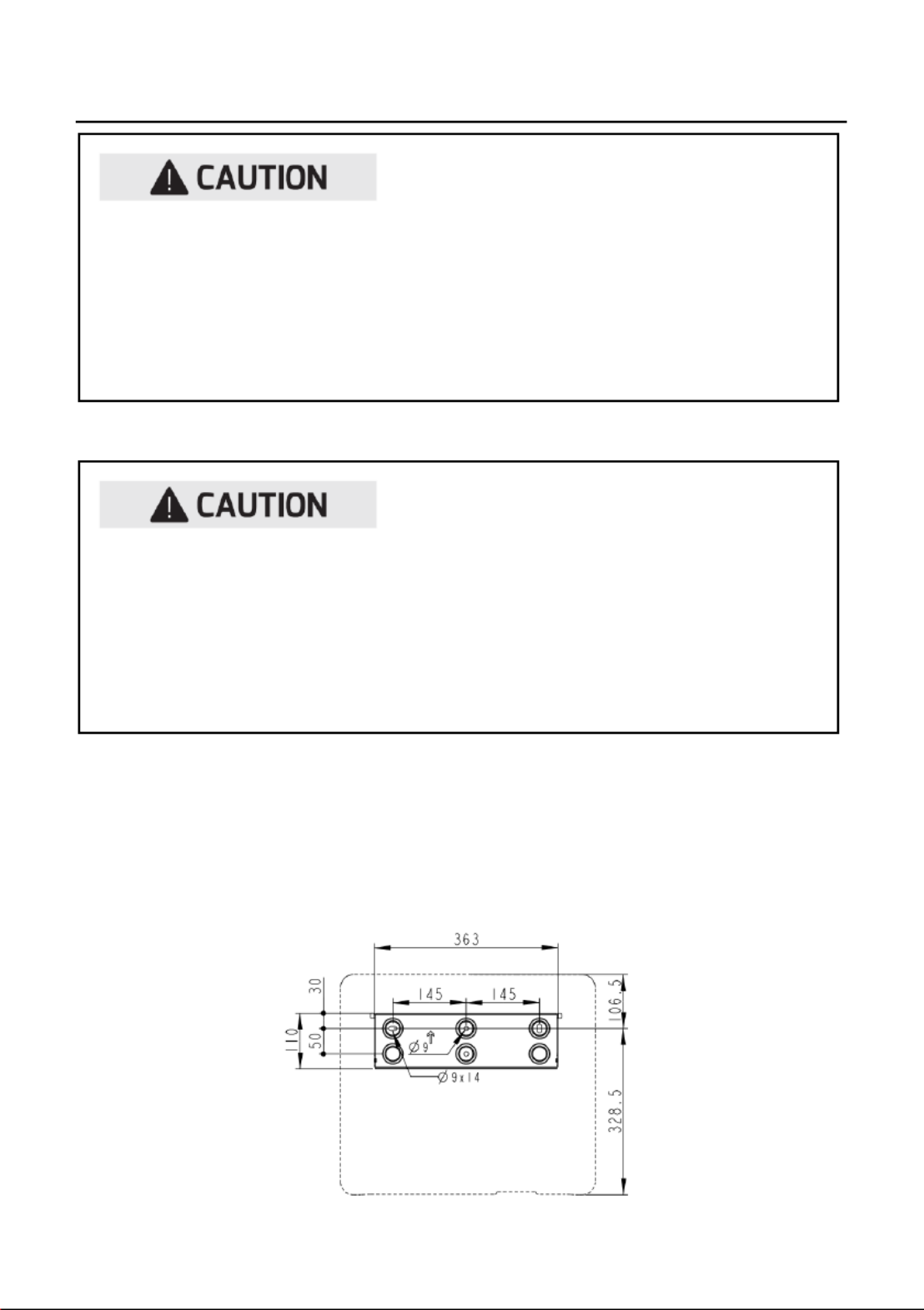

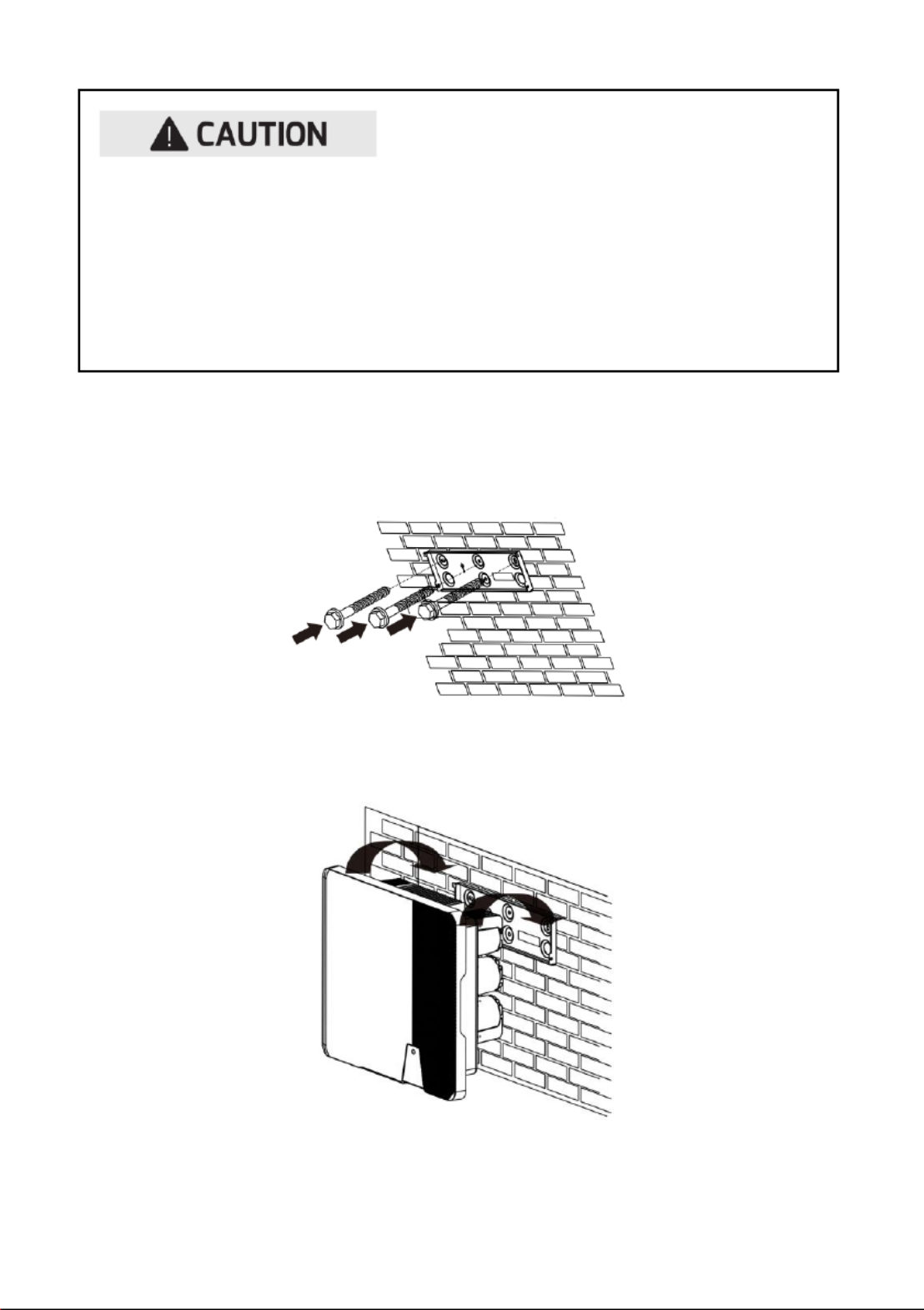

4.2 Mounting the inverter .......................................................................... 17
5 Electrical connection .................................................................... 20
5 Safety .1 .................................................................................................... 20
5.2 Electrical Connection Panel ............................................................... 21
5.3 Electrical connection diagram with a separate DC isolator ............ 22
5.4 AC Connection ..................................................................................... 22
5.4.1 Conditions for the AC connection .............................................. 22
2 User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 6 LT _0 22
5.4.2 Grid connection ............................................................................ 25
5.4.3 Additional grounding connection ............................................... 27
5.5 DC connection ..................................................................................... 28
5.5.1 Requirements for the DC connetion ........................................... 28

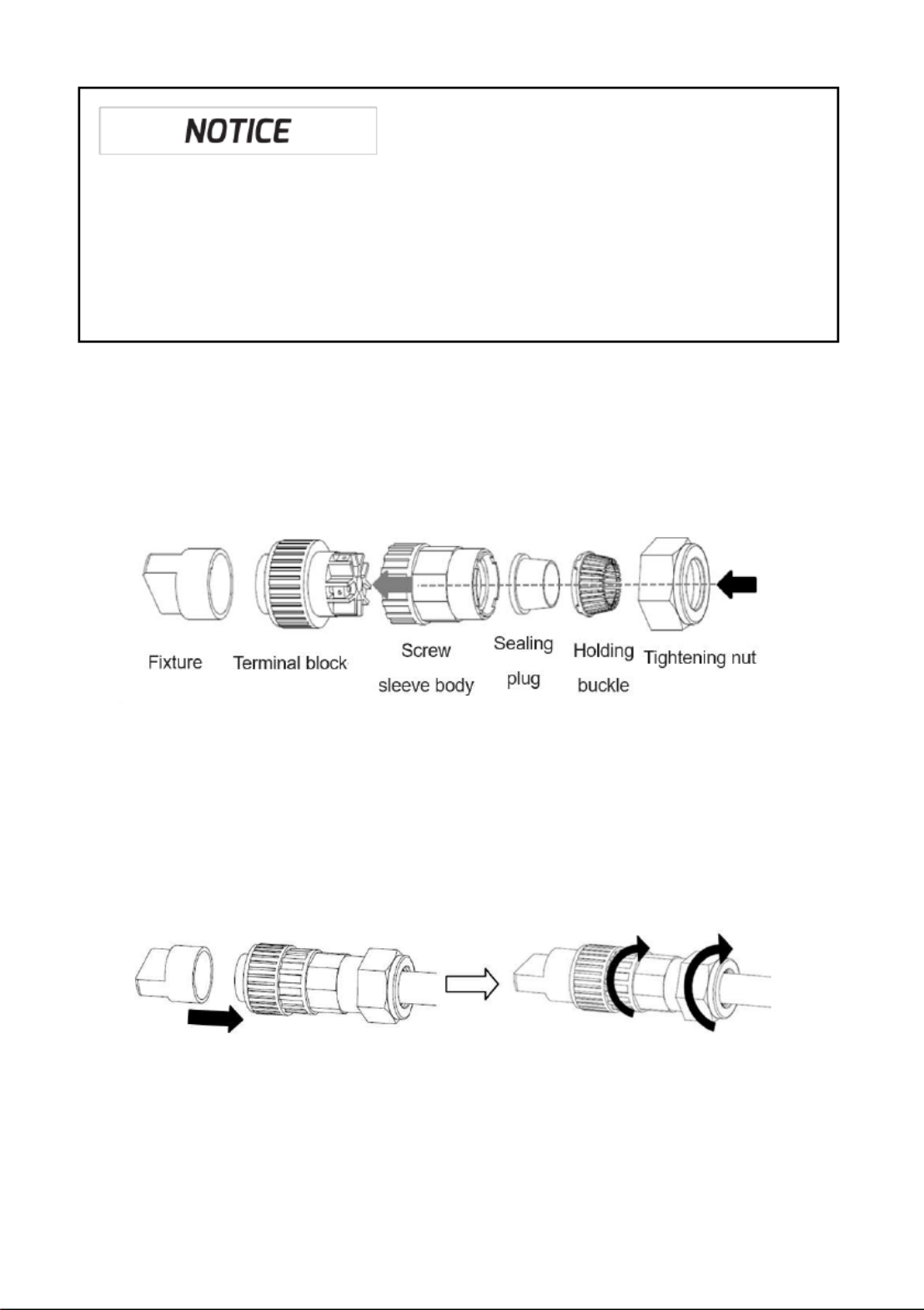

5.5.2 Assembling the DC connectors .................................................. 29

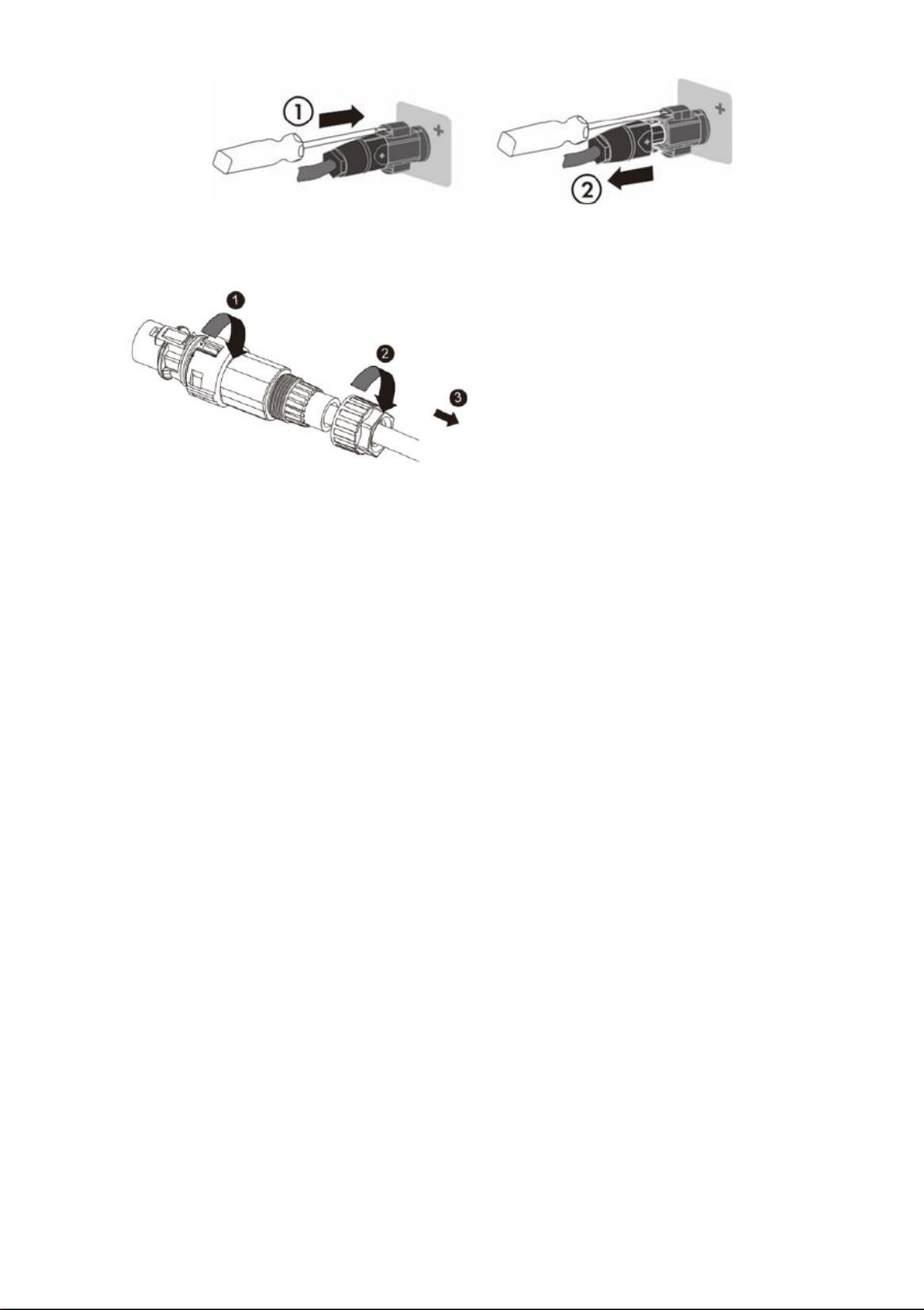

5.5.3 Disassembling the DC connectors ............................................. 30

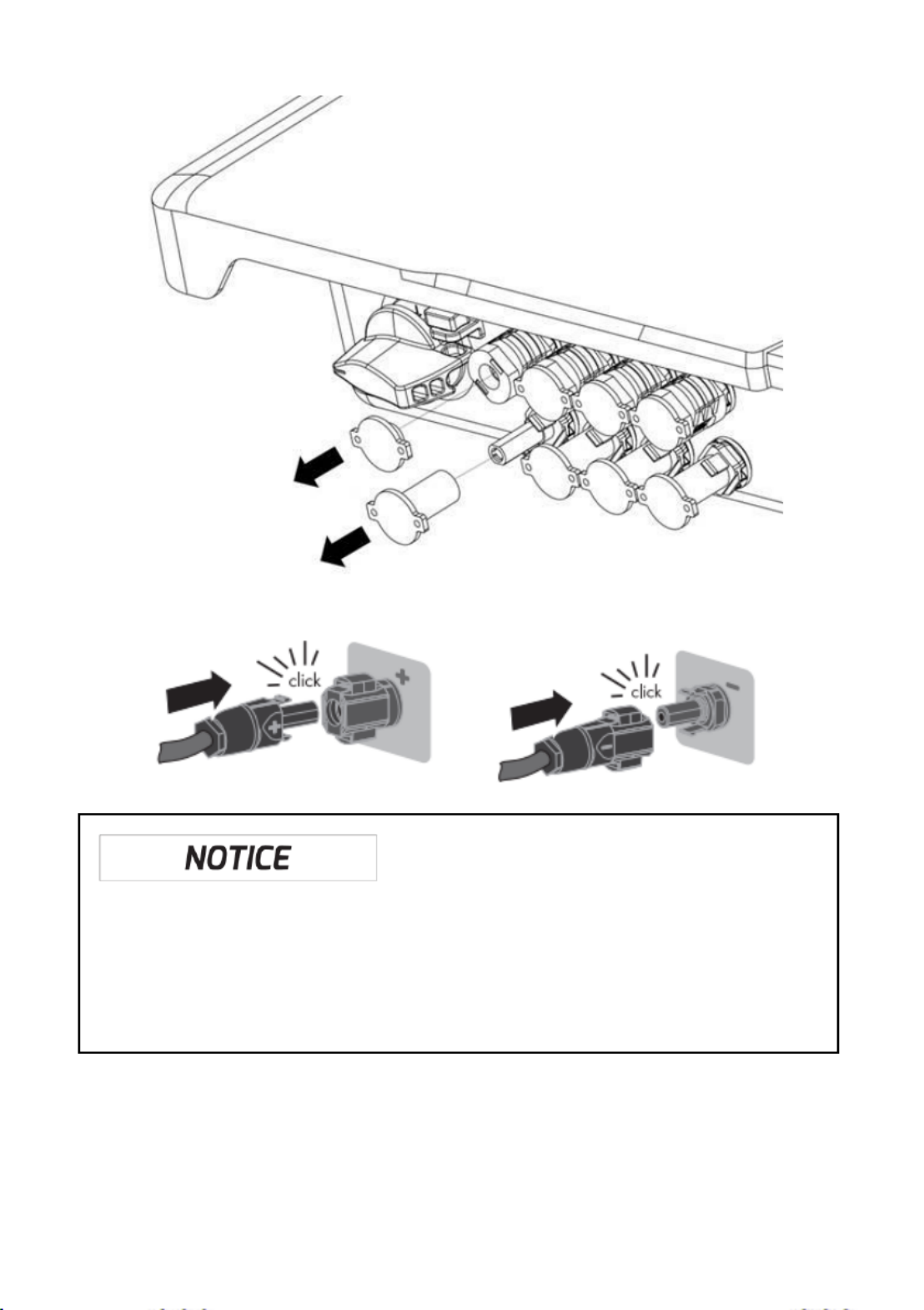

5.5.4 Connecting the PV Array ............................................................. 32
5.6 Conmunication equipment connection ............................................. 34
5.6.1 Mounting the WiFi or 4G Stick .................................................... 34

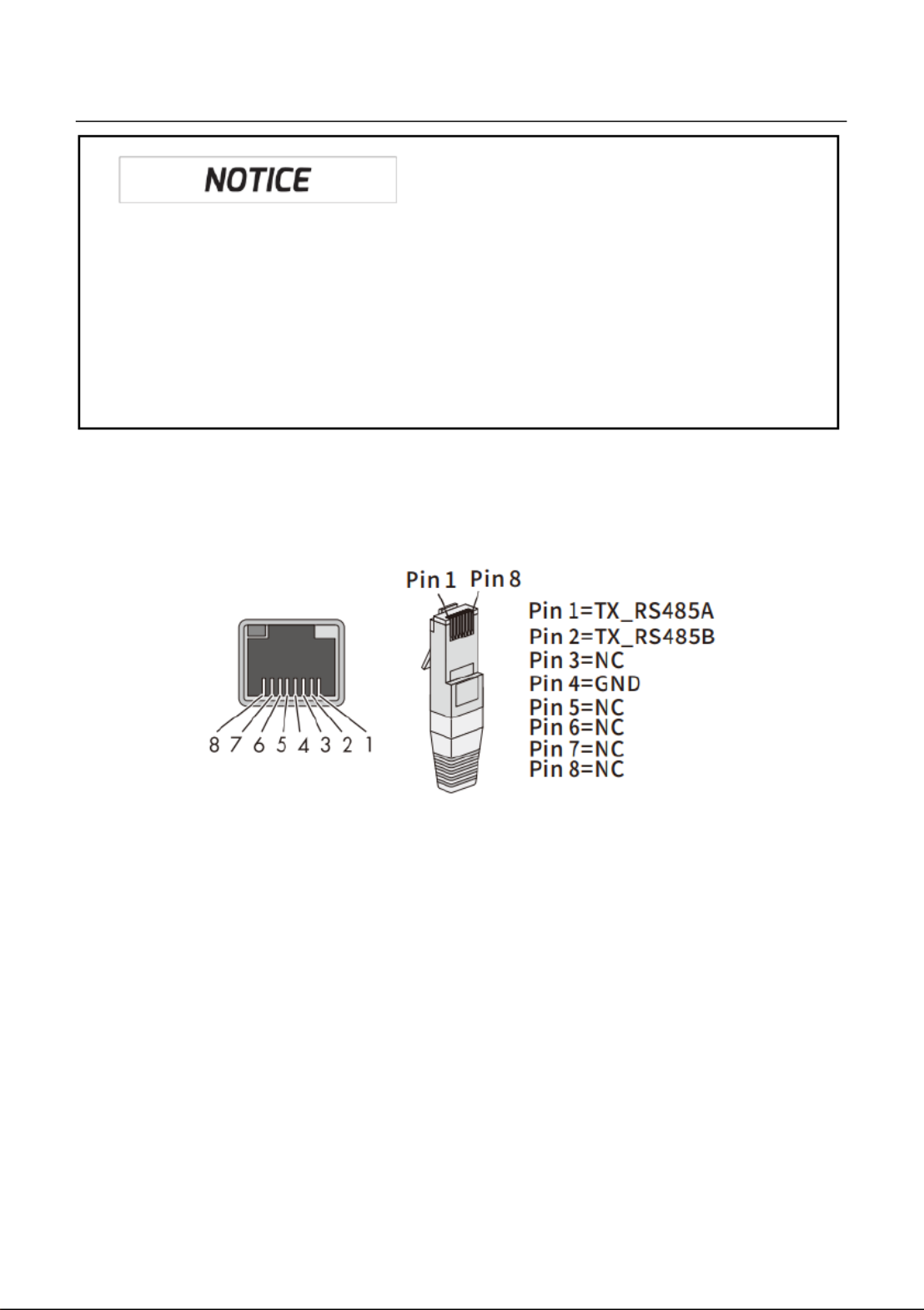

5.6.2 Connect the RS485 network cable ............................................. 35
5.6.3 Connect the smart meter cable ................................................... 37
6 Communication ............................................................................ 38
6.1 System monitoring via WLAN ............................................................ 38
6.2 Active power control with Smart meter ............................................. 39
6.3 Remote rmware update ..................................................................... 40
6.4 Active power control via demand response enabling device (DRED)
..................................................................................................................... 40
6.5 Communication with the third party device ...................................... 41
6.6 Earth fault alarm .................................................................................. 41
7 Commissioning ............................................................................. 42
7.1 Electrical check ................................................................................... 42
7.2 Mechanical check ................................................................................ 43
7.3 Safety code check ............................................................................... 44
7.4 Start- up ................................................................................................. 44
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 5 LT _0
1.3 Target group
This document is for qualied electricians only, who must perform the tasks
exactly as described.
All persons installing inverters must be trained and experienced in general
safety which must be observed when working on electrical equipment.
Installation personnel should also be familiar with local requirements, rules
and regulations.
Qualied persons must have the following skills:
• Knowledge of how an inverter works and is operated
• Training in how to deal with the dangers and risks associated with installing,
repairing and using electrical devices and installations
• Training in the installation and commissioning of electrical devices and
installations
• Knowledge of the applicable laws, standards and directives
• Knowledge of and compliance with this document and all safety information.
1.4 Symbols used in this manual
Safety instructions will be highlighted with the following symbols:
DANGER indicates a hazardous situation which, if not be avoided, will
result in death or serious injury.
WARNING indicates a hazardous situation which, if not be avoided, can
result in death or serious injury.
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 7 LT _0
2 Safety
2.1 Intended use
1. ASW - -Pro series inverter converts the direct current from LT G2 the PV
arrays into grid-compliant alternating current.
2. ASW - -PLT G2 ro series inverter is suitable for indoor and outdoor use.
3. ASW - -PLT G2 ro series inverter must only be operated with PV arrays (PV
modules and cabling) of protection class II in accordance with IEC 61730,
application class A. Do not connect any sources of energy other than PV
modules to ASW - -P series inverter. LT G2 ro
4 PV modules with a high capacity to ground must only be used if their .
coupling capacity does not exceed 5 .0μF.
5. When the PV modules are exposed to light, a DC voltage is supplied to this
inverter .
6. When designing the PV power plants, ensure that the values comply with
the permitted operating range of all components at all time .
7. The product must only be used in countries for which it is approved or
released by AISWEI and the grid operator.
8. Use this product only in accordance with the information provided in th is
documentation and with the locally applicable standards and directives. Any
other application may cause personal injury or property damage.
9. The type label must remain permanently attached to the product.
8 User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 6 LT _0 22
2.2 Important safety information
Danger to life due to electric shock when live components or
cables are touched
• All work on the inverter must only be carried out by qualified
personnel who have read and fully understood all safety
information contained in this manual.
• Do not open the inverter.
• Children must be supervised to ensure that they do not play
with the inverter.
Danger to life due to high voltages of the PV array
When exposed to sunlight, the PV array generates dangerous
DC voltage which is present in the DC conductors and the live
components of the inverter. Touching the DC conductors or
the live components can lead to lethal electric shocks. If you
disconnect the DC connectors from the inverter under load,
an electric arc may occur leading to electric shock and burns.
• Do not touch non-insulated cable ends.
• Do not touch the DC conductors.
• Do not touch any live components of the inverter.
• Have the inverter mounted, installed and commissioned only
by qualied persons with the appropriate skills.
•If an error occurs, have it rectified by qualified persons only.
•Prior to performing any work on the inverter, disconnect it
from all voltage sources as described in this document (see
Section 9 "Disconnecting the Inverter from Voltage Sources").
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 9 LT _0
2.3 Symbols on the label
Symbol
Explanation
Beware of a danger zone
This symbol indicates that the inverter must be additionally
grounded if additional grounding or equipotential bonding is
required at the installation site.
Risk of injury due to electric shock
Touching an ungrounded PV module or array frame can
cause a lethal electric shock.
• connect and ground the PV modules, array frame and
electrically conductive surfaces so that there is continuous
conduction.
Risk of burns due to hot enclosure parts
Some parts of the enclosure can get hot during operation.
• During operation, do not touch any parts other than the
enclosure lid of the inverter.
Damage to the inverter due to electrostatic discharge
Internal components of the inverter can be irreparably
damaged by electrostatic discharge.
• Ground yourself before touching any component.
10 User Manual UM0014_ASW 3K- - -G2 PRO_EN_V02 6 20K LT _0 22

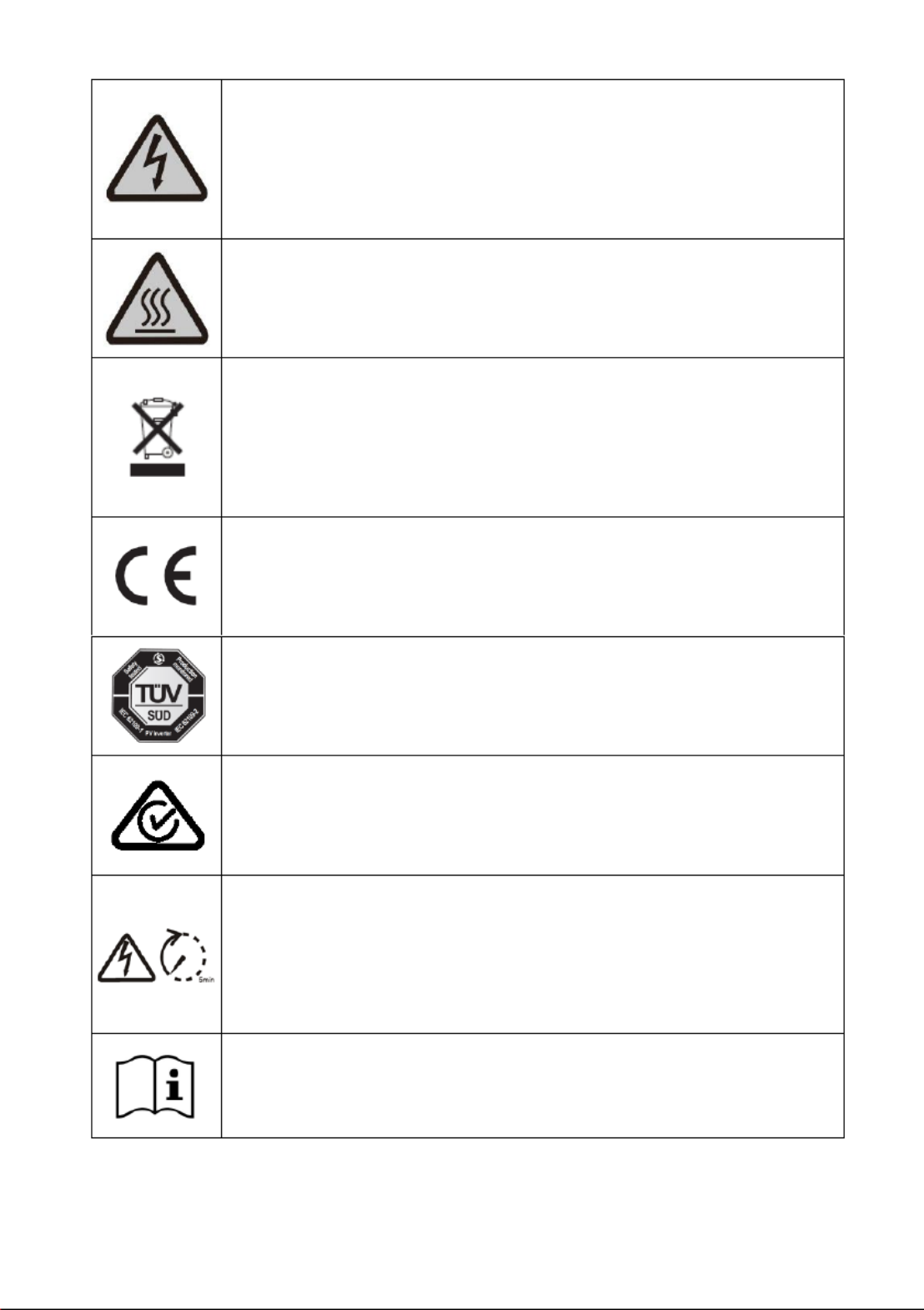

Beware of high voltage and operating current
The inverter operates at high voltage and current. Work on the
inverter must only be carried out by skilled and authorized
electricians.
Beware of hot surfaces
The inverter can get hot during operation. Avoid contact during
operation.
WEEE designation
Do not dispose of the inverter together with the household
waste but in accordance with the disposal regulations for
electronic waste applicable at the installation site.
CE marking
The product complies with the requirements of the applicable
EU directives.
Certication mark
The product s been tested by TUV and got the quality ha
certication mark.
RCM Mark
The product complies with the requirements of the applicable
Australian standards.
Capacitors discharge
Before opening the covers, the inverter must be disconnected
from the grid and PV array. Wait at least 5 minutes to allow the
energy storage capacitors to fully discharge.
Observe the documentation
Observe all documentation supplied with the product
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 11
3 Unpacking
3.1 Scope of delivery
Obje
Description
Quantity
A
Inverter
1 piece
B
Wall bracket
1 piece
C
DC connector
2 pairs(3-10K), 3 pairs( -12
15K), 4 pairs(17-20K)
D
AC connector
1 piece
E
Documentation
1 piece
F
Screw accessory
1 piece
G
4G/ WiFi Stick
1 piece
H
Communication Cover
2 pieces
Please carefully check all the components in the carton. If anything is missing,
contact your dealer at once.
12 User Manual UM0014_ASW 3K- - -G2 PRO_EN_V02 6 20K LT _0 22
3.2 Check for transport damage
Thoroughly inspect the packaging upon delivery. If you detect any damage to
the packaging which indicates inverter may have damaged, inform the been
the responsible shipping company immediately. We will be glad to assist you if
required.
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 13
4 Mounting
4.1 Requirements for mounting
1. Be sure that the inverter is mounted out of the reach of children.
2. Mount the inverter in areas where it cannot be touched inadvertently.
3. Ensure good access to the inverter for installation and possible service.
4. The ambient temperature should be below 40°C to ensure optimal
operation.
5. Observe the minimum clearances to walls, other inverters, or objects as
follows to ensure suicient heat dissipation.
Danger to life due to re or explosion
Despite careful construction, electrical devices can cause fires.
• Do not mount the inverter on flammable construction materials.
• Do not mount the inverter in areas where ammable materials are
stored.
• Do not mount the inverter in areas where there is a risk of explosion.
14 User Manual UM0014_ASW 3K- - -G2 PRO_EN_V02 6 20K LT _0 22

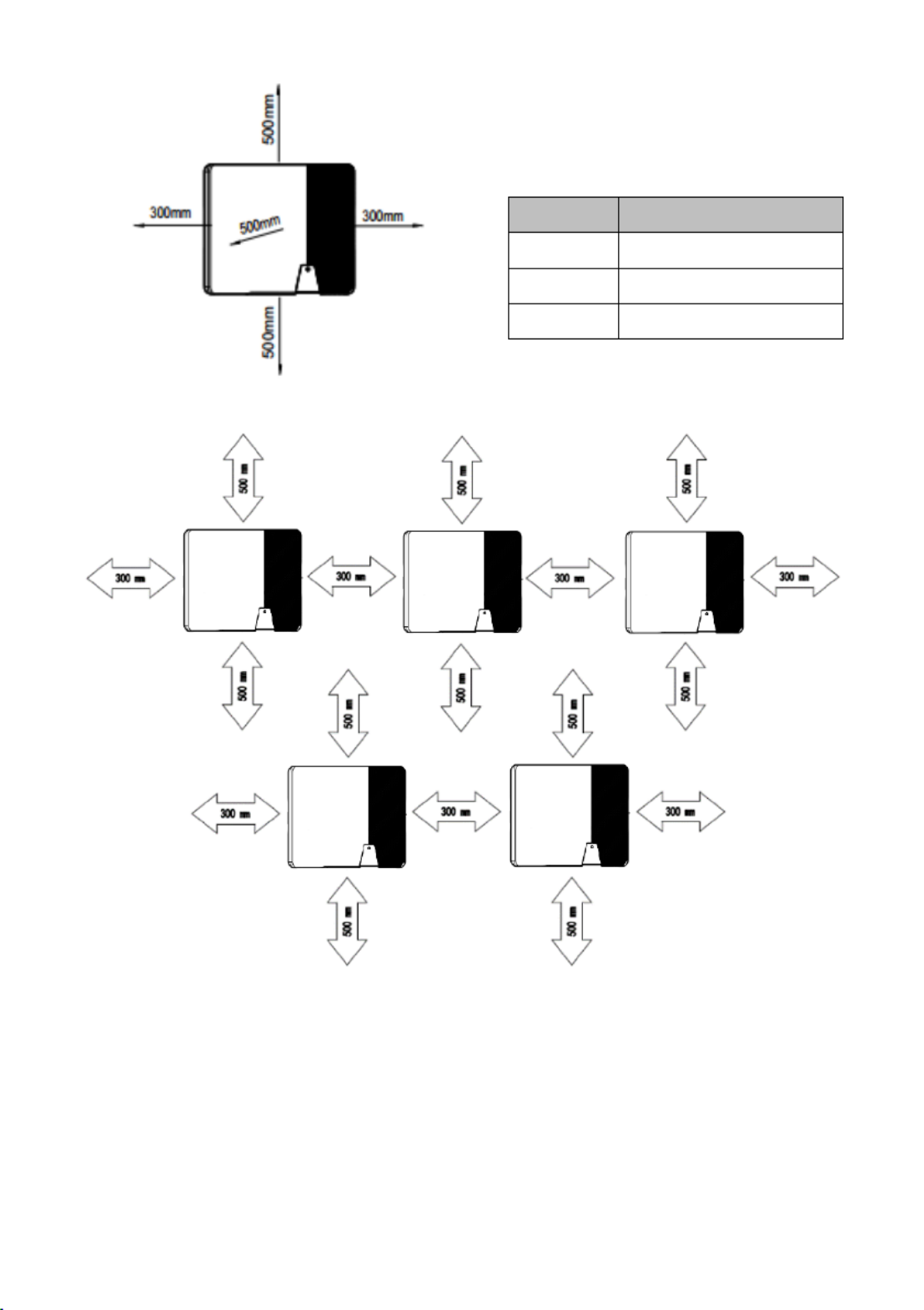

Clearances f one inverter or
Clearances f multiple inverters or

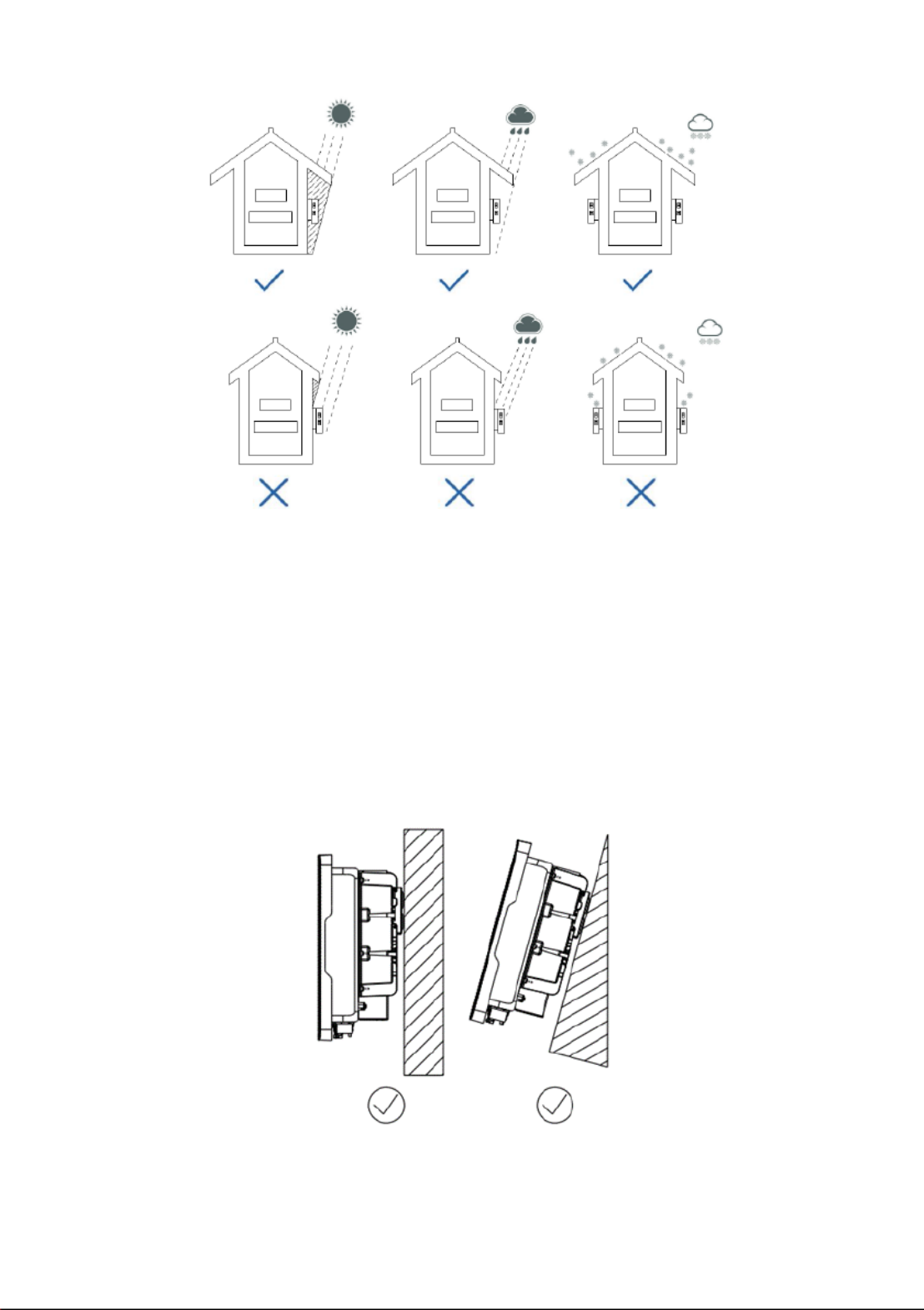

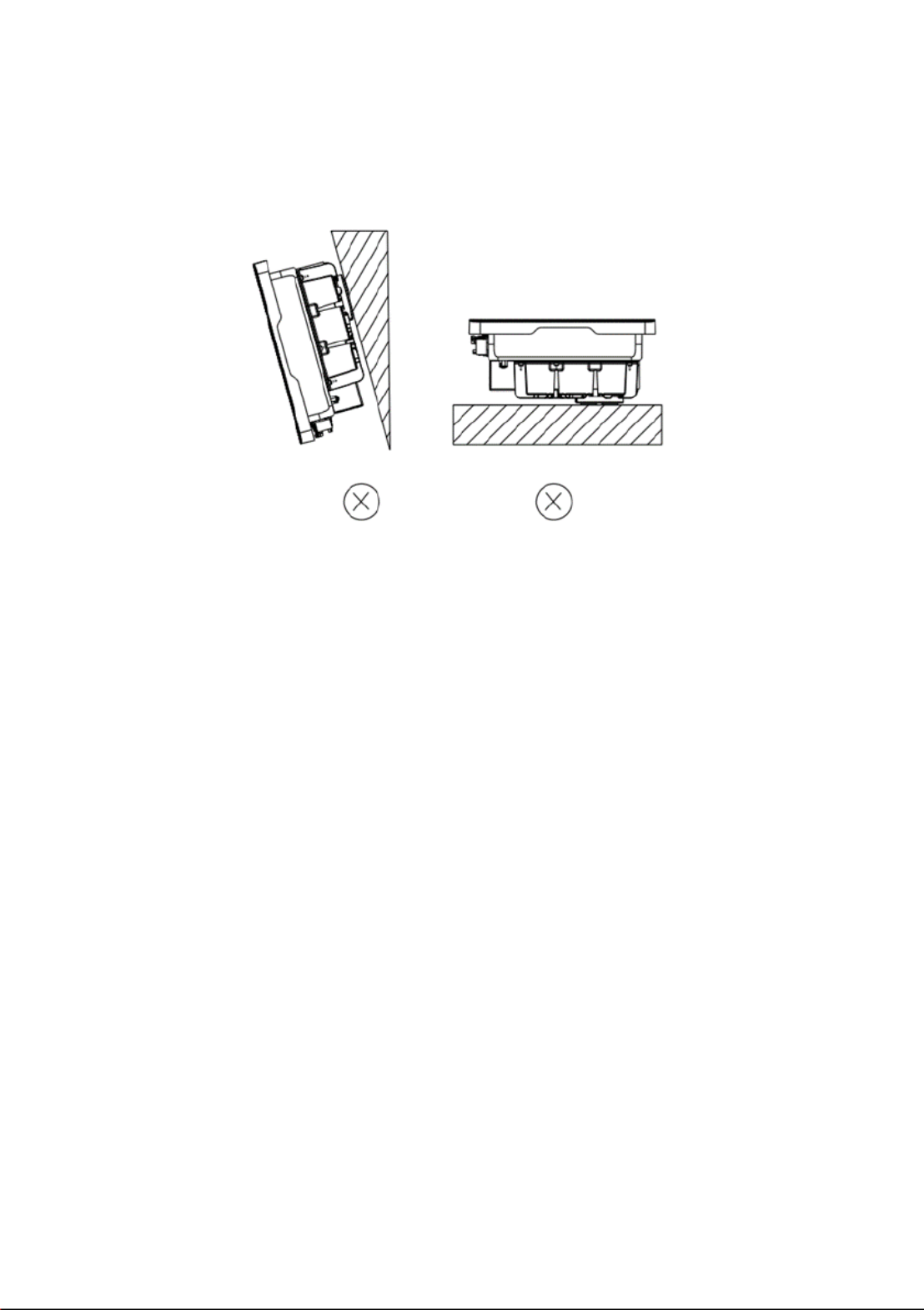

6. In order to avoid power reduction caused by overheating, do not mount
the inverter in a location that allows long-term exposure to direct sunlight.
7. Ensure optim eration and extend service life avoid exposing the um op ,
inverter to direct sunlight, rain and snow.
Direction
Min. clearance (mm)
above
500
below
500
sides
300
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 15
8. The mounting method, location and surface must be suitable for the
inverter's weight and dimensions.
9. I mounted in a residential area, we recommend mounting the inverter f on
a solid surface. Plasterboard and similar materials are not recommended
due to audible vibrations when in use.
10. Don’t put any objects on the inverter. Do not cover the inverter.
11. Mount the inverter vertically or tilted backward by max.15°.
16 User Manual UM0014_ASW 3K- - -G2 PRO_EN_V02 6 20K LT _0 22
12. Never install the inverter horizontally, or with a forward tilt or with a
backward tilt or even with upside down. The horizontal installation can
result in damage to the inverter.
13. Mount the inverter at eye level for easy inspection.
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 17
4.2 Mounting the inverter
Mounting procedure:
1. Use the wall bracket as a drilling template and mark the positions of the drill
holes, then drill 3 holes ( 10) a depth about . During operation, Φto 70mm
k drill vertical to the wall, and hold the drill steady to avoid tilteep the ed
holes.
Risk of injury when lifting the inverter, or if it is dropped
The weight of Solplanet inverter is max. 18.6 kg. There is risk of injury if
the inverter is lifted incorrectly or dropped while being transported or when
attaching it to or removing it from the wall bracket.
• Transport and lift the inverter carefully.
Risk of injury due to damaged cables
There may be power cables or other supply lines (e.g. gas or water)
routed in the wall.
• Ensure that no lines are laid in the wall which could be damaged when
drilling holes.
18 User Manual UM0014_ASW 3K- - -G2 PRO_EN_V02 6 20K LT _0 22
2. After cleaning the dust and other objects from the holes, place 3 wall
anchors into the holes, then attach the wall bracket to the wall using the
hexagon head screw delivered with the inverter.
3. Hold the inverter using the handles the r s, attach the inverter onto at co ner
the wall bracket tilted slightly downwards .
4. Check both sides of the outer fin of the inverter to ensure that it is securely
in place.
Risk of injury due to the product falls down
If the depth and distance of the holes is not correct, the product maybe fall
down from the wall.
•Before inserting the wall anchors, measure the depth and distance of the
holes.
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 19
5. Attach the outer fins of heat sink to both sides of the wall bracket using M4
screws. (screw driver type: PH2, torque: 1.6 Nm).
Dismante the inverter in reverse order.
20 User Manual UM0014_ASW 3K- - -G2 PRO_EN_V02 6 20K LT _0 22
5 Electrical connection
5 Safety .1
Danger to life due to high voltages of the PV array
When exposed to sunlight, the PV array generates dangerous DC voltage
which is present in the DC conductors and the live components of the
inverter. Touching the DC conductors or the live components can lead to
lethal electric shocks. If you disconnect the DC connectors from the
inverter under load, an electric arc may occur leading to electric shock and
burns.
• Do not touch non-insulated cable ends.
• Do not touch the DC conductors.
• Do not touch any live components of the inverter.
• Have the inverter mounted, installed and commissioned only by qualied
persons with the appropriate skills.
• If an error occurs, have it rectied by qualied persons only.
• Prior to performing any work on the inverter, disconnect it from all
voltage sources as described in chapter 9.
Risk of injury due to electric shock
Touching an ungrounded PV module or array frame can cause a lethal
electric shock.
• connect and ground the PV modules, array frame and electrically
conductive surfaces so that there is continuous conduction.
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 21
5.2 Electrical Connection Panel
Object
Description
A
DC-switch
B
MPP1 connector
(3-10K has 1 pair of terminals, 12K-20K has 2 pairs of
terminals)
C
MPP2 connector
(3K-15K has 1 pair of terminals, 17K-20K has 2 pairs of
terminals)
D
RS485 Communication interface COM1/2
E
Communication Stick interface COM3
F
AC connector
G
Additional grounding screw
22 User Manual UM0014_ASW 3K- - -G2 PRO_EN_V02 6 20K LT _0 22

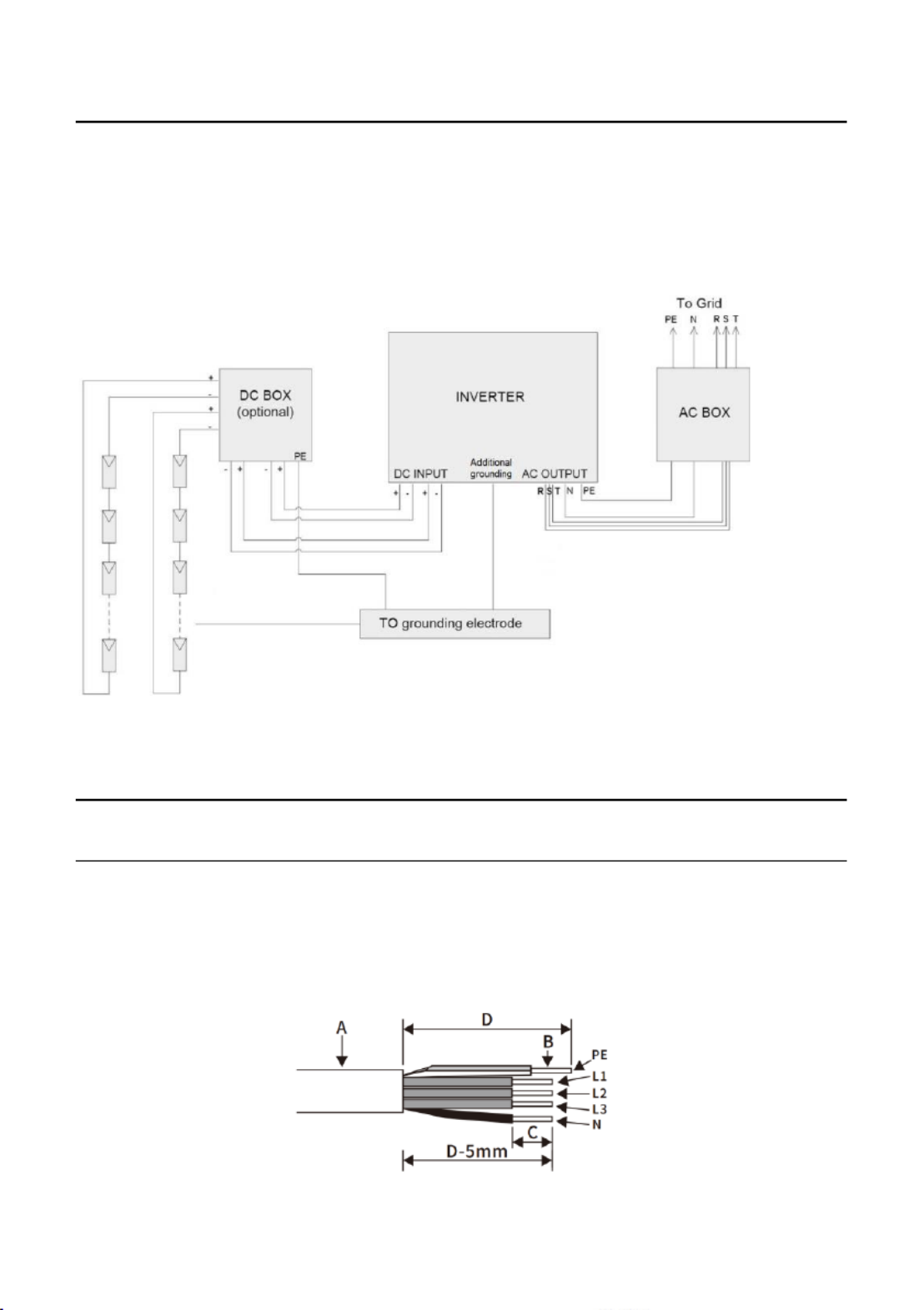

5.3 Electrical connection diagram with a separate DC isolator
Local standards or codes may require that a separate DC isolator should be
installed next to the inverter The separate DC isolator must disconnect each .
PV string of the inverter so that the entire inverter can be removed if the
inverter is faulty. We recommend the following electrical connection:
5.4 AC Connection
5.4.1 Conditions for the AC connection
Cable Requirements
The grid connection is made using 5 conductors (L1, L2, L3, N, and PE). We
recommend the following requirements for stranded copper conduct . or
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 23
Object
Description
Value
A
External diameter
10…16 mm
B
Conductor cross-section
2.5…6 mm2
C
Stripping length of the insulated conductors
Approx. 13 mm
D
Stripping length of the AC cable’s outer
s heath
Approx. 53 mm
The PE insulated conductor must be 2 mm longer than the L and N
conductors
Larger cross-sections should be used for longer leads.
Cable Design
The conductor cross-section should be dimensioned to avoid power loss in
cables exceeding 1% of rated output power.
The required conductor cross-section depends on the inverter rating, ambient
temperature, routing method, cable type, cable losses, valid installation
requirements of installation side.
Residual current protection
The product is equipped with an integrated universal current-sensitive residual
current monitoring unit inside. The inverter will disconnect immediately from
the mains power as soon as fault current with a value exceeding the limit.
Overvoltage category
The inverter can be used in grids of overvoltage category III or lower in
accordance with IEC 60664-1. This means that it can be permanently
If an external residual-current protection device is
required, please install a type B residual-current protection
device with a protection limit of not less than 100mA.
24 User Manual UM0014_ASW 3K- - -G2 PRO_EN_V02 6 20K LT _0 22
connected at the grid-connection point in a building. In installations involving
long outdoor cable routing, additional measures to reduce overvoltage
category IV to overvoltage category III are required.
AC circuit breaker
In PV systems with multiple inverters, protect each inverter with a separate
circuit breaker. This will prevent residual voltage being present at the
corresponding cable after disconnection.
No consumer load should be applied between AC circuit breaker and the
inverter.
The selection of the AC circuit breaker rating depends on the wiring design
(wire cross-section area), cable type, wiring method, ambient temperature,
inverter current rating, etc. Derating of the AC circuit breaker rating may be
necessary due to self-heating or if exposed to heat.
The maximum output current and the maximum output overcurrent protection
of the inverters can be found in section 10 "Technical data".
Grounding conductor monitoring
The inverter is equipped with a grounding conductor monitoring device. This
grounding conductor monitoring device detects when there is no grounding
conductor connected and disconnects the inverter from the utility grid if this is
the case. Depending on the installation site and grid conguration, it may be
advisable to deactivate the grounding conductor monitoring. This is necessary,
for example, in an IT system if there is no neutral conductor present and you
intend to install the inverter between two conductors. If you are uncertain line
about this, contact your grid operator or AISWEI.
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 25
5.4.2 Grid connection
Procedure:
1. Switch off the circuit breaker and secure it against reconnection.AC
2. Insert the copper wire into a suitable European style tube connector
(according to DIN 46228-4) and crimp it.
Safety in accordance with IEC 62109 when the grounding
conductor monitoring is deactivated.
In order to guarantee safety in accordance with IEC 62109 when the
grounding conductor monitoring is deactivated, carry out one of the
following measures:
• Connect a copper-wire grounding conductor with a cross-section of at
least 10 mm² to the AC connector bush insert.
• Connect an additional grounding that has at least the same cross-section
as the connected grounding conductor to the AC connector bush insert.
This prevents touch current in the event of the grounding conductor on the
AC connector bush insert failing.
Danger to life due to high voltages in the inverter
Touching the live components can lead to lethal electric shocks.
• Before performing the electrical connection, ensure that the AC circuit-
breaker is switched off and cannot be reactivated.
26 User Manual UM0014_ASW 3K- - -G2 PRO_EN_V02 6 20K LT _0 22
3. Insert the grounding wire (PE), neutral wire (N) and live wire (L1, L2 and L3)
of the crimped European connector into the corresponding holes of the
terminal block as indicated by the arrows below, and tighten the screws with
a 3mm wide Allen wrench. The torque is 2.0 Nm.
4. Push the holding buckle and the sealing plug into the screw sleeve body,
and then assemble the terminal block, the screw sleeve body and the
tightening nut together. First clamp the terminal block with a plastic clamp,
then screw the screw sleeve body onto the terminal block, and nally tighten
the tightening nut.
5. Insert the wired AC connector into the corresponding AC output port of the
inverter and tighten it clockwise..
Damage to the inverter due to wrong wiring
If the phase line was connected to PE terminal, the inverter will not
function properly.
• Please ensure that the type of the conductors matches the signs of the
terminals on the socket element.
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 27
5.4 Additional grounding connection .3
If additional grounding or equipotential bonding is required locally, you can
connect additional grounding to the inverter. This prevents touch current if the
grounding conductor on the AC connector fails.
Procedure:
1. Align terminal lug with protective conductor the .
2. Insert the screw through the hole located at the housing and tight rmly en it
(screw driver type 2, torque : PH : 2.5Nm).
Grounding parts information ：
Object
Explanation
1
M5 screw
2
M5 OT terminal
3
Yellow-green grounding wire
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 29

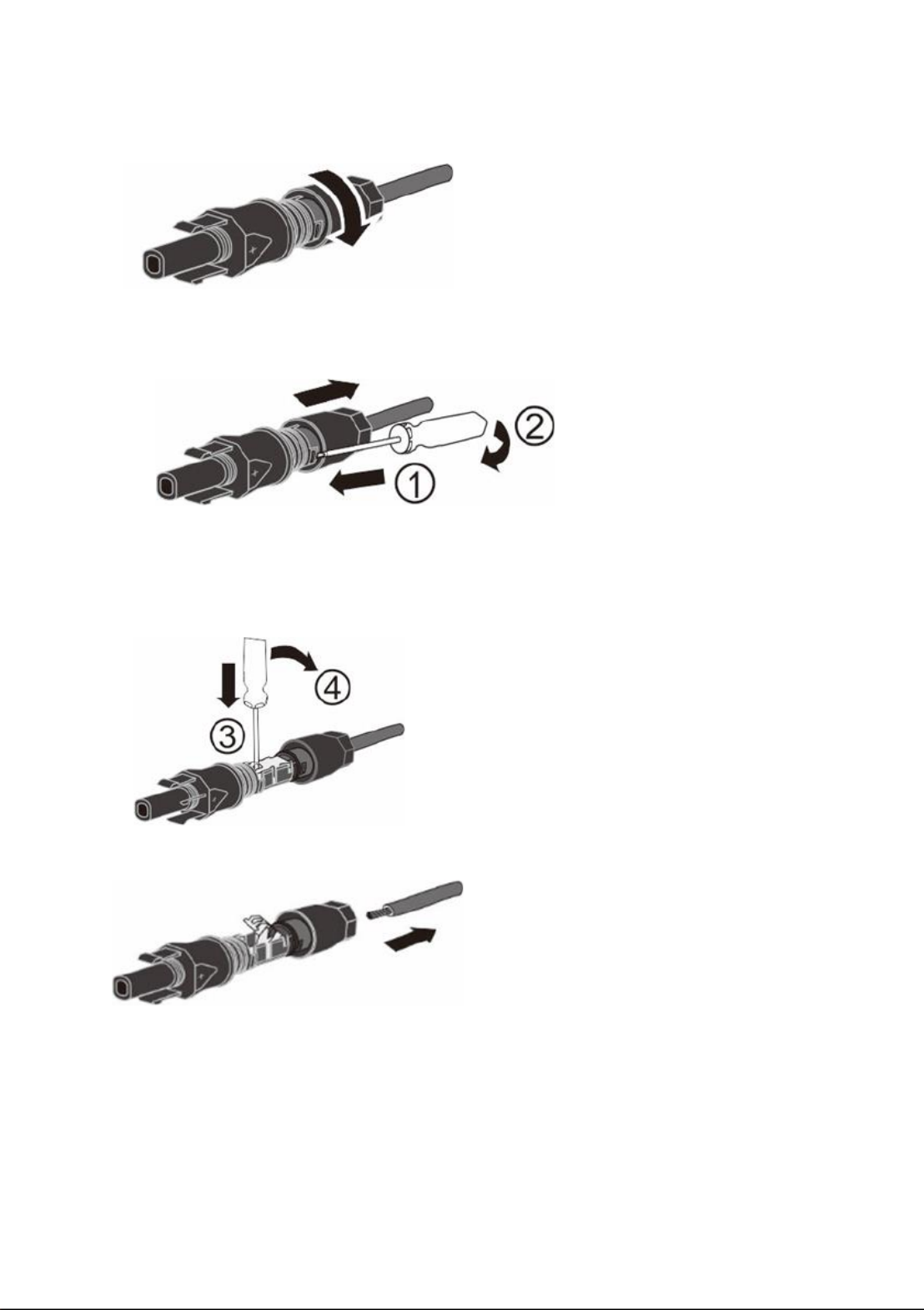

5.5.2 Assembling the DC connectors
Assemble the DC connectors as described below. Be sure to observe the
correct polarity. The DC connectors are marked with the symbols "+" and " − ".
Cable requirements:
The cable must be of type PV1-F, UL-ZKLA or USE2 and comply with the
following properties:
⚫ External diameter: 5-8mm
⚫ Conductor cross-section: 2.5-6mm²
⚫ Qty single wires: minimum 7
⚫ Nominal voltage: minimum 1100V
Procedure:
1. Strip about 12 mm of the cable insulation.
2. Route the stripped cable all the way into the DC connector. Ensure that
Danger to life due to high voltages on DC conductors
When exposed to sunlight, the PV array generates dangerous DC voltage
which is present in the DC conductors. Touching the DC conductors can
lead to lethal electric shocks.
• Cover the PV modules.
• Do not touch the DC conductors.
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 31
1. Make sure DC power is cut o.
2. Unscrew the swivel nut.
3. To release the DC connector, insert a flat-blade screwdriver (blade width:
3.5 mm) into the side catch mechanism and lever open.
4. Carefully pull the DC connector apart.
5. Release the clamping bracket. To do so, insert a flat-blade screwdriver
(blade width: 3.5 mm) into the clamping bracket and lever it open.
6. Remove the cable.
32 User Manual UM0014_ASW 3K- - -G2 PRO_EN_V02 6 20K LT _0 22
5.5.4 Connecting the PV Array
Procedure:
1. Ensure that the individual AC circuit breaker is switched o and secure it
against reconnection.
2. Ensure that the DC-switch is switched o and secure it against
reconnection.
3. Ensure that there is no ground fault in the PV strings.
4. Check whether the DC connector has the correct polarity. If the DC
connector ts with a DC cable having the wrong polarity, the DC connector
must be reassembled again. The DC cable must always have the same
polarity as the DC connector.
5. Ensure that the open-circuit voltage of the PV strings does not exceed the
maximum DC input voltage of the inverter.
6. Unplug the sealing plug on the input end of the DC connector and connect
the assembled DC connectors to the inverter until they audibly snap into
place. Do not unplug the sealing plug from the input end of unused DC
connector.
Destruction of the inverter due to overvoltage
If the voltage of the strings exceeds the maximum DC input voltage of the
inverter, it can be destroyed due to overvoltage. All warranty claims
become void.
• Do not connect strings with an open-circuit voltage greater than the
maximum DC input voltage of the inverter.
• Check the design of the PV system
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 33
Damage to the inverter due to moisture and dust penetration
Seal the unused DC inputs with sealing plugs so that moisture and dust
cannot penetrate the Inverter.
• Make sure all DC connectors are securely sealed.
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 35
5.6.2 Connect the RS485 network cable
This inverter is equipped with RJ45 interfaces for RS485 communication. The
network cable should be connected to COM1/2 connection in section 5.2.
Pinout detail of the RJ45 interface the inverter as follows: on
The network cable meeting the EIA/TIA 568A or 568B standard must be UV
resistant if it is to be used outdoors.
Cable requirement:
- Shielding wire
- CAT-5E or higher
- -resistant for outdoor use UV
- RS485 cable maximum length 1000m
Procedure:
1. Take out the communication cover from the package.
2. Screw on the cover cap of the signal terminal according to the sequence of
The inverter can be destroyed by wrong communication wiring
• Internal components of the inverter can be irreparably damaged due to
incorrect wiring between the power wire and signal wire. All the
warranty claim will be invalid.
• Please check the wiring of the RJ45 connector before crimping the
contact.
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 37
5.6.3 Connect the smart meter cable
If smart meter needs to be connected. Cable requirements and connecting
procedure are the same as chapter 5.6.2.
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 39
Mehod 2 every inverter with /WiFi Stick, every inverter can connect to 4G
internet.
As shown above, we offer a remote monitoring platform called “AiSWEI cloud”.
You can also install the “AiSWEI APP” on a smart phone using Android or an
iOS operating system. You can visit the website ( https://solplanet.net/installer-
area/#monitoring) for system information. And download the user manual for
the AISWEI Cloud Web or AISWEI APP.
6.2 Active power control with Smart meter
The inverter can control activepower output via connecting smart meter,
following picture is the system connection mode through WiFi stick.

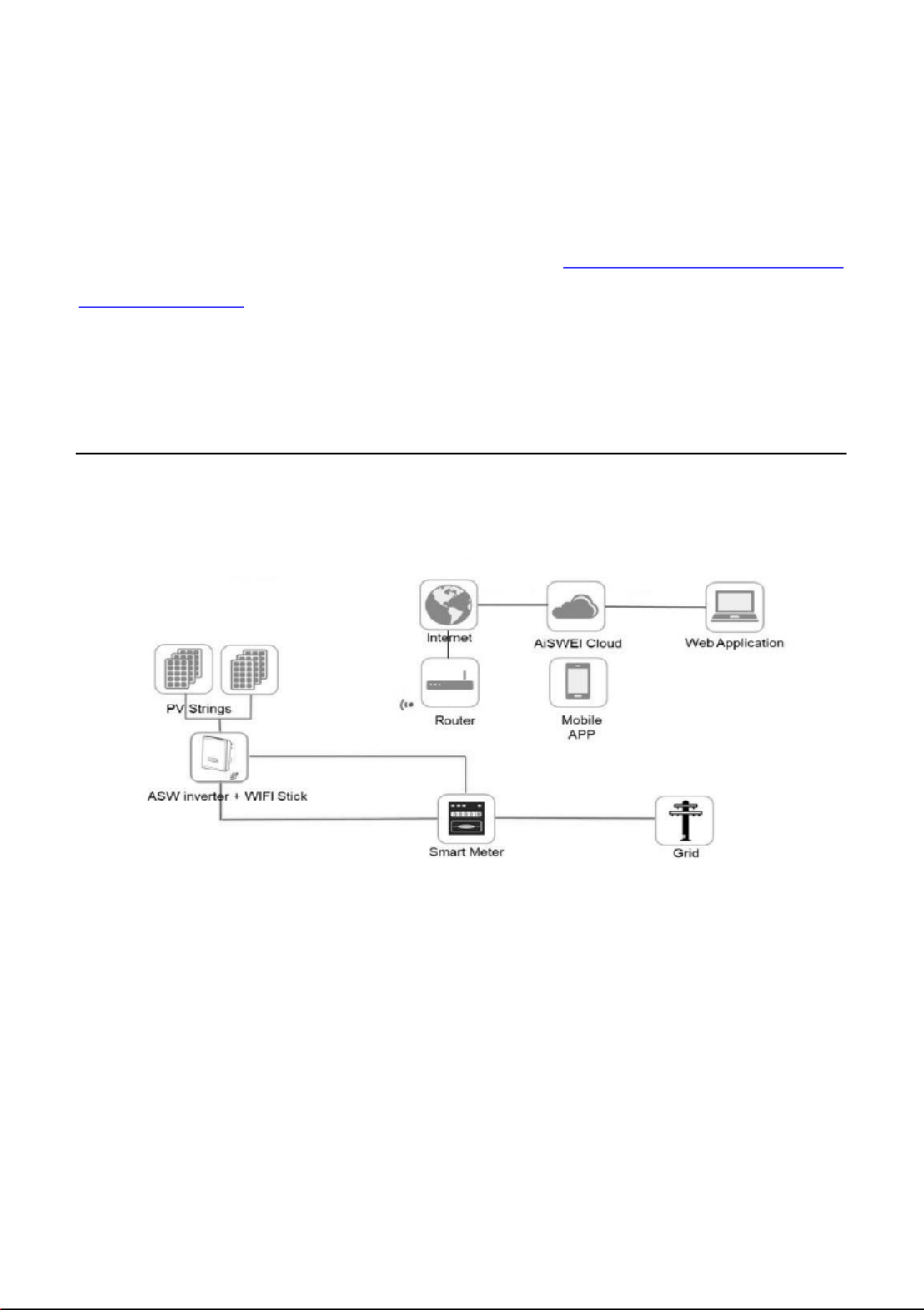

The smart meter should support the MODBUS protocol with a baud rate of
9600 and address set 1 Smart meter as above SDM630-Modbus connecting .
method and seting baud rate method for modbus please refer to it’s user
manual.
40 User Manual UM0014_ASW 3K- - -G2 PRO_EN_V02 6 20K LT _0 22
The active power limit can be set on “AiSWEI ” application, the details can APP
be found in the user manual for the AISWEI APP.
6.3 Remote rmware update
ASW - -Pro series inverters can update the firmware through /WIFI LT G2 4G
stick For more information, , . no need to open the cover for maintenance
please contact the Service.
6.4 Active power control via demand response enabling device
(DRED)
The inverter shall detect and initiate a response to all supported demand
response commands, demand response modes are described as follows:
Mode
Requirement
DRM 0
Operate the disconnection device
Possible reason of communication failure due to incorrect
connection
• WiFi stick only support single inverter to do active power control.
• The overall length of the cable from inverter to smart meter is 100m.
DRMs application description
• Only applicable to AS/NZS4777.2:2020 .
• DRM0, DRM5, DRM6, DRM7, DRM8 are available.
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 41
DRM 1
Do not consume power
DRM 2
Do not consume at more than 50% of rated power
DRM 3
Do not consume at more than 75% of rated power AND Source
reactive power if capable
DRM 4
Increase power consumption (subject to constraints from other
active DRMs)
DRM 5
Do not generate power
DRM 6
Do not generate at more than 50% of rated power
DRM 7
Do not generate at more than 75% of rated power AND Sink
reactive power if capable
DRM 8
Increase power generation (subject to constraints from other
active DRMs)
If DRMs support is required, the inverter should be used in conjunction with
AiCom. the Demand Response Enabling Device (DRED) can be conneted to
the DRED port on AiCom via RS485 cable. You can vist the website
www.solplanet.net for more information and download the user manual for the
AiCom.
6.5 Communication with the third party device
Solplanet inverters can also connect with one third party device instead of
RS485 or WiFi stick, the communication protocol is modbus. For more
information, please contact the Service.
6.6 Earth fault alarm
This inverter complies with IEC 62109-2 clause 13.9 for earth fault alarm
monitoring. If an Earth Fault Alarm occurs, the red color LED indicator will light
up. At the same time, the error code 38 will be sent to the AISWEI Cloud.
(This function is only available in Australia and New Zealand)
42 User Manual UM0014_ASW 3K- - -G2 PRO_EN_V02 6 20K LT _0 22
7 Commissioning
7.1 Electrical check
Carry out the main electrical checks follows: as
① Check PE connection with a multimeter: the check that the inverter’s
exposed metal surface has a grounding connection.
② Check the voltage values: make sure that the DC voltage of the strings DC
does not exceed the permitted limits.
③ Check polarity of the voltage: make sure the voltage has the the DC DC
correct polarity.
④ Check the ground with a multimeter: make PV generator’s insulation to
sure that insulation resistance ground is greater than 1MOhm. to
Danger to life due to the presence of DC-Voltage
Touching the live conductors can lead to lethal electric shocks.
• Only touch the insulation of the PV array cables.
• Do not touch parts of the sub-structure and frame of the PV array
which isn t grouned. ’
• Wear personal protective equipment such as insulating gloves.
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 43
⑤ Check the grid voltage: check that the grid voltage at the point of
connection of the inverter is within permitted range. the
7.2 Mechanical check
Carry out the main mechanical checks to ensure the inverter is waterproof as
follows:
① Make sure the inverter has been correctly mounted with wall bracket.
② Make sure the cover has been correctly mounted.
③ Make sure the communication cable and AC connector have been
correctly wired and tightened.
Danger to life due to the presence of AC-Voltage
Touching the live conductors can lead to lethal electric shocks.
• Only touch the insulation of the AC cables.
• Wear personal protective equipment such as insulating gloves.
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 45
During periods of low radiation, the inverter may continuously start up and
shut down. This is due to insucient power generated by the PV array.
If this fault occurs often, please call service.
If the inverter is 1 in “Fault” mode, refer to chapter 1 “Troubleshooting”.
46 User Manual UM0014_ASW 3K- - -G2 PRO_EN_V02 6 20K LT _0 22
8 Display
8.1 Overview of the control panel
The inverter is equipped with a display panel, which has 3 LED indicators.
8.2 LED indicators
The three LED indicators from top to bottom are:
1. SOLAR power indicator
When the inverter is in the standby self-checking state, the white light
ashes. Under normal grid-connected working state, the light is always on. In
“Fault” mode, the light is off.
2. COM communication indicator
When the inverter communicates with other devices normally, the white
light ashes. If communication is abnormal or not connected, the light is o.
48 User Manual UM0014_ASW 3K- - -G2 PRO_EN_V02 6 20K LT _0 22
9 Disconnecting the inverter from voltage sources
Before performing any work on the inverter, disconnect it from all voltage
sources as described in this section. Always adhere strictly to the given
sequence.
1. Disconnect AC circuit breaker and secure against reconnection.
2. Disconnect the DC-switch and secure against reconnection.
3. Use a current probe to ensure that no current is present in the DC cables.
4. Release and remove all DC connectors. Insert a at-blade screwdriver or
an angled screwdriver (blade width: 3.5 mm) into one of the slide slots and
pull the DC connectors out downwards. Do not pull on the cable .
Danger to life due to electric shock when touching exposed DC
conductors or DC plug contacts if the DC connectors are damaged or
loose
The DC connectors can break or become damaged, become free of the
DC cables, or no longer be connected correctly if the DC connectors are
released and disconnected incorrectly. This can result in the DC
conductors or DC plug contacts being exposed. Touching live DC
conductors or DC plug connectors will result in death or serious injury due
to electric shock.
• Wear insulated gloves and use insulated tools when working on the DC
connectors.
• Ensure that the DC connectors are in perfect condition and that none of
the DC conductors or DC plug contacts are exposed.
• Carefully release and remove the DC connectors as described in the
following.
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 49
5. Release and disconnect the AC connector. Rotate the socket element
counterclockwise to open.
6. Wait until all LEDs and the display have gone out.
50 User Manual UM0014_ASW 3K- - -G2 PRO_EN_V02 6 20K LT _0 22
10 Technical data
10.1 DC input data
Type
ASW - -3K LT
G2-Pro
ASW - -4K LT
G2-Pro
ASW - -5K LT
G2-Pro
ASW - -6K LT
G2-Pro
Max. PV
modules power
(STC)
4500W
6000W
7500W
9000W
Max. input
voltage/ Rated
input voltage
1100V/630V
MPPT voltage
range
150～1000 V
Full load MPPT
voltage range
270～850 V
Intitial feed-in
voltage
180V
Min input
voltage
125V
Max. DC input
current
16A/16A
Isc PV, absolute
max.
25A/25A
Maximum
reverse current
from the inverter
in the system for
max. 1 ms
0A
Number of MPP
trackers
2
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 51
Strings per MPP
tracker
1/1
Overvoltage
category in
accordance with
IEC60664-1
II
Type
ASW8K- -LT
G2-Pro
ASW10K- -LT
G2-Pro
ASW12K-
LT- -Pro G2
ASW13K-
LT- -Pro G2
Max. PV
modules power
(STC)
12000W
15000W
18000W
19500W
Max. input
voltage/ Rated
input voltage
1100V/630V
MPPT voltage
range
150～1000 V
Full load MPPT
voltage range
400～850 V
Intitial feed-in
voltage
180V
Min input
voltage
125V
Max. DC input
current
20A/16A
32A/20A
Isc
PV, absolute
max.
30 25A/ A
48A/30A
Maximum
reverse current
from the
0A
52 User Manual UM0014_ASW 3K- - -G2 PRO_EN_V02 6 20K LT _0 22
inverter in the
system for max.
1 ms
Number of MPP
trackers
2
Strings per
MPP tracker
1/1
2/1
Overvoltage
category in
accordance with
IEC60664-1
II
Type
ASW15K- -LT
G2-Pro
ASW17K-
LT- -Pro G2
ASW20K- -LT
G2-Pro
Max. PV modules
Power (STC)
22500W
25500W
30000W
Max. input voltage/
Rated input voltage
1100V/630V
MPP voltage range
150～1000 V
Full load MPP voltage
range
400～850V
Intitial feed-in voltage
180V
Min input voltage
125V
Max. DC input current
32A/20A
2*32A
Isc PV, absolute max.
48A/30A
2*48A
Maximum reverse
current from the
inverter in the system
for max. 1 ms
0A
User Manual UM0014_ASW 3K-20K- -G2 PRO_EN_V02 622 LT _0 53
Number of MPP
trackers
2
Strings per MPP
tracker
2/1
2/2
Overvoltage category
in accordance with
IEC60664-1
II
(1) W n 1000V, the inverter will alarm an hen the DC input voltage is greater tha
error.
(2) When the DC input voltage is lower than 995V, the inverter starts self-
checking.
(3) The full-load MPP voltage range of the inverter is the value measured
under the rated AC voltage. If you have any questions, please consult local
service personnel.
10.2 AC output data
Type
ASW -3K
LT- -Pro G2
ASW -4K
LT- -G2
Pro
ASW -5K
LT- -G2
Pro
ASW -6K
LT- -G2
Pro
Rated output power
3000W
4000 W
5000 W
6000 W
Max. output active
power
3300W
4400 W
5500 W
6600 W
Max. output apparent
power
3300VA
44000 VA
5500 VA
6600VA
Rated AC Voltage (1)
3/N/PE, 220/380 V, 230/400 V,240/415 V
AC voltage range
160 V~300 V
Rated AC Frequency (2)
50 Hz/ 60 Hz
Operating range at AC
power frequency 50 Hz
45 Hz to 55Hz
Operating range at AC
power frequency 60 Hz
55 Hz to 65Hz
Produktspecifikationer
| Varumärke: | Solplanet |
| Kategori: | Inte kategoriserad |
| Modell: | ASW3K-LT-G2-Pro |
Behöver du hjälp?
Om du behöver hjälp med Solplanet ASW3K-LT-G2-Pro ställ en fråga nedan och andra användare kommer att svara dig
Inte kategoriserad Solplanet Manualer
27 Oktober 2024
23 September 2024
5 September 2024
5 September 2024
5 September 2024
4 September 2024
4 September 2024
4 September 2024
3 September 2024
3 September 2024
Inte kategoriserad Manualer
- Cioks
- Einhell
- Toro
- Ciclo
- Janitza
- Cruz
- Mikrotik
- Thermex
- Uvex
- Bogen
- Kupper
- Bialetti
- Modbap Modular
- AirTurn
- Eastron
Nyaste Inte kategoriserad Manualer
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
