Sida 1/12

Quick Start Guide

for Echo

™

Triple

K Display Dock

Support Note: This document was up to

date at the time of printing. However,

changes to the hardware or software may have

occurred since then. Please check the Sonnet

website for the latest documentation.

1. Go to https://www.sonnettech.com/support/kb/

kb.php

2. Navigate to and click the Echo 13 Triple 4K Display

Dock link.

3. Click the Manual link.

4. Click the Echo 13 Triple 4K Display Dock User’s

Guide [English] link and then check the Document

Version information. If the version listed is

later than this document (revision C), click the

Download Now button for the latest version.

1 Compatibility Information and Computer Preparation 1

Mac Compatibility

Windows Compatibility

Chromebook Compatibility

Required Ethernet Drivers

Required DisplayLink Application or Drivers

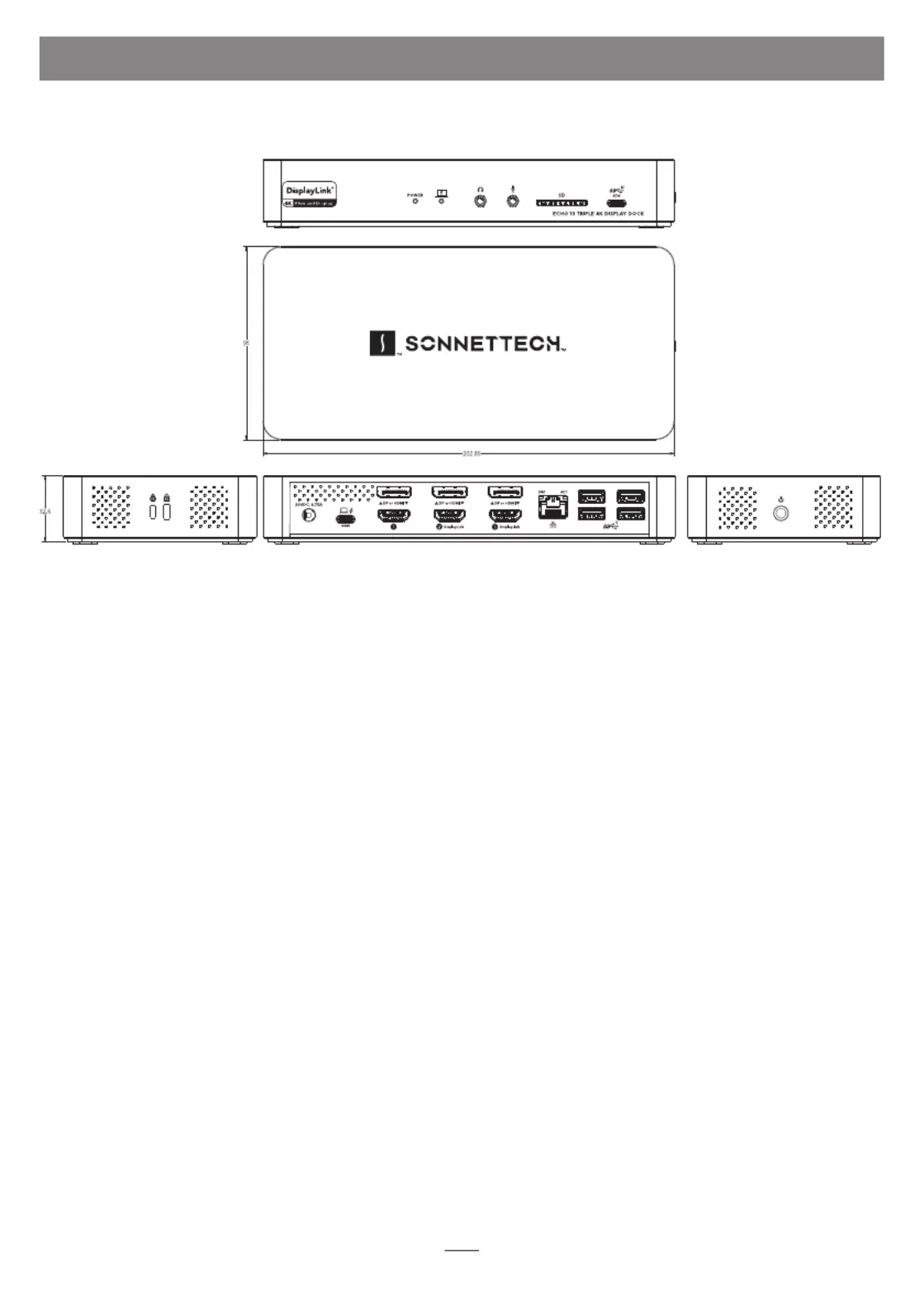

2 Echo 13 Triple 4K Display Dock Description 2

Front Panel

Back Panel

Left Side Panel

Right Side Panel

3 DisplayLink Software Download and Displays Conﬁguration Steps 4

Application Download/Installation Steps—macOS

Connected Display Configuration Steps—macOS

Driver Download/Installation Steps—Windows

Connected Display Configuration Steps—Windows

4 Audio Jacks and Ethernet Port Conﬁguration Information 7

Enabling the Headphones Jack—macOS

Enabling the Microphone Jack—macOS

Gigabit Ethernet Port Configuration Information—macOS and Windows

5 Tips, General Information, and Known Issues 8

Tips, General Information

Known Issues

6 Precautions, FCC Compliance, and Support Information 9

Safety Precautions

Warnings

FCC Compliance

EU Compliance

Japan VCCI Compliance

Contacting Customer Service

Contents

1 – Compatibility Information and Computer Preparation

Mac® Compatibility

• macOS® 11+

• Mac (M1/M2 Series)

• Mac (Intel®) with Thunderbolt™ 3 ports

Windows® Compatibility

• Windows computer with a Thunderbolt 4 or

Thunderbolt 3 port, or USB4 port

• Windows 11 or 10

Chromebook Compatibility

• Chromebook computer with Thunderbolt 4 or

USB4 port

Required Ethernet Drivers

The standard drivers required to support the

Ethernet port on the Echo 13 Triple 4K Display

Dock are installed as part of macOS 11 and later,

and Windows 11 and 10.

Required DisplayLink Application or Drivers

For Mac Users:

The application required to enable the dock’s

DisplayLink display ports must be downloaded

and installed; those ports are not functional

until aer the application is installed.

Instructions follow.

For Windows Users:

The correct drivers required to enable the

dock’s DisplayLink display ports must be

downloaded and installed prior to connecting

the dock to your computer. Instructions follow.

For Chromebook Users:

The correct drivers required to enable the

dock’s DisplayLink display ports are installed

as part of ChromeOS version 100 or later.

Produktspecifikationer

Varumärke:	Sonnet
Kategori:	Inte kategoriserad
Modell:	Echo 13 Triple 4K Display Dock
Antal HDMI-portar:	3
Hörlursutgångar:	1
HDMI-version:	2.0
Värdgränssnitt:	Thunderbolt
DisplayPort-version:	1.2
Kompatibilitet:	Apple® M1/M2/M3 Macs (Except Pro/Max/Ultra Versions)\nThunderbolt 3 Intel® Macs\nThunderbolt 3/4, USB-C (with Alt Mode DP), and USB4® Windows Computers\nThunderbolt 3/4, USB-C (with Alt Mode DP), and USB4 Chromebooks
Typ av minneskort:	SD
Produktens färg:	Svart
Antal displayportar:	3
Hörlursanslutning:	3,5 mm
Antal per förpackning:	1 styck
Inbyggd kortläsare:	Ja
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Antal LAN (RJ-45) anslutningar:	1
Material, hölje:	Gjuten aluminium
Anslutningsteknologi:	Kabel
Nätverksansluten (Ethernet):	Ja
Likströmsingång:	Ja
Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar:	4
Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar:	2
Uttag för mikrofon/linje in:	Ja
Laddning funktion:	Ja
