Install Instructions for:

CM52-BGM-II, CM52s-BGM-II, CM62-BGM-II, and CM82-BGM-II

CM-BGM-II Series

Box Contents

1 Speaker

1 Flexible conduit clamp

1 Cover plate

1 Magnetic Grille

Tile bridge

Bafe

Magnetic Grille

Speed Wing™ mounting arms

Flexible conduit clamp

Secondary attachment point

Cover plate

UL Listed _____________

1.855.663.5600

www.soundtube.com

Do not spec or install speaker near support beam, ventilation duct or

other structure that may interfere with speaker function or dispersion.

Warning/Avertissement Warning/Avertissement

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for

optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

Les haut-parleurs SoundTube doivent être installés par un installateur audio professionnel ou un

entrepreneur. Pour des raisons de sécurité et de performances audio optimales, l'installateur doit suivre

toutes les instructions émises par SoundTube Entertainment.

N'installez pas à proximité d'une poutre de support, d'un conduit de

ventilation ou d'une autre structure susceptible d'interférer avec la

fonction ou la dispersion des enceintes.

Grille safety restraint

ceiling tile

tile bridge

T-bar

hole for speaker

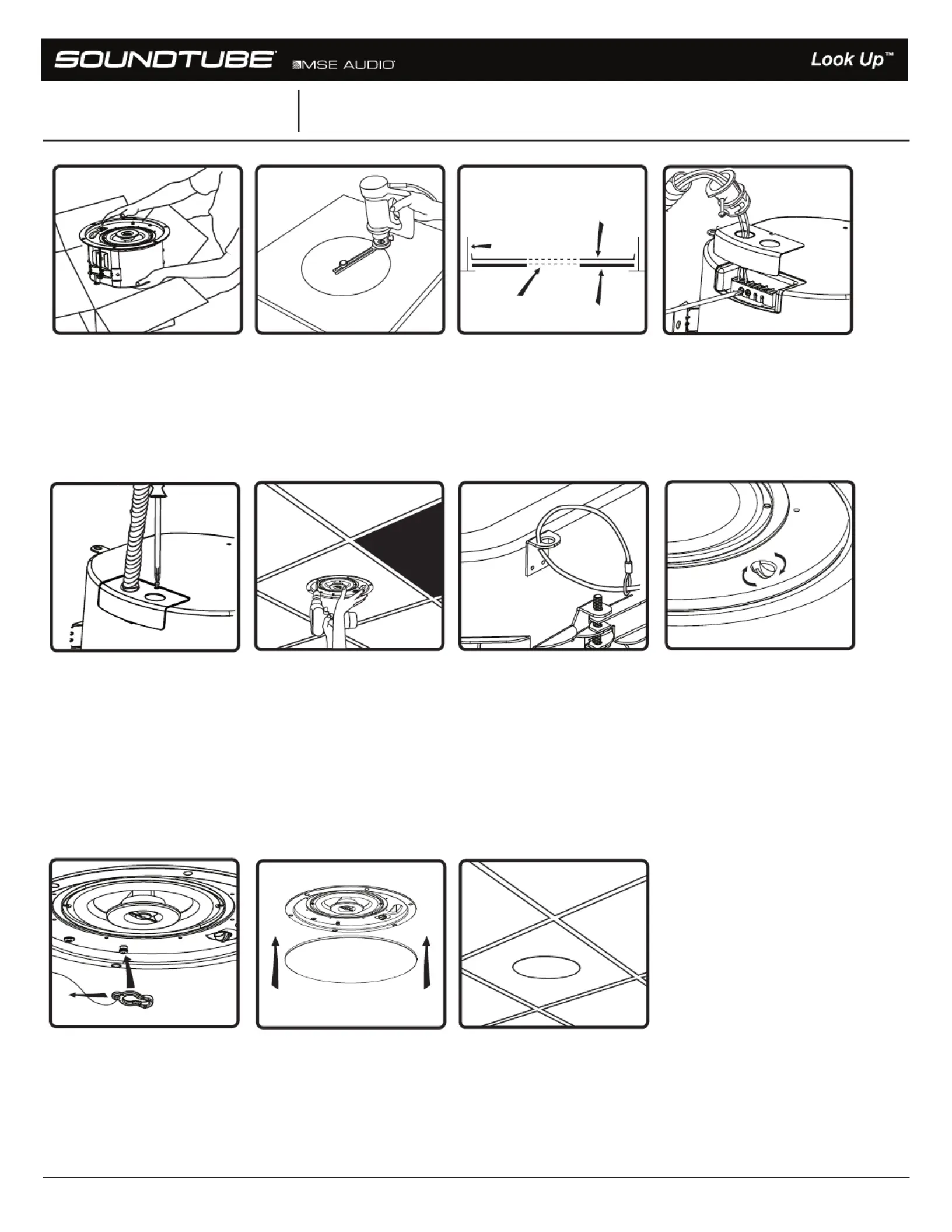

1. Unpack speaker & set aside

grille assembly.

2. Use included tile bridge to

mark a circle in the tile. Use

Rotozip or other tool to cut hole,

and remove cutout portion.

3. Place tile bridge into ceiling

grid, then replace ceiling tile.

8. Select the tap position by

adjusting rotary switch

to desired high impedance

value or voice coil direct mode.

11. Done!10. Place grille onto bafe. (The

grille is held in place by magnets

in the bafe.)

6. Insert speaker into mounting

hole . Screw down both bolts on

the bafe face to actuate the

mounting wings. Firmly secure

both bolts – do not over-tighten.

7. If required, a sheet-metal tab

located on the rear panel of the

speaker serves as a secondary

point of attachment (cable not

included).

Hole Diameter:

266.7 mm (10.50 in)

5. Tighten screw on terminal

plate, and push conduit

connector into knockout.

4. Run signal wires through

conduit connector, then through

cover plate. Connect to ceramic

terminal strip. Two + and two -

connectors are provided for

daisy chaining.

9. Attach grille safety clip by

placing the large end of the clip

over snap-t post (1), then

sliding clip until small end snaps

into place around post (2).

1.855.663.5600

www.soundtube.com

Drop Tile Install Instructions for:

CM52-BGM-II, CM52s-BGM-II, CM62-BGM-II, and CM82-BGM-II

CM-BGM-II Series

2. Mark cutout in nished

sheetrock.

3. Use Rotozip or other tool to

cut hole, and remove cutout

portion.

11. Done!

1. Unpack speaker & set aside

grille assembly.

5. Tighten screw on terminal

plate, and push conduit

connector into knockout.

4. Run signal wires through

conduit connector, then through

cover plate. Connect to ceramic

terminal strip. Two + and two -

connectors are provided for

daisy chaining.

8. Select the tap position by

adjusting rotary switch

to desired high impedance

value or voice coil direct mode.

10. Place grille onto bafe. (The

grille is held in place by magnets

in the bafe.)

7. Insert speaker into mounting

hole. Screw down both bolts on

the bafe face to actuate the

mounting wings. Firmly secure

both bolts – do not over-tighten.

6. If required, a sheet-metal tab

located on the rear panel of the

speaker serves as a secondary

point of attachment (cable not

included).

9. Attach grille safety clip by

placing the large end of the clip

over snap-t post (1), then

sliding clip until small end snaps

into place around post (2).

1.855.663.5600

www.soundtube.com

Sheetrock Install Instructions for:

CM52-BGM-II, CM52s-BGM-II, CM62-BGM-II, and CM82-BGM-II

CM-BGM-II Series

Hole Diameter:

266.7 mm (10.50 in)
