Sida 1/5

Warning

Do not spec or install speaker near support beam, ventilation

duct or other structure that may interfere with speaker function

or dispersion.

Warning

SoundTube speakers must be installed by a professional audio

installer/contractor. For safety and for optimum audio performance,

installer must follow all directions issued by SoundTube Entertainment.

1.435.647.9555

800.647.TUBE

www.soundtube.com

70.7 Volt Transformer Taps (dB) 100 Volt Transformer Taps (dB) 25 Volt Transformer Taps (dB)

20W=103, 10W=100, 5W=97, 2.5W=94, 1.25W=91 20W=103, 10W=100, 5W=97, 2.5W=94 2.5W=94, 1.25W=91, .63W=88, .32 W=85, .16W=82

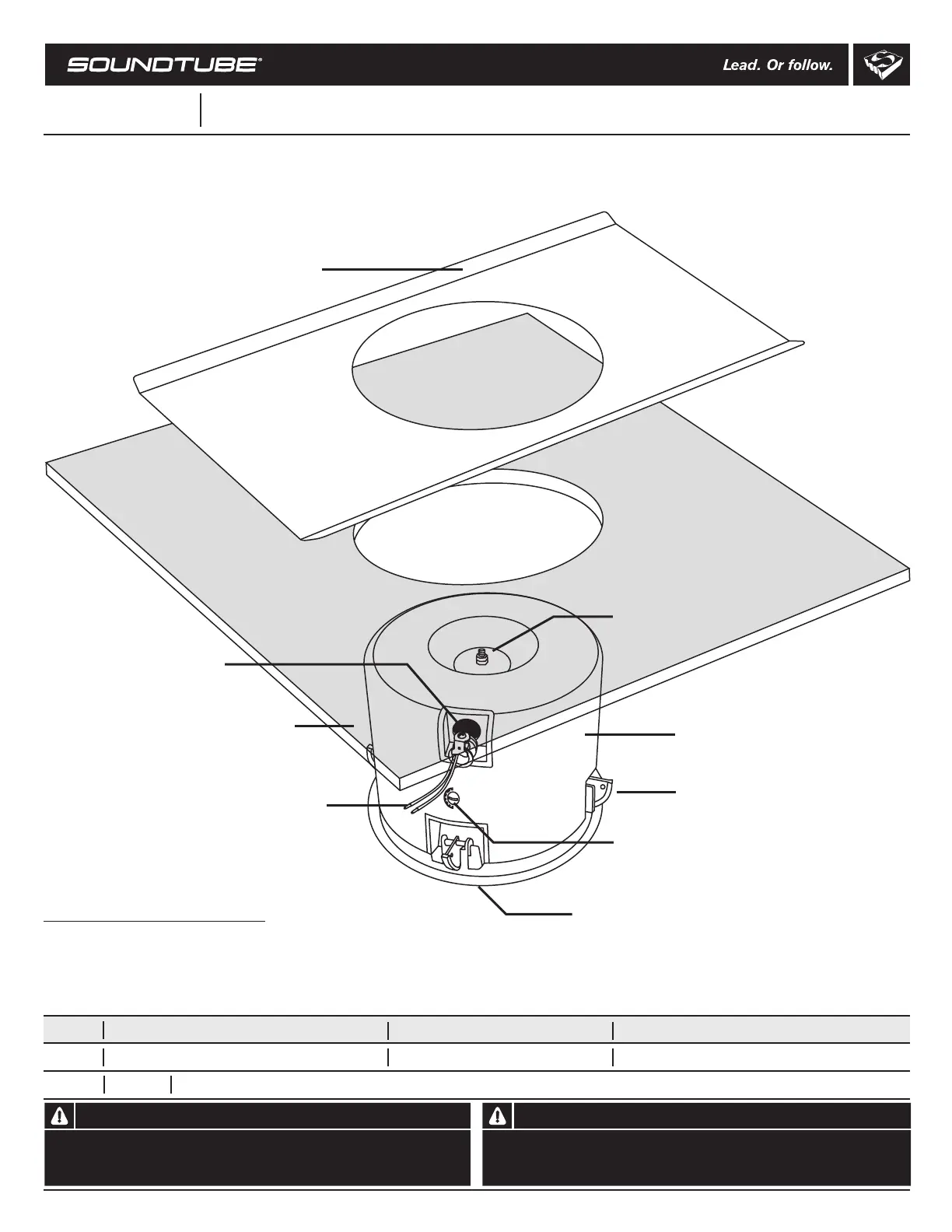

CM-EZ-II

Transformer Taps Settings

Install Instructions

Voice Coil

8 Ohm=106 dB

Box contents

1 Speaker

1 Flexible conduit clamp

1 Tile bridge

(shipped separate)

CM-EZ-IICM-E

CM-E

Z-II

CM-EZ-II

Snap cam

Grille bezel

Sheetrock/tile

Signal wires

Tap switch

20 W, 10 W, 5 W, 2.5 W, 1.25 W, voice coil/8 Ohm direc

Blind-mount

backcan

Safety cable stud

Flexible conduit clamp

Tile bridge

9.75" (248 mm)

1.435.647.9555

800.647.TUBE

www.soundtube.com

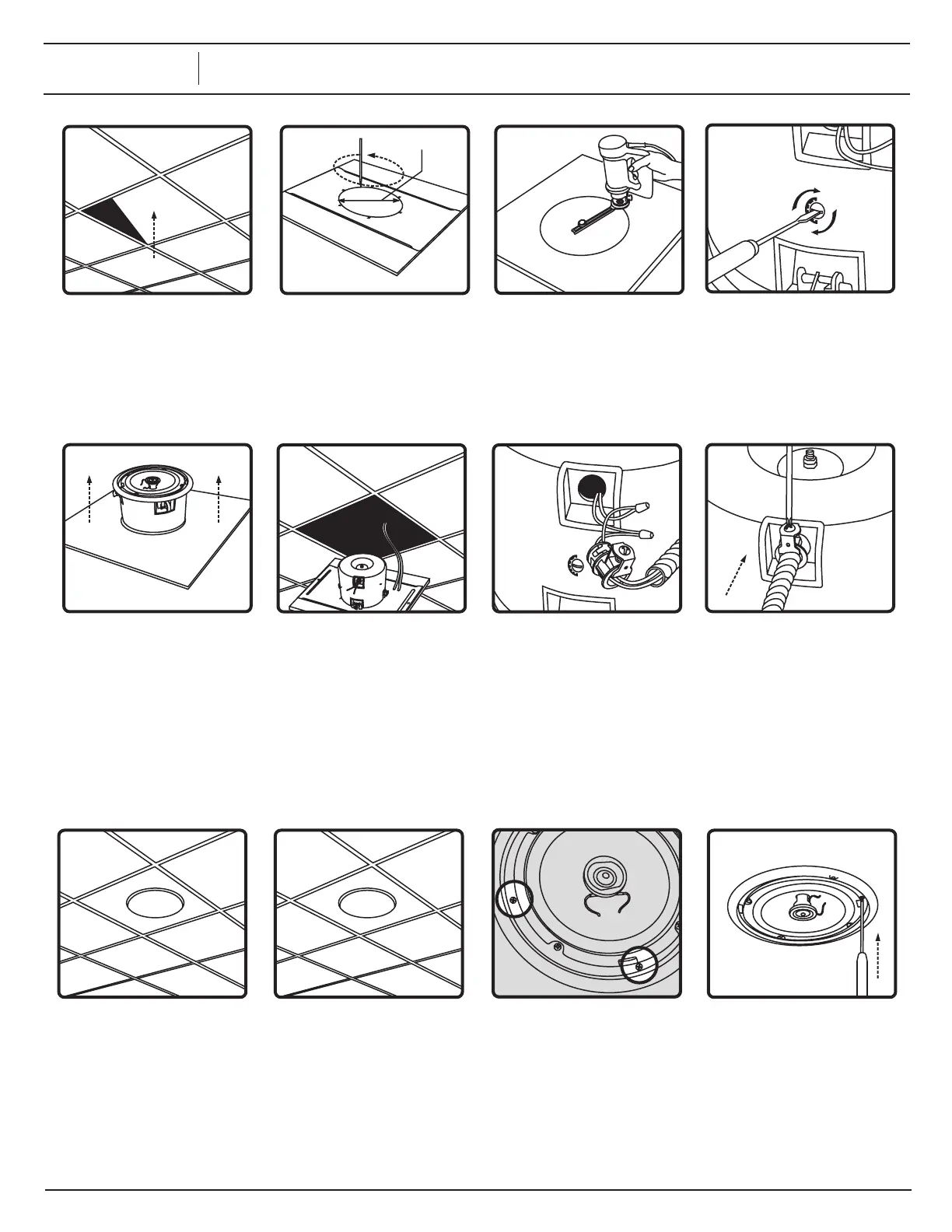

Drop Tile Ceiling Install Instructions

CM-EZ-II

CM-EZ-IICM-E

CM-E

Z-II

4. Set tap to proper setting.

CM-EZ-8 is factory preset

in the 70.7 Volt mode in

the 20 Watt setting.

7. Thread tap & signal wires

thru flexible conduit clamp.

Connect wires with wire

nuts. See tap settings on

front page of this manual

for proper settings.

8. Push connections and

terminated tap wires

into backcan. Push

flexible conduit clamp

into backcan and tighten

clamp onto conduit.

2. Using supplied tile bridge,

mark

9 9/16" (243 mm) hole.

6. Set entire assembly

facing down on top of

ladder. Pull signal wire

down to speaker.

3. Cut hole in tile using key-

hole saw or Roto-Zip tool.

1. Remove ceiling tile.

5. Lay tile bridge & tile on

floor with tile facing up.

Set speaker unit in hole

and lift ceiling tile & tile

bridge as a unit until

speaker snaps into place.

9. Install assembly into

ceiling tile rails.

10. Done! To Uninstall Speaker

1. Remove grille and

locate brass release

pins (x4).

2. Using a screwdriver, push

release pin up to release

cam. Turn clockwise

until threads engage to

lock cam. Properly term-

inate signal wire in ceiling.

1.435.647.9555

800.647.TUBE

www.soundtube.com

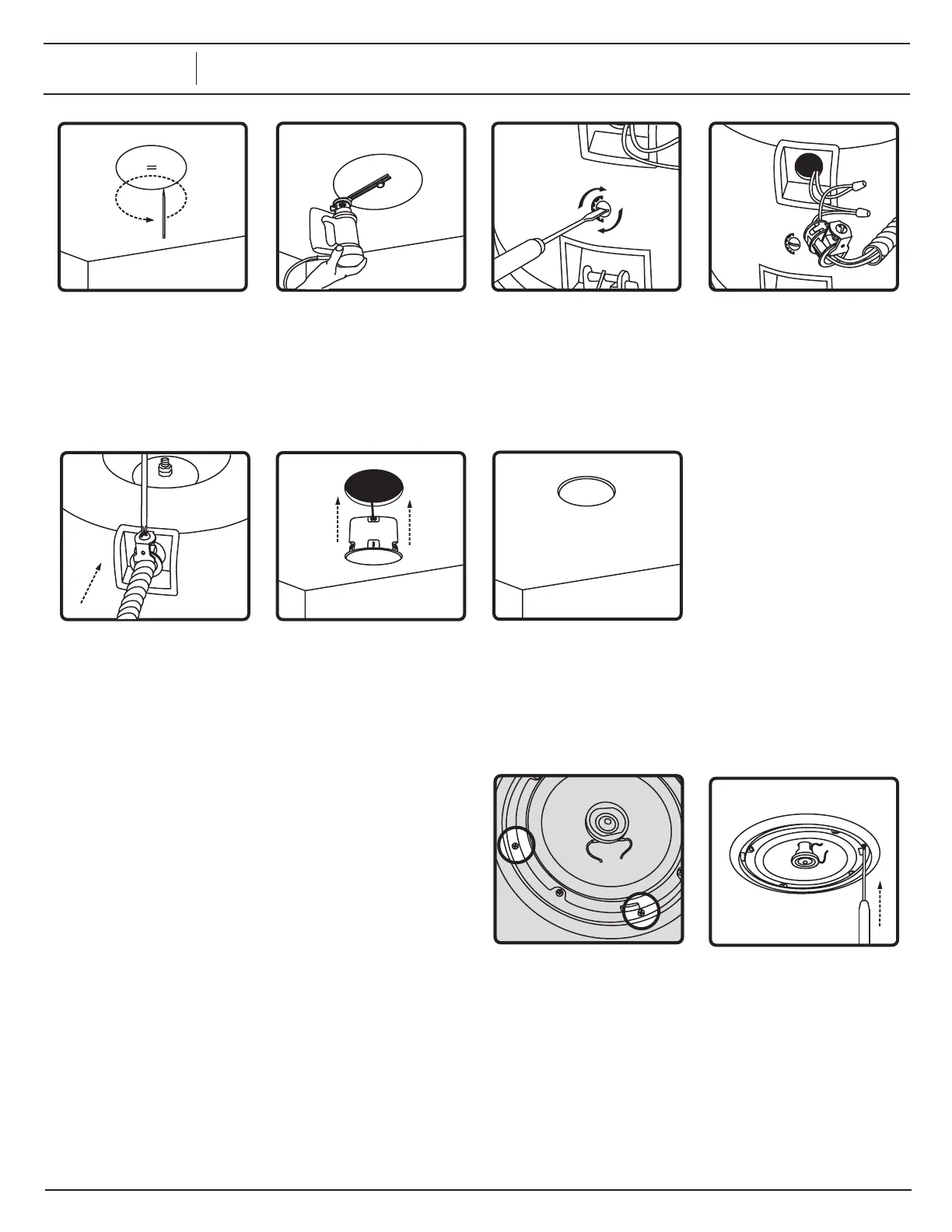

Sheetrock Ceiling Install Instructions

CM-EZ-IICM-E

CM-E

Z-II

CM-EZ-II

2. Using a screwdriver, push

release pin up to release

cam. Turn clockwise

until threads engage to

lock cam. Properly term-

inate signal wire in ceiling.

2. Cut hole in tile using key-

hole saw or Roto-Zip tool.

3. Set tap to proper setting.

CM-EZ-8 is factory preset

in the 70.7 Volt mode in

the 20 Watt setting.

4. Thread tap & signal wires

thru flexible conduit clamp.

Connect wires with wire

nuts. See tap settings on

front page of this manual

for proper settings.

5. Push connections and

terminated tap wires

into backcan. Push

flexible conduit clamp

into backcan and tighten

clamp onto conduit.

1. Using supplied template

or, tile bridge to mark

9 9/16" (243 mm) hole.

7. Done!6. Snap speaker into drywall

ceiling. If using optional

alignment ring, the snap

cams must clear the

alignment ring screw tabs.

To Uninstall Speaker

1. Remove grille and

locate brass release

pins (x4).

Produktspecifikationer

Varumärke:	SoundTube
Kategori:	högtalare
Modell:	CM62-EZ-II
Vikt:	4690 g
Höjd:	203.2 mm
Förpackningens bredd:	330.2 mm
Diameter:	298.5 mm
Certifiering:	CE, EN54, RoHS, UL1480A, UL2043
Rekommenderad användning:	Hem
Impedans:	17.9 Ω
Ljudutgångskanaler:	- kanaler
Högtalarplacering:	I vägg/i tak
Bashögtalare:	Ja
Känslighet:	90 dB
Produktens färg:	Svart
Förpackningstyp:	Låda
Låddjup:	336.55 mm
Antal per förpackning:	1 styck
Uteffekt (RMS):	50 W
diskanthögtalare:	Ja
Internationellt skydd (IP) kod:	IPX3
Material, hölje:	Akrylnitrilbutadienstyren (ABS)
Frekvensområde:	65 - 22000 hz
Anslutningsteknologi:	Kabel
Strömkälla av typen:	AC
Woofer diameter:	165.1 mm
Woofer diameter (imperial):	6.5 "
Högtalartyp:	2-vägs
Högtalarlåda:	Stängd
Högtalargaller, material:	Stål
Antal woofer-drivenheter:	1
Disktanthögtalare diameter:	1 "
Antal tweeter förare:	1
Övergångsfrekvens:	4000 hz
