Sida 1/4
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Rev.
4/20/2012
INSTRUCTION
MANUAL

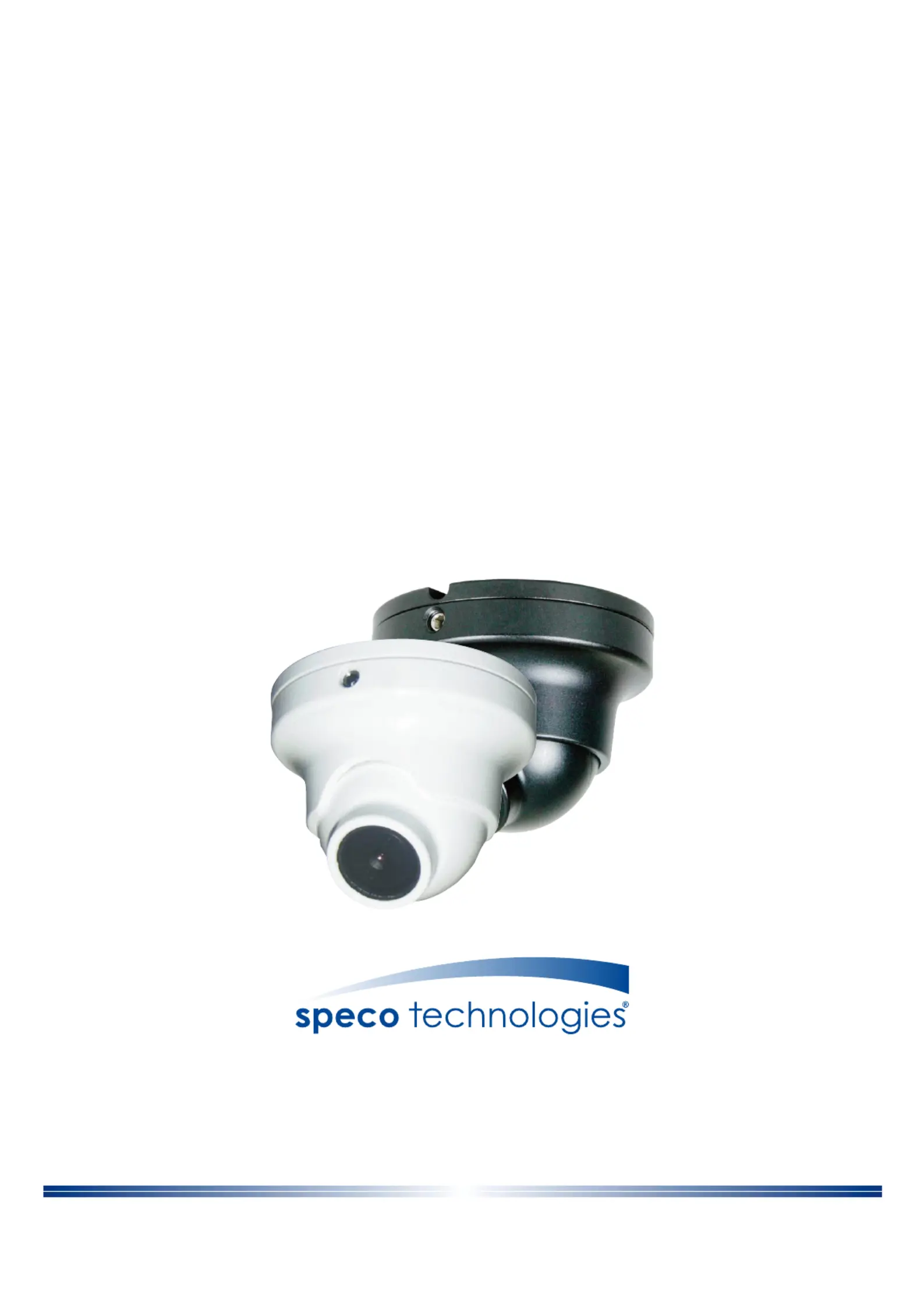

600TVL Intense Light Miniature Weatherproof
Color Camera
CVC62iLTB(Black)
CVC62iLTW(White)
To avoid electrical shock, do not open the case of this product.
Only use a regulated DC 12V Power supply to operate this product.
Do not overload electrical outlets or extension cords. This can result in a fire or
electrical shock.
Keep this product away from strong magnetic fields.
Do not expose this product in direct sunlight or strong reflected rays.
Refer servicing to qualified personnel only.
Do not change or modify this product. This will void the warranty.
1/3” Sony Super-HAD™ CCD
600 TV Lines Super High Resolution
Compact Size - Only 1.89” In Diameter!
Vandal Resistant Housing
Cast Aluminium Construction
Integrated 4.3mm Fixed Lens
Impressive Picture Quality
Weatherproof (IP66 Rated)
12V DC Required
Loosen the two locking screws①, using the supplied hex-head wrench and remove
the mounting base.
Attach the mounting base② to a suitable solid surface, such as a wall or ceiling. On
partitioning locate a wall stud or ceiling joist. Secure the mounting base using the
supplied screws③. Fit the camera④ to the mounting base and fix in to position ②
using the two locking screws①, secure them with the hex-head wrench.
How to set the angle of view:
Loosen the two locking screws①, using the supplied hex-head wrench, and set the
desired camera angle by moving the camera right /left and up/down.
Connect the video connector (BNC) of the camera cable to the incoming video
cable. The other end of the video cable should be connected to a DVR or Monitor.
Plug the camera power connector (red DC jack) into the DC12V regulated power
supply. Switch on the power supply and the picture will b e displayed on a monitor.
Precautions
1.
2.
3.
4.
Features
Installation
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
1.89” dia
Image Sensor
Horizontal Resolution
Sensitivity
Lens
Effective Pixels (H x V)
Electronic Shutter Speed
Scanning System
Synchronization
Video Output
S/N Ratio
Gain Control
White Balance
Sense-Up
IP Rating
Operating Temperature
Power Supply
Power Consumption
Dimensions
Weight
1/3” Sony Super-HAD™ CCD
600 TV Lines
0.00001 Lux
4.3mm Fixed Lens
NTSC=768 x 494 / PAL=752 x 582
Auto: 1/50 SEC, 1/60 SEC~ 1/100,000 SEC
2:1 Interlace
Internal
1.0Vp-p~75 Ohm
>52dB (AGC Off)
Auto
Auto
Auto (X32)
IP66
-4 ~ +140° F
12V DC Required
120mA Max.
1.89”(Dia) x 1.46”(H)
0.25 lbs.
Specifications
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
