Sida 1/44
INSTRUCTION
MANUAL
650Line Intensier3™ Series
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Rev. 6/20/2012
HT7246IHR / HT7247IHR / HT7250IHR
(Weatherproof Dome Camera with Chameleon™ Cover)
HTINTB8 / HTINTB9 / HTINTB10
(Weatherproof Bullet Camera with mount plate)
HTINTD8 / HTINTD9 / HTINTD10
(Weatherproof Dome Camera)
HT647HRTP
(Miniature Weatherproof Dome Camera with Chameleon™ Cover)
CVC6245IHR
(Indoor Wall & Ceiling Mount Dome Camera)
CVC6246IHR
(Indoor Wall & Ceiling Mount Dome Camera)
HTINTT5
(Traditional Box type Camera)
Contents
1
◑
Contents ...................................................... 1
◑
Precautions ................................................. 2, 3
◑
Safety Instructions ...................................... 4
◑
Package Contents ....................................... 5
◑
Camera Installation ..................................... 6-13
◑
Specications .............................................. 14-20
◑

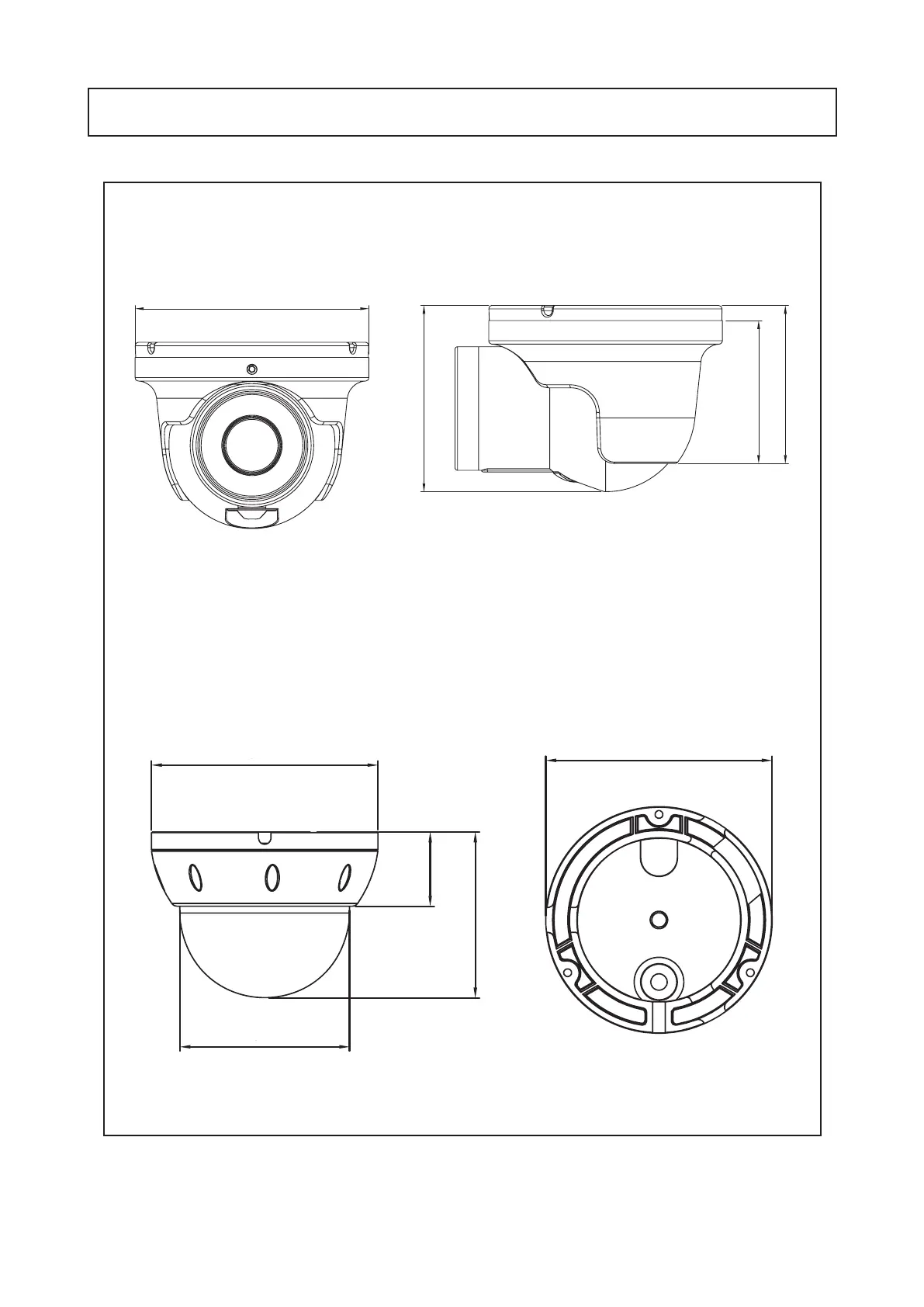

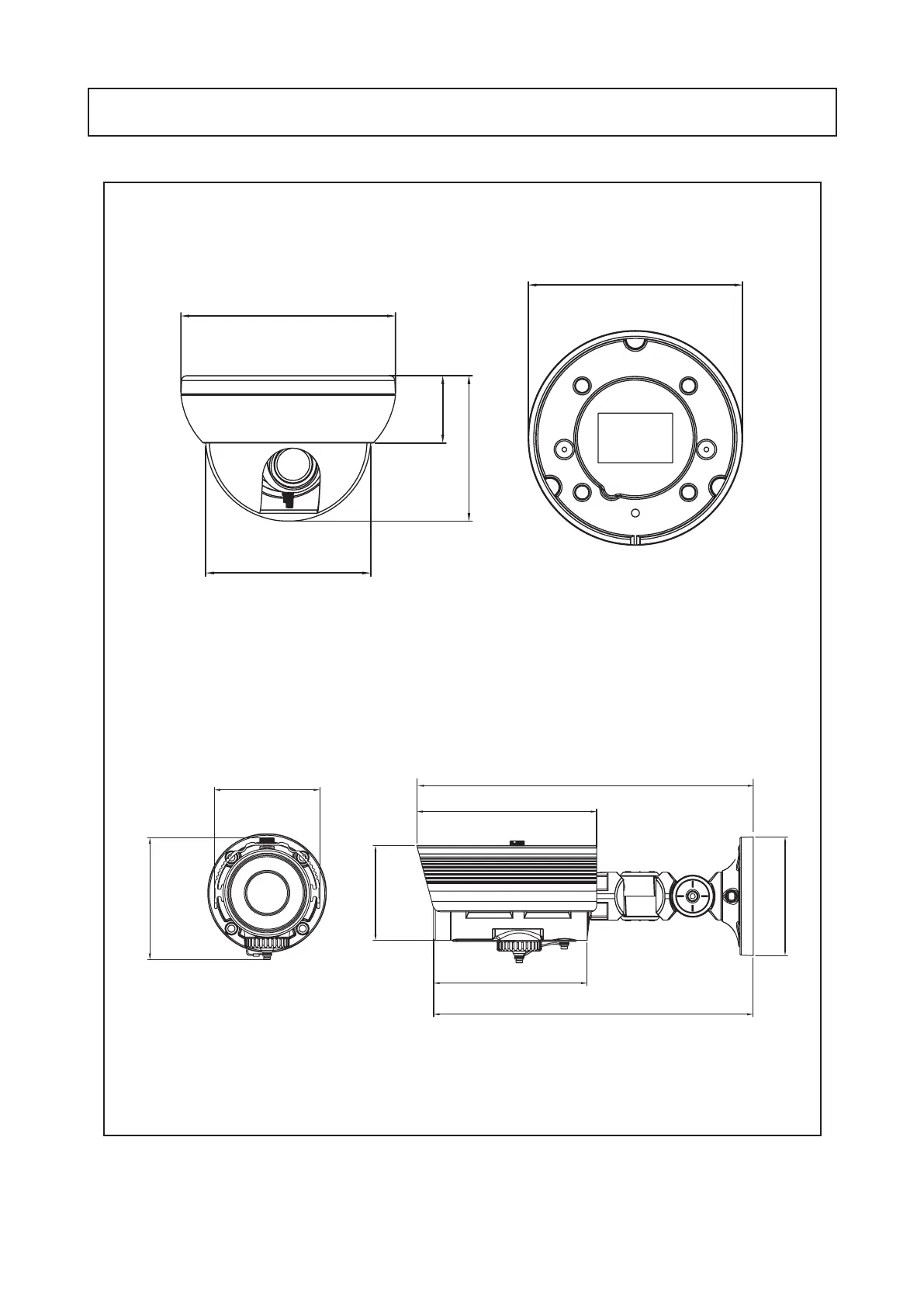

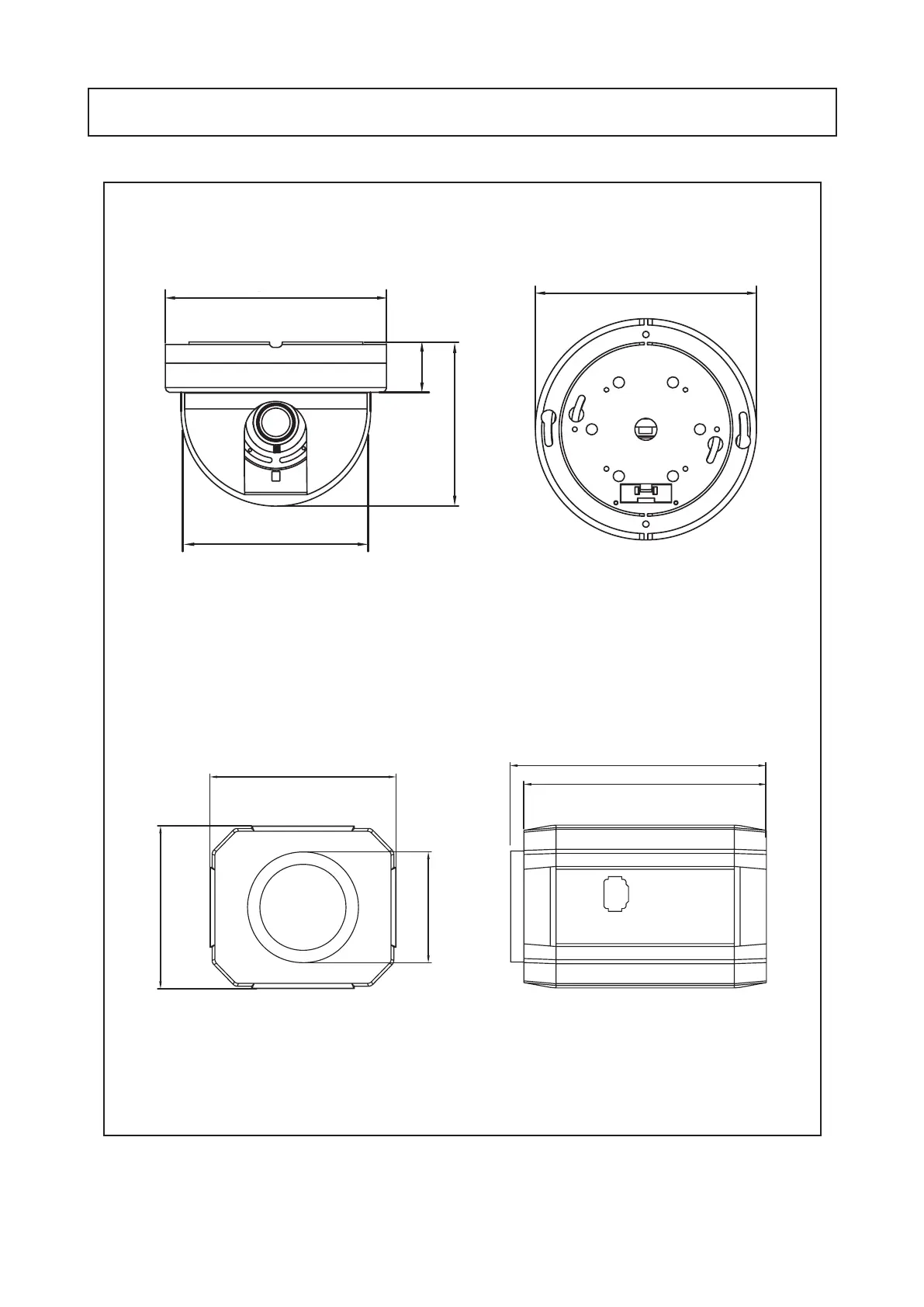

Camera Dimension ..................................... 21-23
◑
Features ...................................................... 24-25
◑
OSD Menu Details ...................................... 26- 37
◑
Trouble Shooting ......................................... 38
2

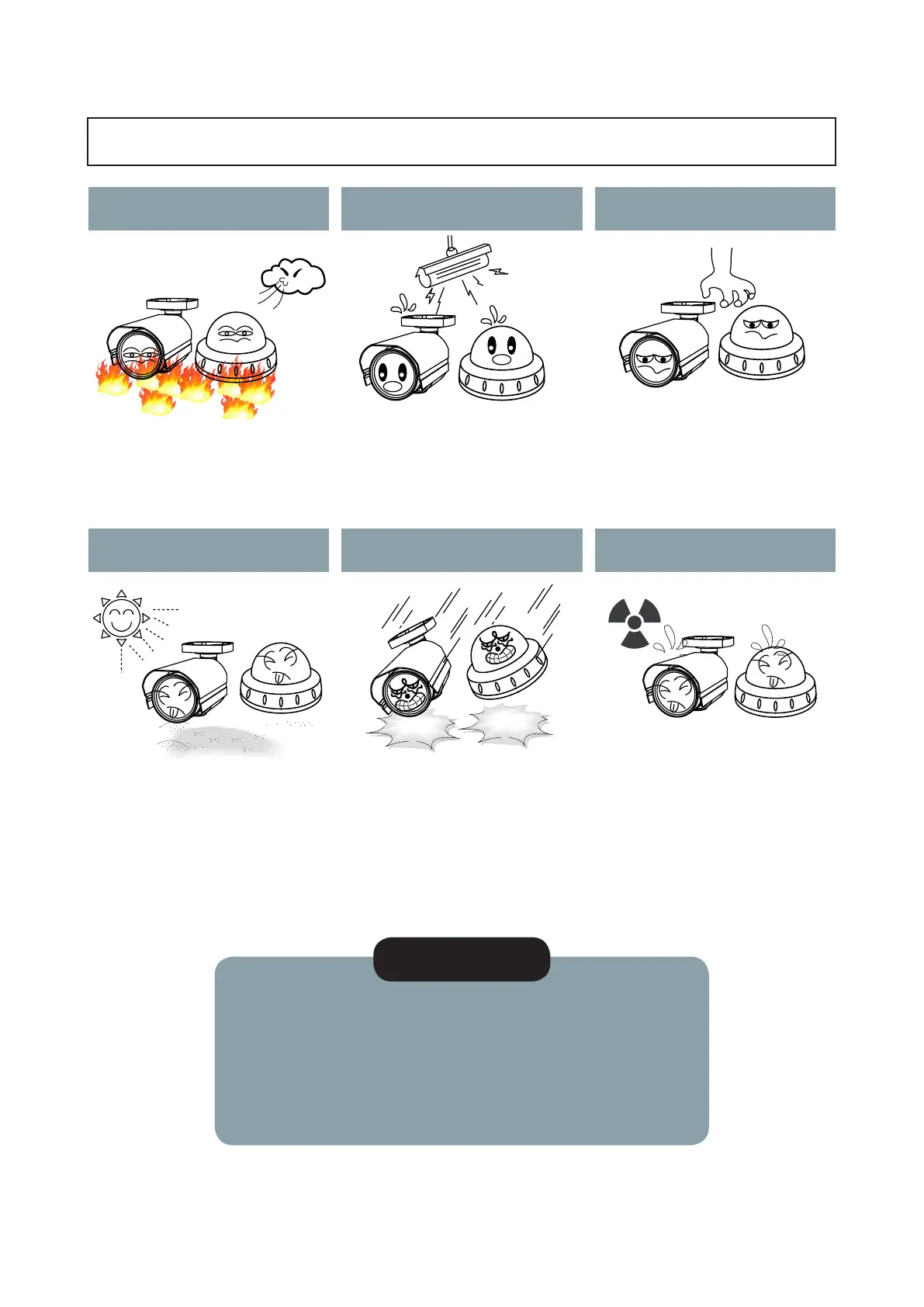

Precautions
Do not install the camera in
extreme temperature conditions.
Do not touch the front lens of the
camera.
Never keep the camera pointed
directly at strong light.
Do not expose the camera to
radioactivity.
Do not install the camera under
unstable lighting conditions.
Do not drop the camera or subject
it to physical shocks.
Only use the camera under conditions
where temperatures are between
-10°C and +50°C. Be especially careful to
provide ventilation when operating under
high temperatures.
This is one of the most important parts of
the camera. Be careful not to leave
fingerprints on the lens cover.
It can cause malfunctions to occur.
If exposed to radioactivity the CCD
will fail.
Severe lighting change or flicker can
cause the camera to work improperly.
Housing damage can compromise
weatherproof ratings.
NOTE
* If the camera is exposed to spotlight or object reflecting strong light,
smear or blooming may occur.
* please check that the power satisfies the normal specification before
connecting the camera.
4
Safety Instructions
Precautions for use
Please handle this camera carefully :
◑
This camera should be installed by qualied personnel only
◑
There are no user serviceable parts inside
◑
Do not disassemble this camera other than to make initial adjustments
◑
Use a UL approved regulated 24 volt AC or 12 volt DC power supply
◑
Use appropriate low voltage power cable to prevent re or electrical shock
◑
Please insure that your installation area can support the weight of the camera
◑
Do not use a strong or abrasive detergent when cleaning the camera
◑
Do not install near cooling or heating device
5
Package Contents
Please make sure that the following items are included in the Package:
1) HT7246IHR, HT7247IHR, HT7250IHR
• 1 Video Test Connector, Power Jack
• 1 Chameleon Cover
• 1 Wrench
• Set Screw
- 3 Tapping Screws 4x40
- 3 Plastic Anchor
2) HTINTB8, HTINTB9, HTINTB10
• 1 Video Test Connector, Power Jack
• 1 Bracket Base
• 2 Wrenches
• Set Screw
- 4 Tapping Screws 4x25
- 4 Hexagon Socket Screws 5x10
3) HTINTD8, HTINTD9, HTINTD10
• 1 Video Test Connector, Power Jack
• 2 Wrenches
• Set Screw
- 3 Tapping Screws 4x25
- 2 Hexagon Socket Screws M6x20
4) HT647HRTP
• 1 Chameleon Cover
• 1 Video Test Connector, Power Jack
• 1 Wrench
• Set Screw
- 3 Tapping Screws 3x40
5) CVC6245IHR, CVC6246IHR
• 1 Video Test Connector, Power Jack
• 2 Screws
- 2 Tapping Screws 4x20
6) HTINTT5
• 1 Foot HD Box Camera
• 1 C-Ring
• 1 Jack HD Box Camera Iris
• 2 Screws
• 1 Power Jack
7

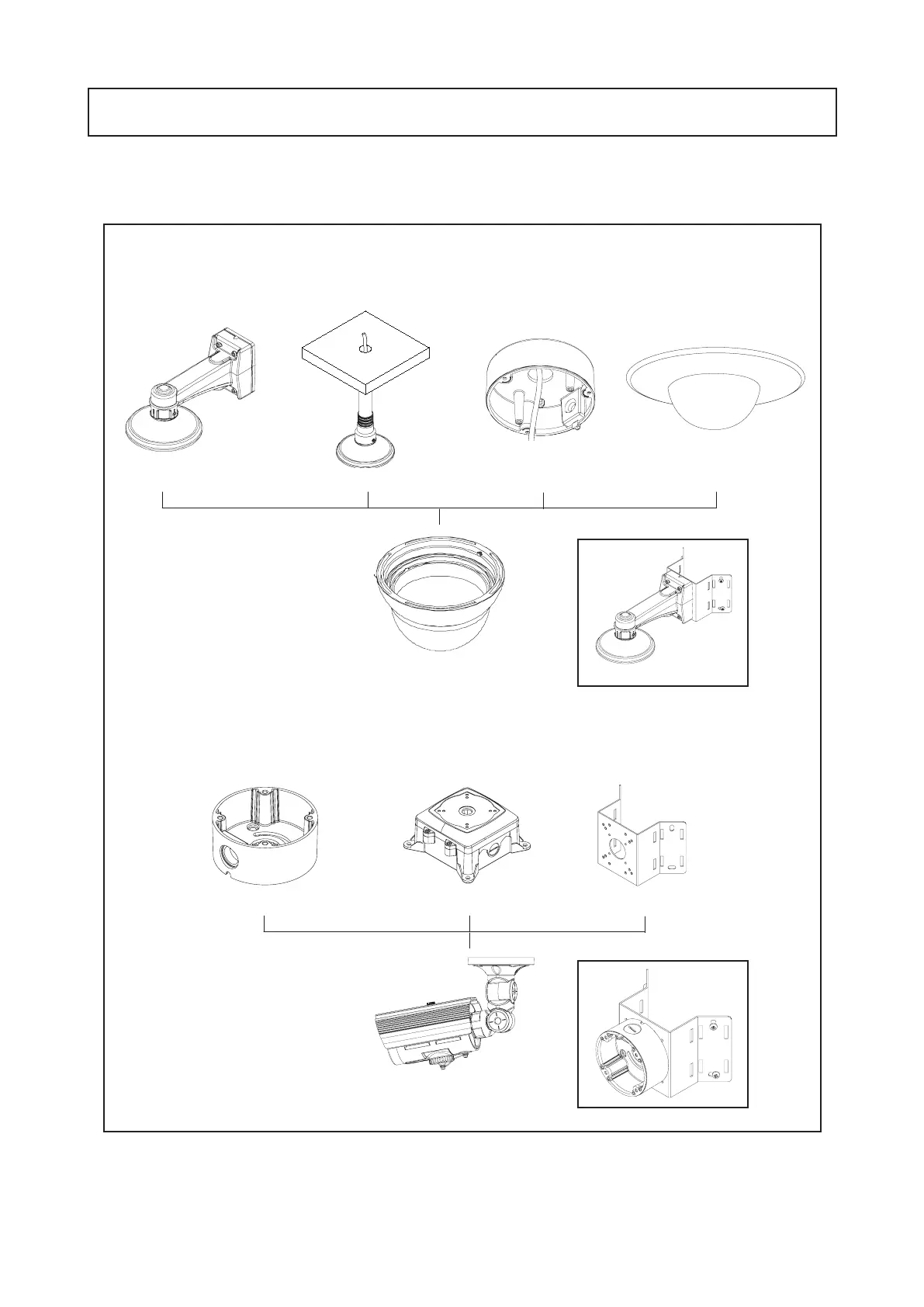

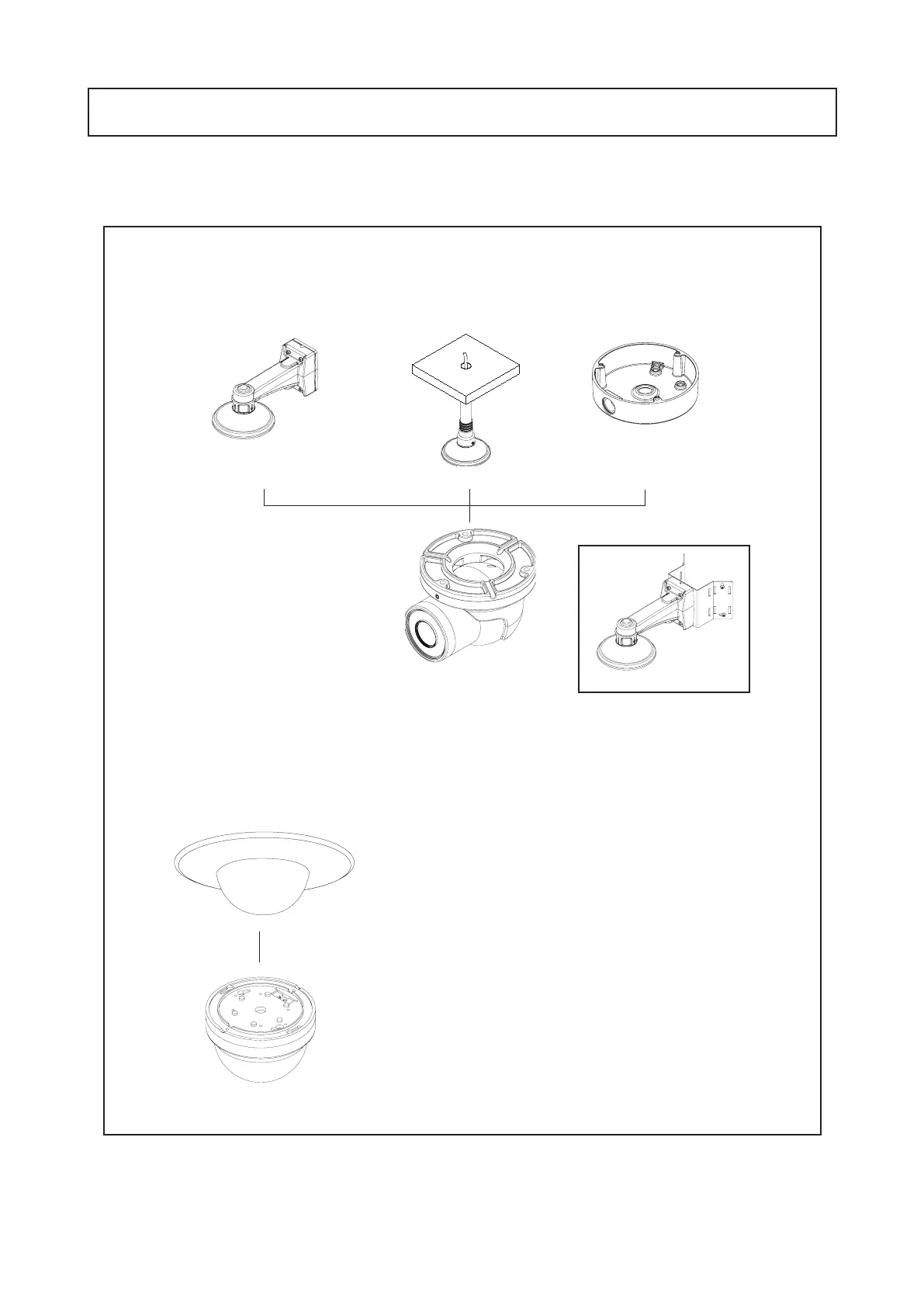

CAMERA INSTALLATION
Compatibility
1) HT7246IHR, HT7247IHR, HT7250IHR
2) HTINTB8, HTINTB9, HTINTB10
INTWM
CVCJBB
INTPM
INTJBS
CVCJBD
INTCM
DFM
8
CAMERA INSTALLATION
Compatibility
3) HTINTD8, HTINTD9, HTINTD10
4) CVC6245IHR, CVC6246IHR
INTWM
DFM
INTPM JB03TG
CAMERA INSTALLATION
9

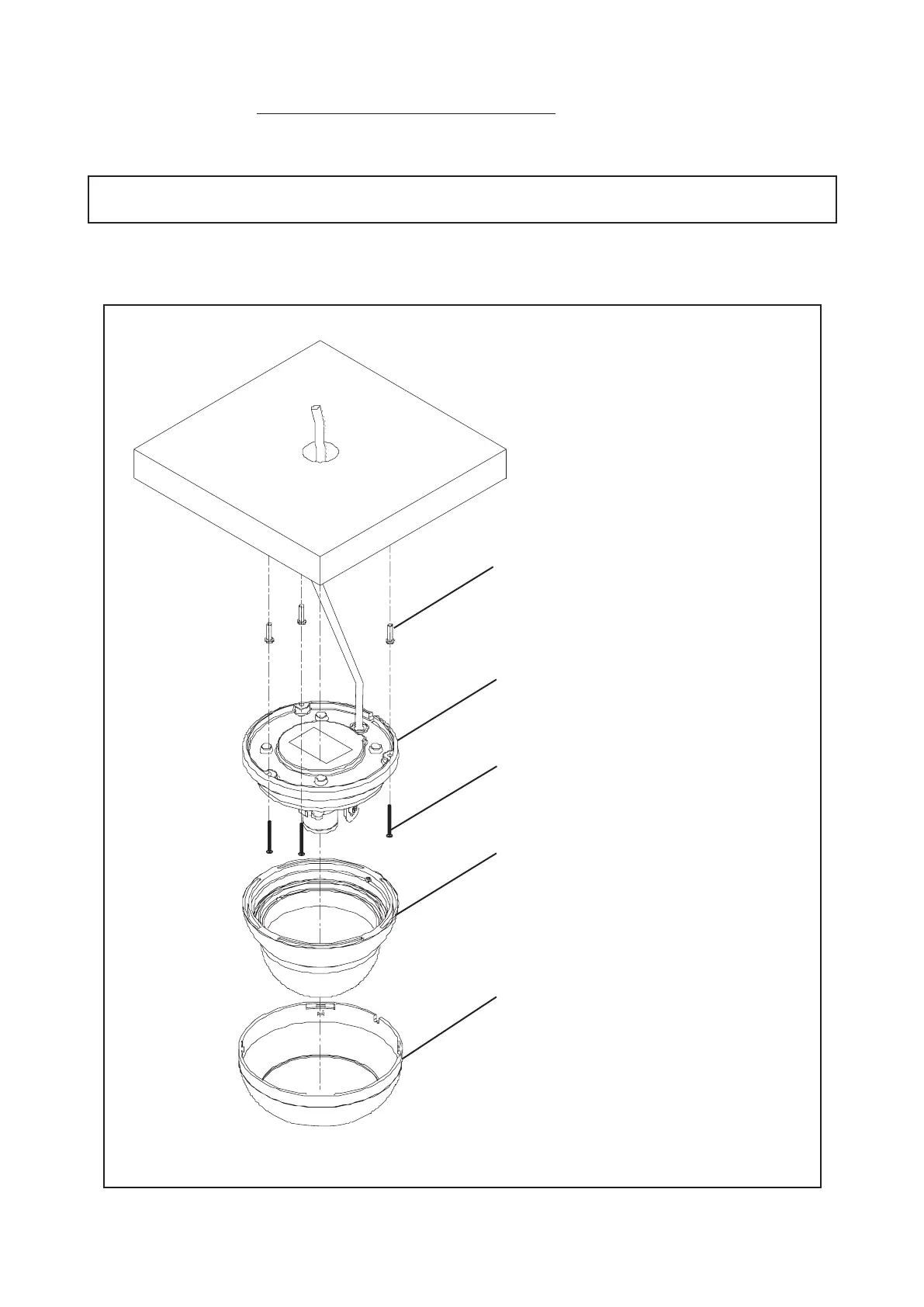

1. HT7246IHR / HT7247IHR / HT7250IHR
CAUTION : The installation instructions in this manual are for use by qualified service
personnel only. To reduce the risk of electric shock, do not perform any servicing other
than that contained in the operating instructions unless you are qualified to do so.
VANDAL DOME BODY ASSEMBLY
BODY OUTER COVER
TAPPING SCREW 4X40, 3EA
VANDAL DOME BASE ASSEMBLY
PLASTIC ANCHOR 6x30, 3EA
CAMERA INSTALLATION
10

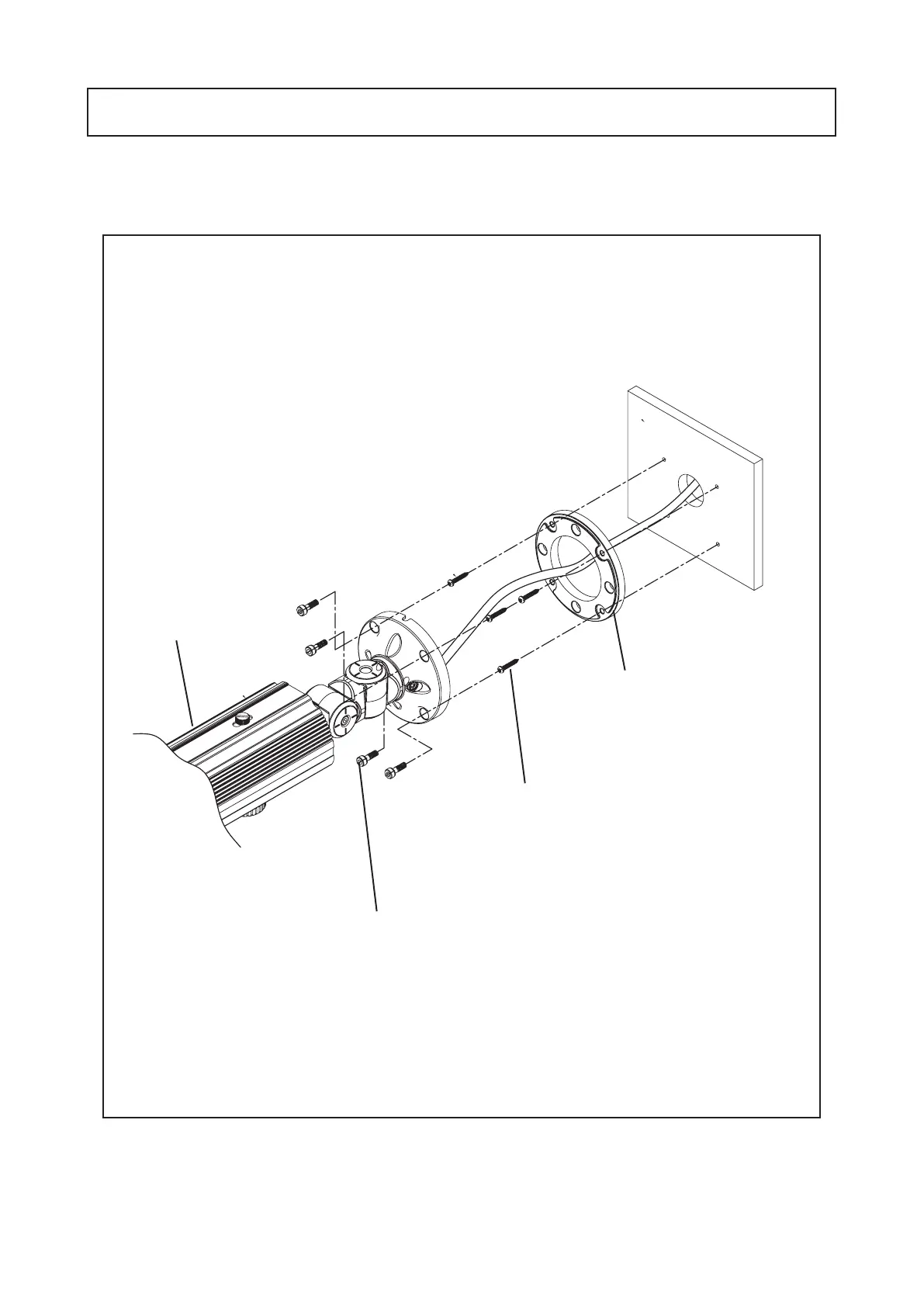

2. HTINTB8, HTINTB9, HTINTB10
CAMERA ASSEMBLY
HEXAGON SOCKET SCREW M5X10, 4EA
TAPPING SCREW 4X25, 4EA
BASE ADAPTOR BRACKET
CAMERA INSTALLATION
11
3. HTINTD8, HTINTD9, HTINTD10
DOME BASE
HEXAGON SOCKET SCREW M6X20, 2EA
DOME ASSEMBLY
DOME BODY
TAPPING SCREW 4X25, 3EA
CAMERA INSTALLATION
12

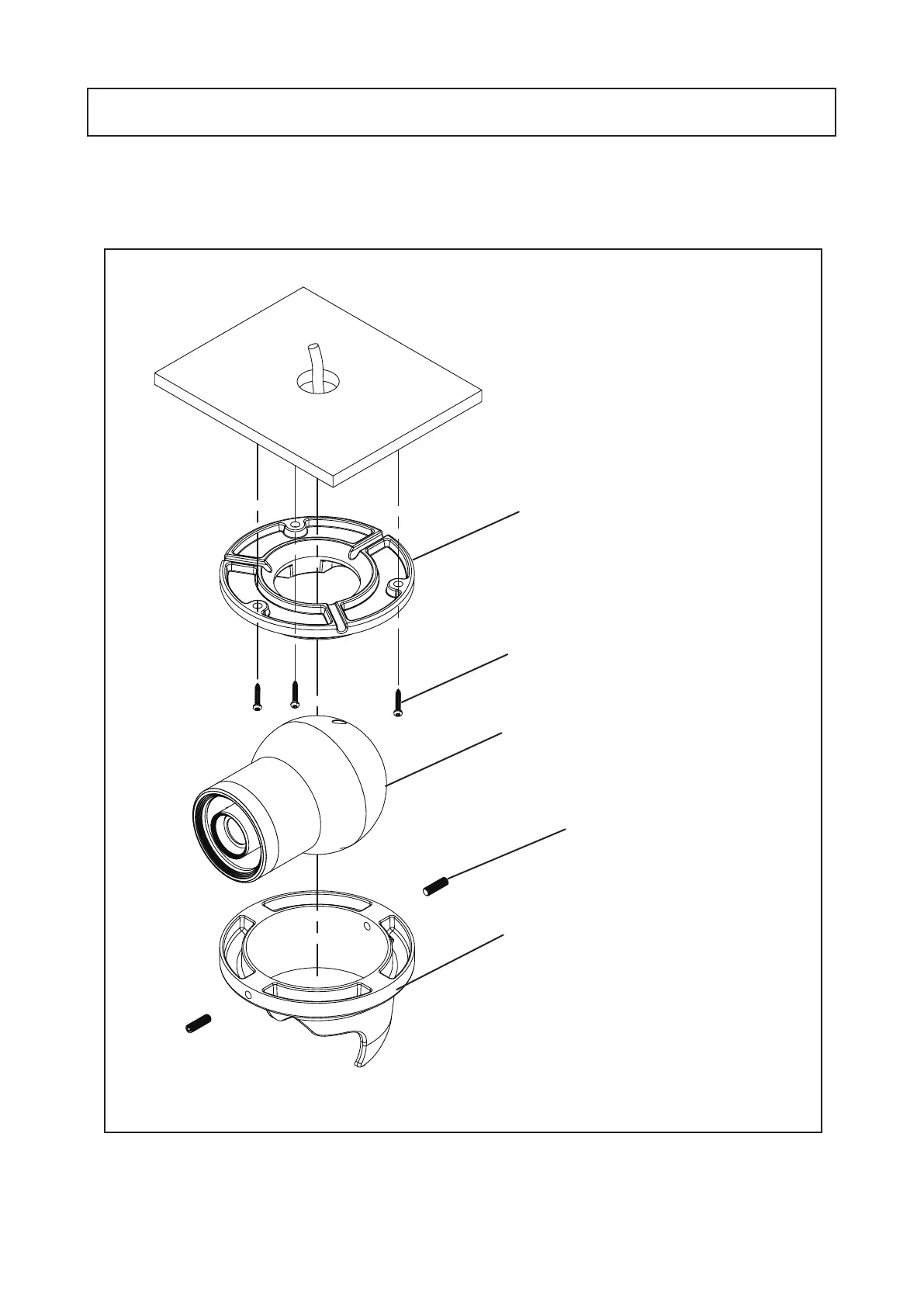

4. HT647HRTP
TAPPING SCREW 3X40, 3EA
BODY & DOME COVER ASSEMBLY
BASE & ROTATE BRACKET ASSEMBLY

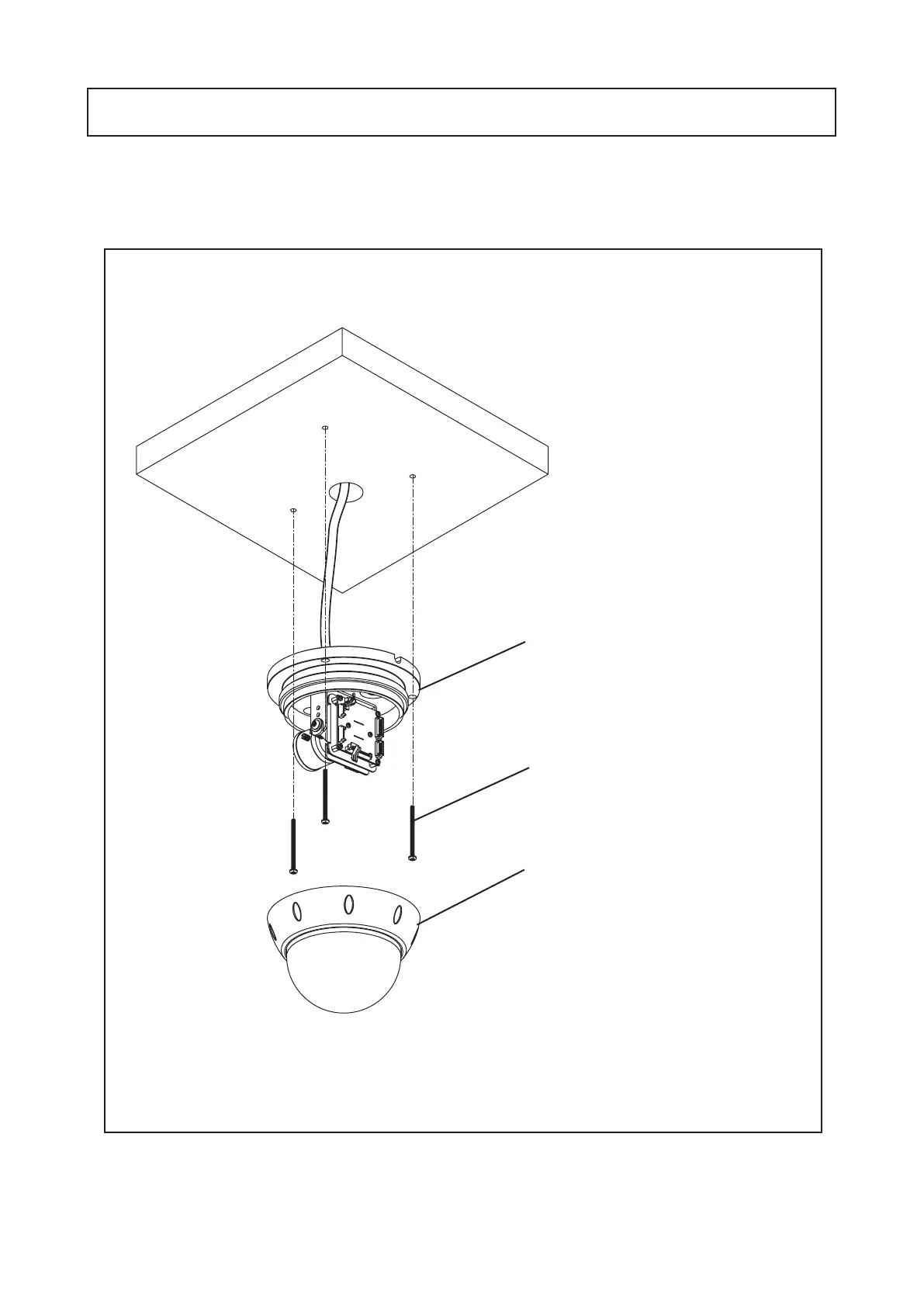

14
SPECIFICATIONS
650 Line Intensifier3
(Weatherproof Dome Camera with Chameleon™ Cover)
DC Auto Iris Varifocal Lens 2.8-12mm / 9-22mm / 5-50mm
MODEL
HT7246IHR / HT7247IHR / HT7250IHR
1/3” Sony Super HAD ll CCD
NTSC, PAL
NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
NTSC=15.734KHz(H) & 59.94Hz(V) / PAL=15.625KHz(H) & 50.00Hz(V)
2:1 Interlace
Internal
650TV Lines
CDS OFF: 0.15 Lux, CDS ON: 0.00002 Lux
More than 52dB
CVBS: 1.0Vp-p / 75Ω
NTSC=(1/60sec~1/120,000sec) / PAL=(1/50sec~1/120,000sec)
Available
On / Off (Level adjustable)
BLC / HLC / OFF
Color / BW / AUTO
Low / High / Off
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Auto / Off (Selectable p15-x2 ~ x512)
On / Off (8 Programmable Zones)
On / Off (12 Programmable Zones)
On / Off (Level adjustable)
On / Off (x1 ~ x16)
On / Off
On / Off (Level adjustable)
On / Off
DC 12V / AC24V(Dual Voltage)
DC 12V 250mA / AC24V 100mA
DC Auto Iris Varifocal Lens 2.8-12mm / 9-22mm / 5-50mm
-4ºF~140ºF RH 95% Max
-4ºF~140ºF RH 95% Max
5.10"(Dia) * 3.46"(H)
1 lbs
Image Pick-Up Device
TV System
Total Pixels
Effective Pixels
Scanning Frequency
Scanning System
Synchronization
Resolution
Minimum Illumination
S/N Ratio
Video Output
Electronic Shutter Speed
OSD
WDR
BLC
Day & Night
Gain Control
White Balance
Intensify
Motion Detection
Privacy Masking
SPECO DNR
Digital Zoom
DIS (Digital Image Stabilization)
Sharpness
Flip / Mirror
Power Supply
Power Consumption
Lens
Operational Temp.
Storage Temp.
Dimension
Weight
HT7246IHR (2.8-12mm)
HT7247IHR (9-22mm)
HT7250IHR (5-50mm)
■
■
■
15

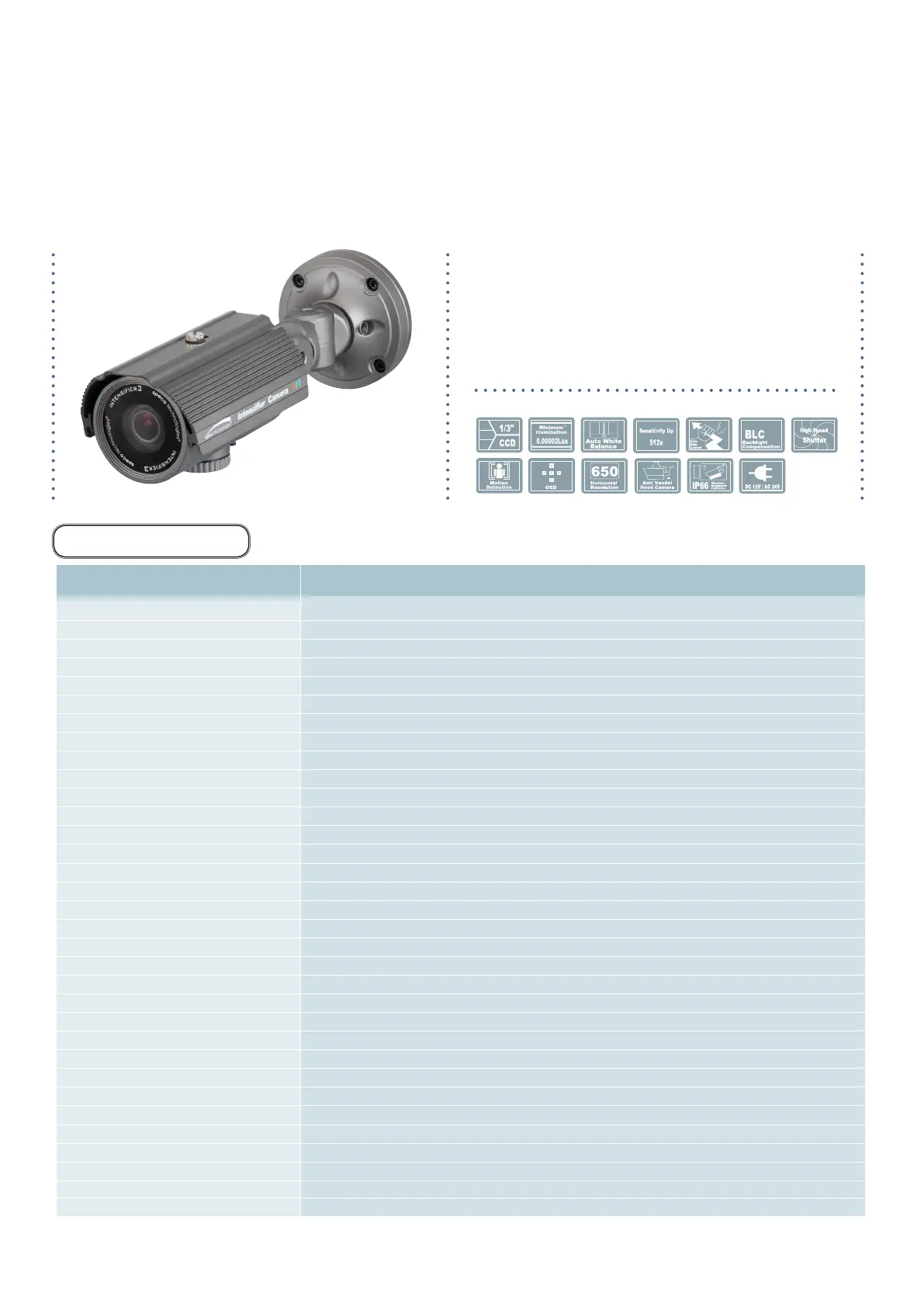

650 Line Intensifier3
(Weatherproof Bullet Camera with mount plate)
DC Auto Iris Varifocal Lens 2.8-12mm / 5-50mm / 9-22mm
HTINTB8 / HTINTB8W
(2.8-12mm)
HTINTB9 / HTINTB9W
(5-50mm)
HTINTB10 / HTINTB10W
(9-22mm)
■
■
■
SPECIFICATIONS
MODEL
HTINTB8 / HTINTB9 / HTINTB10
1/3” Sony Super HAD ll CCD
NTSC, PAL
NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
NTSC=15.734KHz(H) & 59.94Hz(V) / PAL=15.625KHz(H) & 50.00Hz(V)
2:1 Interlace
Internal
650TV Lines
CDS OFF: 0.15 Lux, CDS ON: 0.00002 Lux
More than 52dB
CVBS: 1.0Vp-p / 75Ω
NTSC=(1/60sec~1/120,000sec) / PAL=(1/50sec~1/120,000sec)
Available
On / Off (Level adjustable)
BLC / HLC / OFF
Color / BW / AUTO
Low / High / Off
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Auto / Off (Selectable p16-x2 ~ x512)
On / Off (8 Programmable Zones)
On / Off (12 Programmable Zones)
On / Off (Level adjustable)
On / Off (x1 ~ x16)
On / Off
On / Off (Level adjustable)
On / Off
DC 12V / AC24V(Dual Voltage)
DC 12V 400mA / AC24V 170mA
DC Auto Iris Varifocal Lens 2.8-12mm / 5-50mm / 9-22mm
-4ºF~140ºF RH 95% Max
-4ºF~140ºF RH 95% Max
3.46"(W) * 4.01"(H) * 11.02"(D)
3 lbs
Image Pick-Up Device
TV System
Total Pixels
Effective Pixels
Scanning Frequency
Scanning System
Synchronization
Resolution
Minimum Illumination
S/N Ratio
Video Output
Electronic Shutter Speed
OSD
WDR
BLC
Day & Night
Gain Control
White Balance
Intensify
Motion Detection
Privacy Masking
SPECO DNR
Digital Zoom
DIS (Digital Image Stabilization)
Sharpness
Flip / Mirror
Power Supply
Power Consumption
Lens
Operational Temp.
Storage Temp.
Dimension
Weight
16

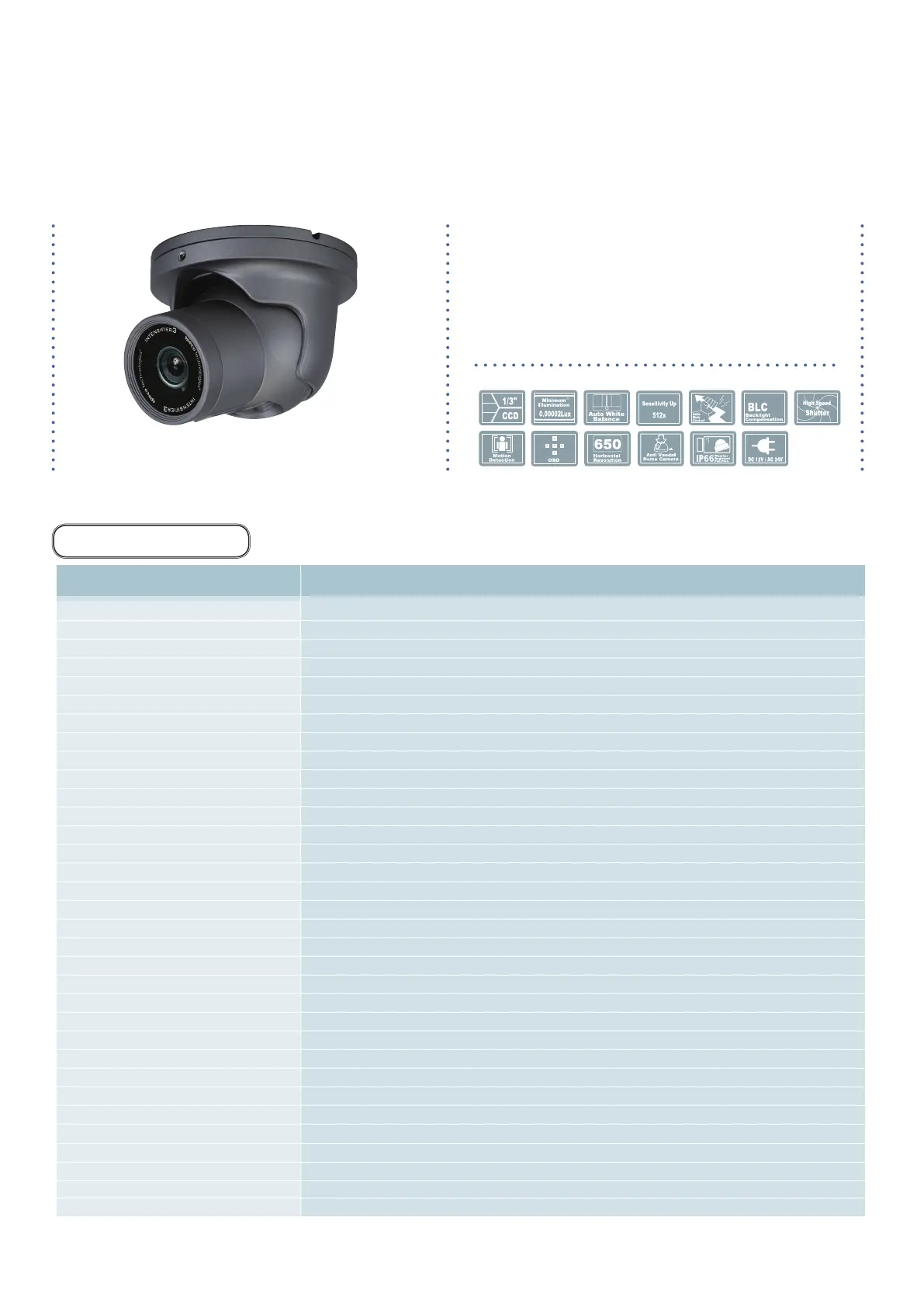

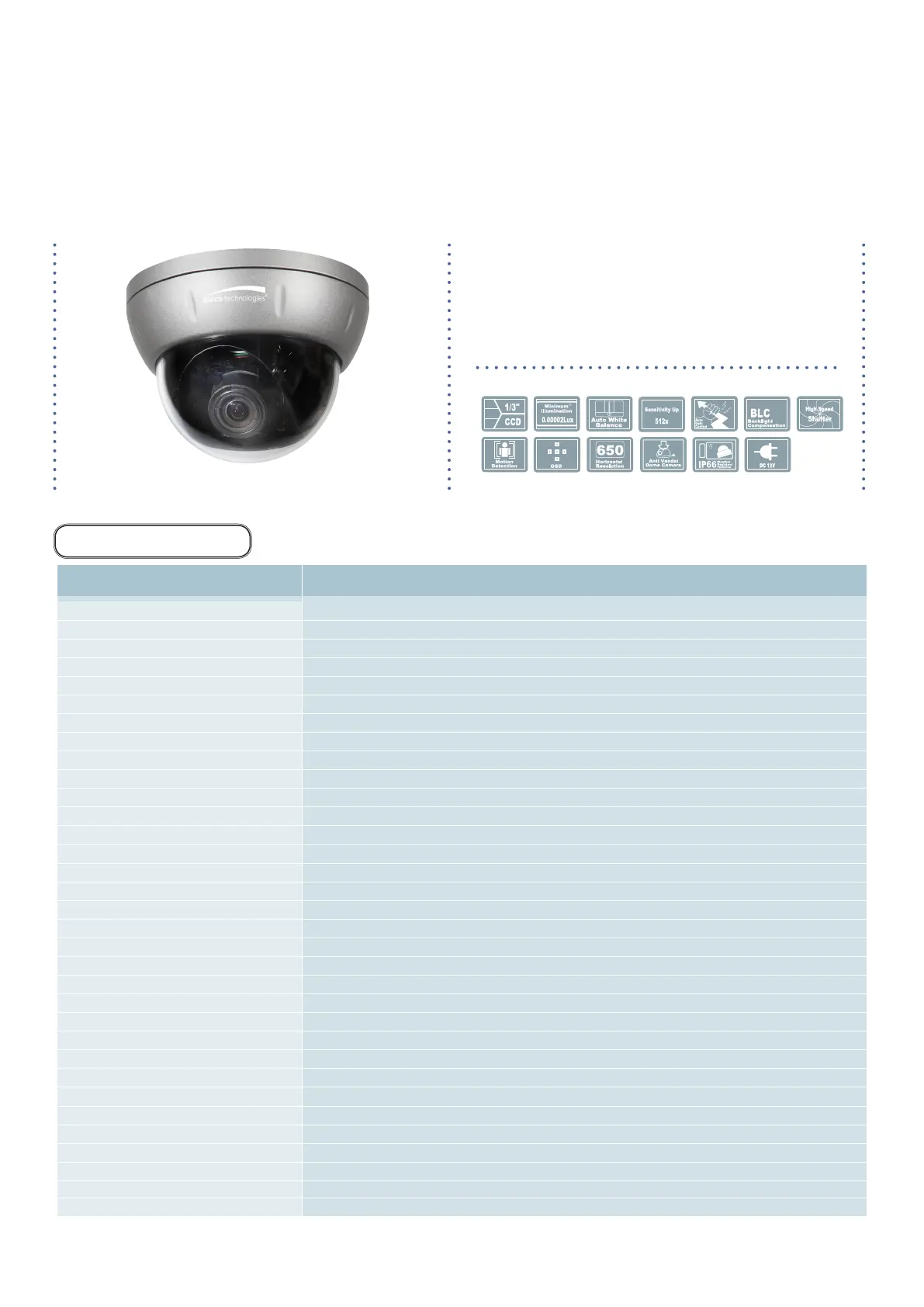

650 Line Intensifier3
(Weatherproof Dome Camera)
DC Auto Iris Varifocal Lens 2.8-12mm / 5-50mm / 9-22mm
HTINTD8 / HTINTD8W
(2.8-12mm)
HTINTD9 / HTINTD9W
(5-50mm)
HTINTD10 / HTINTD10W
(9-22mm)
■
■
■
SPECIFICATIONS
MODEL
HTINTD8 / HTINTD9 / HTINTD10
1/3” Sony Super HAD ll CCD
NTSC, PAL
NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
NTSC=15.734KHz(H) & 59.94Hz(V) / PAL=15.625KHz(H) & 50.00Hz(V)
2:1 Interlace
Internal
650TV Lines
CDS OFF: 0.15 Lux, CDS ON: 0.00002 Lux
More than 52dB
CVBS: 1.0Vp-p / 75Ω
NTSC=(1/60sec~1/120,000sec) / PAL=(1/50sec~1/120,000sec)
Available
On / Off (Level adjustable)
BLC / HLC / OFF
Color / BW / AUTO
Low / High / Off
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Auto / Off (Selectable p17-x2 ~ x512)
On / Off (8 Programmable Zones)
On / Off (12 Programmable Zones)
On / Off (Level adjustable)
On / Off (x1 ~ x16)
On / Off
On / Off (Level adjustable)
On / Off
DC 12V / AC24V(Dual Voltage)
DC 12V 400mA / AC24V 170mA
DC Auto Iris Varifocal Lens 2.8-12mm / 5-50mm / 9-22mm
-4ºF~140ºF RH 95% Max
-4ºF~140ºF RH 95% Max
5.47"(Dia) * 4.36"(H)
3.08 lbs
Image Pick-Up Device
TV System
Total Pixels
Effective Pixels
Scanning Frequency
Scanning System
Synchronization
Resolution
Minimum Illumination
S/N Ratio
Video Output
Electronic Shutter Speed
OSD
WDR
BLC
Day & Night
Gain Control
White Balance
Intensify
Motion Detection
Privacy Masking
SPECO DNR
Digital Zoom
DIS (Digital Image Stabilization)
Sharpness
Flip / Mirror
Power Supply
Power Consumption
Lens
Operational Temp.
Storage Temp.
Dimension
Weight
17

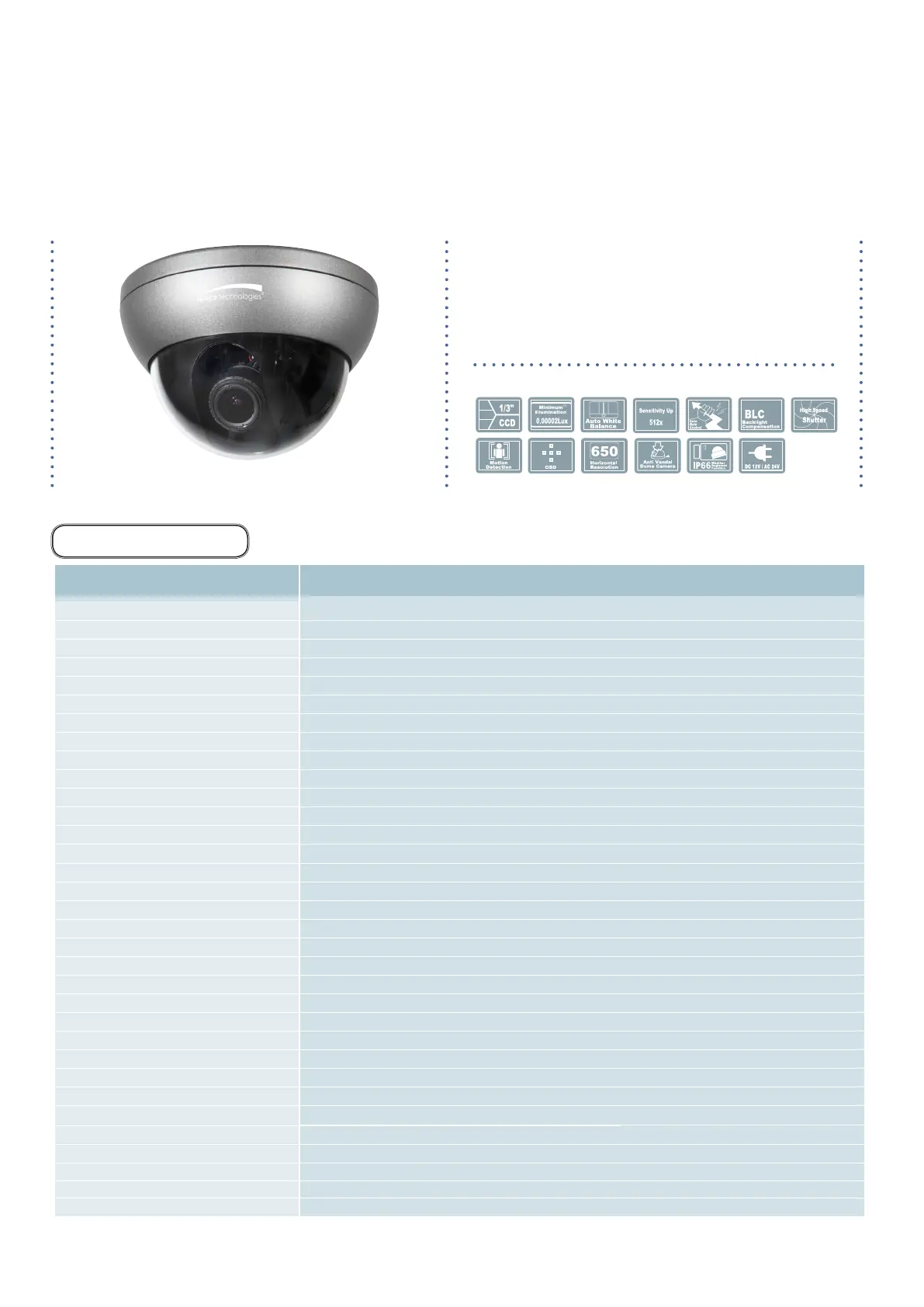

650 Line Intensifier3
(Miniature Weatherproof Dome Camera with Chameleon™ Cover)
3.6mm Fixed Board Lens
HT647HRTP
(3.6 Fixed Board Lens)
■
SPECIFICATIONS
MODEL
HT647HRTP
1/3” Sony Super HAD ll CCD
NTSC, PAL
NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
NTSC=15.734KHz(H) & 59.94Hz(V) / PAL=15.625KHz(H) & 50.00Hz(V)
2:1 Interlace
Internal
650TV Lines
CDS OFF: 0.15 Lux, CDS ON: 0.00002 Lux
More than 52dB
CVBS: 1.0Vp-p / 75Ω
NTSC=(1/60sec~1/120,000sec) / PAL=(1/50sec~1/120,000sec)
Available
On / Off (Level adjustable)
BLC / HLC / OFF
Color / BW / AUTO
Low / High / Off
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Auto / Off (Selectable p18-x2 ~ x512)
On / Off (8 Programmable Zones)
On / Off (12 Programmable Zones)
On / Off (Level adjustable)
On / Off (x1 ~ x16)
On / Off
On / Off (Level adjustable)
On / Off
DC 12V
DC 12V 250mA
3.6mm Fixed Board Lens
-4ºF~140ºF RH 95% Max
-4ºF~140ºF RH 95% Max
4.33"(Dia) * 3.14"(H)
1.54 lbs
Image Pick-Up Device
TV System
Total Pixels
Effective Pixels
Scanning Frequency
Scanning System
Synchronization
Resolution
Minimum Illumination
S/N Ratio
Video Output
Electronic Shutter Speed
OSD
WDR
BLC
Day & Night
Gain Control
White Balance
Intensify
Motion Detection
Privacy Masking
SPECO DNR
Digital Zoom
DIS (Digital Image Stabilization)
Sharpness
Flip / Mirror
Power Supply
Power Consumption
Lens
Operational Temp.
Storage Temp.
Dimension
Weight
18
650 Line Intensifier3
(Indoor Wall & Ceiling Mount Dome Camera)
DC Auto Iris Varifocal Lens 2.8-12mm
CVC6245IHR / CVC6245IHRW
(2.8-12mm)
■
SPECIFICATIONS
MODEL
CVC6245IHR / CVC6245IHRW
1/3” Sony Super HAD ll CCD
NTSC, PAL
NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
NTSC=15.734KHz(H) & 59.94Hz(V) / PAL=15.625KHz(H) & 50.00Hz(V)
2:1 Interlace
Internal
650TV Lines
CDS OFF: 0.15 Lux, CDS ON: 0.00002 Lux
More than 52dB
CVBS: 1.0Vp-p / 75Ω
NTSC=(1/60sec~1/120,000sec) / PAL=(1/50sec~1/120,000sec)
Available
On / Off (Level adjustable)
BLC / HLC / OFF
Color / BW / AUTO
Low / High / Off
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Auto / Off (Selectable p19-x2 ~ x512)
On / Off (8 Programmable Zones)
On / Off (12 Programmable Zones)
On / Off (Level adjustable)
On / Off (x1 ~ x16)
On / Off
On / Off (Level adjustable)
On / Off
DC 12V
DC 12V 250mA
DC Auto Iris Varifocal Lens(2.8mm-12mm)
-4ºF~140ºF RH 95% Max
-4ºF~140ºF RH 95% Max
5.51"(Dia) * 4.09"(H)
1.54 lbs
Image Pick-Up Device
TV System
Total Pixels
Effective Pixels
Scanning Frequency
Scanning System
Synchronization
Resolution
Minimum Illumination
S/N Ratio
Video Output
Electronic Shutter Speed
OSD
WDR
BLC
Day & Night
Gain Control
White Balance
Intensify
Motion Detection
Privacy Masking
SPECO DNR
Digital Zoom
DIS (Digital Image Stabilization)
Sharpness
Flip / Mirror
Power Supply
Power Consumption
Lens
Operational Temp.
Storage Temp.
Dimension
Weight

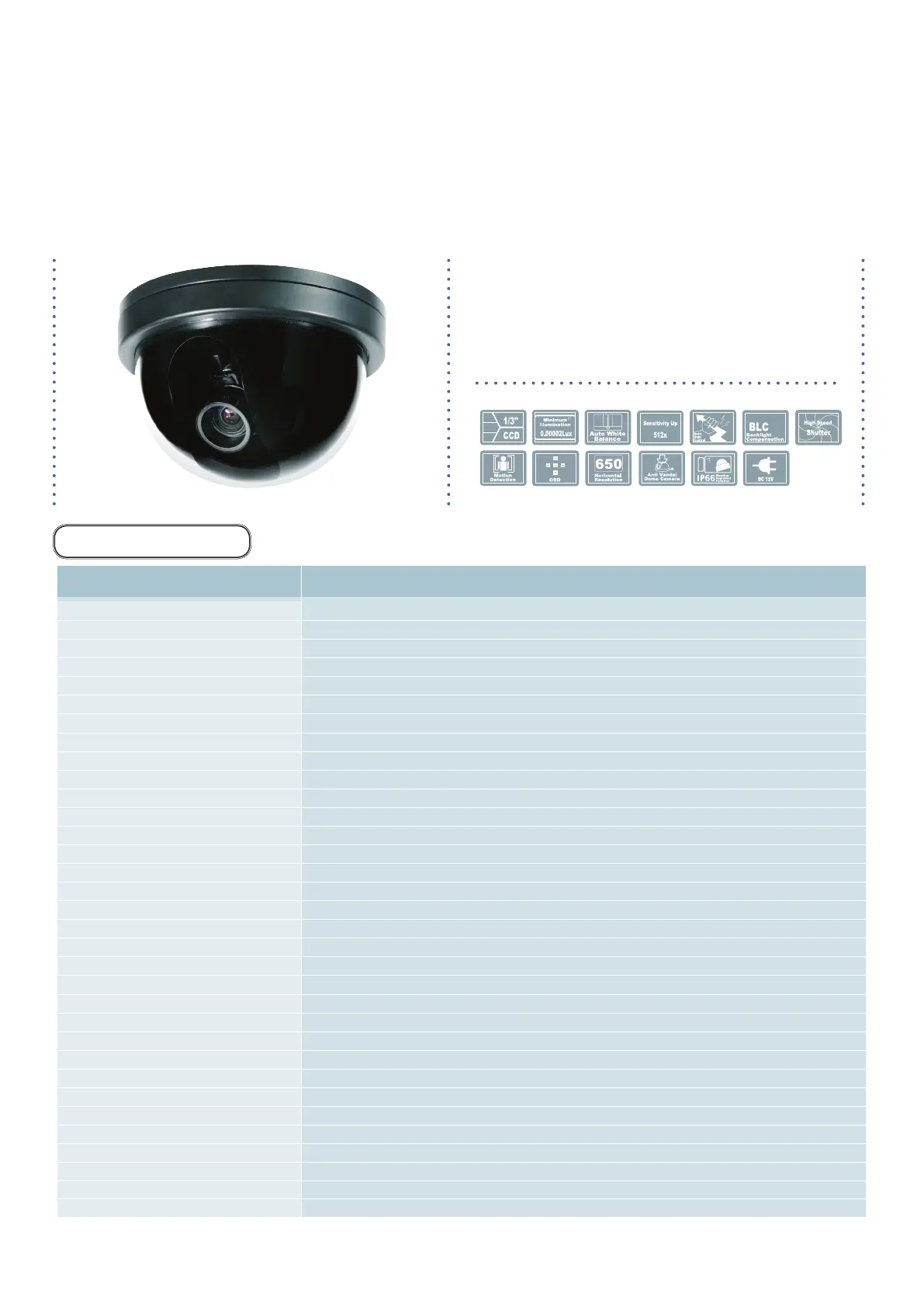

20
650 Line Intensifier3

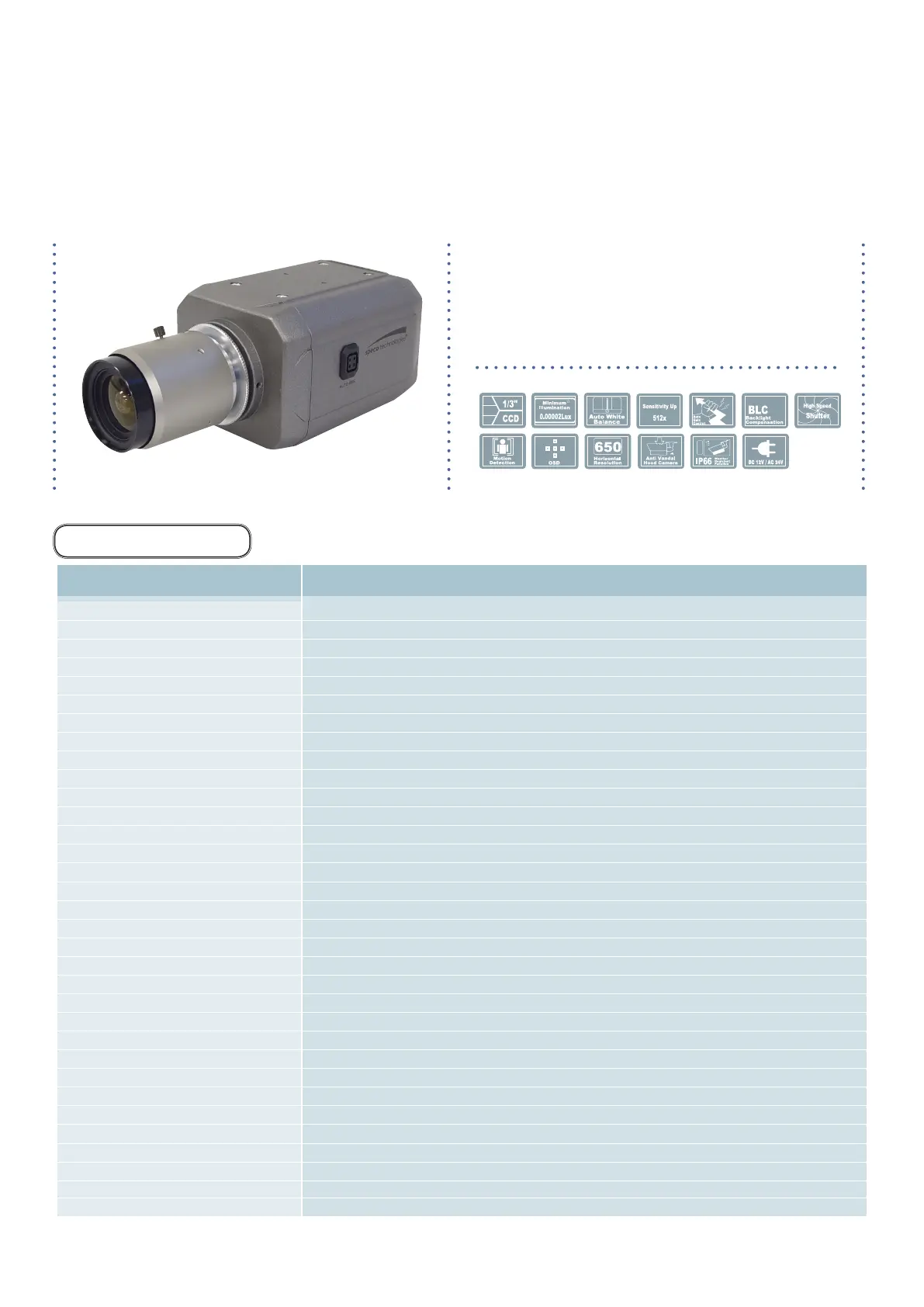

(Traditional Box type Camera)
C&CS Mount Lens
HTINTT5
(C&CS Mount Lens)
■
SPECIFICATIONS
MODEL
HTINTT5
1/3” Sony Super HAD ll CCD
NTSC, PAL
NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
NTSC=15.734KHz(H) & 59.94Hz(V) / PAL=15.625KHz(H) & 50.00Hz(V)
2:1 Interlace
Internal
650TV Lines
CDS OFF: 0.15 Lux, CDS ON: 0.00002 Lux
More than 52dB
CVBS: 1.0Vp-p / 75Ω
NTSC=(1/60sec~1/120,000sec) / PAL=(1/50sec~1/120,000sec)
Available
On / Off (Level adjustable)
BLC / HLC / OFF
Color / BW / AUTO
Low / High / Off
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Auto / Off (Selectable p21-x2 ~ x512)
On / Off (8 Programmable Zones)
On / Off (12 Programmable Zones)
On / Off (Level adjustable)
On / Off (x1 ~ x16)
On / Off
On / Off (Level adjustable)
On / Off
DC 12V / AC24V(Dual Voltage)
DC 12V 250mA / AC24V 100mA
C&CS Mount Lens
-4ºF~140ºF RH 95% Max
-4ºF~140ºF RH 95% Max
2.51"(W) * 2.20"(H) * 3.46"(D)
0.88 lbs
Image Pick-Up Device
TV System
Total Pixels
Effective Pixels
Scanning Frequency
Scanning System
Synchronization
Resolution
Minimum Illumination
S/N Ratio
Video Output
Electronic Shutter Speed
OSD
WDR
BLC
Day & Night
Gain Control
White Balance
Intensify
Motion Detection
Privacy Masking
SPECO DNR
Digital Zoom
DIS (Digital Image Stabilization)
Sharpness
Flip / Mirror
Power Supply
Power Consumption
Lens
Operational Temp.
Storage Temp.
Dimension
Weight
21
CAMERA DIMENSION
1) HT7246IHR, HT7247IHR, HT7250IHR
2) HTINTB8, HTINTB9, HTINTB10
1.16”
5.10” dia
5.10” dia
3.93” dia
3.46”
3.46”
4.01”
3.11”
3.89” dia
11.02”
5.90”
5.03”
10.51”
22
CAMERA DIMENSION
3) HTINTD8, HTINTD9, HTINTD10
4) HT647HRTP
5.47” dia
4.36”
3.34”
3.70”
1.41”
4.33” dia
3.22” dia
4.33” dia
3.14”
23
CAMERA DIMENSION
5) CVC6245IHR, CVC6246IHR
6) HTINTT5
1.25”
4.09”
5.51” dia
4.60” dia
5.51” dia
2.51”
3.46”
3.26”
2.20”
1.49” dia
24
FEATURES
Now with “PRESETS”
PRESETS (Outdoor, Indoor, Elevator, Lobby, Hallway & Low Light)
Used for a quick and easy setup for the installation environment.
650TVL Resolution
Horizontal resolution of 650 TV lines is achieved by using a
SONY Super-HAD CCD with 410,000 pixels, and a custom DSP
yielding pictures with a high S/N ratio.
INTENSIFIER 3
More Powerful Performance in low light condition.
High quality Pictures to be captured in very low light condition.
WDR
More Powerful WDR in strong back lighting.
Your camera allows you to get a clear image.
SPECO DNR
The Intensier camera has a DSP chip that can remove image
noise efciently showing clean images in low light conditions.
HLC (High Light Compensation)
This function reverses bright spots in the picture (such as
headlights). This enables the entire system to do a better job of
resolving and displaying grayscale information such as a
license plate.
25
FEATURES
Motion Detection with Alarm Output
Built in motion detector with adjustable areas of coverage will
Send a signal to an external alarm device when motion is detected.
Privacy Mask
It also has the ability to mask up to 8 areas of the picture where
Viewing is not desired. Each zone can be independently
programmed via the OSD
Stabilizer
This function removes image jitter that is caused by vibrations in
the building and reduces the amount of hard drive space.
Digital Zoom
The picture could be enlarged by this function in digital.
Day/Night
The Intensier camera can show color pictures in all lighting
conditions, or you can have it automatically swiches to a B/W
picture in low light conditions
OSD
All camera functions are menu driven for easy use.
28
◆
FUTO GAIN CONTROL) : The higher the gain level, the brighter the screen
- but the higher the noise.
* OFF : Deactivates the AGC function.
* LOW : Allows automatic gain control from 5.3dB to 32dB.
* HIGH : Allows automatic gain control from 5.3dB to 37dB.
◆
INTENSIFY : When it is night or dark, the camera automatically detects the
light level and maintains a clear picture if this mode is activated.
* OFF : Deactivates the INTENSIFY function.
* AUTO : Activates the INTENSIFY function.
◆
RETURN : Select this to save the changes in the EXPOSURE menu and return
to the SETUP menu.
☞
NOTE
■ If you press the Function Setup switch to ‘AUTO’ mode, you can adjust brightness by
increasing or decreasing the shutter speed. (x2 ~ x512)
■ Note that the higher the zoom level, the brighter the screen, but the more likely there
will be a ghosting effect.
■ It is normal for Noise, Spots and Whitish symptoms to appear in INTENSIFY mode
when the D-ZOOM level is increased.
●

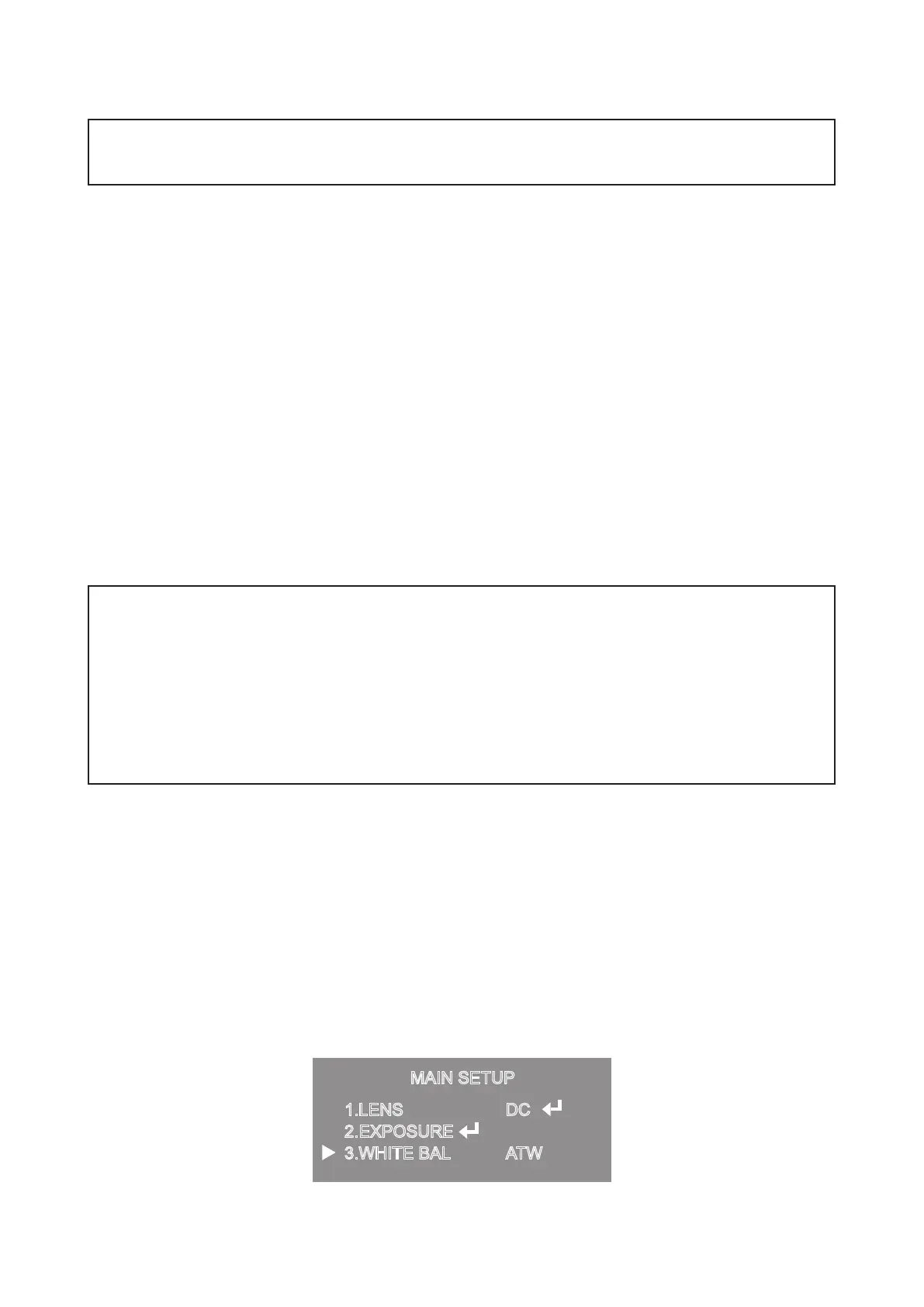

White Balance (White Bal) Setting
Use the White Balance function to adjust the screen color.
1. When the SETUP menu screen is displayed, select 'White Bal' by using the Function
Setup switch so that the arrow indicates 'White Bal'.
2. Select a desired mode using the Function Setup switch.
MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
DC
ATW
☞
NOTE
■ When the SHUTTER is set to MANUAL or A.FLK mode, INTENSIFY will be disabled.
31

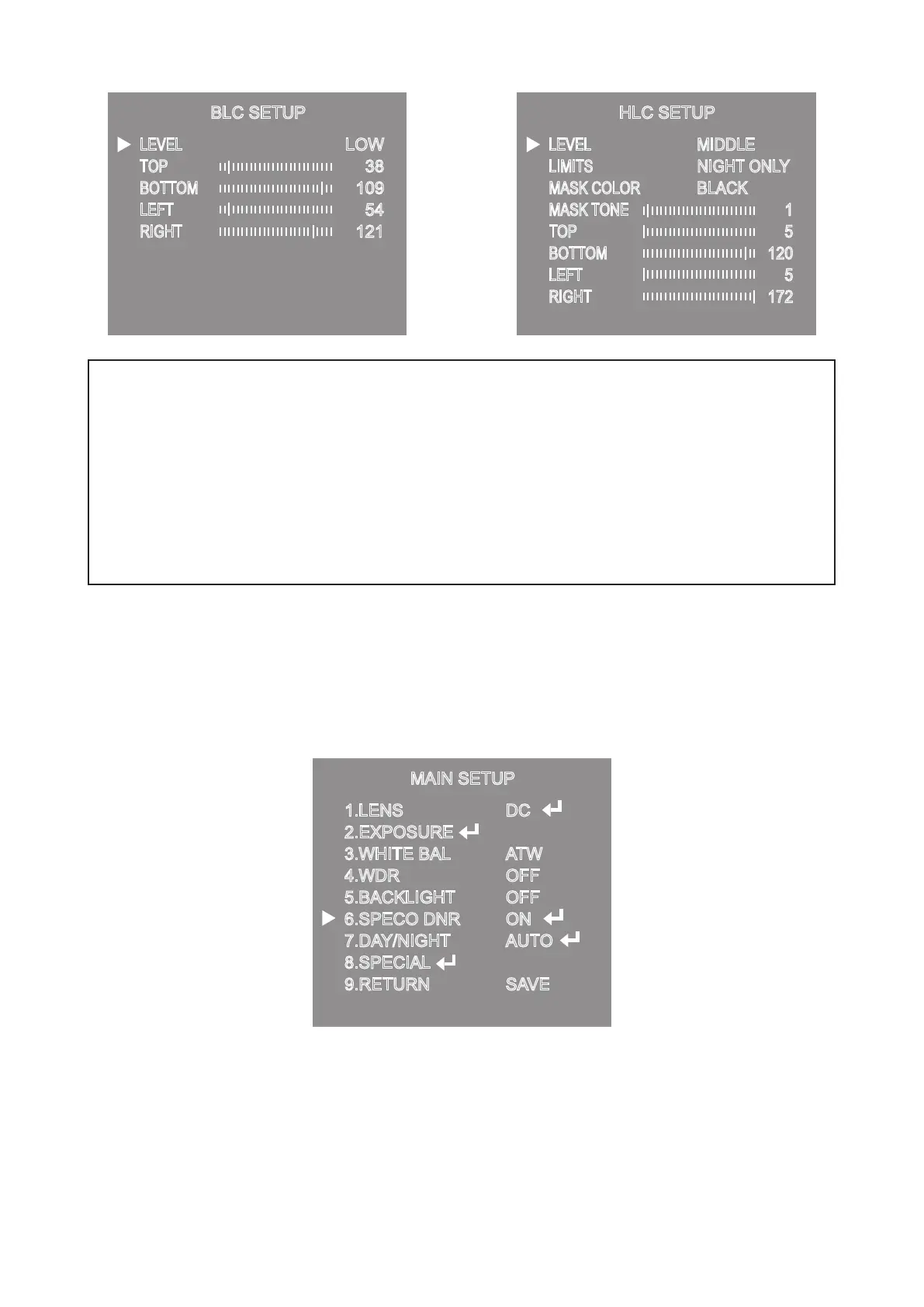

BLC SETUP HLC SETUP
Press Set to Return
Press Set to Return
LEVEL
TOP
BOTTOM
LEFT
RIGHT
LEVEL
LIMITS
MASK COLOR
MASK TONE
TOP
BOTTOM
LEFT
RIGHT
LOW
38
109
54
121
MIDDLE
NIGHT ONLY
BLACK
1
5
120
5
172
☞
NOTE
■
Because there can be a difference in the effectiveness of HLC according to the amount
of light area in the screen, optimize the installation angle for the best HLC performance.
■
When dark, the HLC is only activated when a bright light exceeding a specic size in
NIGHT ONLY mode.
■
The HLC is not activated in day light or when bright light is not present at night in NIGHT
ONLY mode.
■
BLC Function doesn't work in the B/W mode of the DAY/NIGHT menu.
●
SPECO DNR Setting
This function reduces the background noise in a low luminance environment.
1. When the SETUP menu screen is displayed, select 'SPECO DNR' by using the Function Setup switch so that
the arrow indicates 'SPECO DNR'.
2. Select a desired mode using the Function Setup switch.
◆
OFF : Deactivates SPECO DNR. Noise is not reduced.
◆
ON : Activates SPECO DNR so that noise is reduced.
MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.WDR
5.BACKLIGHT
6.SPECO DNR
7.DAY/NIGHT
8.SPECIAL
9.RETURN
DC
ATW
OFF
OFF
ON
AUTO
SAVE
32
3. Set the SPECO DNR mode to 'ON' and press the Function Setup switch. Then you can adjust the noise
reduction level.
☞
NOTE
■
You cannot set the SPECO DNR to ‘ON’ or ‘OFF’ when the AGC mode of the EXPOSURE menu is ‘OFF’.
■
When adjusting the noise reduction level in the SPECO DNR mode, remember that the higher
the level set, the more the noise level will be reduced, as will the brightness of the image.
●
Day/Night Setting
You can display pictures in color or black and white.
1. When the SETUP menu screen is displayed, select 'DAY/NIGHT'by using the Function
Setup switch so that the arrow indicates 'DAY/NIGHT'.
MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.WDR
5.BACKLIGHT
6.SPECO DNR
7.DAY/NIGHT
8.SPECIAL
9.RETURN
DC
ATW
OFF
OFF
ON
AUTO
SAVE
2. Select a desired mode using the Function Setup Switch according to the picture display
you want.
◆
COLOR : The picture is always displayed in color.
◆
B/W : The picture is always displayed in black and white.
- BURST MODE : You can turn on or off the burst
signal on B/W mode.
B/W MODE SETUP
1.BURST MODE
2.RETURN
OFF
34

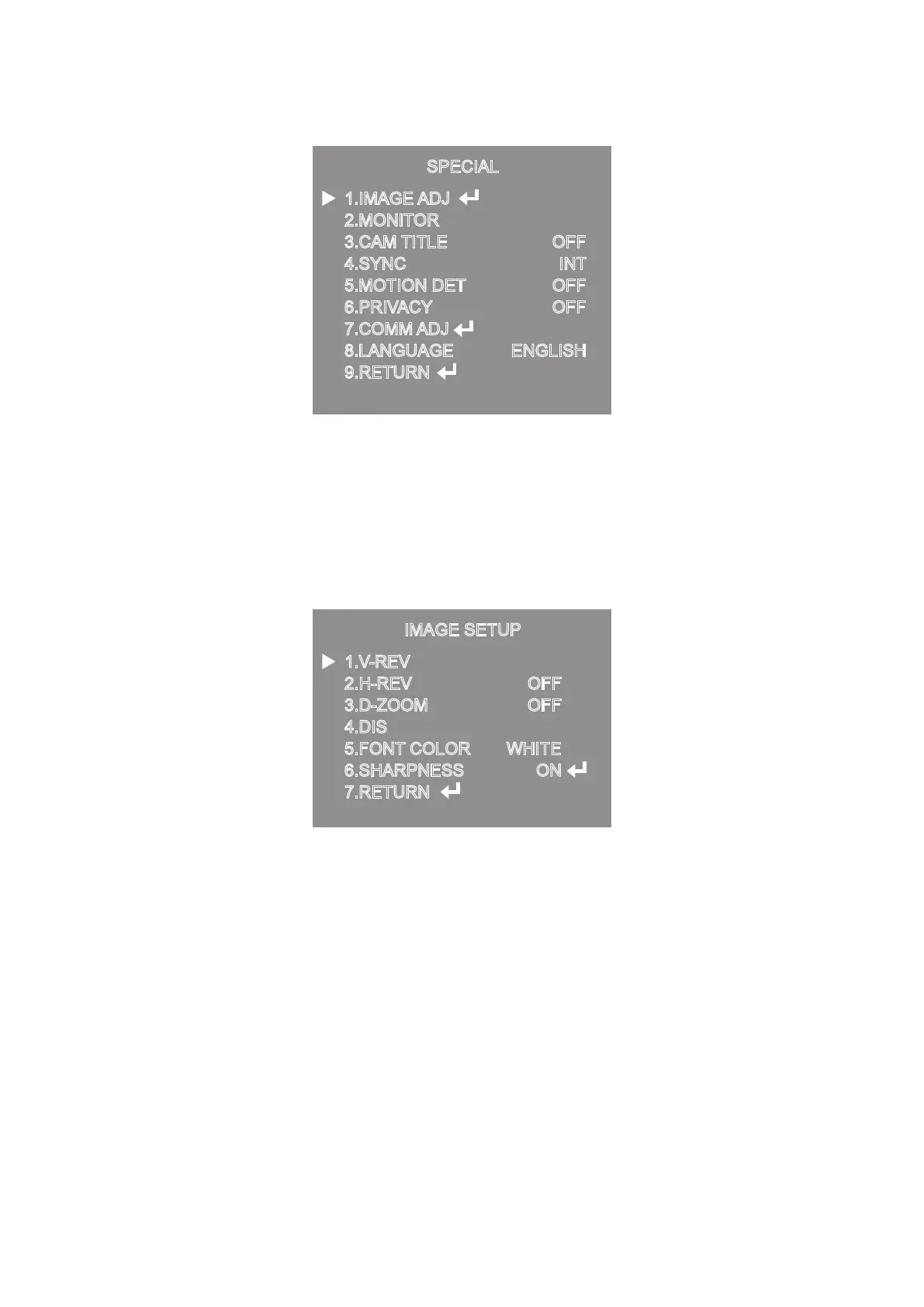

2. Select a desired mode using the Function Setup switch.
SPECIAL
IMAGE SETUP
1.IMAGE ADJ
2.MONITOR
3.CAM TITLE
4.SYNC
5.MOTION DET
6.PRIVACY
7.COMM ADJ
8.LANGUAGE
9.RETURN
1.V-REV
2.H-REV
3.D-ZOOM
4.DIS
5.FONT COLOR
6.SHARPNESS
7.RETURN
OFF
INT
OFF
OFF
ENGLISH
OFF
OFF
WHITE
ON
◆
IMAGE ADJ. :
1) When the SETUP menu screen is displayed, select 'IMAGE ADJ' by using the Function
Setup switch so that the arrow indicates 'IMAGE ADJ'.
2) Select a desired mode using the Function Setup switch.
* V-REV : You can flip the picture vertically on the screen.
* H-REV : You can flip the picture horizontally on the screen.
* D-ZOOM : You can use a digital zoom of p35-x1 ~ x16.
* DIS (Digital Image Stabilizer) : This function mitigates any picture movement due
to external factors such as wind.
* FONT COLOR : You can change the OSD font color. (White, Yellow, Green, Red, Blue)
* SHARPNESS : As you increase this value, the picture outline becomes stronger and clearer.
Adjust this value appropriately depending on the sharpness of the picture.
* RETURN : Select this to save the settings for the IMAGE ADJ menu and to return to the
SETUP menu.
35
☞
NOTE
■
When the V-REV or H-REV mode is enabled, the text on the screen does not ip.
■
If you increase the SHARPNESS level too high, the picture may become distorted or noise
may appear.
☞
NOTE
■
When the CAM TITLE menu is ‘OFF’, no title will be displayed on the monitor screen even if
you enter one.
■
Only English is available in this mode.
■
If you move the cursor to CLR and press the Function Setup switch, all the letters are
deleted. To edit a letter, change the cursor to the bottom left arrow and press the Function
Setup switch. Move the cursor over the letter to be edited, move the cursor to the letter to be
inserted and then press the Function Setup switch.
◆

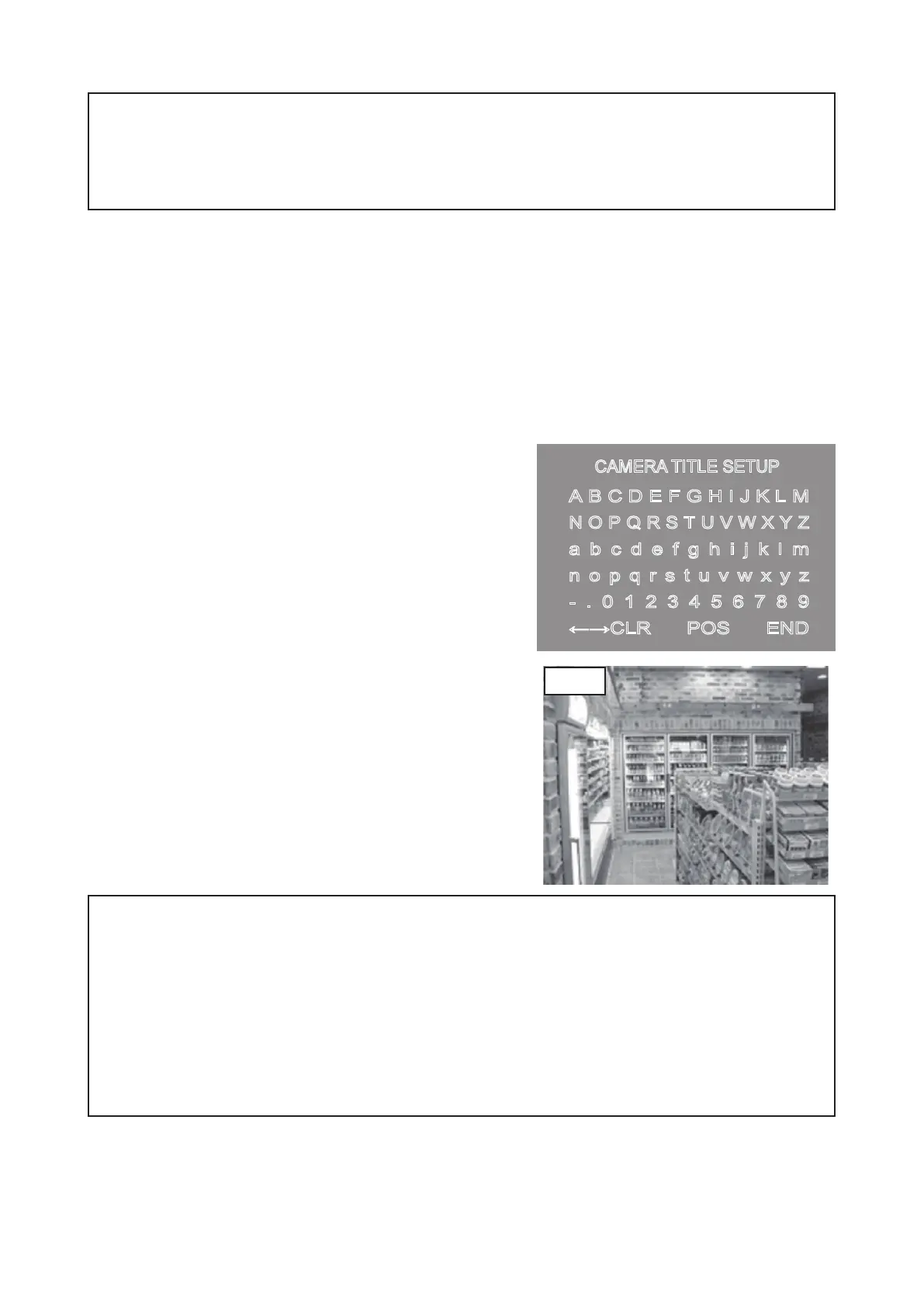

CAM TITLE : If you enter a title, the title will appear on the monitor.
1) If the SPECIAL menu screen is displayed, use the Function Setup switch so that the
arrow indicates 'CAM TITLE'.
2) Set it to 'ON' by using the Function Setup switch.
3) Press the Function Setup switch.
4) Use the Function Setup switch to move to a
desired letter and select the letter by pressing
the Function Setup switch. Repeat this to enter
multiple letters. You can enter up to 15 letters.
5) Enter a title, move the cursor to 'POS' and
press the Function Setup switch. The entered
title appears on the screen. Select the position
to display the title on the screen by using the
Function Setup switch and press the Function
Setup switch. When the position is determined,
select 'END' and press the Function Setup switch
to return to the SPECIAL menu.
◆
SYNC :
In areas where the supply is at 60Hz(NTSC), 50Hz(PAL), you can synchronize
the output phase of multiple cameras using the power synchronization function
(Line-Lock) without using a synchronization signal generator.
CAMERA TITLE SETUP
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
abcdefghijklm
nopqrstuvwxyz
-.0123456789
←→CLR POS END
SHOP
◆
MONITOR : Please change the settings value of video appropriate to your monitor.
1) LCD : Please select this menu item when using a LCD monitor.
2) CRT : Please select this menu item when using a CRT monitor.
3) USER : Please use this menu item when using a monitor other than standard ones. You
can change the gamma, PED level, and color gain in the sub menus.
38
●
Trouble Shooting
PROBLEM
Northing appears on
the screen.
F
Check the power cable, power supply output and video
connection between the camera and monitor.
F
Are the camera lens or the lens glass dirty?
Clean the lens / glass with a soft clean cloth.
F
Adjust the monitor controls, as required.
F
If the camera is facing a very strong light, change
the camera position.
F
Adjust the lens focus.
F
Adjust the contrast control of the monitor.
F
If there is an intermediate device, correctly set the 75Ω/Hi-z.
F
Has MOTION DET been set to ON in the menu?
F
Has MD AREA been properly dened?
F
Check that the AGC setting in the EXPOSURE menu is’t set to OFF.
F
Check the EXPOSURE menu and make sure SHUTTER is set to------.
F
Make sure that the camera isn’t facing direct sunlight or
uorescent lighting. If necessary,change the camera position.
F
Check the settings in WHITE BALANCE menu.
F
Check the camera is correctly connected to an appropriate
regulated power source.
The image on the
screen is dim.
The camera is not
working properly
and the surface of
the camera is hot.
The image on the
screen is dark.
Motion Detection
is not activated.
The color of the
picture is not correct.
The image on the
screen ickers.
The INTENSIFY does
not work.
POSSIBLE CAUSE
41
u
MEMO
42
u
MEMO
Produktspecifikationer
| Varumärke: | Speco Technologies |
| Kategori: | övervakningskamera |
| Modell: | HT-INTD8 |
| Vikt: | 1397 g |
| Bredd: | 138 mm |
| Djup: | 138 mm |
| Höjd: | 110 mm |
| Wi-Fi: | Nej |
| Maximal upplösning: | 811 x 508 pixlar |
| Optisk sensorstorlek: | 1/3 " |
| Bildsensortyp: | CCD |
| Digital zoom: | 16 x |
| Optisk zoom: | - x |
| Gränssnitt: | BNC |
| vitbalans: | Automatisk |
| Grafikupplösningar som stöds: | 768 x 494 |
| Antal TV-linjer: | 650 |
| Produktens färg: | Grå |
| bruksanvisning: | Ja |
| Analogt signalformatsystem: | NTSC, PAL |
| Slutartid: | 1/120000 s |
| LED typ: | IR |
| Formfaktor: | Kupol-formad |
| brett dynamiskt omfång (WDR): | Ja |
| Temperatur vid drift: | -10 - 50 ° C |
| Internationellt skydd (IP) kod: | IP66 |
| Video rörelsedetektor: | Ja |
| Kabel inkluderad: | AC, BNC |
| Frekvensområde: | 15 - 59.9 hz |
| Placeringar som kan användas: | Inomhus & utomhus |
| Anslutningsteknologi: | Kabel |
| Dag / nattläge: | Ja |
| Monteringssätt: | Tak |
| Minimibelysning: | 0.00002 lx |
| Kameraslutningstyp: | Elektronisk |
| Brännviddsintervall: | 2.8 - 12 mm |
| Mörkerseende: | Ja |
| Nätverksansluten (Ethernet): | Nej |
| Likströmsingång: | Ja |
| DC-utgång volt: | +12V |
| Strömförbrukning: | 400 mA |
| Signal/brusförhållande (SNR): | 52 dB |
| NTSC resolutioner: | 811 x 508 pixlar |
| PAL resolutioner: | 768 x 494 pixlar |
Behöver du hjälp?
Om du behöver hjälp med Speco Technologies HT-INTD8 ställ en fråga nedan och andra användare kommer att svara dig
övervakningskamera Speco Technologies Manualer
16 Augusti 2025
16 Augusti 2025
16 Augusti 2025
16 Augusti 2025
16 Augusti 2025
15 Augusti 2025
15 Augusti 2025
15 Augusti 2025
15 Augusti 2025
15 Augusti 2025
övervakningskamera Manualer
- Marmitek
- Telycam
- Brilliant
- Xavax
- Verint
- QNAP
- Nexxt
- IC Intracom
- Olympia
- Flamingo
- PTZ Optics
- Ezviz
- Moog
- Equip
- Aqara
Nyaste övervakningskamera Manualer
19 Augusti 2025
19 Augusti 2025
19 Augusti 2025
19 Augusti 2025
19 Augusti 2025
19 Augusti 2025
19 Augusti 2025
19 Augusti 2025
17 Augusti 2025
17 Augusti 2025
