Compatible Model
Optional Accessories
Installation Instruction Diagram
s
Dimensions
• CVC5100BPVF, CVC5200BPVF
• CVC5715DNV, CVC5815DNV, CVC5915DNV
• HTB11FFi, HTINTB8, HTINTB9, HTINTB10
• HT5100BPVFG, HT5200BPVFG
• HT7048IRVF, HT7049IRVF
• VL7038IRVF, VL7039IRVF
• VL5700BPVF
• OB1, OINT56B1G
Pole / Corner Mount
The following items are included in this package.
• INTCM / INTCMW
• 4 Tapping Screws #8 x 25
• 4 Hexagon Socket Screws M5 x 15
Side ViewFront View
INTCM / INTCMW
Package Contents
200 New Highway, Amityville N 11701Y
800.645.5516 / www.specotech.com
6.52”
1.57” dia
2.17”
4.33”
Installation Guide
CORNER POLE BRACKET
TAPPING SCREW #8x25, 4EA
WALL BASE_BRACKET ASSEMBLY
HEXAGON SOCKET SCREW M5X30, 4EA

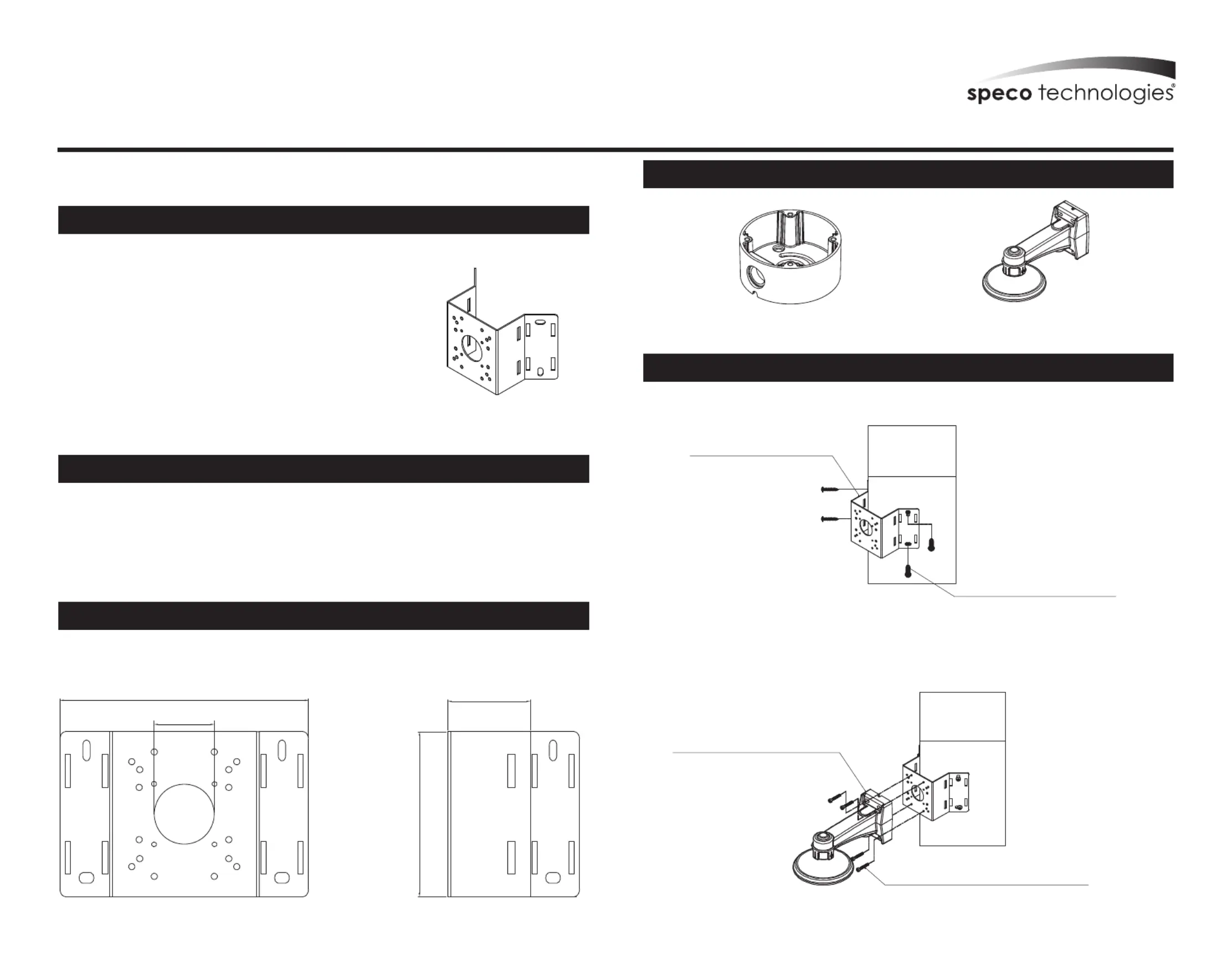

1-1. Install mount onto the wall by using the screws provided.
CVCJBB
Bullet Junction Box Wall Mount
INTWM
1-2. Install INTCM onto pole or wall.

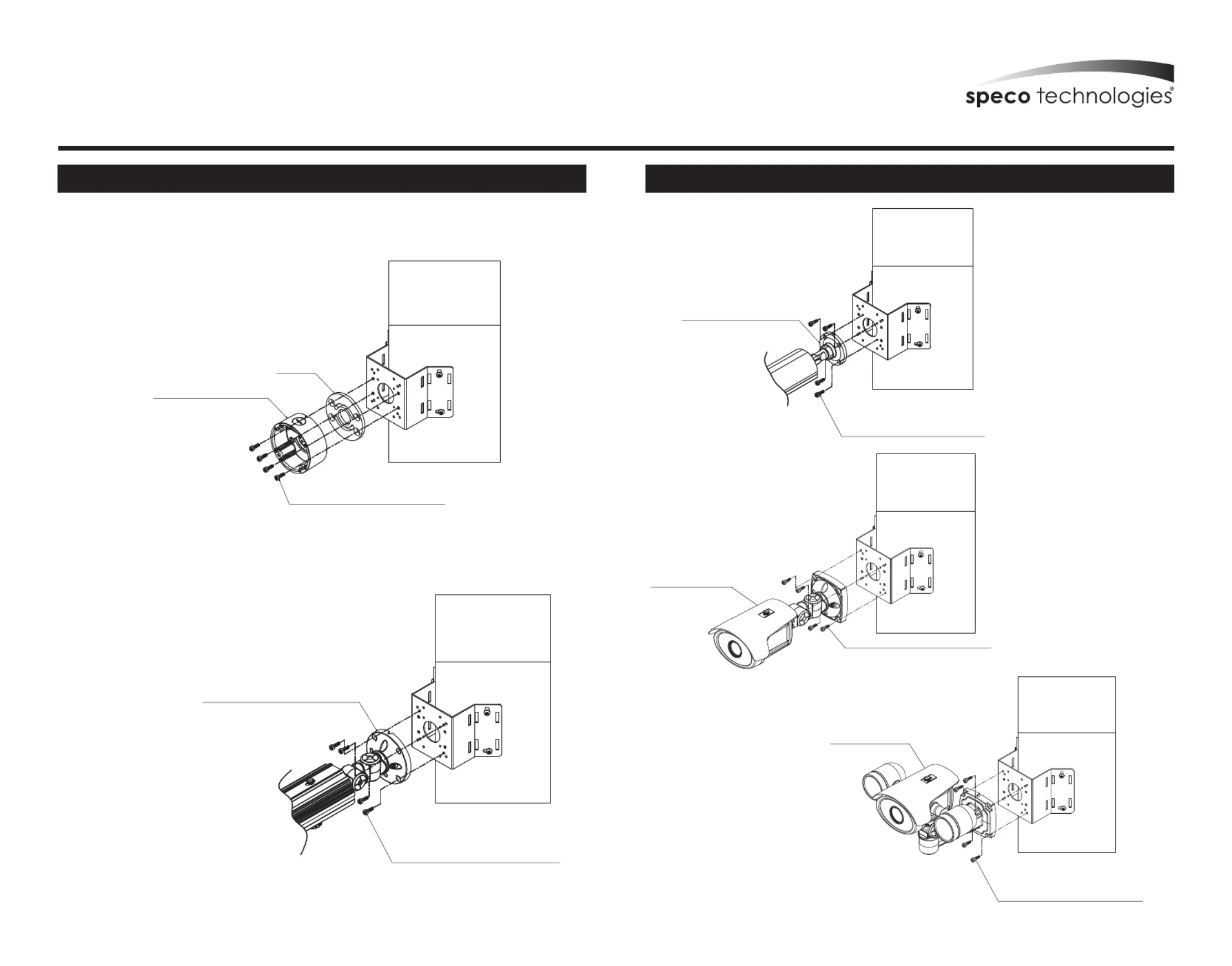

1-3. Install wall mount onto INTCM as shown in the image below.
