Sida 1/16

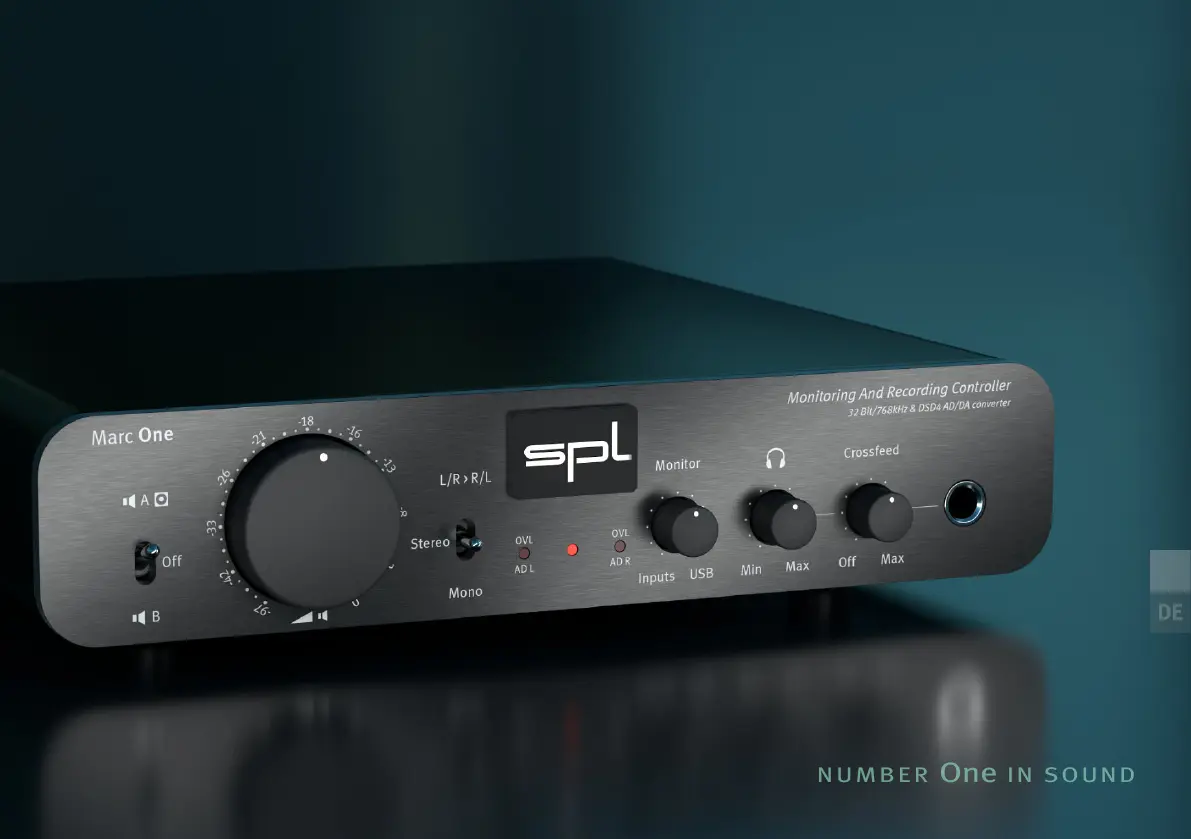

Marc One
32 Bit/768 kHz AD/DA converter
Monitoring and Recording Controller
N U M B E R One I N S O U N DN U M B E R One I N S O U N D
EN
DE
2 Marc One
Read the security advices on page 6!
Read the installation instructions of the included external
power supply on page 8.
Make sure that the Power switch on the rear is set to O
(O = out position / ON = in position).
Connect the included power supply to the DC input and
an appropriate mains socket outlet.
Connect your speakers to the Speaker Outputs.
You can connect two pairs of active stereo speakers – A and B. The A
Speaker Output has a dedicated Sub Output for an active subwoofer.
Connect your headphone to the headphone output.
Connect your analog sources to the Line Inputs.
Connect your computer or mobile device to USB.
Connect the Line Out to your analog audio device.
The Line Out carries the mix (Monitor) between the Line Inputs and
USB playback. The level is unity gain, thus independent of the volume
control.
Set the dip switches to your needs.
Dip switch 1 on/down = attenuate the speaker outputs by 10 dB.
Dip switch 2 o/up = USB is recording Line Input 1.
Dip switch 2 on/down = USB is recording the sum of Line Input 1 and 2.
Turn down speaker and headphone volume.
Switch the on Marc One by pressing the Power button.
Choose speaker output A or B.
Select a monitoring mode: stereo, mono or L/R swapped.
Set the volumes and the crossfeed to taste.
Playback your music from the Line Inputs and/or USB.
For playback blend between the Line Inputs and USB.
Record your music with your DAW via USB.
The OVL leds light up when the AD converter clips.
Have fun!
More information: SeriesOne.spl.audio
9
8
6
7
5
4
2
1
3
19
15
14
13
17
12
18
16
11
10
Marc One 3
151814
94 10 5
13 615
11
17
9
12
3
16
7
18
16
8
15
11
EN
DE
