Quick-Start Guide

Manual Revision: 08/16/2018

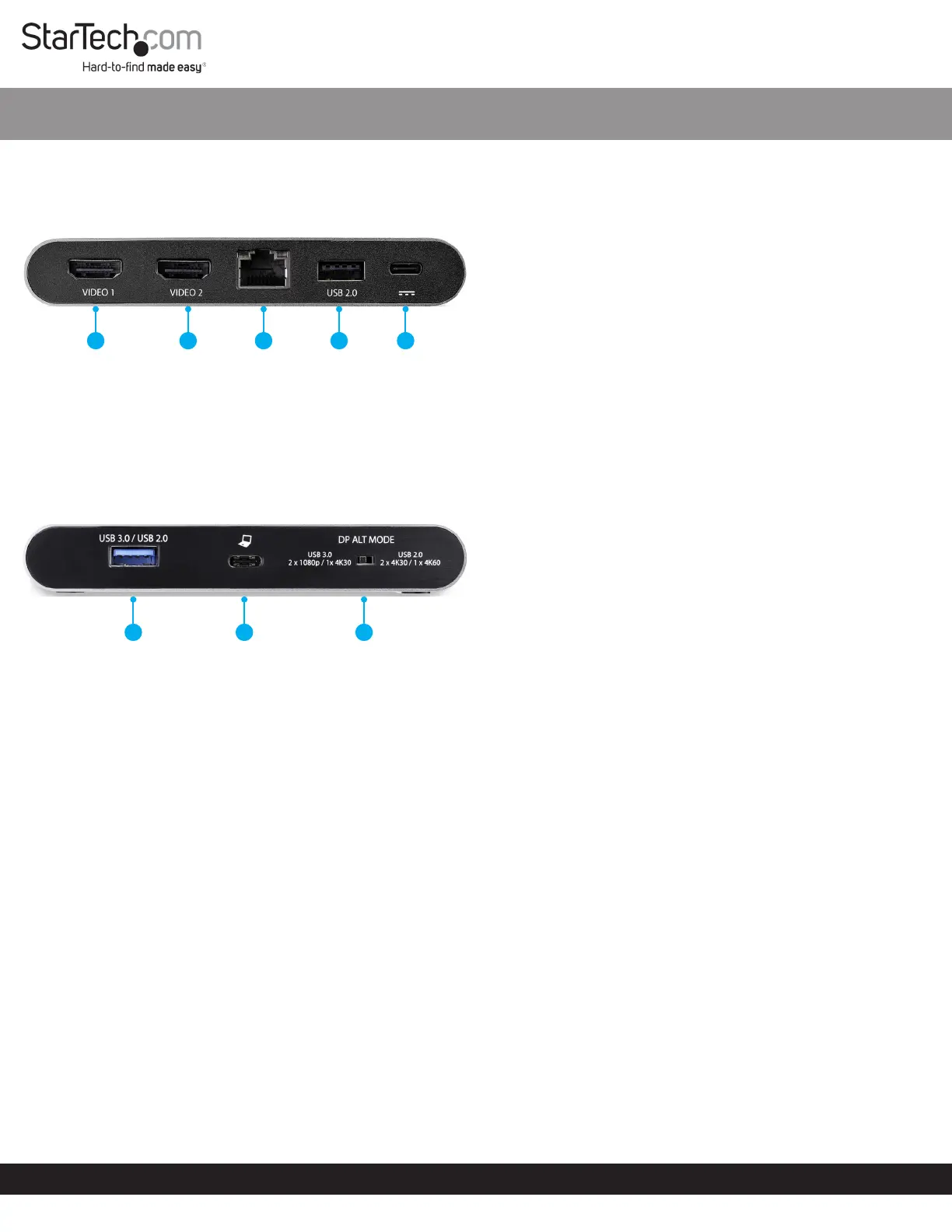

Product Design

Actual product may vary from photos

Front View

1. HDMI Video 1 Port

2. HDMI Video 2 Port

3. Ethernet Port

4. USB 2.0 Port

5. USB-C Power Delivery Port (DC Power Input Only)

Rear View

1. USB 3.0 / 2.0 Selectable Port

2. USB-C Host Port

3. DP Alt Mode Switch

Package Contents

• Multiport Adapter x 1

• USB-C Cable x 1

• Quick-Start Guide x 1

Requirements

Operating System

• Windows® 10 (32/64 bit), 8.1 (32/64-bit), 7 (32/64-bit)

Host

• Host Laptop with an available USB-C port x 1

Note: For full functionality the Host USB-C Port must support

USB Power Delivery 3.0 and DP Alt Mode.

• USB-C Power Adapter x 1

• Wall Outlet x 1

Peripherals

• HDMI Enabled Display Device x 2

• HDMI Cable x 2

• Network Device x 1

• Ethernet Cable x 1

• (Optional) USB 2.0 Peripheral Device x 2

SKU #: DK30C2HAGPD

Dual Monitor USB-C™ Multiport Adapter - Dual HDMI - 2x USB-A - GbE - 100W PD

Installation

Connect the Host Computer

1. Connect the USB-C Cable to the USB-C Host Port on the Multiport

Adapter.

2. Connect the other end of the USB-C Cable to your Laptop.

Connect the Displays

1. Connect an HDMI Cable to the HDMI Video 1 Port on the

Multiport Adapter.

2. Connect the other end of the HDMI Cable to the HDMI port on

your HDMI Enabled Display Device.

3. Repeat steps 1-2 for the HDMI Video 2 Port.

Connect a Network Device

1. Connect an Ethernet Cable to the Ethernet Port on the Multiport

Adapter.

2. Connect the other end of the Ethernet Cable to your Network

Device (e.g. Router, Switch, Modem, etc.).

(Optional) Connect USB Peripherals

1. Connect a USB 3.0 or USB 2.0 Cable to the USB 3.0 / 2.0 Selectable

Port on the Multiport Adapter.

Or

Connect a USB 2.0 Cable to the USB 2.0 Port.

2. Connect the other end of the USB Cable to your USB 3.0 or USB

2.0 Peripheral Device.

Operation

Charge Your Laptop

1. Connect a USB-C Power Adapter to the USB-C Power Delivery

Port on the Multiport Adapter.

2. Connect the other end of the USB-C Power Adapter to a Wall

Outlet.

DP Alt Mode Switch

Select the active DP Alt Mode based on your desired USB peripheral

performance and display resolution.

1. Disconnect the USB-C Host Port and USB-C Power Delivery Port

connections.

2. Toggle the DP Alt Mode Switch to the left for USB 3.0

performance (up to 5Gbps) and 2 x 1080p displays at 60Hz or 1 x

4K display at 30Hz.

Or

Toggle the DP Alt Mode Switch to the right for USB 2.0

performance (up to 480Mbps) and 2 x 4K displays at 30Hz or 1 x

4K display at 60Hz.

3. Reconnect the USB-C Host Port and USB-C Power Delivery Port

connections.

For the latest information, specications, and support visit www.startech.com/DK30C2HAGPD.

• (Optional) USB 2.0 Cable x 2

• (Optional) USB 3.0 Peripheral Device x 1

• (Optional) USB 3.0 Cable x 1

1

12

3

4

5

2

3
