Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: October 7, 2020

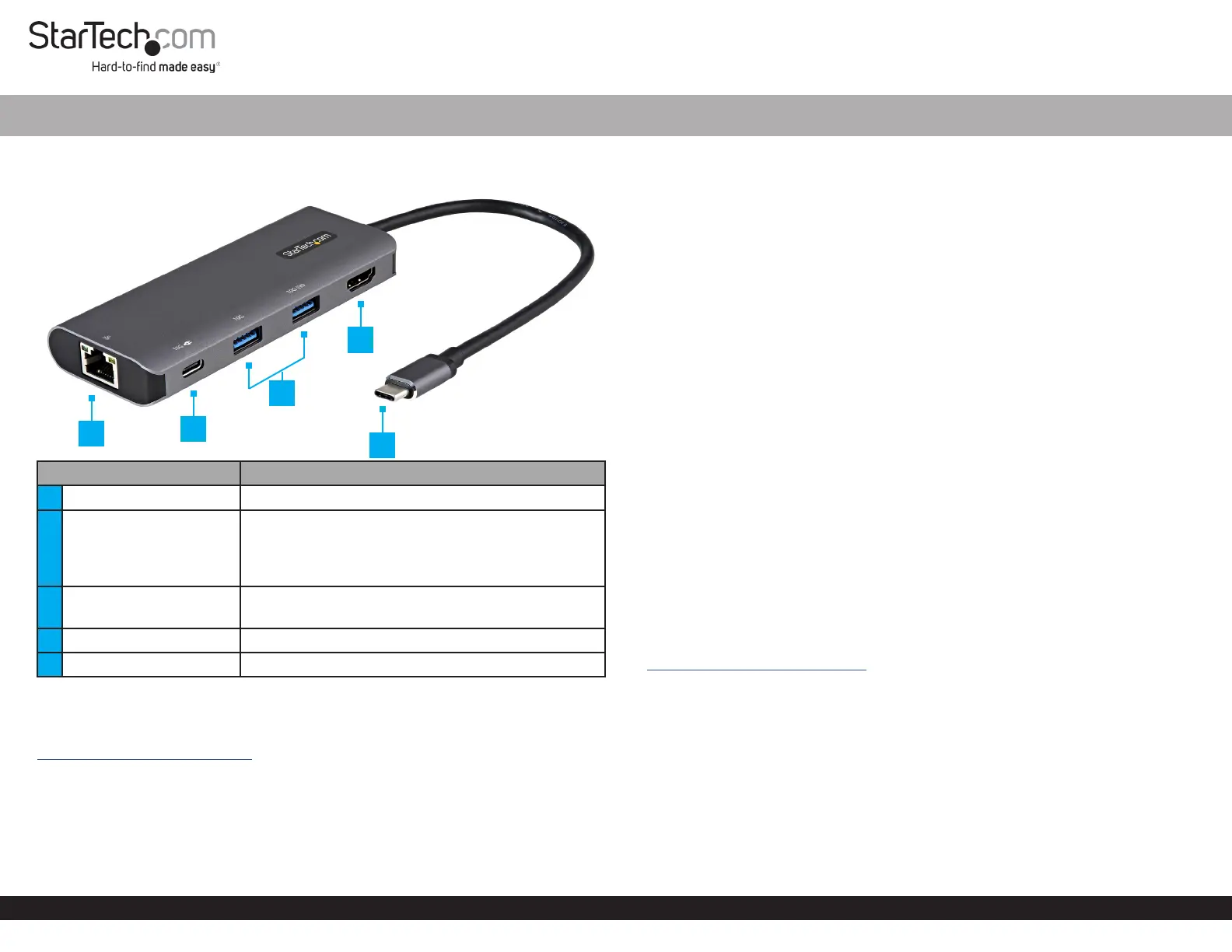

Product Diagram (DKT31CHPDL)

Side View

PortFunction

1RJ45 Port• Connect a Network Cable

2USB-C Port

• Connect a USB-C Storage Device (e.g. ash drive),

or USB-C Peripheral Device

• Connect the Host Computer’s Power Adapter for

Power DeliveryPass Through

3USB-A Ports

• Connect a USB-A Peripheral Device

• Charge a USB-A Peripheral

4HDMI Output Port• Connect an HDMI Display Device

5USB-C Host Connector• Connect to a Laptop or Computer

Requirements

For the latest requirements and to view the full manual, please visit:

www.startech.com/DKT31CHPDL.

• Host Computer with USB-C Port

USB-C™ (10 Gbps) Multiport Adapter with HDMI, 85W Power Delivery Pass Through, GbE 2x USB-A & 1x USB-C

Installation

Powering the Multiport Adapter

USB Bus Power Mode (from Laptop):

The Multiport Adapter can be powered by the Host Computer’s USB-C Port and

does not require a separate power adapter for most device connections.

USB Power Delivery Pass Through Mode:

If you want to charge your Laptop through the Multiport Adapter, or need additional

power to support a USB Device requiring more power, follow these steps:

1. Connect the Multiport Adapter to a USB-C Port on the Host Computer using the

USB-C Host Connector.

2. Connect the USB-C Connector from the Host Computer’s Power Adapter to the

USB-C Port on the Multiport Adapter.

3. The Host Computer’s Power Adapter will power the Multiport Adapter and pass

power through to the Host Computer.

Windows 7 (and earlier) Driver Installation

1. If the Found New Hardware dialog box appears on your screen, close the dialog

box or click Cancel.

Note: Once the Multiport Adapter is connected to the Computer, if no existing

Drivers are found, it will load a CD-ROM Device that contains an executable le that

you can use to install the Driver.

2. After the CD-ROM Device nishes loading, run the Installation File.

3. Complete the on-screen instructions to nish the installation.

Note: You can also download the latest software from the StarTech.com website,

www.StarTech.com/DKT31CHPDL.

Connecting a Display

• Connect an HDMI M/M Cable to the HDMI Output Port on the Multiport Adapter

and to the HDMI Input Port on the HDMI Display Device.

Connect to a Network

• Connect a Network Cable to the RJ45 Port on the Multiport Adapter and to the

Network Device.

1

2

5

4

3
