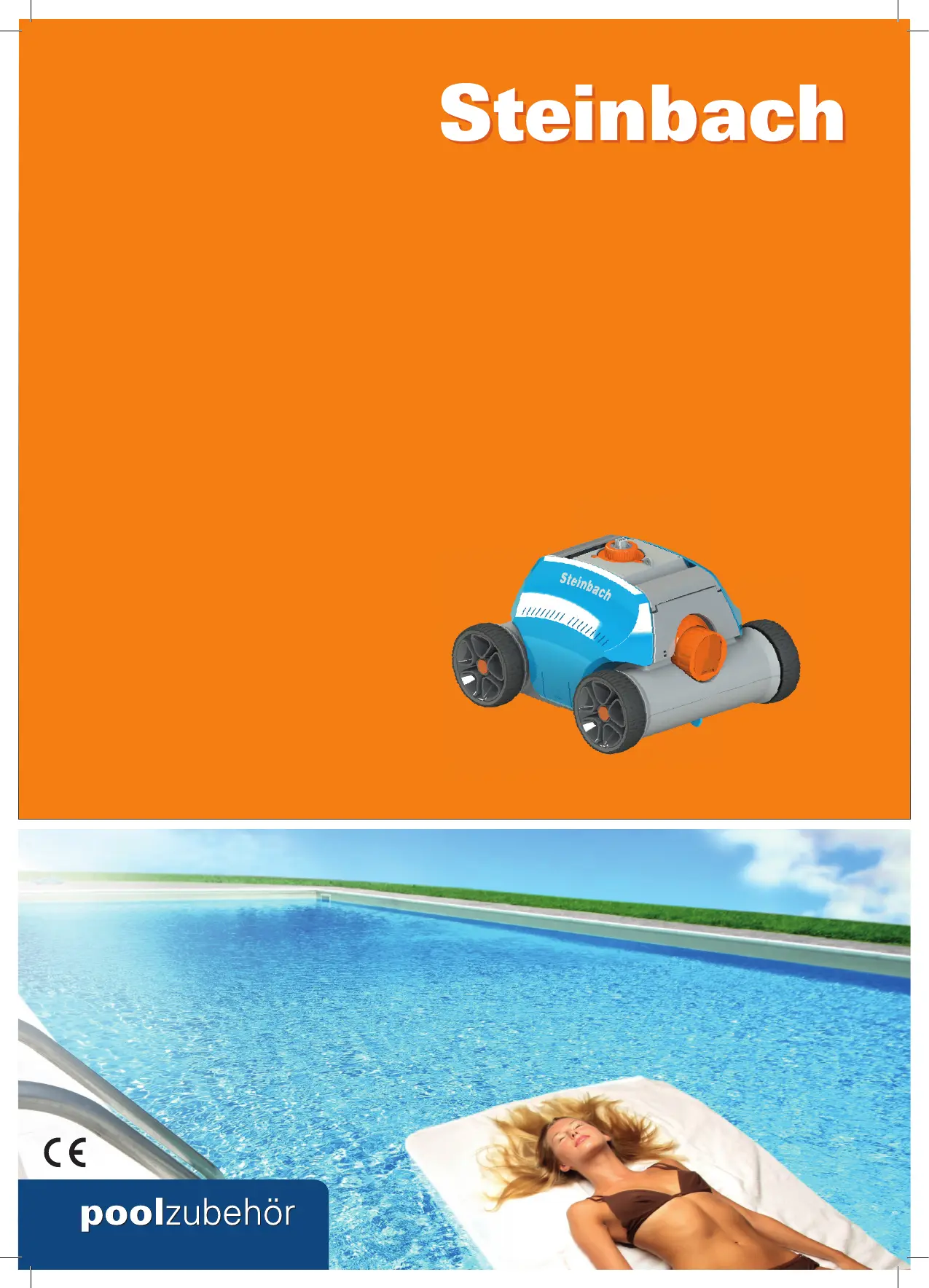

Sida 1/8

Bedienungsanleitung / Instruction manual /

Mode d’emploi / Navodila za uporabo /

Istruzioni per l’uso / Manual de utilizare /

Návod k obsluze / Upute za uporabu /

Kezelési útmutató / Návod na použitie /

Ръководство за експлоатация / Kullanım kılavuzu /

Instrukcja obsługi / Manual de instrucciones

Steinbach

Poolrunner Battery

061013_v1901

I. Introduction

The robotic pool cleaner HJ1103J is a new type of rechargeable automatic cleaning

equipment with the function of self-beaching when the battery is running out.

Please read this manual carefully before use so that you can use it correctly.

II. Appearance characteristics & structure

III. Specifications

1. Name: Cleaner

2. Model: HJ1103

3. Working voltage: 12.6V

4. Power: 50W

5. Working Cycle: 100min

6. Rated input voltage of adapter: 100Vac-240Vac

7. Input power of adapter: 47Hz-63Hz

8. Rated output current of adapter: 1.8A

9. Rated output voltage of adapter: 12.6V

10. Charging time: 5-6h

Top cover

Filter tray

Chassis

Swing plate

Floating handle

Brush

ALL

Abbildung 1 / Illustration 1

Abbildung 2 / Illustration 2

2. Quick operation

a. Connect the cleaner and home power with adapter and charging line to charge the

battery.

* Clean the charging port before charging.

* Red charging indicator light indicates the battery is charging.

* Green charging indicator light indicates charging is finished.

* Turn the switch knob to OFF before charging.

b. Turn the switch knob to ON after putting it into water then the cleaner is power-on and

the indicator light is steady blue. The cleaner begins to work about 15 seconds later

while the blue light flashes.

c. The robot reverse direction automatically once touching the pool wall (or rise up-ahead

and reverse for pools with curved floor), and blue light flashes, then the indicator light

turns into green for a few seconds for self-adaption, after that the indicator turns into

blue again.

d. The yellow light flashes three times after completing the working cycle and then the

cleaner continues running about 2 minutes to pull over to pool edge, after that the robot

runs into standby mode and the indicator light is steady yellow.

e. Power-off operation: switch off the knob into red light till the robot power-off. Please

always clean the filter tray after use.

3. Functions and adjustment of nozzles

There are two nozzles on the cleaner, one of them opens once the other closes. Water

flows out through the open nozzle to thrust the cleaner to move forward. Adjust the nozzle

by turning it to control the moving route.

Produktspecifikationer

Varumärke:	Steinbach
Kategori:	dammsugare
Modell:	Poolrunner Battery+
Bredd:	210 mm
Laddningstid:	6 min
Batterikapacitet:	6600 mAh
Lämplig för:	Simbassäng
Batteriteknik:	Litium-Ion (Li-Ion)
Lämplig för rengöring:	Botten
Produktens färg:	Orange, Black, Blue
Batteritid:	120 min
Internationellt skydd (IP) kod:	IPX8
Hjul:	Ja
Batteriladdare ingår:	Ja
Strömkälla:	Batteri
Lämplig för pooler upp till:	80 m²
Lägsta pumpningskapacitet:	10 m³/h
Vakuumpump:	Ja
