Select-Alert Alarm

Mini Controller

We protect the things that protect you.

Features

· Use as a cabinet alarm, door alarm,

link with push button/switch or as a

burglar alarm.

· Independent strobe and siren timing

of 15 seconds, 30 seconds, 60

seconds or continuous.

· Durable, polycarbonate construction.

· Includes ten high intensity LED’s.

· Siren offers 32 user selectable tones.

· Choose piercing 100 or 85 dB alarm.

· For indoor use only.

· Available with amber, green, blue,

red or white lens.

· Includes a tamper switch which

triggers the alarm when unit is

being removed from a wall.

· Low battery indicator.

· Powered by a 9 VDC battery

(not included) or external 12 – 24

volts.

· One Form “C” dry relay contact

output.

STI-SA5000 SERIES

- 2 -

CONTENTS

Warnings and Cautions .............................................................................................page 3

Warranty Information ................................................................................................. page 3

Dimensions ..............................................................................................................page 3

Speciﬁcations ...........................................................................................................page 4

Electronic Setup ........................................................................................................ page 4

Alarm Tones .............................................................................................................page 5

Alarm Timing and Volume ..........................................................................................page 5

Terminal Strip Connections ........................................................................................page 6

Mounting Options ......................................................................................................page 6

Electronics ................................................................................................................page 8

SELECT-ALERT ASSEMBLY PARTS LIST

1 - 05000 Electronics Assembly

1 - 05050 Color Lens

4 - 19068 Screw #6 x 5/8 in.

4 - 19002 Screw #8-32 x 3/8 in.

2 - 19039 Screw #6 x 1 1/4 in.

2 - 19018 Anchor #8-10

2 - 19062 Screw #6-32 x 1 1/2 in.

1 - 19011 #8-32 x 1/2 in. tamper screw

1 - 19016 Tamper wrench

ACCESSORIES

SUB-71100A-W Backbox kit

18151 N.C. reed switch and magnet

SUB-SA505 Key switch mounting bracket (includes key switch & 2 keys)

BAT-9VDC 9 volt battery

18075 Additional replacement key

- 3 -

WARNINGS

All units are recommended for indoor use. Unit must be tested periodically to verify the life of

battery. STI recommends you change the 9 Volt battery twice a year. When purchasing a Select-

Alert, you will need to periodically test the connections to make sure audibles function at a sound

level to alert staff. Installer may need to purchase a simple audio-meter, typically available at your

local electronics store, to measure the sound in areas where the alarm is expected to be heard

during normal noise environment. Results from this test may prove it beneﬁcial to purchase

additional Select-Alert units.

All speciﬁcations and information shown are current as of publication and subject to change

without notice.

WARRANTY INFORMATION

Three year guarantee against breakage of polycarbonate housing in normal use (one year on

electro mechanical and electronic components).

Electronic warranty form at www.sti-usa.com/wc14.

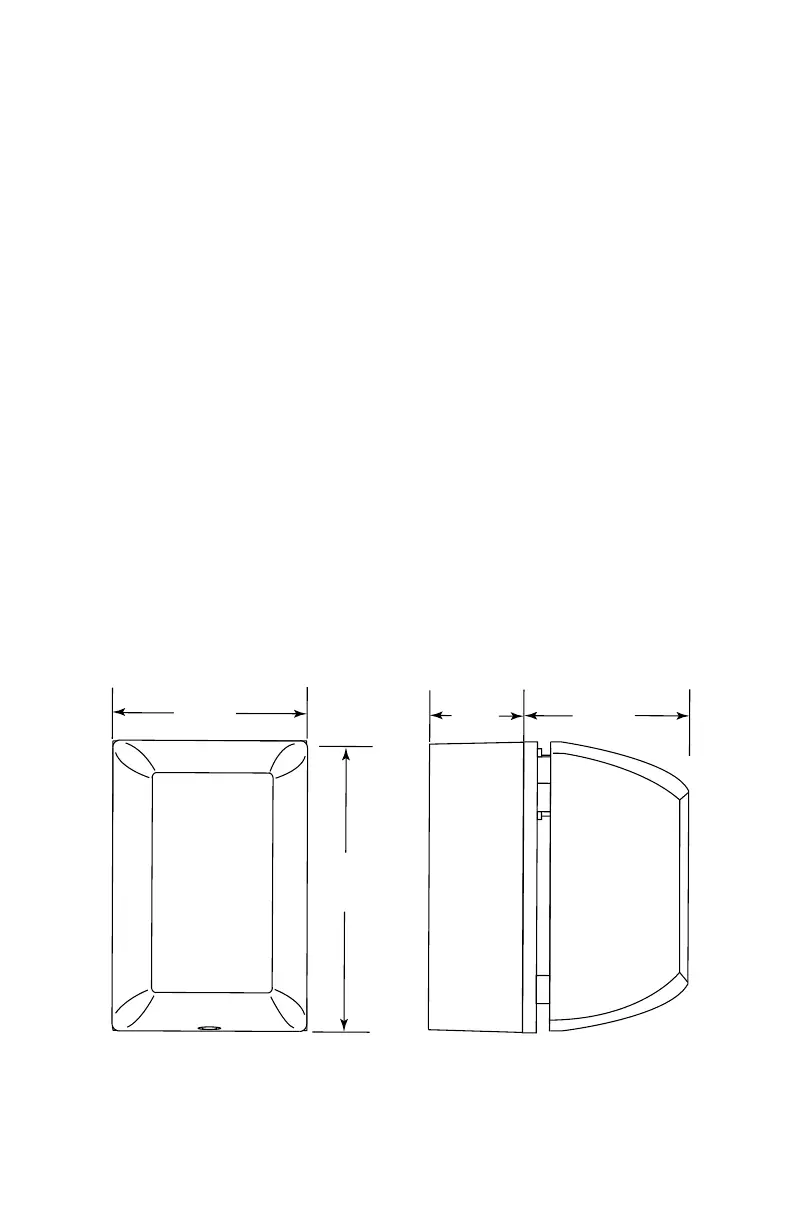

DIMENSIONS

ALARM TONE

ALARM TIMING

STROBE TIMING

VOLUME

COM

ALARM SWITCH

KEY SWITCH

DC IN -

DC IN +

Install 4/05

FRONT

SIDE

ALARM TONE

ALARM TIMING

STROBE TIMING

VOLUME

ALARM TONES

ALARM TIMING

STROBE TIMING

VOLUME

LED QTY 10

LOW BATTERY

INDICATOR LED

TERMINAL STRIP

TAMPER SWITCH

(REAR VIEW)

WIRE ENTRY

BATTERY

BATTERY CABLE

SIREN

ALARM TONE

ALARM TIMING

STROBE TIMING

VOLUME

LED QTY 10

LOW BATTERY

INDICATOR LED

TERMINAL STRIP

TAMPER SWITCH WIRE ENTRY

BATTERY

BATTERY CABLE

SIREN

REMOTE POWER IN

12-24 VDC, 125mA

OFF ON

MAIN POWER

CONTROL

ACTIVE STAND BY

ALARM

SWITCH

FORM "C"

DRY CONTACTS

NORMALLY

OPEN

NORMALLY

CLOSED

COM

DRILL

3/16 DIA HOLES

19018 ANCHOR

#8-10

(2) PROVIDED

19039 SCREW

#6 x 1 1/4 in.

(2) PROVIDED

TO KEY MOUNT PLATE OR INTO WALL

BASE PLATE

18074 SWITCH LOCK

SUB-SA505 KEY SWITCH

MOUNTING BRACKET

SINGLE GANG

ELECTRICAL BOX

19062 SCREW

#6-32 x 1 1/2 in.

(2) PROVIDED

TO SINGLE GANG ELECTRICAL BOX

BASE PLATE

05050- LENS COLORS

A - AMBER

B - BLUE

G - GREEN

R - RED

W - WHITE

19002 SCREW

#8-32 x 3/8 in.

(4) PROVIDED

05000 ELECTRONICS

ELECTRONICS ASSEMBLY FINAL

INSTALLED

BASE PLATE

2 13/32 in.

19018 ANCHOR

#8-10

(4) PROVIDED

DRILL (4)

3/16 in. DIA HOLES

SUB-SA504 BACKBOX

19039 SCREW

#6 x 1 1/4 in.

(4) PROVIDED

19068 SCREW

#6 x 5/8 in.

(4) PROVIDED

BASE PLATE

TO STI BACKBOX 71100A

71100B-W

BRIDGE INSERT

1 31/32 in.

3 9/32 in.

WIRE ACCESS HOLE

19016 TAMPER-PROOF

TOOL (1) PROVIDED

19011 TAMPER-PROOF

SCREW

2 13/32 in.

19018 ANCHOR

#8-10

(4) PROVIDED

DRILL (4)

3/16 in. DIA HOLES

SUB-71100A-W BACKBOX

19039 SCREW

#6 x 1 1/4 in.

(4) PROVIDED

19068 SCREW

#6 x 5/8 in.

(4) PROVIDED

BASE PLATE

71100B-W

BRIDGE INSERT

1 31/32 in.

DRILL

3/16 DIA HOLES

19018 ANCHOR

#8-10

(2) PROVIDED

19039 SCREW

#6 x 1 1/4 in.

(2) PROVIDED

BASE PLATE

18074 SWITCH LOCK

SUB-SA505 KEY SWITCH

MOUNTING BRACKET

3 9/32 in.

+ -

DC IN

KEY

SWITCH

ALARM

SWITCH

COM

REMOTE POWER IN

12-24 VDC, 125mA

OFF ON

MAIN POWER

CONTROL

STAND

ALARM

SWITCH

FORM "C"

DRY CONTACTS

NORMALLY OPEN

COM

+ -

DC IN

KEY

SWITCH

ALARM

SWITCH

COM

NORMALLY CLOSED

ACTIVE

1.58 in.

2.725 in.

4.75 in.

4.83 in.

3.05 in.

3.22 in.

3.25 in.

4.83 in.

1.58 in.

2.725 in.

4.75 in.

4.83 in.

3.05 in.

3.22 in.

3.25 in.

4.83 in.

3.25 in.

(83mm)

4.83 in.

(123mm)

FRONT

SIDE

3.25 in.

(83mm)

4.83 in.

(123mm)

1.58 in.

(40mm)

2.73 in.

(69mm)

1.58 in.

(40mm)

2.73 in.

(69mm)

LENS COVER

BACKPLATE

MOUNTING PLATE

ELECTRONICS

19011 TAMPERPROOF SCREW

KEY SWITCH

LENS COVER

BACKPLATE

KEY SWITCH

MOUNTING PLATE

19011 TAMPERPROOF SCREW

ELECTRONICS

18075 REPLACEMENT

#801 KEY

18075 REPLACEMENT

#801 KEY

REMOTE POWER IN

12-24 VDC, 125mA

(OPTIONAL)

OFF ON

**MAIN POWER

CONTROL TO

KEY SWITCH

STAND

REED

SWITCH FROM CABINET

FORM "C"

DRY CONTACTS

NORMALLY OPEN

COM

+ -

DC IN

KEY

SWITCH

ALARM

SWITCH

COM

NORMALLY CLOSED

ACTIVE

DRILL (4) 3/16 in. DIA. HOLES IF USING #8-10 ANCHORS.

DRILL (4) 3/32 in. DIA. HOLES WHEN USING #6 SCREWS ONLY.

19018 ANCHOR

#8-10

(4) PROVIDED

SUB-71100A-W

19039 SCREW

#6 x 1 1/4 in.

(4) PROVIDED

19060 SCREW

#6-32 x 1 in.

(2) PROVIDED

BASE PLATE

1-24-11

NOTE TO BECK:

This sketch replaces

(Step 5 - Mounting Options VIEW A)

in STI-SA5000 install sheet.

1. Using 5/32 Drill, Drill through the (4) exsisting holes in backbox (one in each corner).

2. Place backbox on wall and mark the mounting hole positions.

3. If using #8-10 anchors, drill 3/16 dia. holes 1 in. deep into wall and press anchor into hole.

If using #6 screws only, drill 3/32 dia. holes 1-1/4 in. deep.

4. Mount backbox to wall using #6 x 1 1/4 screws.

5. Mount base plate as shown using (2) #6-32 x 1 in. screws.

NOTE: If not using STI backbox, make sure surface will depress tamper switch.

ENCLOSURE

ROUTE THE TWO KEY

SWITCH WIRES THROUGH

THE HOLE AS SHOWN

WIRE ACCESS HOLE

ROUTE THE TWO REED

SWITCH WIRES FROM

CABINET THROUGH THE

HOLE AS SHOWN
