ALLURE™ ALUMINIUM LOUVRE-PATIO INSTALLATION GUIDE
ALLURE
™
INSTALLATION GUIDE
INSTALL GUIDE
• Drill and Hex-Head Adaptor
• Rivet Gun
• Tape Measure
• Tin Snips
• Spirit Level
• Post Hole Digger
• Silicone Gun
• Spanners or Ratchet
• Adjustable Construction Props
• Concrete
• Ladder
• Vise Grips
• Countersinking Drill Bit
• Phillips-Head Screwdriver
• Hole-Saws (ø13mm & ø16mm)
TOOLS REQUIRED
BEFORE YOU START
Carefully read these instructions and refer to them constantly during each stage of construction. If you do not have all the necessary tools or information,
contact Stratco for advice. Before starting, layout all components and check them against the delivery docket. The parts description identifies each key part,
and the component layout diagram indicates their fastening position.
Double check all dimensions, levels and bolting locations before cutting, screwing or bolting structural members. It is recommended that the installers erecting
the structure have had some previous building experience because some modifications to the existing house structure may be required. If a freestanding unit
is being installed, the attachment beam becomes the rear fascia beam and is installed as per the details for the front fascia beam. Box gutters and flashings do
not need to be pre-fixed until all beams have been erected.
Note: All screws within the unit must be fastened by hand using a screw-driver, or a low-torque, low-speed drill.
Using a powered tool may result in screw heads shearing from the shank. If screw heads shear from shank it is recommended
that a Screw Extractor kit is used to remove the screw.
Note: Allure components are designed for 1° fall to accommodate the minimum required louvre fall and Allure
construction should allow for this. A minimum 1:200 fall shall be maintained during construction for gutter fall toward
downpipes when this is perpendicular to louvre direction.
2

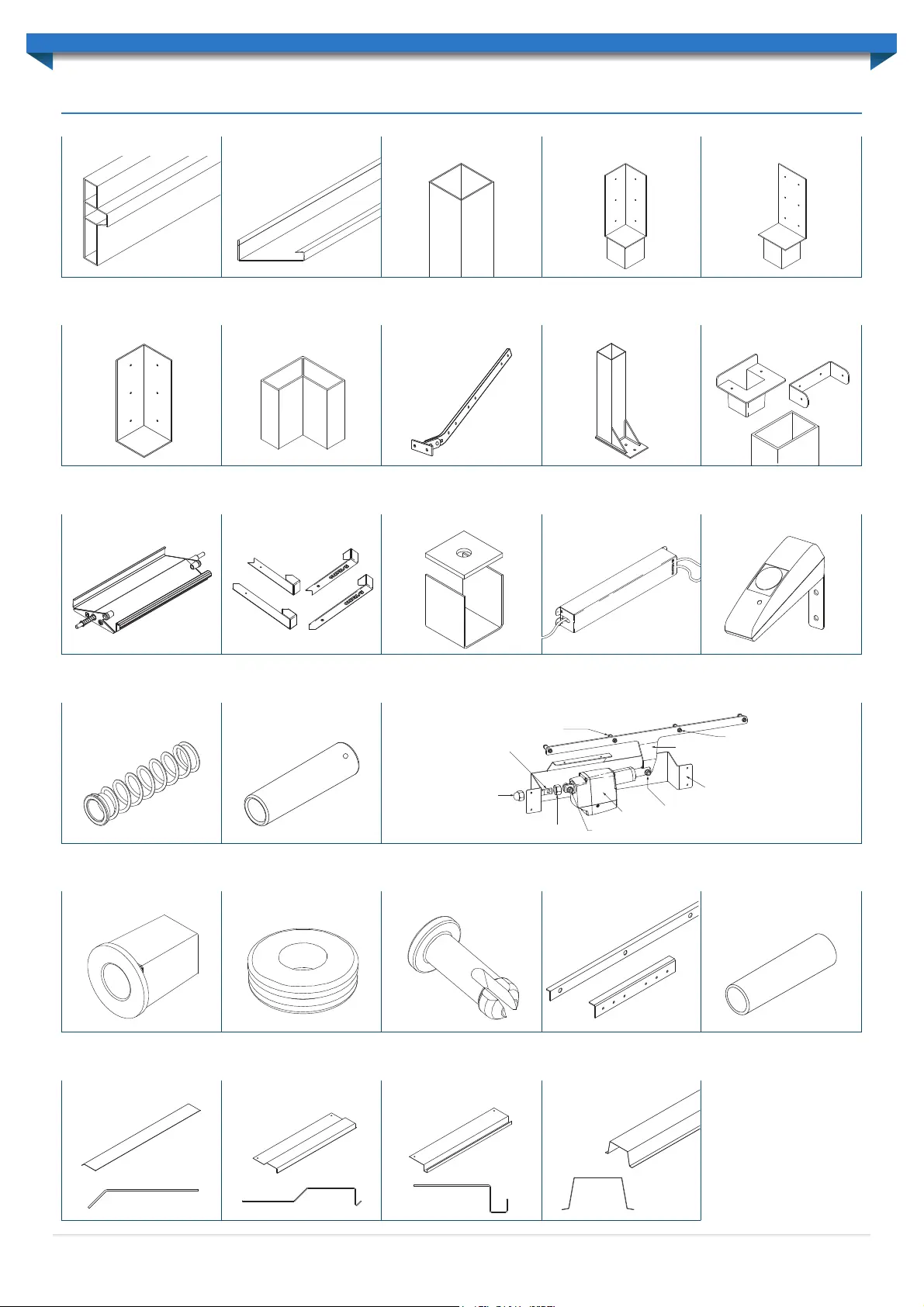

100x100 POSTALLURE BEAM POST-BEAM CORNER
BRACKET
GUTTER POST-BEAM INLINE
BRACKET
RAFTER STRENGTHENING
BRACKET
CORNER JOINER FLYOVER BRAKCETCORNER KNUCKLE DOWNPIPE, STRAP &
OUTLET
POST SHOELOUVRE ASSEMBLY ELECTRONIC CONTROL
BOX
GUTTER MITRE STRAPS RAIN SENSOR
ACTUATOR DRIVE ASSEMBLYSPRING WITH SPRING
BUSH
SPACER
Drive Arm Bush
Drive Arm
M16 Hex Nut
M16 Adjustment Bolt
Shoulder Bolt M8x10x20
Actuator
Motor Cover
M8 Nut, M8 Washer
M16 Dome Nut
Shoulder Bolt
M5x6x30
CLOSING-DOWN COVER
FLASHING
LINK ROD FLASHING DOUBLE-BEAM COVER
FLASHING
CLOSING-UP COVER
FLASHING
LINK PINSMOUNTING BUSH LINK ROD & LINK ROD
JOINER
CABLE GROMMETS ALLURE BEAM SPACER
COMPONENTS
