1.0 INTRODUCTION
Thank you for purchasing the STRONG SRT ANT 45 DVB-T/T2 antenna. This antenna has been specially
designed to receive digital terrestrial signals. It can be connected to any Digital Terrestrial Receiver (DVB-T/
T2), and is specially designed for outdoor use. The antenna housing is UV protected and weather-proof
sealed. With the supplied multi-functional mounting material, you can install the antenna on a wall, on
your balcony or on a pole outside the house.
This DVB-T/T2 antenna is an “Active type” antenna, it has a built-in low noise amplier that amplies the
received signal for better performance. The antenna therefore needs 5 V power supplied by your terrestrial
receiver, or by an AC/DC adapter (supplied with the antenna).
We recommend that you carefully read this user manual before you install the antenna. This will help you
to get the best performance of your antenna.
Specications
Frequency range: UHF 470 ~ 790 MHz with LTE ltering
Active Antenna Gain: Max. 14 dBi for UHF
RF Output Impedance 75 Ohm
Power Supply:
2 powering methods:
5 V DC / 40 mA via ANTENNA connector of the digital terrestrial
receiver or
6 V DC / 150 mA via External 230 V AC to DC adapter with power
injector
Special features
Choice of installation methods: wall-mounted or pole-mounted
installation
Built-in FM and LTE (4G) lter
Weather-proof and UV protected housing
Built-in low noise amplier technology
Highly directional to optimise accurate pointing to the transmitter
and to reduce pick up of unwanted signals
TABLE OF CONTENTS
1.0 INTRODUCTION 1
2.0 PACKAGE CONTENTS 2
3.0 SAFETY NOTES 2
4.0 CONNECTING THE ANTENNA 3
5.0 INSTALLATION OF THE ANTENNA 5
Subject to alterations. In consequence of continuous research and development technical specications, design and appearance of products may change. LTE is
a trademark of ETSI, all other product names are trademarks or registered trademarks of their respective owners.
© STRONG 2021. All rights reserved.
03 Feb 2021 17:47
2
PART 2

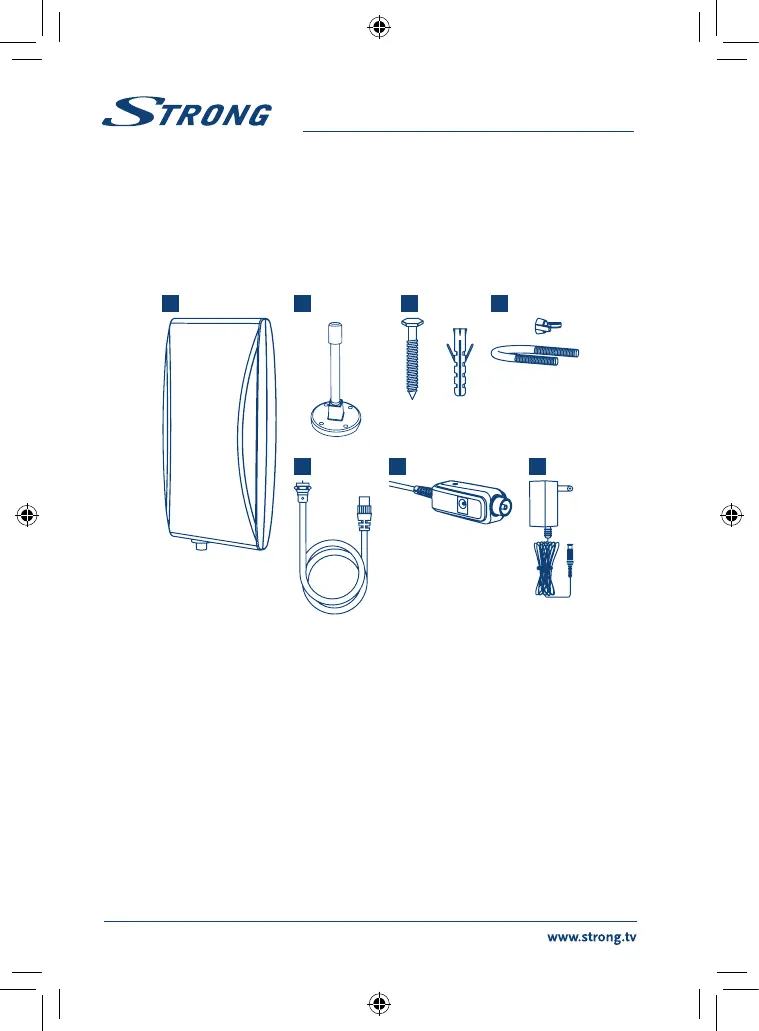

2.0 PACKAGE CONTENTS
1. Active DVB-T/T2 Outdoor Antenna.
2. Multidirectional base (exible).
3. Wall mounting kit.
4. Pole Mounting kit.
5. Coaxial Cable.
6. Power Injector.
7. AC/DC adapter.
Fig. 1
1
6
75
2 3 4
3.0 SAFETY NOTES
Be careful working outside with overhead power lines to avoid electrocution
Use only originally supplied accessories.
Before you make any connections: disconnect your equipment from the 230 V main power to
avoid electric shocks during installation.
Short circuit in the coaxial cable MAY permanently damage your Digital Receiver.
Never use AC adapters with incorrect specications. This MAY permanently damage your
antenna or Digital Receiver. Always check voltages and polarisation of the adapter before
connecting it.
3
English
4.0 CONNECTING THE ANTENNA
Preparations
1. Check if the broadcast in your country is horizontally or vertically polarised.

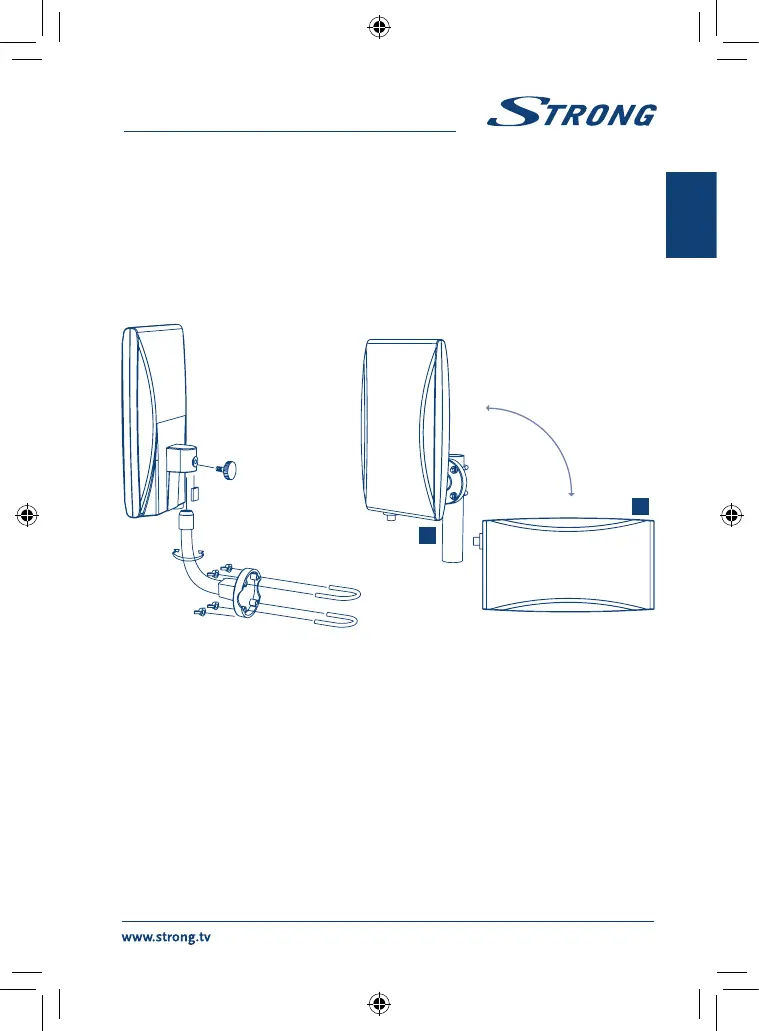

2. Fix the antenna to the multi-directional base as shown in the pictures (the bracket is exible
and can be bent to the shape shown in Fig. 2)
3. Depending on how the signals are broadcasted (horizontally or vertically) you will have to
mount your antenna in the horizontal or vertical position for best performance.
4. Your antenna needs 5 V power to work properly. Check in the menu or user manual of your
terrestrial receiver to see if it supports the needed 5 V power.
Fig. 2 Fig. 3
H
V
V: (Vertical-Broadcast) antenna mounted
H: (Horizontal-Broadcast) antenna mounted
4.1 To power the antenna with Digital Terrestrial Receiver
1. Turn on your TV set and turn on your Digital Terrestrial Receiver.
2. Press the “MENU” button on the remote control of your Digital Terrestrial Receiver. Check in
the Set-Up or Installation menu of your receiver to see if the antenna power is set to “ON”.
(Normally this is indicated in the menu as ANT power, Ext Antenna power or Active antenna
power.) Refer to the user manual of your Digital Terrestrial Receiver.
3. Once you are sure that your receiver supports 5 V antenna power, switch o your receiver
and disconnect it from the 230 V main power.
4. Take the supplied “long” coaxial cable and connect the end with the “F connector” (screw type
connector) to the antenna. Carefully press the inner lead of the cable into the Female-F connector at
the back of the antenna. Turn the covering nut clockwise with your HANDS until it is xed.
5. Connect the IEC Male end to your receiver. Normally the input connector on your receiver is
marked as “ANT” (in) or as “RF” (in). Refer to the user manual of your Digital Terrestrial Receiver.
6. Connect your receiver to the 230 V main power and switch ON your receiver and TV set.
7. Proceed to 5.0 “Antenna installation”.
