Sida 1/10
STA 01-398 Lowering Plate
CAUTION: Use leather work gloves and safety glasses when handling the box, when
opening the box and when assembling the product.
HAZARD: Strapping is under tension and can jump when cut. Strapping and Buckles,
Protective Edging, Plastic Walls, Plastic Caps and Product Components and parts should be
handled with care. Work slowly, use extra caution to avoid any sharp edges.
Additional Tools may be Required: The essential tools are included. The following tools
are recommended to be on site: Box Cutter, Scissors, Screw Driver, Plyers or Adjustable
wrench, Metric Hex / Allen Key set
STA 01-398 Lowering Plate
STA-01-398 Lowering Plate
Assembly
Refer to Diagram A. Remove the end cap of the STA-01-398 circular arm tube by turning it counter clockwise.
Locate and Loosen the hex head screws with supplied hex key, in the rectangular arm. Insert the circular arm
tube into the hole of the rectangular arm and tighten the hex head screw clockwise with supplied hex key. Re-
place the end cap of the STA-01-398 circular arm tube by turning it clockwise. The finished assembly will look
like Diagram B.
The STA-01-398 Lowering Plate can be mounted onto the camera stands horizontal arm in the following posi-
tions: 0 degrees pointing up, 60 degrees pointing forward, 120 degrees pointing forward and downward, 180
degrees pointing down, 240 degrees pointing backward and downward, 300 degrees pointing backward and
upward. The circular tube can be mounted on either side of the clamp plate pointing toward the center column
or away from the center column.
The Camera Head Mount Plate can be re-positioned using the hand lever. It can be re-positioned anywhere
from 0-360 degrees around the circular arm.
*CAUTION:
When using the STA-01-398 Lowering Plate the load capacity [camera, etc.] must be reduced.
The nominal load capacity must be reduced by using the following formula:
(STA supplied published stand load capacity / (300mm + Length of originally supplied STA Horizontal Arm/Bar
in mm )/ (Length of originally supplied STA Horizontal Arm/Bar in mm)) = new full extension load capacity
( STA-C01-360= 10kg ) / (300mm+700mm / 700mm ) = 7 Kg / 15.4 lbs

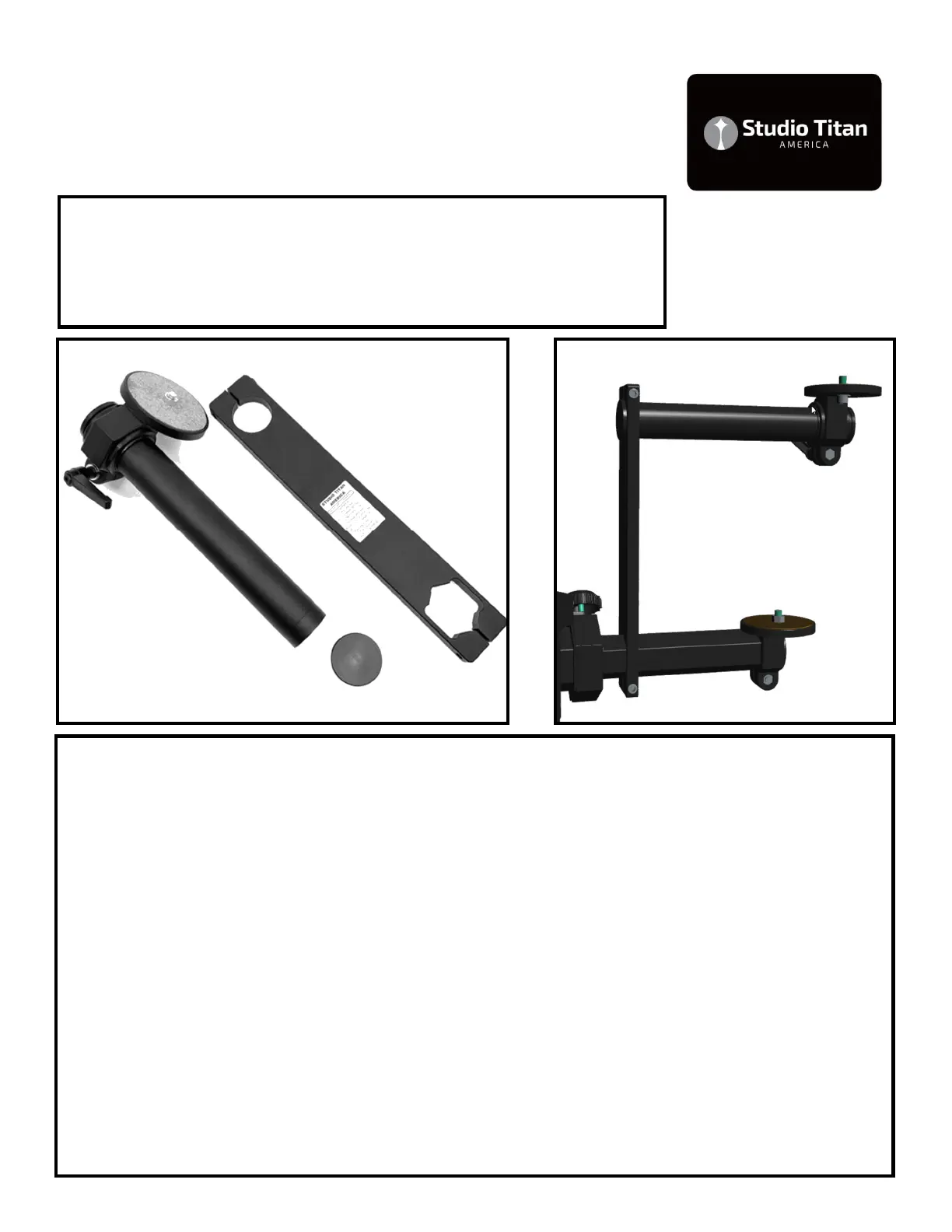

Diagram A
Diagram B
STA 01-398 Lowering Plate
STA-01-398 Lowering Plate
Assembly to STA-01-SERIES [NON-
MK2]
Reference the original Studio Stand Manual and images on this page to identify the major components. Tighten
both the Vertical and Horizontal carriage brake knobs Clock wise on the studio stand. Diagram C NON-MK2:
Loosen the head mount plate and move it toward the centre of the stand to expose the metric hex grub screw
under the end of the Horizontal Arm / Bar. With supplied metric hex key, turn counter clockwise and remove
the screw. Remove the end cap and remove the head mount plate. Attach the STA-01-398 Lowering Plate onto
the Horizontal Arm / Bar and tighten the hex head screw in the rectangular arm clockwise with supplied hex
key. Replace the camera plate and tighten the screw clockwise with supplied hex key. Replace the end cap
and gently tighten the metric grub screw clockwise with supplied hex key.
The STA-01-398 Lowering Plate can be mounted onto the camera stands horizontal arm in the following posi-
tions: 0 degrees pointing up, 60 degrees pointing forward, 120 degrees pointing forward and downward, 180
degrees pointing down, 240 degrees pointing backward and downward, 300 degrees pointing backward and
upward. The circular tube can be mounted on either side of the clamp plate pointing toward the center column
or away from the center column.
The Camera Head Mount Plate can be re-positioned using the hand lever. It can be re-positioned anywhere from
0-360 degrees around the circular arm.
*CAUTION:
When using the STA-01-398 Lowering Plate the load capacity [camera, etc.] must be reduced.
The nominal load capacity must be reduced by using the following formula:
(STA supplied published stand load capacity / (300mm + Length of originally supplied STA Horizontal Arm/Bar
in mm )/ (Length of originally supplied STA Horizontal Arm/Bar in mm)) = new full extension load capacity
( STA-C01-360= 10kg ) / (300mm+700mm / 700mm ) = 7 Kg / 15.4 lbs
Diagram C
