Sida 1/60

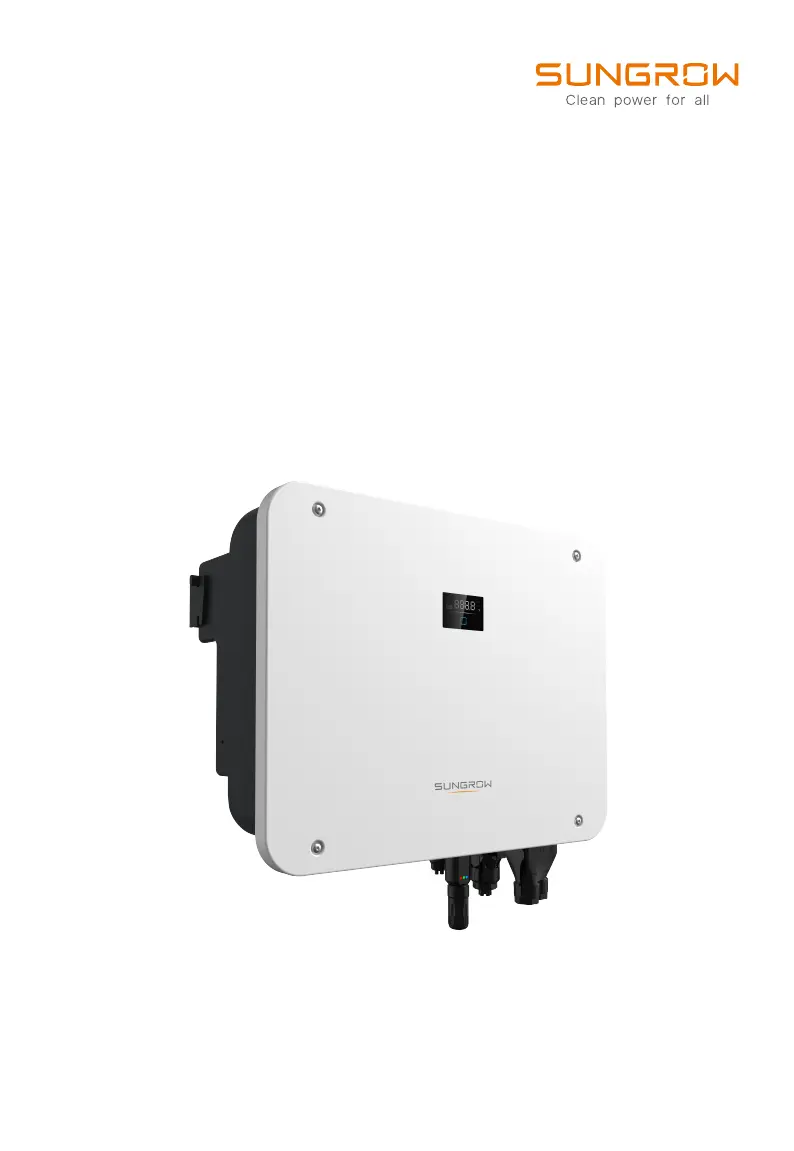

3-Phase Hybrid Inverter

SH5T / SH6T / SH8T / SH10T

SH12T / SH15T / SH20T / SH25T

SH5-25T-QIMUL-Ver16-202411

Quick Installation Guide

Backup Wiring Diagram (For AU / NZ)

SH5/6T

63A/800V DC breaker *

25-63A/400V TypeB AC breaker**

32-63A/400V TypeB AC breaker**

Depends on loads

Depends on household loads

and inverter capacity

30mA RCD (Comply

with local regulation)

ｖ

Model

SH8/10/12T

Note: * If the battery is integrated with a readily accessible internal DC breaker, no additional DC breaker is required.

Note: The values in the table are recommended values and can be set to other values according to actual conditions.

ｗ

ｘ

ｙｚ｛｜

The PE wire of Backup

terminal is not

required for Australia

and New Zealand

Distribution Box

GRID

LOAD

Grid

N-Bar

PE-Bar

Sungrow

Smart

Energy

Meter

Normal

Loads

Backup

Loads

COM / Meter

RCD

Battery

②

③

④

⑤

⑥

①

⑦

E-N Link

④

RCD

Surge protection

(

Optional

)

Main

Meter

Inverter

SH15T

SH20/25T

63A/400V TypeB AC breaker**

Mpbet!Dpoofdufe!up!uif!Hsje䯤

Depends on loads

Note: **Type B is recommended, and Type C is Compatible.Select an MCB with an appropriate rated current based on the actual requirements, including the overall

wiring scheme, the number of loads, and the inverter's load-carrying capacity.
