S450_800_1600S-QIMUL-Ver12-202406

WWW.SUNGROWPOWER.COM

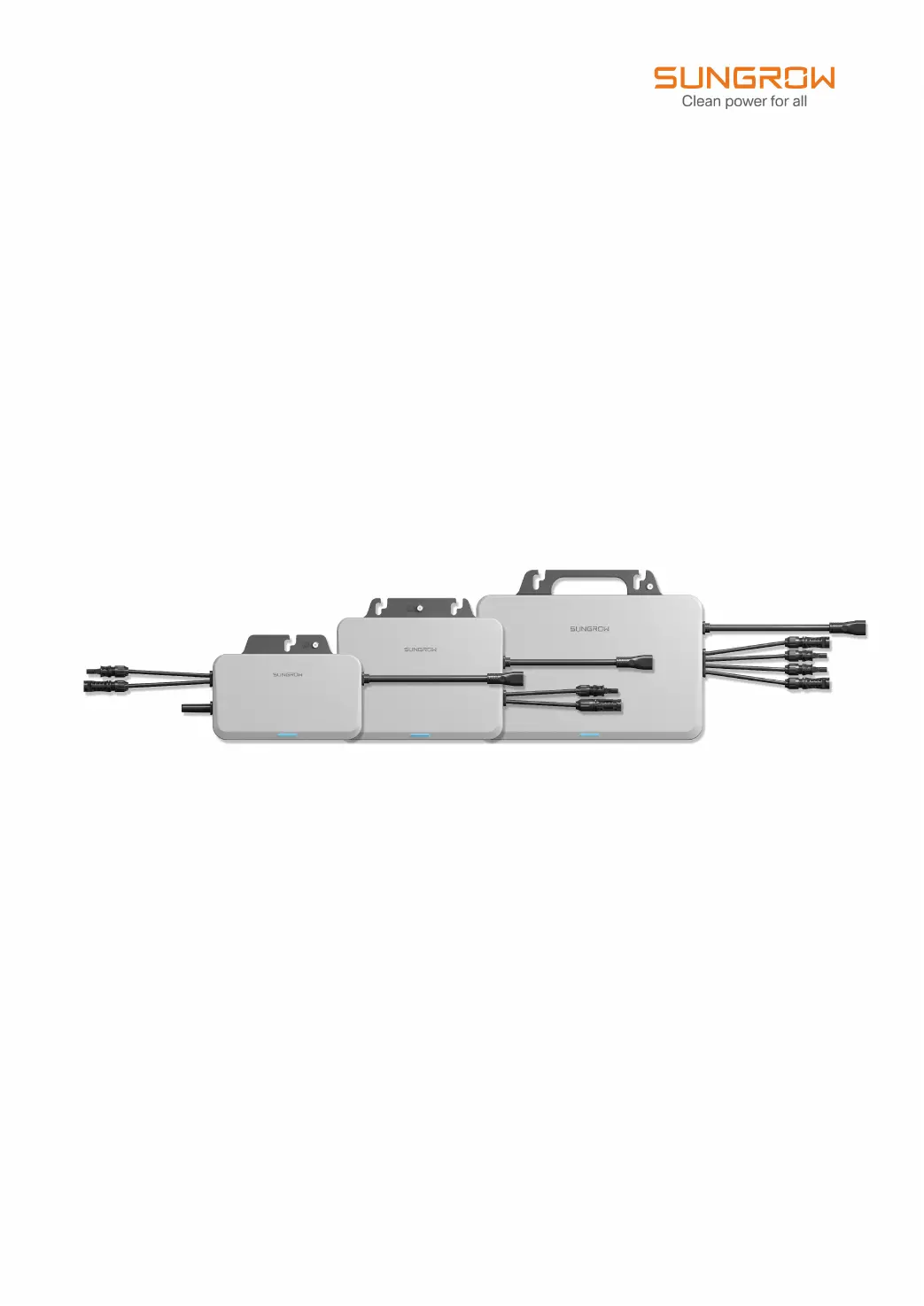

S450S / S800S / S1600S

Quick Installation Guide

Single-Phase Microinverter

The inverter has been designed and tested strictly according to international safety regulations. Read all

safety instructions carefully prior to any work and observe them at all times when working on or with the

inverter. Incorrect operation or work may cause:

Please follow the safety instructions related to the PV strings and the utility grid.

injury or death to the operator or a third party;

damage to the inverter or other properties.

1. Contents may be periodically updated or revised due to product development. The information in this guide

is subject to change without notice. In no case shall this guide substitute for the user manual or related

notes on the device.

6. Any violation could result in personal death or injury or device damage, and will void the warranty.

2. Make sure to read over, fully understand and strictly follow the detailed instructions of the user manual and

other related regulations before installing the equipment. The user manual can be downloaded by visiting

the website at http://support.sungrowpower.com/; or it can be obtained by scanning the QR code on the

front of the microinverter or the back cover of this guide.

5. The cable used must be intact and well insulated. Operation personnel must wear proper personal

protective equipment (PPE) all the time.

4. Before installation, check that the package contents are intact and complete compared to the packing list.

Contact SUNGROW or the distributor in case of any damaged or missing components.

3. All operations can be performed only by qualified personnel, that must be trained for installation and

commissioning of electrical system, as well as dealing with hazards, have knowledge of the manual and of

the local regulations and directives.

Safety

7. Incorporates product approved by Anatel under number 23376-23-11568.

To learn more about the product network security vulnerability response process and vulnerability disclosure,

please scan the QR code below or visit the following website:

https://en.sungrowpower.com/security-vulnerability-management

Security Declaration

PV strings will produce electrical power when exposed to sunlight and can cause a lethal voltage and an

electric shock.



Only qualified personnel can perform the wiring of the PV panels.



Lethal voltage!

DANGER

All electrical connections must be in accordance with local and national standards.

Only with the permission of the local utility grid company, the inverter can be connected to the utility grid.



Risk of inverter damage or personal injury

Do not pull out the PV connectors and AC connector when the inverter is running. Disconnect the AC

circuit breaker . Wait 10 minutes for the internal capacitors to discharge. Verify that there is no voltage or

current before pulling any connector.



WARNING

All the warning labels and nameplate on the inverter body:

must be clearly visible;



must not be removed, covered or pasted.



WARNING

Risk of burns due to hot components!

Do not touch any hot parts (such as the heat sink) during operation.



CAUTION

Only qualified personnel can perform the country setting. Unauthorized alteration may cause:

A breach of the type-certificate marking.

Risk of inverter damage due to electrostatic discharge (ESD)!

By touching the electronic components, you may damage the inverter. For inverter handling, be sure to:

avoid any unnecessary touching.



wear a grounding wristband before touching any connectors.



NOTICE

Do not open the enclosure at any time. Unauthorized opening will void warranty and warranty claims and

in most cases terminate the operating license.



When the enclosure lid is removed, live components can be touched which can result in death or serious

injury due to electric shock.



Only operate the inverter when it is technically faultless and in a safe state.



Operating a damaged inverter can lead to hazardous situations that can result in death or serious

injuries due to electric shock.



Lethal danger from electric shock due to possibly damaged inverter
