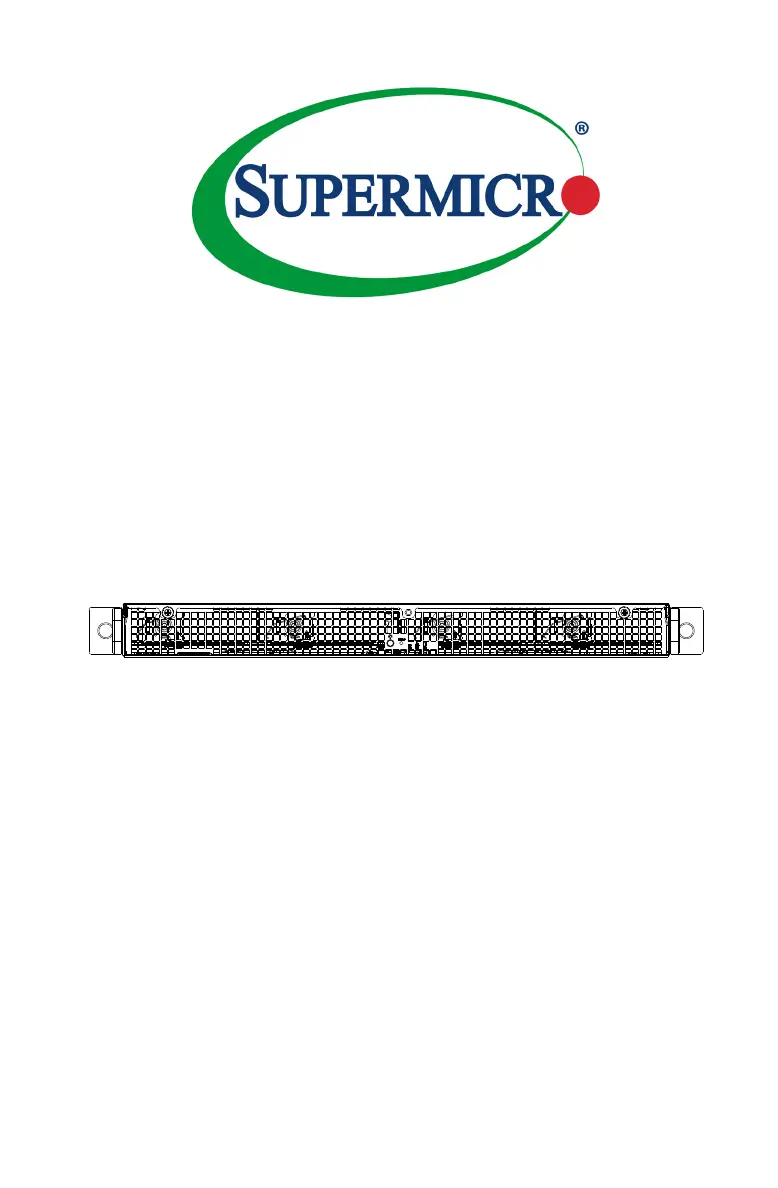

SUPER STORAGE SYSTEM

5018D2-AR12L

5018D4-AR12L

5018D8-AR12L

USER’S MANUAL

1.0b

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.

The vendor assumes no responsibility for any inaccuracies that may be contained in this document,

makes no commitment to update or to keep current the information in this manual, or to notify any

person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product

described in this manual at any time and without notice. This product, including software and docu-

mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license.

Any use or reproduction of this product is not allowed, except as expressly permitted by the terms

of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,

SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO

USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY

HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE

COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH

HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa

Clara County in the State of California, USA. The State of California, County of Santa Clara shall

be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all

claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A

digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial environ-

ment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the manufacturer’s instruction manual, may cause harmful interference

with radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warn-

ing applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate

Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this

product may expose you to lead, a chemical known to the

State of California to cause birth defects and other repro-

ductive harm.

anual Revision 1.0b

Release Date: August 3, 2016

Unless you request and receive written permission from Super Micro Computer, Inc., you may not

copy any part of this document.

Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark

holders.

Printed in the United States of America

Produktspecifikationer

Varumärke:	Supermicro
Kategori:	Server
Modell:	SuperServer 5018D4-AR12L
Vikt:	14500 g
Bredd:	437 mm
Djup:	813 mm
Höjd:	43 mm
Strömförsörjning:	400 W
LED-indikatorer:	Nätverk
Processorfamilj:	Intel
Trusted Platform Module (TPM):	Ja
Intel® Virtualization Technology (Intel® VT):	VT-d, VT-x
Minnesspänning:	1.2 V
Kompatibla processorer:	Intel® Xeon®
Antal processorer som stöds:	1
Antal lagringsenheter som stöds:	12
Minnestyper som stöds:	DDR4-SDRAM
Antal installerade redundanta nätaggregat:	1
Systembusstyp:	QuickPath Interconnect (QPI)
BIOS-typ:	AMI
ACPI-version:	5.0
Produktens färg:	Silver
Typ av ethernet-gränssnitt:	Fast Ethernet, Gigabit Ethernet
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Antal LAN (RJ-45) anslutningar:	2
Temperatur vid drift:	10 - 35 ° C
Temperaturintervall (förvaring):	-40 - 70 ° C
Intervall för relativ operativ luftfuktighet:	8 - 90 %
Fuktighet (förvaring):	5 - 95 %
processorsockel:	BGA 1667
Hållbarhetscertifiering:	RoHS
AC-inspänning:	100 - 240 V
Fläktdiameter:	40 mm
Nätverksansluten (Ethernet):	Ja
Växelström Frekvens:	50 - 60 hz
BIOS-funktioner:	SMBIOS 2.8, PCI 3.0, UEFI
På / av-knapp:	Ja
Antal USB 2.0 anslutningar:	5
RAID-nivåer:	0, 1,2, 3,5, 10
Icke ECC:	Ja
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar:	2
Moderkortets chipset:	Intel® SoC
Ingående ström:	6 - 3 A
Antal fläktar:	5 fläkt/-ar
Kvalitet på VGA (D-Sub) porten:	1
PCI Express-kortplatser version:	3.0
Ombord grafikkort modell:	Aspeed AST2400
Storlekar som stöds på lagringsenhet:	3.5 "
Stöd för redundant strömförsörjning (RPS):	Ja
Lagringsenhetsgränssnitt som stöds:	M.2, Serial Attached SCSI (SAS)-2, Serial ATA III
ECC:	Ja
Trusted Platform Module (TPM)-version:	2.0
Chassityp:	Rack (1U)
Antal SATA III kontakter:	4
Antalet DIMM-platser:	4
Som stöds DIMM-modul kapacitet:	4GB, 8GB, 16GB, 32GB
Stöd för UDIMM klockfrekvenser:	1600,1866,2133 MHz
Hårddisk hot swap:	Ja
Stöd för processorsystembussar:	2200 MHz
Intelligent Platform Management Interface (IPMI) stöd:	Ja
PCI Express x8 kortplatser:	1
Maximalt RDIMM minne:	128 GB
Maximalt UDIMM minne:	64 GB
Stöd för RDIMM klockfrekvenser:	1600,1866,2133 MHz
IPMI LAN (RJ-45)-port:	Ja
Bakplan stöder:	Ja
Likspänning ut (+12 V):	33 A
Likspänning ut (+5 V):	3 A
