Suzuki GSR750 Bruksanvisning
Läs nedan 📖 manual på svenska för Suzuki GSR750 (6 sidor) i kategorin Cykel. Denna guide var användbar för 2 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/6
1 OF 6VISIT SUZUKIMOTORCYCLES.COM.AU
SUZUKI MOTORCYCLES AUSTRALIA

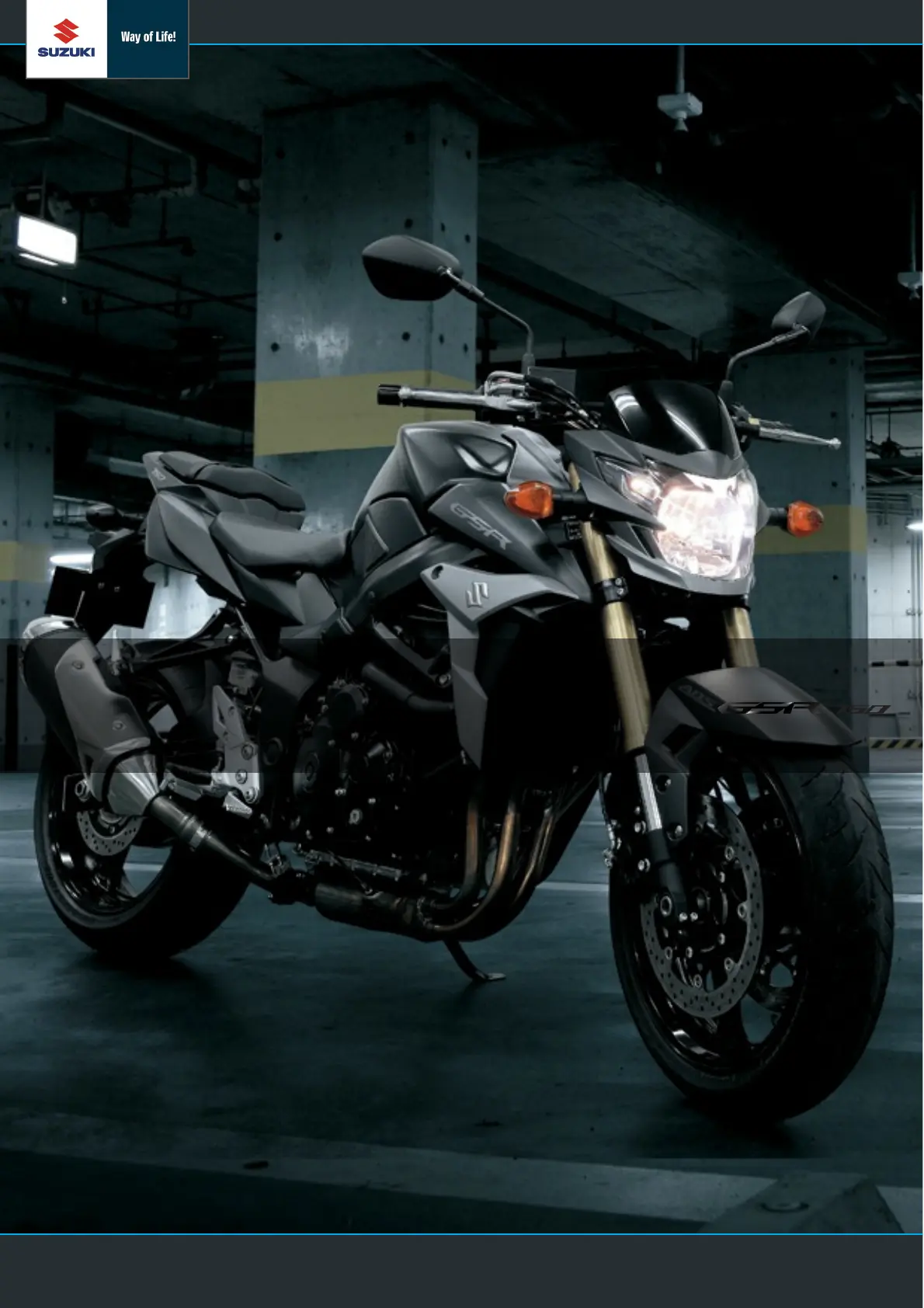

GSR750
2 OF 6
GSR750
A fusion of technology, fuel-injected performance and chiselled styling, the 2016 Suzuki GSR750 is built to turn heads for riders who wish to stand
out from the pack.
The Suzuki GSR750 is ideal for cruising the streets or weekend blasts, as it combines a powerful engine and quality components, with strong
angular lines across the whole machine.
Developed from the powerplant of the legendary Suzuki GSX-R750, the GSR750 features a 749cc, four-cylinder, fuel-injected DOHC engine
resulting in broad powerband with loads of low-end torque and dynamic mid-range power.
Providing impressive stopping power, the GSR750 is fitted with 310mm dual front disc brakes and a 240mm rear disc brake.
A sculpted vented front fender and headlight shell and chiselled aggressive front bodywork complete its head-turning looks. Gold coloured
anodized upper tubes on the inverted KYB front forks and exposed 4 into 1 exhaust system highlight the GSR750’s styling.
Take it to the streets on the GSR750.
$11,490
RIDE
AWAY
VISIT SUZUKIMOTORCYCLES.COM.AU
SUZUKI MOTORCYCLES AUSTRALIA
METALLIC MATTE BLACK
3 OF 6
KEY FEATURES
In technical terms, the engine is a liquid-cooled, four-cylinder DOHC four-stroke with a
bore and stroke
of 72 mm x 46 mm and four valves per cylinder. The valves are set at a very narrow
included angle,
allowing the combustion chamber to be very compact, with the intake valves each
measuring 27.2 mm in
diameter and the exhaust valves measuring 22 mm in diameter. The compression ratio is
12.3:1, with
lightweight cast aluminum-alloy pistons. Those details improve combustion efficiency, and
more
complete combustion is the key to better low-rpm and mid-range response, acceleration
and fuel
mileage, as well as reduced emissions. The engine powers an integrated close-ratio six-
speed
transmission.
The changes centered around modified camshaft profiles and revised intake and exhaust
tracts. When all the tuning and testing and refining was finished, the result was a unique
powerplant well suited for the GSR750 mission, producing strong, nearly linear torque
starting at lower-rpm.
Carefully sculpted bodywork with highlights including a vented front fender, moulded
mirrors, chiselled fuel tank, textured tank side panels, and an angular tail section with
integrated LED taillight.
A unique chassis incorporates the best qualities of a compact tubular girder streetbike
frame and a twin-spar sportbike frame, and is built using a combination of D-section and
round-section steel tubes for an especially smooth ride. Wheelbase is 1,450 mm with
25°15' of rake and 102 mm of trail, again contributing to a comfortable ride. The black frame
is slim and narrow in the mid-section (where the seat meets the fuel tank), making it more
comfortable for the rider to put a foot down while at a stop sign.
VISIT SUZUKIMOTORCYCLES.COM.AU
SUZUKI MOTORCYCLES AUSTRALIA
Produktspecifikationer
| Varumärke: | Suzuki |
| Kategori: | Cykel |
| Modell: | GSR750 |
