Sida 1/4
www.sven.fi

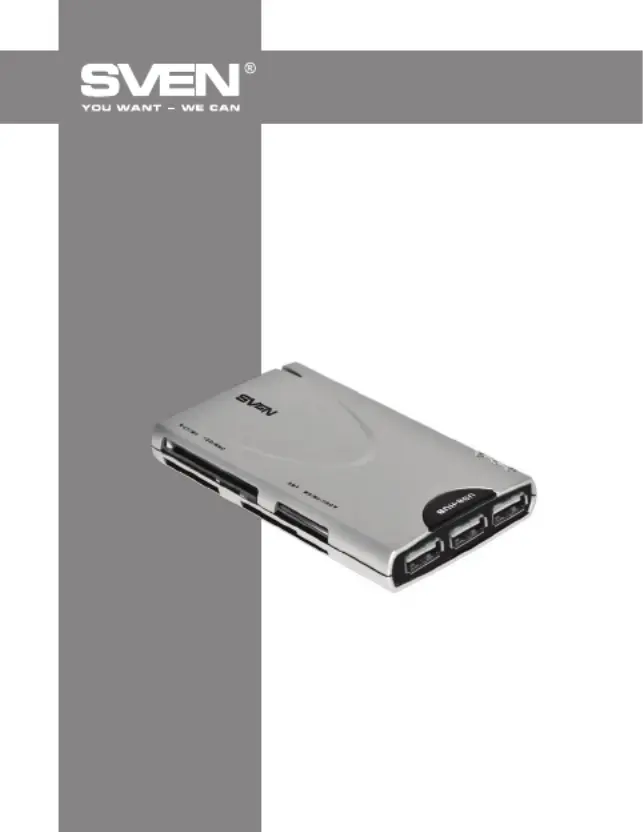

USER’S MANUAL
Card Reader with
3-port USB Hub
HB-AC-120
Thank you for purchasing SVEN PC card reader!
USAGE
Sven HB- -120 external card reader is designed for reading/writing АС
memory cards. It can also be used as a USB hub.
SAFETY PRECAUSIONS
• Do not disconnect the device while reading/writing a memory card to avoid
data loss.
• Insert a memory card into the slot according to the table below. Use one
memory card at a time only!
PACKAGE CONTENTS
• Card reader – 1 рс
• PC connection cable – 1 рс
• User’s manual — 1 рс
• Warranty card — 1 рс
SPECIAL FEATURES
• Compatible with USB connectors supporting Plug & Play technology
• Supports most modern memory cards: MS, SD/MMC, XD/SM, CF/MD
etc.
SYSTEM REQUIREMENTS
• Available USB 1.1 or 2.0 port.
• OS Windows 2000/XP/Vista/7 or up.
Technical support is on www.sven.fi
ENG
User’s Manual
HB-AC-120
ENG
Card Reader with
3-port USB Hub
DESCRIPTION
a SD slot
b CF slot
c SM/XD slot
d MS slot
e USB hub connection LEDs
f Reading/writing LED
g DC power source connection
jack
h Mini USB port
i USB hub ports
OPERATION MODE LED
• If the device is connected to a USB port and the memory card is inserted
into the slot correctly, LED will light up.f
• During reading/writing LED ashes.ffl
• If you connect your equipment to USB hub ports i e, connection LEDs
will light up.
TROUBLE SHOOTING
• If the device does not operate after its connection to a USB port, make
sure the memory card is inserted into the slot correctly (see table).
Fig. 1. Card reader construction
(front, left, right views)
Slot
SM Slot
MS Slot
CF Slot
SD Slot
Memory cards supported
SM/XD, etc.
MS, MS-DUO, MS Pro, MS PRO-Duo, MS MagicGate,
MS Pro MagicGate, MS-Duo MagicGate, MS Pro-DUO
MagicGate, etc.
CF I/II, CF Ultra II, CF Extreme III, MD, Magicstor, etc.
SD, miniSD, MMC-I, MMC-II, MMC4.0, MMC Dual Voltage,
RS-MMC, RS-MMC Dual Voltage, RS-MMC 4.0, etc.
f
a
g h i
b c d e
