Sida 1/12

www.sven.fi

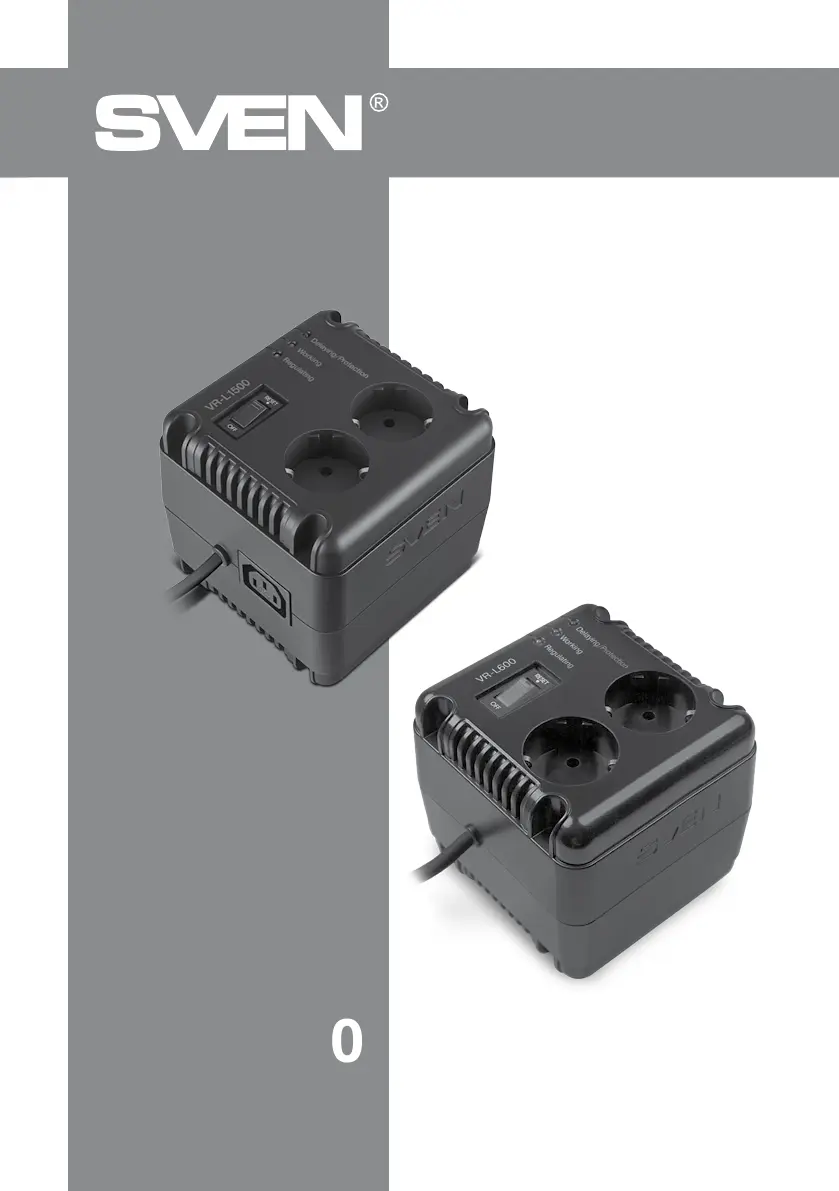

USER MANUAL

Automatic Voltage Regulator

VR-L600

VR-L1000

VR-L1500

ENG

Automatic Voltage Regulator

Congratulations on your purchase of Sven Automatic Voltage Regulator!

Please read this Operation Manual before using the unit and retain this Operation Manual inasafe

place for future reference.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted eorts to make this Manual more exact, some discrepancies may occur.

Theinformation in this Manual is given on «as is» terms. The author and the publisher do notbear

any liability to a person or an organization for loss or damage which has arisen from the infor-

mation contained in this Manual.

CONTENTS

ENG 2

...............................................................................................................................................

1. UNPACKING 2 ............................................................................................................................

2. PACKAGE CONTENTS 2

...............................................................................................................

3. SAFETY PRECAUTIONS 3

............................................................................................................

4. TECHNICAL DESCRIPTION 3

......................................................................................................

5. INSTALLATION AND OPERATION GUIDE 3

...............................................................................

6. TROUBLESHOOTING 4

...............................................................................................................

7. TECHNICAL SPECIFICATIONS 5

..................................................................................................

RUS 6

................................................................................................................................................

1. UNPACKING

• Unpack the device carefully. Make sure there are no accessories left in the box. Check up

thedevice for damage; if the product was damaged during transportation, address the rm

which carried out the delivery; if the product functions incorrectly, address the dealer at once.

• Shipping and transportation equipment is permitted only in the original container.

• Does not require special conditions for realization.

• Dispose of in accordance with regulations for the disposal of household and computer equipment.

2. PACKAGE CONTENTS

• Automatic Voltage Regulator — 1 pc

• Operation Мanual — 1 pc

• Warranty card — 1 pc

Technical support is on www.sven..

ENG

VR-L600, VR-L1000

VR-L1500

User Manual

3. SAFETY PRECAUTIONS

• When the input voltage is higher than 290V, failure of the AVR is possible.

• Do not operate the AVR in the environment with temperatures other than allowed in Technical

Specications.

• The case heats up during operation. Operate the AVR in the environment with good air con-

vection only.

• The socket for connection should be located close to the device and be easily accessible.

• In case of emergency, switch o the AVR and unplug the power cord.

• Do not open the device or make repairs by yourself.

• Do not connect household appliances with power load higher than allowed.

z Connection of electric heating devices is forbidden.

Caution! High voltage inside! To avoid the risk of electric shock

donot open or touch elements inside.

4. TECHNICAL DESCRIPTION

VR-L600, VR-L1000 and VR-L1500 ― these are the entry level models of the range of stabilizers

(AVR) Sven, that protect any electronic equipment from high or low voltage, pulse interference

and dangerous high voltage. Maximum power capacity of VR-L600, VR-L1000 and VR-L1500

isrespectively 200 watts/320 watts/500 watts.

Automatic Voltage Regulators are designed for the operation of electrical appliances in regions

with unstable voltage. Modern electronic equipment capacity has the minimum required mar-

gin of resistance to voltage instability network settings, but constant work in conditions of low

or high line voltage signicantly reduces the life of any consumer electronics.

Surge VR-L600, VR-L1000 and VR-L1500 ensure the optimal mode of operation of your equipment.

Special features

• Microprocessor control.

• Wide input voltage range.

• Improved accuracy of the output voltage stabilization.

• Consumer appliances protection against the high and low voltage.

• Protection of AVR against short circuit and overload.

• Thermal protection of autotransformer.

• Built-in surge protector.

• LED indication of operating modes.

• Combined with switch automatic fuse.

5. INSTALLATION AND OPERATION GUIDE

Attention! Before connecting the regulator, make sure that all consuming devices connected

to it are o, and stabilizer switch is set to “OFF” position.

Attention! When choosing an AVR, it is necessary to consider that reduction of input voltage

increases value of input current, which means that maximum power of AVR is reduced too!
