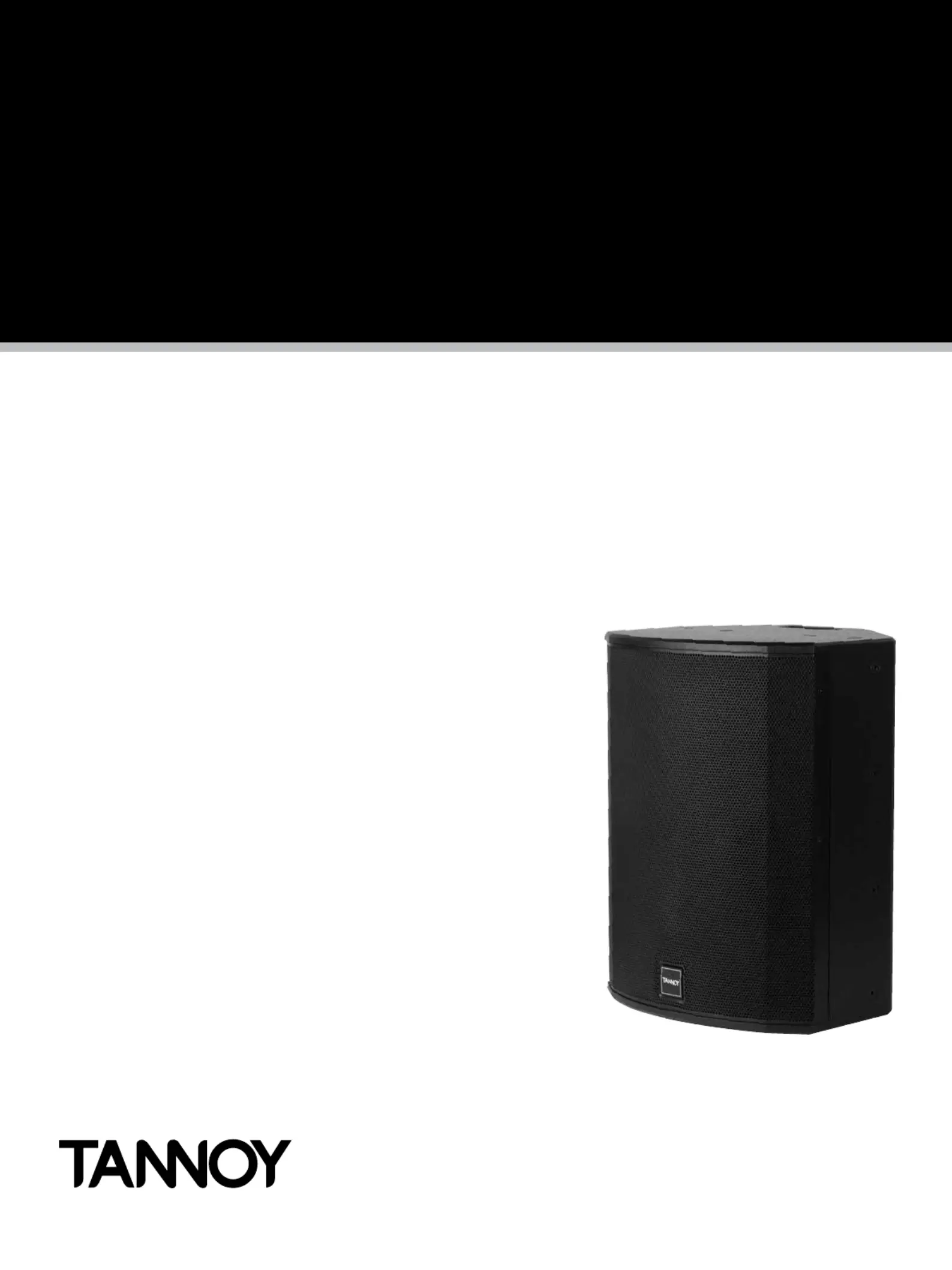

VXNET SERIES
Professional Ioudspeakers
Quick Start Guide
Important Safety Instructions
The lightning ash with arrowhead symbol within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage " within the
product's enclosure that may be of sucient magnitude
to constitute a risk of electric shock to persons.
1. Readtheseinstructions.
2. Keeptheseinstructions
3. Heedallwarnings.
4. Followallinstructions.
5. Donotusethisapparatusnearwater.
6. Cleanonlywithadrycloth.
7. Do not block any ventilation openings. Install in accordance
withthemanufacturer’sinstructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers that
produceheat.
9. Onlyuseattachments/accessoriesspeciedbythemanufacturer.
10. Useonlywithacart,stand,tripod,bracket,ortablespeciedby
the manufacturer, or sold with the apparatus. When a cart is
used,usecautionwhenmovingthecart/apparatuscombination
toavoidinjuryfromtip-over.
11. Referallservicingtoqualiedservicepersonnel.Servicing
isrequiredwhentheapparatushasbeendamagedinanyway,
suchaspower-supplycordorplugisdamaged,liquidhasbeen
spilled or objects have fallen into the apparatus, the apparatus
hasbeenexposedtorainormoisture,doesnotoperatenormally,
orhasbeendropped.
12. Useonlywiththecart,stand,tripod,bracket,ortablespecied
bythemanufacturer,orsoldwiththeapparatus.Whenacartis
used,usecautionwhenmovingthecart/apparatuscombination
toavoidinjurtfromtip-over.
13. Unplug this apparatus duringlightning storms or when unused
forlongperiodsoftime.
14 Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way,
suchaspower-supplycordorplugisdamaged.liquidhasbeen
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally,orhasbeendropped.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
SAFETY WARNING
Donotremoveanycovers,loosenanyxingsorallowitemstoenterany
aperture.
SAFETY WARNING
Objectslledwithliquidsshouldnotbeplacedonthisapparatus.
AVERTISSEMENT DE SECURITE
Neretirezpaslescouvercles,nedesserrezpaslesxationsetnelaissez
aucunepièces’introduiredanslesouvertures.
AVERTISSEMENT DE SECURITE
Neplacezpasd’objetscontenantduliquideàproximitédel’appareil.
Introduction
DesignedandengineeredbyTannoy,theVXNETSeriescomprisesarangeofpowered(active)loudspeakersfordemandingprofessionalandcommercial
soundapplications.EachincorporatesacclaimedDualConcentricdrivertechnologyintandemwithon-boardpoweringVNETpowermodule.
ThisQuickStartGuidepresentsonlytheessentialinformationrequiredtoproperlyunpack,connectandplacetheunitinoperation.Pleaseconsultthefull
VXNETSeriesUserManualforadditionalinformationonsystemconguration,limitingfunctions,riggingandsafetyprocedures,andwarrantycoverage.
TheVXNETUserManualisavailableatwww.tannoypro.com.
Unpacking and Visual Checks
Every Tannoy VXNET product is carefully tested and
inspectedbeforebeingpackagedandleavingthefactory.
Afterunpackingyourloudspeaker,pleaseinspectforany
exterior physical damage, and save the carton and any
relevant packaging materials in case the loudspeaker
again requires packing and shipping. In the event that
damagehasbeensustainedintransit,pleasenotifyyour
dealerimmediately.
Rear Interface Panel
XLR FEMALE AUDIO INPUT - This is a lockable XLR
lineinputsocketforconnectiontotheaudiosource.Fully
balanced:pin2hot(+),pin3cold(+),&pin1ground.
XLR MALE AUDIO LINK - This is a lockable XLR line
outputsockettolinkadditionalspeakers.Fullybalanced:
pin2hot(+),pin3cold(+),&pin1ground.
ROCKER POWER SWITCH–TurnsACpower
ontotheunit(100V–240V)
FUSE HOLDER–Replaceonlywith10A230V
anti-surgefuse.TannoypartNumber34610919.
AC MAINS CONNECOR–NeutrikPowercon
mainsconnector(supplied)
USER DSP ON/OFF SWITCH
POWER LED–BlueLEDindicateswhenpower
hasbeenappliedtothespeaker.
LIMIT/NETWORK FOUND LED–Alsomounted
onthefrontofthecabinet.Thiscanbeseen
clearlyfrombehindthegrillwhenactivated.
SIGNAL PRESENT LED
System Configuration
All loudspeakers in the VXNET range are integrated
designswhichincludesystemspecicEQandprotection
circuitry, without the need for external amplication. For
room equalization, delay and other commissioning or
setup functions, we recommend you use a Vnet SC1
or TDX1Digital Controller. Pleaserefer tothe fullVXNET
Seriesmanual.
AC Power Requirements
VXNET products are equipped with Neutrik powerCON
mainsconnectorswhichmatewiththeNeutrikNAC3FCA
Cable connector, providing quick lock with a securing
leveratpower-in.
This AC mains connector is supplied with each VXNET
product.
VXNET module in VXNET loudspeakers has a universal
power supply. It will operate on any AC mains supply
from100Vto250V(+/-10%)at50or60Hz,although
withreduced poweroutput capability at the low voltage
extremes. This allows continued operation even when
using long, thin power cables, or when powered from
portablegeneratorsthatareunabletomaintainfullnominal
voltage.
Cooling
Do not install this equipment in an enclosed space. Do
notlimitfreeventilationandmovementofairaroundthe
back panel. Ensure that there is at least 100 mm (4”)
of space around all sides of the product for ventilation.
VXNET products do not have cooling fans; the highly
efcient switch mode power supply and proprietary
ClassDoutputstagehavelowcurrentdrawandtherefore
requireonly the convection cooling providedby the rear
panelheatsink.
