Installation manual
SMS/GSM Alarm Wireless Starter kit
UP TO 159
ACCESSORIE
S
EN
2
Features
- GSM transmitter
- Supports up to 10 remote controls, 99 wireless accessories and 50 RFID tags
- Can store up to 5 phone numbers, 5 SMS numbers
- Arm / disarm the system by SMS, phone call, or App (on iOS or Android)
- Can be disarmed by RFID tag
- Call function from the panel
- SMS alerts for power failure, power recovery and low battery
- Audio surveillance of the site from distance
- 2 x 800mAh lithium batteries included (8h battery life in standby mode)
Specications
Product name
I-ALARM-KIT001
SKU
I-ALARM-KIT001
Control panel power supply
Input: AC 110-240V / 50-60 Hz
Output: DC 12V / 800 MA
GSM working frequency
850 / 900 / 1800 / 1900 mHz
Radio-frequency
433.92MHz (±75KHz)
Transmission distance
80m in open space
Standby current
80ma
Alarm current
300mA
Backup batteries
Lithium Batteries: 3.7V / 800 mAh x 2
(BL-5B)
(8h battery life in standby mode)
Internal siren
95dB
Housing material
ABS plastic
Operating conditions
Temperature: -10°C~55°C
Humidity: ≤ 80% (non-condensing)
Control panel dimensions (L x W x H)
188 x 125 x 25 mm
Box content
Control Panel x1
Motion Detector x1
Door / Window Contact x1
Remote Controls x2
RFID Tags x2
AC Adaptor x1
User manual x1
EN
3
www.techly.com
Control Panel Layout (Front)
Control Panel Layout (Back)
Plans and position the alarm system
Power On/O
Adapter interface
24h Zone
Electronic
lock
Wired siren
GND
SPK
LOCK
Z1
+12V
GND
Call
Clear
RFID Reader
Home Mode
LCD Display
Disarm
Record
Arm
SOS
Monitoring MIC
Speaker
Power Supply Interface
Tamper Switch
Power Switch
Battery Compartment
SIM Card Slot
Control panel
Remote control
Outdoor siren
Zone Sensor 1: "Front door"
Zone Sensor 2: "Living room PIR"
Zone Sensor 3: "Entrance window"
Zone Sensor 4: "Terrace Window"
Zone sensor 5: "Terrace door"
Zone sensor 6: "Bedroom Window"
Zone Sensor 7: "Bedroom PIR"
Zone Sensor 8: "Gas kitchen"
Zona sensor 9: "Bath water"
www.techly.com
A
B
C
1
2
3
4
5
6
7
8
9
9
3
A
1
C
B
2
7
6
85
4
EN
5
www.techly.com
Mount the Control Panel
Before mounting the control panel on the wall, make sure the reception of the
GSM signal is sucient.
Fix the wall-mounting bracket on the wall with screws. Wedge the panel on the
bracket, make sure they t well.
Basic Operations
Arm the System
Press the Arm button " " on the control panel. The control panel beeps once:
the system is armed. The LCD display indicates "Armed" and the Arm icon on the
control panel is lit.
Note
If the Entry / Exit Delay is activated, all zones except the 24h zone will be armed
after the delay set (refer to the instructions on page 10 of this manual “Entry
/ Exit Delay”).
Disarm the System
Type your user code and press the Disarm button " " on the control panel. The
control panel beeps twice: the system is disarmed.
Home Mode
Press the Home button " " on the control panel. The control panel beeps once: the
system is armed in Home Mode.
All the sensors assigned to the Normal zone are armed. The sensors assigned to
the Home zone are disarmed.
Emergency Mode
Hold the “#SOS” button for 3 seconds. The alarm is triggered immediately and
the siren rings out. At the same time, the control panel dials the stored phone
numbers.
EN
6
Speed Dial
Press the Call button “ ” on the control panel for 3 seconds: the panel auto-dials
the rst stored phone number. Press the Call button “ ” to end the call.
Hands-free Phone Call from the Panel
Through GSM
Press the Call button“ ” on the control panel, type the phone number you wish to
call and press the Call button “ ” again.
Record / Play a Voice Memo
Long press the Record Voice Memo button to record a 10-second voice message.
The Play Voice Memo Button blinks when a message has been recorded. Push the
center of the RFID reader in the control panel to listen to the voice memo. The
LED indicator turns o when the voice memo is being played. Touch it again to
replay the memo.
Hard Reset
Turn the control panel on. Press the tamper switch at the back of the control panel
5 times wirthin 5 seconds after having turned it on.
Settings will be restored to default values. Stored phone numbers and connected
accessories will be cleared.
EN
8
Main Menu Sub Menu 1 Sub Menu 2 Sub Menu 3
Phone numbers
Phone [1~5] is:
-
SMS Num [ ] Is:1~5
Accessories Remote & Keypad
Add a new 01/10 30
Delete All 1=YES 0=NO
Delete a Remote Input 01-10:
Accessories RFID Tag
Add a new 01/50 30
Delete all 1=YES 0=NO
Delete a Tag Input 01-50:
Accessories Wireless
Sensors
Add a new
Home Zone
Delay Zone
Normal Zine
24-H Zone
Delete all? 1=YES 0=NO
Delete a Sensor Input 01-99:
Accessories Test Mode -
EN
11
www.techly.com
Comments Note
(e.g. 2014-06-20 14H30)
This function can be used if you do not want to bring a
remote control or RFID tag with you. When the system
is armed, you hear one beep every second to remind
you to leave. The beep rhythm speeds up during the last
10 seconds. If an intruder is detected, the alarm will be
delayed accordingly.
Time is calculated in seconds. The Entry and Exit Delay can
be set from 0 to 300 seconds.
The entry and exit delays only
work for sensors connected as
Delay Zone accessories (see
"Wireless" on page 8).
The Entry Delay gives you time
to disarm the system on the
control panel without triggering
an alarm.
The Exit Delay gives you time to
arm the system on the control
panel and leave your home
without triggering an alarm.
You can set up the system to arm and disarm
automatically at a dened time every day.
Setting Auto Arm and Auto Disarm
to the exact same time will
deactivate the function.
You can activate or deactivate the control of your system
by phone call. Activating the control by phone call enables
you to arm and disarm the system and monitor your home
by phone call.
See instructions on page 14 for
more information on the control
of the system by phone call.
Notication of SIM/ GSM signal problem.
Activate or deactivate the sound when typing on the
keyboard of the control panel.
Your admin code enables you to enter the setup menu.
Default admin code: 123456
It is recommended to change all
codes before using your system
for the rst time and to keep
your codes secret
Your user code enables you to disarm the system on
the control panel. The user code is the access code
requested when you call the control panel.
Default user code: 1234
In case of emergency, when you are requested to disarm
the system by force, it is recommended to disarm your
system with your Duress Code. The panel will silently
dial the stored phone numbers.
Default duress code: 1111
You can open electronic doors using this code. The door
must be wired to the [LOCK] interface on the back of the
control panel.
EN
12
Main Menu Sub Menu 1 Sub Menu 2 Sub Menu 3
System Settings Ring Times <1-9>: 5 -
System Settings Siren Alert Time <1-9Min>: 3
System Settings Backlight Time <0-120s>: 30 -
System Settings Siren Setup
Wired Siren
Siren Switch
ON/OFF
Arm/Disarm Tone
ON/OFF
Built-in Siren
Siren Switch
ON/OFF
Arm/Disarm Tone
ON/OFF
Wireless Siren
Siren Switch
ON/OFF
Arm/Disarm Tone
ON/OFF
System Settings User ID On / O -
Disarm Upload On / O -
System Settings Call Recycle <1-9>: 3
System Settings Language - -
System Settings Reset 1=YES 0=NO -
System Settings About About Jun 4 2014 -
History -- -
EN
15
www.techly.com
Note
The call will end automatically if you do not send any command within 30 seconds.
Table of commands for control by phone call
Command Function
Press Arms the system“1”
Press “0”
- Disarms the system and turns the
siren o
- Stops monitoring without hanging
up
- Stops the phone call function
without hanging up
Press Phone call with control panel“3”
Press “ ”
- Starts audio monitoring mode (not
limited in time)
- Stops the built-in siren and the
wireless siren (if connected to the
control panel)
Press “6” Turns all sirens o
Press “9”
- Turns the built-in siren on (whether
the siren ringing settings is ON or
OFF)
- Turns the wireless siren on (if
connected to the control panel)
Press “#”
- Turns all sirens o
- Exits control by phone call
- Stops call recycles
Note
In GSM mode, the audio monitoring is not limited in time.
EN
17
www.techly.com
Disarm the System
Send:
0
System disarmed.
Arm the System
Send:
1
System armed.
Home Mode
Send:
2
System in home mode.
Setting Enquiry
Send:
00
System:Disarmed
AC power:on
Note
The values indicated hereinabove
will change after having set up the
system.
EN
18
Store Phone Numbers
Send:
5
Phone numbers:
1.
2.
3.
4.
5.
Copy, paste, then edit
(case sensitive):
Phone numbers:
1. 067890033
2. 067890022
3. 067890011
4. 067890000
5.
Ok
Store Phone Numbers for SMS
Notications
Send:
6
SMS numbers:
1.
2.
3.
4.
5.
Copy, paste, then edit
(case sensitive):
SMS numbers:
1. 067890033
2. 067890022
3. 067890011
4. 067890000
5.
Ok
Note
The rst SMS number will receive
SMS notications when the system
is disarmed by RFID tag. To start
receiving these notications, you
must rename the RFID tags. Up to 4
RFID tags can be renamed. Other tags
will be attributed a number based on
the order of registration to the control
panel. Refer to the instructions on
page 8 to learn how to register an
RFID tag in the control panel.
EN
23
www.techly.com
Accessories

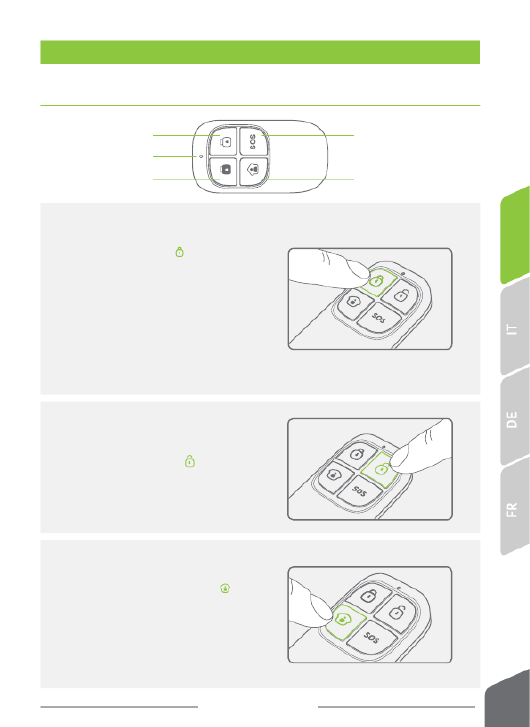

Wireless Remote Control
Home Mode
Arm
SOS
Disarm
LED indicator
Arm the system
Press the Arm button " " to arm the
alarm system. The LED indicator lights
up (the control panel beeps once). The
system is armed.
If an intruder is detected, the siren
rings out. (The siren turns o after 5
minutes as per default settings.) In the
meantime, the system dials the stored
phone numbers automatically.
Disarm the system
Press the Disarm button " " to disarm
the alarm system. The LED indicator
turns o (the control panel beeps
twice). The system is disarmed.
Home Mode
Press the Home Mode button " " on
the remote control. The system state
LED is on. All the sensors in regular
zones are armed except those in the
Home Mode zone. The sensors in the
Home Mode zone are disarmed so that
users can move inside their home.
Produktspecifikationer
| Varumärke: | Techly |
| Kategori: | Larmsystem |
| Modell: | I-ALARM-KIT001 |
Behöver du hjälp?
Om du behöver hjälp med Techly I-ALARM-KIT001 ställ en fråga nedan och andra användare kommer att svara dig
Larmsystem Techly Manualer
6 September 2024
Larmsystem Manualer
- Kidde
- FireAngel
- IKEA
- Vivanco
- Berker
- Steren
- Nedis
- Yale
- Eminent
- KlikaanKlikuit
- Honeywell
- Pyle
- Netatmo
- Redmond
- Schneider
Nyaste Larmsystem Manualer
20 September 2025
19 September 2025
19 September 2025
19 September 2025
19 September 2025
19 September 2025
19 September 2025
19 September 2025
19 September 2025
19 September 2025
