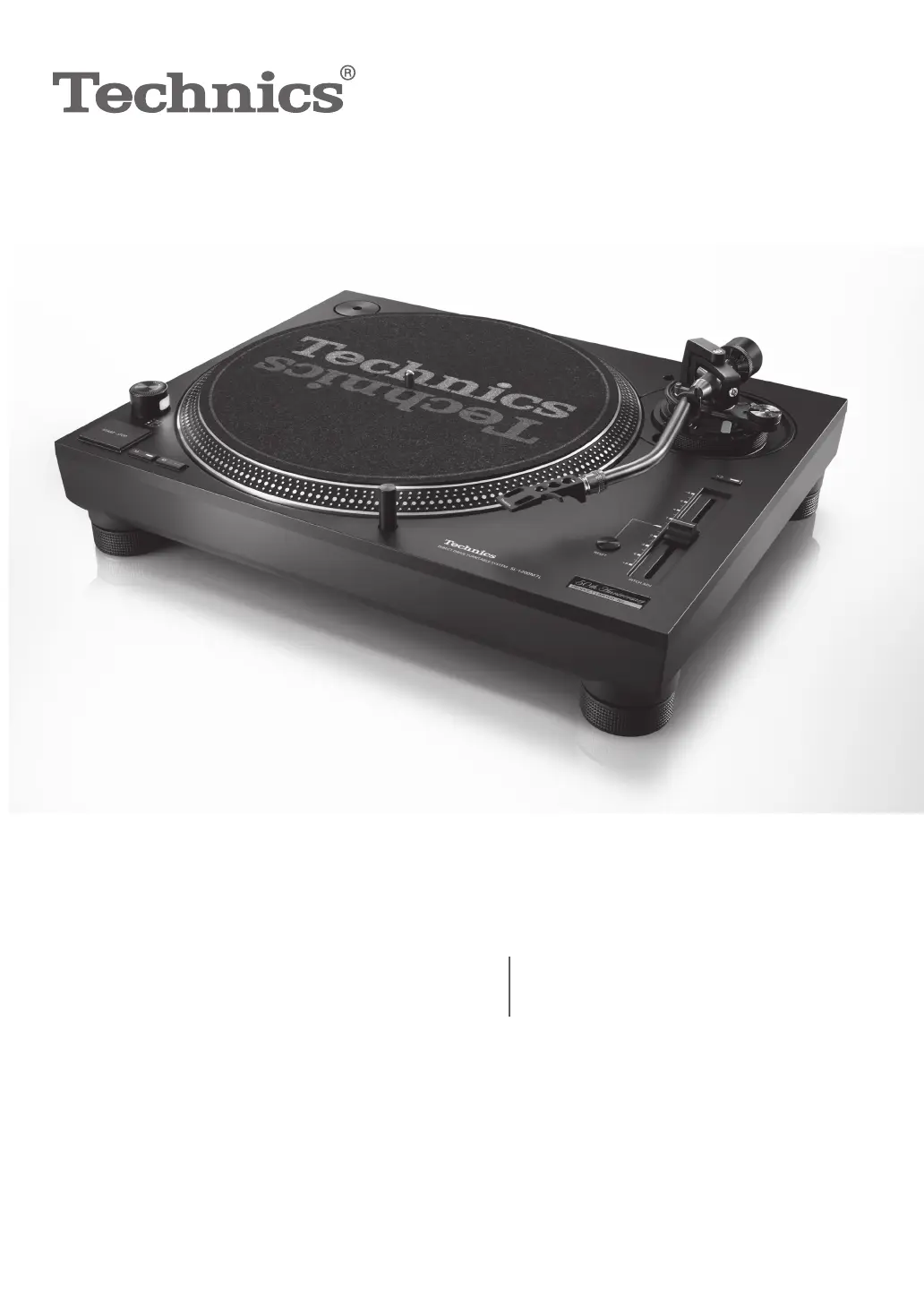

SL-1200M7L

Owner’s Manual

Manuel d’utilisation

Direct Drive Turntable System

Platine tourne-disque à entraînement direct

English

(02)

Delivering the Ultimate Emotive Musical Experience to All

At Technics we understand that the listening experience is not purely about technology but the

magical and emotional relationship between people and music.

We want people to experience music as it was originally intended and enable them to feel the

emotional impact that enthuses and delights them.

Through delivering this experience we want to support the development and enjoyment of the

world’s many musical cultures. This is our philosophy.

With a combination of our love of music and the vast high-end audio experience of the

Technics team, we stand committed to building a brand that provides the ultimate emotive

musical experience by music lovers, for music lovers.

Apportez à tous l’expérience musicale empreinte d’émotions

Chez Technics, nous savons que l’expérience de l’écoute n’est pas purement et simplement une

question de technologie, mais de relation magique entre les personnes et la musique.

Nous voulons que tout un chacun puisse ressentir la musique telle qu’elle a été conçue à

l’origine et lui permettre de ressentir le choc émotionnel qu’il brûle de connaître.

En apportant ce vécu, nous cherchons à accompagner le développement et le plaisir des

nombreuses cultures musicales du monde. Telle est notre philosophie.

Ici et maintenant, alliant l’amour de la musique et la grande expérience musicale de l’équipe

Technics, nous sommes pleinement déterminés à construire une marque qui apporte le vécu

musical émotionnel aux fervents de la musique.

Director

Directeur

Michiko Ogawa

Music is borderless and timeless, touching people’s hearts across cultures and generations.

Each day the discovery of a truly emotive experience from an unencountered sound awaits.

Let us take you on your journey to rediscover music.

Sans frontières, la musique est aussi intemporelle, touchant le coeur des gens en traversant les

cultures et les générations.

Tous les jours, nous attendons la révélation d’une expérience émotionnelle authentique à partir d’un

son venu de nulle part.

Permettez-nous de vous emmener en voyage pour redécouvrir la musique.

Before use Getting started Playing

back Maintenance

English

(03) 03

Table of contents

Before use

IMPORTANT SAFETY INSTRUCTIONS ............04

Accessories ...................................................06

Parts Name ...................................................08

Getting started

Putting the player together ...........................09

Attaching the cartridge ...........................09

Attaching the head shell ..........................09

Before fitting the turntable ......................11

Fitting the turntable ................................11

Fitting the slipmat ...................................11

Attaching the balance weight ..................11

To remove turntable ................................11

Connections and installation .........................12

 Connecting to a pre-main amplifier or

component system /

Connecting to a mixer .............................12

Installation ..............................................13

Fit the dust cover .....................................13

Adjustment ...................................................14

Horizontal balance ..................................14

Stylus pressure ........................................14

Anti-skating .............................................15

Tone arm height ......................................16

Armlift height ..........................................17

 Operation settings

( LED color setting / Reverse playback

setting / 78 rpm setting /

Torque setting / Brake setting) ...............17

Playing back

Playing records ..............................................18

Pitch control

(fine adjustment to pitch) ..............................20

Maintenance

Maintenance .................................................21

Troubleshooting guide ..................................22

Specifications ................................................23

Limited Warranty (ONLY FOR U.S.A.) ............24

Limited Warranty (ONLY FOR CANADA) ........25

Thank you for purchasing this product.

Please read these instructions carefully before

using this product, and save this manual for

future use.

About descriptions in these operating instructions

- Pages to be referred to are indicated as “(

 00)”.

- The illustrations shown may differ from your unit.

If you have any questions, visit:

U.S.A.: http://shop.panasonic.com/support

Canada: www.panasonic.ca/english/support

http://shop.panasonic.com/support

(U.S. customers only)

Features

Introduction

Coreless direct drive motor for high torque

and reliability

The newly developed coreless direct drive motor

can reduce minute vibration during rotation while

maintaining high torque.

The high-precision motor control technology

switches the drive mode depending on the

operational status of the motor and thus enables

high torque and stability.

The digital control method improves tracking and

accuracy, allowing for accurate and stable pitch

control.

High-precision bearings for highly sensitive

tone arm

The machine-cut, high-precision bearing used in

the tone arm bearing with gimbal suspension

allows for improved tracking, making skating less

likely even during the most intense performances.

Vibration-cutting highly rigid cabinet and

high-damping insulator



This unit is designed to not only deliver high-quality

sound and high feedback resistance, but also to

efficiently cut off external vibration in very loud

environments.

Functions to deliver a wide range of

performances

Allows for torque and brake speed adjustment.

Allows for reverse playback.

Allows the user to select from two LED lamp

colors depending on user’s preferences or the

environment.
